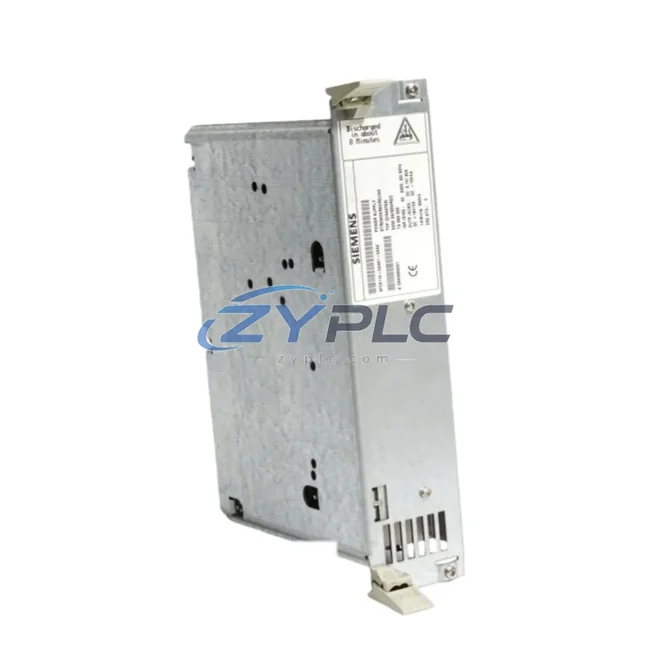

Siemens 6FC5114-0AA01-0AA2 NCU SINUMERIK 840D

Siemens 6FC5114-0AA01-0AA2 NCU for SINUMERIK 840D: and Upstream-Downstream Coordination

The Siemens 6FC5114-0AA01-0AA2 is a Numerical Control Unit (NCU) designed for deployment within the SINUMERIK 840D CNC platform — one of the most widely adopted high-performance motion control architectures in global manufacturing. Rather than functioning as a standalone component, this NCU serves as the computational and coordination core of a layered automation system, interfacing directly with drive systems, I/O modules, operator panels, and communication networks to deliver synchronized, deterministic machine control across multi-axis configurations.

In a complete SINUMERIK 840D control architecture, the 6FC5114-0AA01-0AA2 occupies the central control layer, where it executes interpolation, axis management, PLC logic, and real-time communication simultaneously. Its integration with the SIMODRIVE 611D or SINAMICS S120 drive family enables closed-loop position and velocity control across multiple CNC axes, while its onboard PROFIBUS DP interface ensures deterministic data exchange with distributed I/O nodes, operator terminals, and safety modules. This system integration capability is what distinguishes the 840D platform from simpler motion controllers — every component in the system is architecturally aware of its neighbors.

Product Specification Table

System Compatibility Notes

The 6FC5114-0AA01-0AA2 does not operate in isolation — its value is realized through its role as the architectural hub of a complete SINUMERIK 840D system. In a typical machine tool or transfer line deployment, this NCU works in close coordination with the following components and module types:

At the power layer, the NCU receives its 24 VDC logic supply from a dedicated NE module (infeed/regenerative unit) or an NX expansion module, which also conditions DC bus power for the connected SIMODRIVE 611D drive modules. Proper power sequencing between the NE module and the NCU is critical during startup and fault recovery routines.

At the drive layer, the NCU communicates with SIMODRIVE 611D servo and spindle drive modules via the internal drive bus, enabling real-time torque, speed, and position commands across all configured axes. In newer 840D sl configurations, SINAMICS S120 drive modules connected via DRIVE-CLiQ replace the legacy 611D architecture, but the NCU’s role as the command source remains unchanged.

At the I/O layer, distributed I/O nodes — including ET 200S, ET 200M, or PP 72/48 I/O modules — connect to the NCU via PROFIBUS DP, extending digital and analog signal capacity to machine peripherals such as tool changers, coolant systems, clamping fixtures, and safety interlocks. The NCU’s onboard PLC core processes these I/O signals in parallel with CNC interpolation, ensuring machine logic and motion remain tightly synchronized.

At the operator interface layer, the NCU connects to SINUMERIK operator panels such as the OP 010, OP 012, or OP 015 via MPI or Ethernet, providing the human-machine interface through which operators load programs, monitor axis positions, and manage alarms. In networked environments, the PCU 50 or PCU 20 computing unit may be paired with the NCU to extend HMI functionality and support advanced shopfloor programming tools.

At the network and communication layer, the NCU supports integration into plant-level SCADA and MES systems via Ethernet, enabling production data collection, remote diagnostics, and program management. PROFIBUS DP connectivity also supports integration with safety modules such as the SINUMERIK Safety Integrated function blocks, which coordinate with external safety relays and emergency stop circuits.

At the expansion and redundancy layer, additional NCU modules or NX axis expansion units can be added to the system to increase axis count or provide redundant control paths in high-availability applications. Proper configuration of the PROFIBUS DP address scheme and drive parameterization ensures that expanded systems maintain deterministic communication timing across all nodes.

Industrial Application Notes

The Siemens 6FC5114-0AA01-0AA2 NCU is deployed across a wide range of industrial sectors where precision motion control and system reliability are non-negotiable requirements.

In metal cutting and machining centers, this NCU manages simultaneous multi-axis interpolation for milling, turning, grinding, and boring operations. Its ability to coordinate spindle speed, feed rate, and tool path in real time makes it suitable for high-precision aerospace component machining, automotive powertrain manufacturing, and die and mold production.

In power generation and heavy industry, SINUMERIK 840D systems equipped with this NCU are used to control large-format machining equipment for turbine blade profiling, generator shaft turning, and pressure vessel fabrication. The NCU’s robust communication architecture supports integration with plant DCS systems via PROFIBUS or OPC-UA gateways.

In packaging and assembly lines, the NCU’s onboard PLC and motion coordination capabilities enable synchronized multi-station control, where conveyor positioning, robotic pick-and-place, and sealing or labeling operations must execute within tight timing windows. The PROFIBUS DP network connecting ET 200S I/O nodes to the NCU provides the signal bandwidth required for high-speed discrete event processing.

In process industries such as petrochemical, water treatment, and mining, SINUMERIK 840D platforms are used in specialized applications including extruder control, winding systems, and large-scale pump and compressor drive coordination. The NCU’s ability to manage both CNC and PLC functions on a single module reduces cabinet footprint and simplifies system architecture in space-constrained installations.

Across all these applications, the 6FC5114-0AA01-0AA2 benefits from Siemens’ long-term platform commitment to the SINUMERIK 840D ecosystem, ensuring that spare parts, firmware updates, and engineering support remain available throughout the machine’s operational lifecycle. ZYPLC maintains availability subject to RFQ confirmation of this NCU module and provides a warranty terms confirmed during quotation on all units shipped, supporting both new machine builds and retrofit projects where legacy 840D systems require control module replacement.

Product Compatibility FAQ

Q1: Is the 6FC5114-0AA01-0AA2 compatible with both SINUMERIK 840D and 840D sl configurations?
The 6FC5114-0AA01-0AA2 is a first-generation SINUMERIK 840D NCU module and is designed for use within the classic 840D hardware platform, which uses SIMODRIVE 611D drive modules and the legacy NCU box architecture. It is not directly interchangeable with 840D sl NCU 7×0.x modules, which use a different form factor and DRIVE-CLiQ-based drive communication. Before integrating this NCU into an existing system, verify the hardware generation of your control cabinet, drive modules, and operator panel to ensure full architectural compatibility.

Q2: What engineering steps are required to commission this NCU in a replacement or retrofit scenario?
Commissioning the 6FC5114-0AA01-0AA2 in a replacement scenario requires restoring the machine-specific NCK and PLC configuration data from a backup archive, re-establishing PROFIBUS DP node addresses for all connected I/O and drive modules, and verifying axis parameterization through the SINUMERIK startup tool or SIMATIC Manager. Drive module parameters stored in the SIMODRIVE 611D units must also be verified or reloaded to ensure correct axis assignment and safety function configuration. ZYPLC recommends retaining the original machine documentation and backup data prior to any NCU replacement.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term maintenance?
The warranty terms confirmed during quotation provided by ZYPLC covers hardware defects and functional failures under normal operating conditions from the date of shipment. Units that exhibit faults within the warranty period are eligible for replacement or repair at no additional cost. For long-term maintenance planning, ZYPLC maintains ongoing stock of SINUMERIK 840D NCU modules and associated components, enabling rapid sourcing for both scheduled preventive maintenance and unplanned breakdown scenarios. Customers requiring extended support or multi-unit supply agreements are encouraged to contact ZYPLC directly to discuss inventory reservation and technical coordination services.
