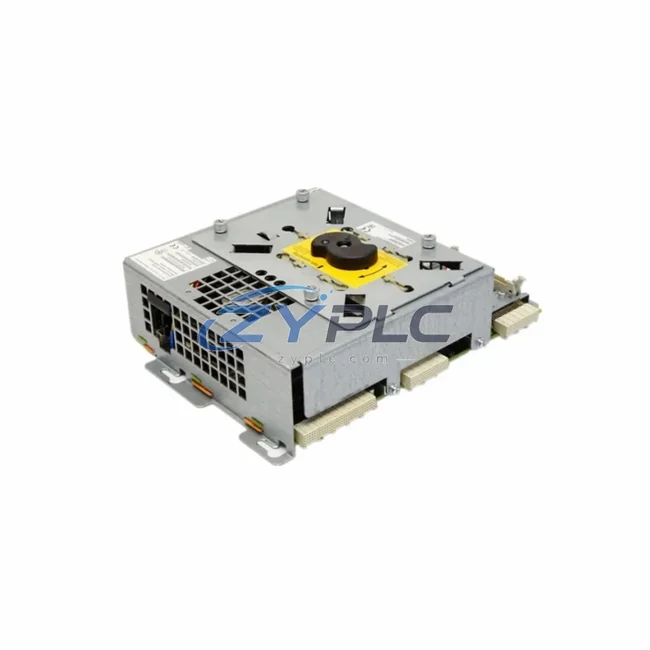

Siemens 6FC5210-0DA20-2AA1 CNC Control for 840D

Siemens 6FC5210-0DA20-2AA1 CNC Control for SINUMERIK 840D

The Siemens 6FC5210-0DA20-2AA1 is an MMC103 (Man-Machine Communication) module engineered as a central operator interface and data management unit within the SINUMERIK 840D CNC control architecture. Designed for high-performance multi-axis machining centers, turning systems, and complex milling platforms, this module bridges the gap between the human operator and the underlying numerical control kernel. Within a fully integrated SINUMERIK 840D system, the MMC103 manages part program storage, tool management databases, diagnostic visualization, and real-time process monitoring — all critical functions that determine the efficiency and reliability of modern CNC production cells.

In the layered architecture of the SINUMERIK 840D platform, the 6FC5210-0DA20-2AA1 occupies the operator-level control tier, interfacing directly with the NCU (Numerical Control Unit) such as the 6FC5357-0BB35-0AA0 through a high-speed MPI or PROFIBUS-DP communication link. This tight coupling ensures that operator commands, program edits, and diagnostic queries are transmitted with minimal latency to the real-time motion control layer. The NCU, in turn, coordinates axis interpolation and PLC logic execution, distributing drive-level setpoints to SIMODRIVE 611 series modules including units like the 6SN1123-1AA00-0DA2 power module and the 6SN1118-0DM33-0AA2 control card. Together, these components form a closed-loop servo architecture capable of sub-micron positioning accuracy across multiple synchronized axes.

The MMC103 module communicates upstream with plant-level SCADA and MES systems through Ethernet-based industrial protocols, enabling production data acquisition, recipe management, and remote diagnostics. At the field level, the SINUMERIK 840D system relies on distributed I/O through ET 200 stations or direct PROFIBUS-DP peripherals, with interface modules such as the 6FC5111-0CA02-0AA2 handling signal conditioning between the CNC kernel and external sensors, limit switches, and safety interlocks. The 6FC5210-0DA20-2AA1 aggregates alarm data, cycle time statistics, and tool wear information from these distributed nodes, presenting operators with a unified diagnostic dashboard that accelerates troubleshooting and reduces mean time to repair.

Power integrity within the SINUMERIK 840D rack is maintained by dedicated power supply units such as the 6SN1145-1BA02-0CA2 infeed/regenerative module, which provides stable DC bus voltage to all drive and control components. The MMC103 itself draws regulated low-voltage power from the rack backplane, ensuring that operator interface functions remain available even during transient load conditions on the drive bus. This architectural separation between control power and drive power is a hallmark of the SINUMERIK 840D design philosophy, contributing to system resilience and uptime in demanding production environments.

For machine builders and system integrators, the 6FC5210-0DA20-2AA1 supports flexible configuration through SINUMERIK Operate or the legacy HT8 operator panel interface. Software options for ShopMill, ShopTurn, and programGUIDE can be activated on the MMC103 platform, enabling conversational programming and graphical simulation directly at the machine. The module accommodates CompactFlash-based program storage, allowing rapid backup and transfer of part programs, tool databases, and machine parameters between identical machines on the shop floor — a critical capability for standardized production cells and flexible manufacturing systems.

Within a typical SINUMERIK 840D control cabinet, the MMC103 is mounted alongside the NCU, MCP (Machine Control Panel) such as the 6FC5203-0AF22-0AA2, and the operator panel front including OP012 or OP015 series displays. Cable assemblies including the 6FC5548-0BA20-1AA0 connect the MMC103 to the operator panel, while PROFIBUS connectors and MPI cables establish communication with the NCU and external PLC systems such as the SIMATIC S7-300 series. This modular cabling architecture simplifies field replacement and upgrade procedures, minimizing machine downtime during maintenance windows.

The redundancy and diagnostic capabilities embedded in the SINUMERIK 840D architecture ensure that the MMC103 module can detect and report hardware faults, communication timeouts, and software exceptions in real time. Integrated watchdog timers and heartbeat monitoring between the MMC103 and NCU provide automatic fault escalation, enabling the machine PLC to execute safe-stop sequences when critical communication links are interrupted. These safety-oriented design features align with the requirements of ISO 13849 and IEC 62443 for industrial control system integrity and cybersecurity.

From an inventory and lifecycle management perspective, the Siemens 6FC5210-0DA20-2AA1 remains a widely deployed component in legacy and mid-generation SINUMERIK 840D installations worldwide. ZYPLC maintains ready stock of this module along with compatible NCU, drive, and interface components to support urgent replacement, planned overhaul, and system expansion projects. Every unit ships with comprehensive functional testing and a warranty terms confirmed during quotation, ensuring that your CNC control architecture is restored to full operational capability with minimal risk and maximum confidence.

Product Specification Table

System Compatibility Notes

The Siemens 6FC5210-0DA20-2AA1 MMC103 module functions as the operator-facing intelligence layer within a coordinated SINUMERIK 840D control system. In a typical multi-axis CNC machining center, the MMC103 works in concert with the NCU 6FC5357-0BB35-0AA0, which executes real-time interpolation, PLC logic, and axis control algorithms. Drive-level power conversion is handled by SIMODRIVE 611 power modules such as the 6SN1123-1AA00-0DA2, regulated by corresponding control cards like the 6SN1118-0DM33-0AA2 that close the position and velocity loops at microsecond cycle times.

The DC bus powering the drive system is supplied by the 6SN1145-1BA02-0CA2 active line module, which also provides regenerative braking energy recovery during rapid deceleration events. Signal-level interfacing between the CNC kernel and machine-mounted sensors is managed through terminal modules such as the 6FC5111-0CA02-0AA2, ensuring clean signal conditioning for encoder feedback, proximity switches, and safety circuits.

Operator interaction is facilitated through the MCP 6FC5203-0AF22-0AA2 and connected OP panel, linked to the MMC103 via dedicated cable assemblies including the 6FC5548-0BA20-1AA0. This layered architecture — spanning operator interface, numerical control, drive regulation, power infeed, and field I/O — delivers the deterministic performance and diagnostic transparency required for precision manufacturing operations.

Industrial Application Notes

The SINUMERIK 840D architecture anchored by the 6FC5210-0DA20-2AA1 MMC103 module finds extensive application across diverse industrial sectors. In aerospace manufacturing, multi-axis gantry mills and 5-axis machining centers rely on the MMC103 for complex part program management, tool path simulation, and adaptive feed rate optimization. The module’s ability to store and rapidly recall large part programs from CompactFlash media is essential for machining structural components with thousands of tool path segments.

In automotive powertrain production, transfer lines and flexible machining cells equipped with SINUMERIK 840D controls use the MMC103 for centralized recipe management, enabling rapid changeover between engine block variants, cylinder head configurations, and transmission housing geometries. The diagnostic visualization capabilities of the MMC103 allow maintenance teams to identify spindle bearing degradation, axis backlash trends, and thermal drift patterns before they impact part quality.

Heavy industry applications including large-bore turning, roll grinding, and plate processing machines leverage the SINUMERIK 840D platform for its robust multi-channel capability, where the MMC103 coordinates operator access to multiple independent machining channels within a single control system. In mold and die manufacturing, the MMC103 supports high-speed cutting strategies with look-ahead path optimization, ensuring surface finish quality on complex 3D contours while maintaining tight dimensional tolerances.

Energy sector applications such as turbine blade machining, generator rotor turning, and wind turbine component processing depend on the reliability and diagnostic depth of the SINUMERIK 840D architecture. The MMC103 module’s integration with plant-level MES and SCADA systems enables production traceability, quality documentation, and regulatory compliance reporting required in these safety-critical industries.

Product Compatibility FAQ

Q1: Is the 6FC5210-0DA20-2AA1 MMC103 compatible with all SINUMERIK 840D NCU variants?
A1: The MMC103 module is designed for use with SINUMERIK 840D systems equipped with NCU 572.x and NCU 573.x series units, including the 6FC5357-0BB35-0AA0. Compatibility depends on the NCU software version and the MPI/PROFIBUS communication configuration. Before installation, verify that the NCU firmware version supports the MMC103 hardware revision shipped. ZYPLC provides technical consultation to confirm system compatibility prior to dispatch, and every module is covered by a warranty terms confirmed during quotation.

Q2: How does the MMC103 integrate with existing SIMODRIVE 611 drive systems and distributed I/O?
A2: The MMC103 communicates with the NCU via MPI bus, and the NCU in turn manages all drive-level and I/O communications over PROFIBUS-DP. The MMC103 does not directly control drives or I/O but provides the operator interface for monitoring drive status, configuring axis parameters, and diagnosing communication faults across the entire PROFIBUS network including SIMODRIVE 611 modules and ET 200 distributed I/O stations.

Q3: What maintenance and long-term support considerations apply to the 6FC5210-0DA20-2AA1?
A3: Key maintenance items include periodic backup of CompactFlash data, inspection of MPI and PROFIBUS cable connections, and monitoring of the module’s internal cooling fan if equipped. As a legacy component, sourcing genuine replacement units is critical for maintaining system integrity. ZYPLC stocks tested and verified 6FC5210-0DA20-2AA1 modules with a warranty terms confirmed during quotation, supporting both emergency replacement and planned lifecycle management for SINUMERIK 840D installations worldwide. Contact plc.sales@zyplc.com or call +86 19859288691 for availability and technical support.
