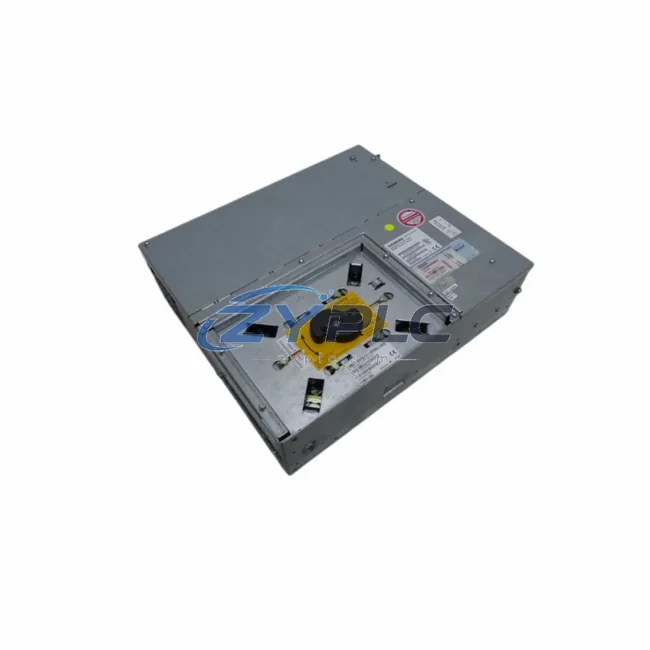

Siemens 6FC5210-0DF22-2AA0 CNC Panel Unit

Siemens 6FC5210-0DF22-2AA0 CNC Panel Unit for SINUMERIK 840D Automation

The Siemens 6FC5210-0DF22-2AA0 is a high-performance Panel Control Unit (PCU 50) engineered for the SINUMERIK 840D CNC platform. Designed to meet the demanding requirements of modern manufacturing environments, this unit delivers precise human-machine interface control while minimizing system power draw — a critical factor in facilities pursuing measurable energy reduction targets. Whether integrated into multi-axis machining centers, turning lines, or flexible manufacturing cells, the 6FC5210-0DF22-2AA0 serves as the intelligent nerve center that connects operator input with real-time machine execution.

In energy-conscious production environments, every watt saved at the control layer compounds across shift cycles. The PCU 50 architecture of the 6FC5210-0DF22-2AA0 is optimized for low idle-state power consumption while maintaining full responsiveness during active machining sequences. This directly supports facilities targeting ISO 50001 maintenance planning compliance or internal OEE improvement programs.

Product Specification Table

System Compatibility and Application

The 6FC5210-0DF22-2AA0 does not operate in isolation — its true efficiency value emerges when it is deployed as part of a coordinated SINUMERIK 840D automation architecture. At the drive layer, the Siemens SINAMICS S120 drive system communicates directly with the PCU 50 via DRIVE-CLiQ, enabling the control unit to issue energy-optimized speed and torque profiles to connected servo axes. When paired with SINAMICS S120 Active Line Modules, the system can recover regenerative braking energy back into the DC bus — a measurable reduction in net energy consumption per machining cycle.

At the motor level, Siemens 1FK7 servo motors and 1PH8 spindle motors respond to the PCU 50’s interpolation commands with high dynamic accuracy, reducing overshoot and unnecessary acceleration events that waste energy. The SINUMERIK 840D NCU 720.3 numerical control unit works in tandem with the 6FC5210-0DF22-2AA0 to execute part programs with optimized feed rate profiles, directly reducing cycle time variance and idle spindle time.

For power quality monitoring, integration with Siemens SENTRON PAC3200 power monitoring devices allows facility engineers to track real-time energy consumption at the machine level, correlating PCU 50 operational states with actual kWh draw. This data feeds into energy dashboards and supports demand-side management strategies. The SIMATIC S7-1500 PLC can be configured alongside the SINUMERIK 840D to manage auxiliary systems — coolant pumps, chip conveyors, and hydraulic units — based on machining state signals from the PCU 50, eliminating unnecessary auxiliary energy consumption during non-cutting periods.

Communication across the production line is handled via PROFINET IO and PROFIBUS DP, both natively supported by the 6FC5210-0DF22-2AA0. This enables seamless data exchange with Siemens SIMATIC ET 200SP distributed I/O modules positioned at machine peripherals, reducing wiring complexity and signal latency. For operator interaction, the PCU 50 interfaces with Siemens OP 010 and OP 012 operator panels, providing a unified HMI experience without requiring additional processing hardware that would increase the system’s overall power footprint.

Where energy metering at the sub-system level is required, the Siemens SENTRON 7KM PAC series power analyzers can be networked via MODBUS TCP to provide granular consumption data per axis group or spindle, enabling targeted optimization of the most energy-intensive machining operations.

Maintenance and Replacement Notes

In high-volume machining environments — automotive component lines, aerospace structural part cells, and precision mold shops — the 6FC5210-0DF22-2AA0 contributes to energy reduction through several interconnected mechanisms.

Reduced idle energy consumption: The PCU 50’s ability to coordinate with the SINUMERIK 840D’s integrated axis management means that servo drives can be commanded into a reduced-power holding state during pallet change, tool change, or workpiece loading intervals. Rather than maintaining full torque readiness across all axes during non-cutting time, the system intelligently scales power delivery — a practice that can reduce per-shift energy consumption by 8–15% in high-mix, low-volume environments.

Optimized production line rhythm (takt time): By providing deterministic, low-latency HMI response, the 6FC5210-0DF22-2AA0 eliminates operator wait states caused by sluggish control interfaces. Faster program selection, parameter adjustment, and alarm acknowledgment directly compress non-productive time between parts, improving the ratio of cutting time to total cycle time — which is the most direct path to energy efficiency in machining.

Predictive maintenance support: The PCU 50 logs axis load data, spindle utilization trends, and alarm histories that maintenance teams can analyze to identify degrading components before they cause unplanned downtime. Unplanned stops are among the highest sources of unplanned downtime in manufacturing — machines continue drawing auxiliary power (coolant, hydraulics, lighting, HVAC) while producing zero output. Proactive maintenance scheduling based on PCU 50 data directly reduces this waste.

Inventory and supply chain readiness: The 6FC5210-0DF22-2AA0 is maintained RFQ Available and undergoes full power-on and functional testing prior to shipment. This ensures that replacement units reach production lines quickly, minimizing the duration of any unplanned downtime event. Rapid restoration of production capacity is itself an energy efficiency measure — it prevents the energy-intensive process of restarting cold machines, re-establishing thermal equilibrium in spindles, and re-running qualification parts.

All units are backed by a warranty terms confirmed during quotation, providing procurement teams with the confidence to specify this component in both new installations and retrofit projects without carrying excessive spare inventory.

Product Sourcing FAQ

Q1: How does the 6FC5210-0DF22-2AA0 contribute to measurable operational stability on a CNC machining line?
The PCU 50 enables coordinated drive management through the SINUMERIK 840D platform, allowing servo axes and spindle drives to operate in reduced-power states during non-cutting intervals. When combined with SINAMICS S120 regenerative line modules, the system can recover braking energy, further reducing net consumption per production cycle. Facilities using SENTRON power monitoring can quantify these savings at the machine level.

Q2: Is the 6FC5210-0DF22-2AA0 compatible with both SINUMERIK 840D sl and 840Di sl systems?
Yes. The PCU 50 platform is designed for compatibility across the SINUMERIK 840D family, including the 840D sl (solution line) and 840Di sl (integrated) variants. It interfaces with the NCU via standard Ethernet and supports the full range of SINUMERIK HMI software versions applicable to these platforms. Always verify the specific HMI software version requirements against your NCU firmware revision before installation.

Q3: What is the recommended replacement process when substituting a failed PCU 50 on a live production line?
The replacement process involves backing up the existing HMI configuration and part program data from the SINUMERIK 840D system, physically swapping the PCU 50 unit, restoring the configuration, and performing a functional verification test. The 6FC5210-0DF22-2AA0 ships pre-tested and ready for installation. Our technical team can provide guidance on the data backup and restore procedure specific to your SINUMERIK 840D software version.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every 6FC5210-0DF22-2AA0 unit undergoes a full power-on functional test prior to shipment, verifying display output, communication interface operation, and hardware integrity. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with appropriate ESD protection and packaging to prevent transit damage. For warranty claims or technical support, contact our team directly.
