Siemens 6FC5210-0DF31-2AB0 Industrial Network Interface for SINUMERIK Systems

Siemens 6FC5210-0DF31-2AB0 Industrial Network Interface for SINUMERIK Systems: Bridging the Industrial Data Link in Smart Factory Environments

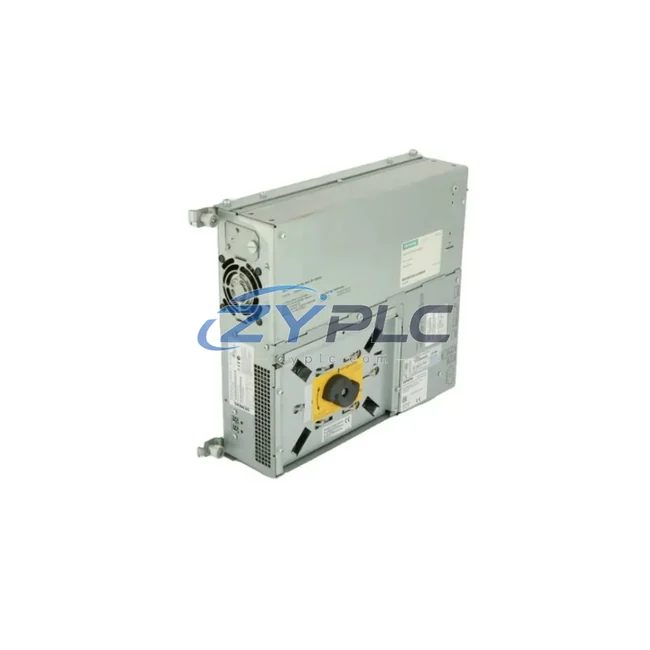

The Siemens 6FC5210-0DF31-2AB0 is a high-performance Panel Control Unit (PCU 50.3B-C) engineered for seamless integration within SINUMERIK CNC automation architectures. Designed to serve as a critical industrial network interface, this unit enables robust PROFINET communication between CNC machine tools, PLC controllers, remote I/O modules, HMI panels, SCADA platforms, and upper-level MES/ERP systems. In an era where smart factory connectivity defines competitive advantage, the 6FC5210-0DF31-2AB0 delivers the data throughput, protocol compatibility, and network stability that modern industrial sites demand.

At its core, this PCU functions as the nerve center of the SINUMERIK control platform, aggregating real-time signals from field devices and translating them across the PROFINET backbone. Whether coordinating axis motion data from servo drives, receiving feedback from distributed I/O racks, or pushing production metrics to a SCADA dashboard, the 6FC5210-0DF31-2AB0 ensures that every node in the automation chain communicates with precision and minimal latency.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the 6FC5210-0DF31-2AB0 sits at the intersection of machine-level control and plant-wide data infrastructure. Signal acquisition begins at the field layer: proximity sensors, encoders, and temperature transducers feed real-time process values into the SINUMERIK 840D sl NCU (Numerical Control Unit), which communicates with the PCU over the internal PROFINET ring. The PCU then aggregates this data and exposes it upstream to the Simatic S7-1500 PLC via PROFINET IO, enabling coordinated multi-axis motion sequencing and safety interlock logic.

Distributed I/O expansion is handled through ET 200SP remote I/O stations connected on the same PROFINET segment, allowing the 6FC5210-0DF31-2AB0 to extend its reach across large machining cells without additional cabling complexity. HMI visualization is delivered through the Siemens TP1500 Comfort Panel or SINUMERIK Operate interface running directly on the PCU, giving operators a unified view of spindle speed, feed rate, alarm states, and tool life data.

For drive-level integration, the PCU coordinates with Sinamics S120 servo drive systems via PROFINET, enabling closed-loop position control with sub-millisecond cycle times. Alarm and diagnostic data from the drives — including overcurrent faults, encoder errors, and thermal warnings — are captured by the PCU and forwarded to the WinCC SCADA server over the plant Ethernet backbone. This creates a continuous, bidirectional data pipeline from the servo motor shaft all the way to the MES dashboard.

Edge computing capabilities are further enhanced when the 6FC5210-0DF31-2AB0 is paired with a Siemens SINUMERIK Edge gateway, enabling local data preprocessing, OPC UA publishing, and cloud connectivity without burdening the real-time control layer. Industrial Ethernet switches — such as the Scalance X208 — provide the managed network infrastructure that ensures deterministic PROFINET frame delivery across the factory floor.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy manufacturing environments is protocol fragmentation: machines running proprietary fieldbus systems — Profibus DP, RS-232 serial, or vendor-specific CNC interfaces — that cannot natively exchange data with modern Ethernet-based SCADA or MES platforms. The Siemens 6FC5210-0DF31-2AB0 directly addresses this by acting as a protocol bridge within the SINUMERIK ecosystem, converting legacy NCK (Numerical Control Kernel) data into PROFINET-compatible formats that upper systems can consume without custom middleware.

Data silos are eliminated through the PCU’s ability to simultaneously manage real-time control tasks and IT-layer data publishing. Production counts, cycle times, spindle utilization, and alarm histories are continuously written to shared memory areas accessible by the SINUMERIK Integrate platform, which then pushes structured datasets to MES or ERP systems via OPC UA or REST APIs. This transforms isolated CNC machines into transparent, data-rich nodes within the smart factory network.

Remote diagnostics and predictive maintenance are enabled through the PCU’s network connectivity: maintenance engineers can access the SINUMERIK control remotely via VPN-secured Ethernet connections, review alarm logs, update NC programs, and perform parameter backups without physical presence on the shop floor. This capability dramatically reduces unplanned downtime and accelerates fault resolution across multi-site manufacturing operations.

System scalability is a core design principle of the SINUMERIK PCU architecture. As production lines expand, additional NCU modules, remote I/O stations, and drive axes can be added to the PROFINET network without replacing the PCU, protecting the capital investment in the 6FC5210-0DF31-2AB0 over the full lifecycle of the machine tool.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens 6FC5210-0DF31-2AB0 support, and is it compatible with non-Siemens SCADA systems?
The 6FC5210-0DF31-2AB0 natively supports PROFINET IO as its primary industrial Ethernet protocol, with OPC UA available through the SINUMERIK Integrate software layer. This makes it compatible with a wide range of SCADA platforms — including Wonderware, Ignition, and FactoryTalk — that support OPC UA client connections, enabling cross-vendor system integration without proprietary gateways.

Q2: What is the typical network latency for real-time data exchange on PROFINET with this PCU?
PROFINET IRT (Isochronous Real-Time) mode on the SINUMERIK platform achieves cycle times as low as 250 microseconds for motion-critical data, while standard RT (Real-Time) mode operates at 1–4 ms cycles for I/O and diagnostic data. This ensures that the 6FC5210-0DF31-2AB0 meets the determinism requirements of high-speed CNC machining applications.

Q3: How is network stability ensured in high-EMI industrial environments?
The PCU is designed to operate within the electromagnetic compatibility (EMC) standards required for industrial automation environments (EN 61000 series). When deployed with shielded PROFINET cables (Cat 5e/6 STP) and managed Ethernet switches such as the Scalance X series, the network maintains stable frame delivery even in environments with significant electrical noise from servo drives and welding equipment.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every Siemens 6FC5210-0DF31-2AB0 unit supplied by ZYPLC undergoes functional verification testing prior to shipment, including power-on checks, PROFINET interface validation, and communication port testing. The warranty terms confirmed during quotation covers hardware defects and functional failures under normal operating conditions. Units are shipped via DHL or FedEx with full tracking, and our technical team provides post-sale support for integration and commissioning queries.

—
