Siemens 6FC5303-0AF22-0AA1 CNC Operation Panel for SINUMERIK 840D Systems

Siemens 6FC5303-0AF22-0AA1: Industrial Data Link for SINUMERIK 840D Smart Factory Networks

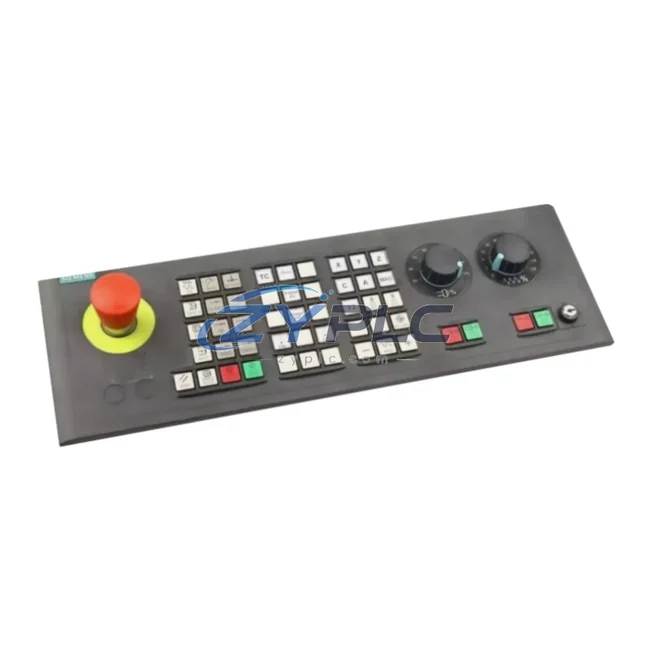

The Siemens 6FC5303-0AF22-0AA1 is a high-performance CNC Operation Panel engineered for the SINUMERIK 840D control platform, delivering robust PROFIBUS-based industrial network communication across complex manufacturing environments. Designed to serve as a critical node in the industrial data chain, this panel bridges the gap between field-level devices and upper-level control systems — enabling real-time signal acquisition, protocol-transparent data transmission, and seamless integration with SCADA, HMI, and MES architectures in smart factory deployments.

In modern industrial automation, the integrity of the data link between the CNC controller and peripheral devices determines the responsiveness and reliability of the entire production line. The 6FC5303-0AF22-0AA1 fulfills this role by providing a stable, low-latency PROFIBUS DP interface that connects the SINUMERIK 840D NCU (Numerical Control Unit) to a wide range of field devices — including servo drives, remote I/O modules, distributed sensors, and operator terminals — without introducing communication bottlenecks or protocol mismatches.

Compatibility & Integration Notes

Connected Automation Data Flow

The 6FC5303-0AF22-0AA1 sits at the heart of a layered industrial communication architecture. At the field level, it interfaces directly with the SINUMERIK 840D NCU 710.3 or NCU 720.3, receiving axis position data, spindle feedback, and alarm states via the PROFIBUS DP bus. This data is then relayed upward through the network to the OP 010 or OP 012 operator panels, where machine operators interact with the CNC program in real time.

Within the same PROFIBUS segment, the 6FC5303-0AF22-0AA1 coexists with Siemens SINAMICS S120 drive systems, which manage multi-axis servo coordination for precision machining. The PROFIBUS link ensures that torque commands, speed references, and encoder feedback are exchanged within deterministic cycle times — a prerequisite for tight contouring accuracy in five-axis machining centers.

Expanding further into the plant network, the panel’s data output feeds into the SIMATIC S7-300 or S7-400 PLC layer, where ladder logic and function block programs process production counts, tool life data, and fault diagnostics. From the PLC layer, data flows via Industrial Ethernet (PROFINET or TCP/IP) to the SIMATIC WinCC SCADA system, enabling supervisory monitoring of multiple CNC cells from a centralized control room. The WinCC historian archives cycle times, alarm logs, and OEE metrics for production reporting and continuous improvement initiatives.

At the remote I/O level, ET 200S or ET 200SP distributed I/O modules extend the PROFIBUS network to peripheral devices — coolant pumps, tool changers, pneumatic actuators, and safety door interlocks — all managed through the same communication backbone that the 6FC5303-0AF22-0AA1 anchors. This unified network topology eliminates the need for parallel wiring runs and simplifies troubleshooting by centralizing diagnostic data.

For edge computing and IIoT integration, the data chain extends to Siemens SINEMA Remote Connect or third-party edge gateways, which aggregate PROFIBUS data and publish it to cloud platforms via MQTT or OPC UA. This enables remote diagnostics, predictive maintenance alerts, and digital twin synchronization — all originating from the reliable PROFIBUS link established by the 6FC5303-0AF22-0AA1.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy CNC environments is protocol fragmentation — where older PROFIBUS-based CNC panels cannot communicate natively with newer PROFINET or Ethernet/IP infrastructure. The 6FC5303-0AF22-0AA1 addresses this by maintaining full PROFIBUS DP compatibility within the SINUMERIK 840D ecosystem, ensuring that existing machine investments remain productive without requiring full controller replacement.

Data silos are another critical pain point in multi-machine facilities. When CNC panels operate in isolation — without integration into the plant SCADA or MES — production managers lose visibility into real-time machine status, cycle efficiency, and fault history. By connecting the 6FC5303-0AF22-0AA1 into the PROFIBUS network and linking it upstream to WinCC or third-party MES platforms, manufacturers gain a transparent view of every spindle hour, tool change event, and alarm condition across the entire machining floor.

Remote monitoring becomes straightforward once the PROFIBUS data chain is established. Maintenance engineers can access live diagnostic data from the SINUMERIK 840D NCU — including drive fault codes, axis following errors, and communication health indicators — without physically walking to the machine. This capability is especially valuable in large facilities where CNC cells are distributed across multiple buildings or production halls.

Production line transparency is further enhanced by the panel’s ability to surface real-time OEE data to upper-level systems. Availability, performance, and quality metrics can be calculated from the raw data flowing through the 6FC5303-0AF22-0AA1, giving production engineers the information they need to identify bottlenecks, reduce unplanned downtime, and optimize tool utilization. System expansion is equally straightforward — additional PROFIBUS nodes, whether new CNC axes, remote I/O drops, or additional HMI stations, can be added to the existing bus without disrupting ongoing production, provided the bus termination and address assignments are managed correctly.

Industrial Connectivity FAQ

Q1: What is the communication latency of the PROFIBUS DP interface on the 6FC5303-0AF22-0AA1?
PROFIBUS DP operates with deterministic cycle times typically ranging from 1 ms to 10 ms depending on the number of slaves and the configured baud rate (up to 12 Mbit/s). For SINUMERIK 840D applications, the NCU manages bus cycle synchronization to ensure that axis control loops receive position and velocity data within the required interpolation cycle — typically 4 ms or 8 ms for standard configurations.

Q2: Is the 6FC5303-0AF22-0AA1 compatible with both SINUMERIK 840D sl and 840D powerline variants?
The 6FC5303-0AF22-0AA1 is designed for the SINUMERIK 840D platform. Compatibility with specific sub-variants (sl or powerline) should be verified against the Siemens SINUMERIK 840D hardware configuration manual and the NCU firmware version in use. Our technical team can assist with compatibility verification prior to shipment.

Q3: How is network stability maintained in high-EMI machining environments?
PROFIBUS DP uses shielded twisted-pair cabling (Type A cable per EN 50170) with proper bus termination at both ends of the segment. In high-EMI environments typical of CNC machining centers — where spindle drives, servo amplifiers, and coolant systems generate significant electrical noise — correct cable routing, grounding, and termination are essential. The 6FC5303-0AF22-0AA1 complies with Siemens EMC guidelines for SINUMERIK installations.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every 6FC5303-0AF22-0AA1 unit supplied by ZYPLC undergoes functional verification testing prior to shipment, including communication interface checks and visual inspection for physical integrity. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units are shipped via DHL or FedEx with full tracking, and our team provides post-delivery technical support to assist with installation and commissioning.
