Siemens 6FC5357-0BB11-0AE1 NCU Module for SINUMERIK Systems

Siemens 6FC5357-0BB11-0AE1: Industrial Data Link for SINUMERIK Smart Factory Networks

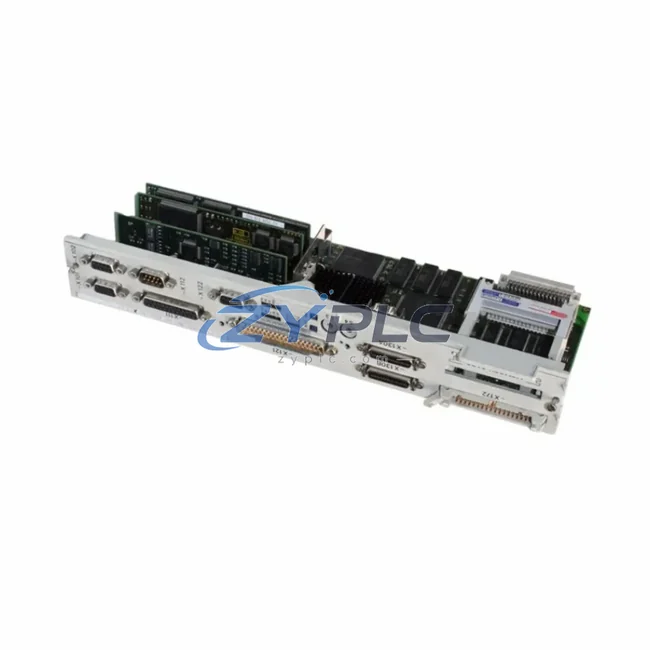

The Siemens 6FC5357-0BB11-0AE1 is a high-performance PROFIBUS-enabled NCU (Numerical Control Unit) module designed for the SINUMERIK CNC platform, engineered to serve as a critical communication node in modern industrial automation architectures. As manufacturing environments evolve toward fully connected smart factories, the 6FC5357-0BB11-0AE1 delivers the deterministic, real-time data exchange required to bridge field-level devices, CNC controllers, and upper-level supervisory systems with precision and reliability.

At its core, this NCU module integrates PROFIBUS DP communication capability directly into the SINUMERIK control environment, enabling seamless data flow between the CNC controller and peripheral automation components. Whether coordinating axis motion data with Siemens SINAMICS S120 drive systems, exchanging I/O status with ET 200S distributed I/O stations, or transmitting real-time spindle feedback to SCADA platforms via OPC UA gateways, the 6FC5357-0BB11-0AE1 ensures that every data packet traverses the network with minimal latency and maximum integrity.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical SINUMERIK-based smart factory cell, the 6FC5357-0BB11-0AE1 NCU module acts as the central communication hub that orchestrates data exchange across multiple automation layers. At the field level, PROFIBUS DP connects the NCU directly to Siemens ET 200SP and ET 200S distributed I/O modules, collecting digital and analog signals from proximity sensors, pressure transducers, and temperature probes mounted on the machine tool. These raw signals are processed within the NCU’s real-time kernel and translated into actionable control commands within microseconds.

Moving up the drive layer, the 6FC5357-0BB11-0AE1 communicates with Siemens SINAMICS S120 multi-axis drive systems via the DRIVE-CLiQ interface, synchronizing servo axis positioning data with sub-millisecond cycle times. Simultaneously, the PROFIBUS DP bus carries I/O handshake signals to Siemens SIMATIC S7-300 or S7-400 PLCs that manage auxiliary machine functions such as coolant control, tool changers, and safety interlocks — ensuring that the CNC motion program and the PLC ladder logic remain perfectly synchronized throughout the machining cycle.

At the HMI layer, the SINUMERIK Operate panel communicates with the 6FC5357-0BB11-0AE1 over the internal NCU bus, presenting operators with real-time axis positions, spindle load curves, alarm states, and program execution status. For plants running Siemens WinCC SCADA or third-party MES platforms, an OPC UA gateway or Siemens IE/PB Link PN IO protocol converter bridges the PROFIBUS segment to the plant’s Industrial Ethernet backbone, enabling production KPIs, cycle time data, and fault logs to flow continuously to the supervisory layer without disrupting the deterministic PROFIBUS timing.

Remote diagnostic capability is further enhanced when the 6FC5357-0BB11-0AE1 is paired with a Siemens SINEMA Remote Connect gateway or an industrial edge computing device, allowing maintenance engineers to access NCU diagnostic buffers, PROFIBUS segment health reports, and drive alarm histories from any location — dramatically reducing mean time to repair (MTTR) and supporting predictive maintenance strategies across multi-site manufacturing operations.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy CNC environments is protocol fragmentation — machines running proprietary serial interfaces, RS-232 links, or older MPI connections that cannot natively participate in modern Ethernet-based data architectures. The Siemens 6FC5357-0BB11-0AE1 addresses this directly by providing a standardized PROFIBUS DP interface that integrates with the broader Siemens TIA Portal ecosystem, allowing engineers to configure, diagnose, and expand the network from a single unified engineering environment.

Data silos are eliminated by enabling the NCU module to publish structured process data — including axis positions, spindle speeds, feed rates, tool life counters, and alarm codes — to upper-level systems via standardized OPC UA information models. This transparency allows production managers to monitor machine utilization in real time through WinCC dashboards, trigger automated maintenance work orders when tool wear thresholds are exceeded, and correlate CNC cycle data with quality inspection results from downstream CMM stations.

For plants expanding their machine park, the PROFIBUS DP architecture supported by the 6FC5357-0BB11-0AE1 scales efficiently — additional ET 200 I/O stations, SINAMICS drive nodes, or safety modules can be added to the bus segment without redesigning the network topology. Combined with Siemens’ proven PROFIBUS redundancy options and the module’s built-in diagnostic reporting, the 6FC5357-0BB11-0AE1 provides a future-ready connectivity foundation that supports both current production demands and long-term digital transformation initiatives.

Every 6FC5357-0BB11-0AE1 unit supplied by ZYPLC undergoes pre-shipment functional verification, including PROFIBUS communication handshake testing and NCU initialization checks, and is backed by a warranty terms confirmed during quotation covering hardware defects and communication failures under normal operating conditions.

Industrial Connectivity FAQ

Q1: What is the maximum PROFIBUS DP transmission speed supported by the 6FC5357-0BB11-0AE1?
The 6FC5357-0BB11-0AE1 supports PROFIBUS DP transmission rates up to 12 Mbit/s, providing deterministic cycle times suitable for high-speed CNC axis synchronization and real-time I/O exchange with distributed field devices.

Q2: Is the 6FC5357-0BB11-0AE1 compatible with Siemens TIA Portal and WinCC SCADA systems?
Yes. The module integrates natively within the SINUMERIK and SIMATIC ecosystem and can be configured via Siemens TIA Portal. For WinCC SCADA integration, OPC UA or PROFIBUS-to-Ethernet gateway solutions such as the Siemens IE/PB Link PN IO are recommended to bridge field-level data to the supervisory network.

Q3: Can the PROFIBUS network be expanded after the 6FC5357-0BB11-0AE1 is installed?
Yes. The PROFIBUS DP bus architecture is inherently scalable. Additional slave devices — including ET 200SP I/O stations, SINAMICS drive nodes, and safety modules — can be added to the segment without modifying the NCU configuration, provided the total bus load and cable length remain within PROFIBUS DP specifications.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 6FC5357-0BB11-0AE1?
All units are covered by a warranty terms confirmed during quotation against hardware defects and communication failures. Prior to shipment, each module undergoes functional verification including PROFIBUS DP communication handshake testing and NCU power-on initialization checks to ensure full operational readiness upon arrival.
