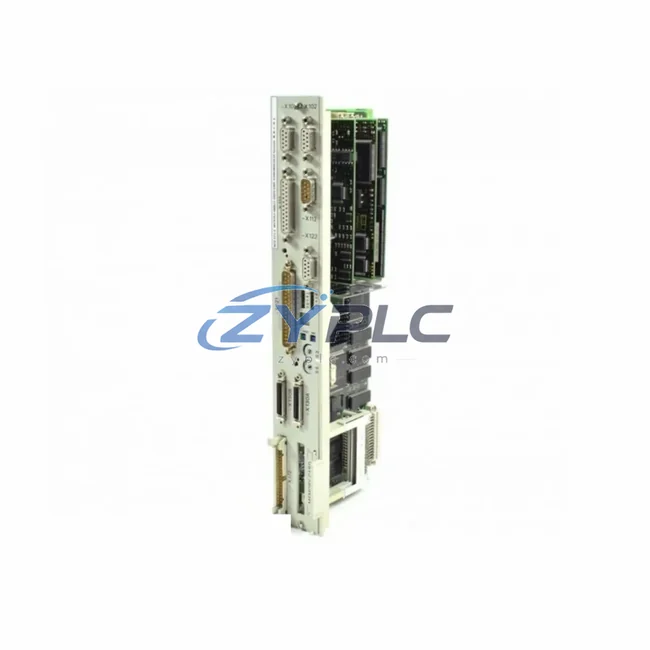

Siemens 6FC5357-0BB21-0AE0 Industrial Network Interface for Sinumerik 840D Systems

Siemens 6FC5357-0BB21-0AE0 NCU572.2: Industrial Data Link for Sinumerik 840D Smart Factory Integration

The Siemens NCU572.2 6FC5357-0BB21-0AE0 is a high-performance industrial network interface unit engineered for seamless integration within Sinumerik 840D CNC environments. As the communication backbone of modern CNC machining cells, this gateway bridges the critical data flow between field-level devices — including servo drives, spindle controllers, and distributed I/O nodes — and upper-level systems such as SCADA platforms, MES, and cloud-based analytics engines. In smart factory deployments where real-time data integrity and protocol interoperability are non-negotiable, the NCU572.2 delivers the connectivity infrastructure that keeps production transparent, responsive, and continuously optimized.

Designed for demanding industrial environments, the 6FC5357-0BB21-0AE0 supports multi-protocol communication across PROFIBUS DP and Industrial Ethernet, enabling deterministic data exchange between the CNC controller and peripheral automation components. Whether coordinating axis motion data from Siemens SINAMICS S120 drive systems, synchronizing tool offset parameters with a Siemens OP010 HMI panel, or transmitting real-time spindle load values to a WinCC SCADA server, the NCU572.2 ensures that every data packet arrives with the timing precision that CNC machining demands.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated Sinumerik 840D machining cell, the NCU572.2 6FC5357-0BB21-0AE0 sits at the center of a layered communication architecture. At the field level, PROFIBUS DP connects the NCU to Siemens ET 200S distributed I/O modules, collecting discrete signals from proximity sensors, tool breakage detectors, and coolant flow switches. These signals are processed in real time by the NCU’s integrated PLC, which runs in parallel with the CNC interpolation kernel — a dual-processing architecture that eliminates the latency bottlenecks common in loosely coupled gateway designs.

Axis motion commands and position feedback travel across the DRIVE-CLiQ interface to Siemens SINAMICS S120 servo drive modules, where the NCU572.2 acts as the master controller, issuing velocity setpoints and reading encoder data at sub-millisecond cycle times. Simultaneously, the Ethernet port streams machine state data — spindle RPM, feed rate overrides, alarm codes, and program execution status — to a Siemens SINUMERIK Integrate gateway, which forwards structured datasets to a WinCC flexible SCADA server or a third-party OPC UA aggregator for plant-wide visibility.

At the operator interface layer, a Siemens OP010C or OP015A HMI panel connects via the NCU’s integrated HMI link, providing machinists with real-time axis position displays, tool life management screens, and alarm acknowledgment workflows. For multi-machine environments, the NCU572.2 participates in a PROFIBUS network segment alongside Siemens SIMATIC S7-300 or S7-400 PLCs, enabling coordinated part transfer sequences between CNC cells and robotic loading systems. This cross-device data flow — from sensor signal to PLC logic to CNC interpolation to SCADA dashboard — is what transforms an isolated machining center into a transparent, data-driven production node.

Remote diagnostic capability is delivered through the NCU’s Ethernet interface, where Siemens SINUMERIK Operate remote access tools allow engineering teams to monitor axis following errors, read PLC diagnostic buffers, and push NC program updates without physical access to the machine. In facilities running Siemens SINUMERIK ONE or hybrid 840D/840D sl architectures, the NCU572.2 serves as a compatible legacy integration point, ensuring that older machining assets remain connected to modern IIoT data pipelines without requiring full controller replacement.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in CNC-intensive manufacturing environments is protocol fragmentation — machines from different generations running incompatible communication standards, creating data silos that prevent plant managers from achieving real-time production visibility. The Siemens NCU572.2 6FC5357-0BB21-0AE0 directly addresses this by supporting concurrent PROFIBUS DP and Ethernet communication, allowing it to serve as a protocol bridge between legacy field devices and modern Ethernet-based supervisory systems.

In facilities where older Siemens 840D (non-sl) controllers operate alongside newer SINUMERIK 840D sl or 828D units, the NCU572.2 provides a consistent data interface that SCADA systems can query using standardized OPC DA or OPC UA protocols — eliminating the need for custom middleware or proprietary data extractors. This protocol normalization is the foundation of production line transparency: when every CNC cell reports spindle utilization, alarm frequency, and cycle time data in a unified format, production planners can identify bottlenecks, schedule predictive maintenance, and optimize tool change intervals based on actual machine behavior rather than estimated averages.

Remote monitoring capability further reduces the cost of data isolation. Rather than deploying on-site engineers to diagnose intermittent communication faults, maintenance teams can use the NCU’s Ethernet interface to access PROFIBUS diagnostic registers, read drive fault histories from connected SINAMICS modules, and verify PLC I/O states — all from a centralized engineering workstation. For multi-site manufacturers, this remote diagnostic architecture means that a single controls engineer can support CNC assets across multiple facilities, dramatically reducing travel costs and mean time to repair.

System expansion is equally straightforward. The NCU572.2’s PROFIBUS DP master port supports up to 125 slave addresses, allowing facilities to add distributed I/O stations, additional drive nodes, or third-party PROFIBUS-compatible sensors without modifying the core network architecture. As production requirements evolve — new machining operations, additional axes, expanded sensor coverage — the NCU572.2 scales to accommodate growth without requiring controller replacement or network redesign.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens NCU572.2 6FC5357-0BB21-0AE0 support, and are they compatible with third-party SCADA systems?
The NCU572.2 supports PROFIBUS DP, MPI, and Industrial Ethernet (TCP/IP). For SCADA integration, the Ethernet interface supports OPC DA communication when paired with a Siemens SINUMERIK Integrate or compatible OPC server, enabling data exchange with third-party SCADA platforms including Wonderware, Ignition, and WinCC. Protocol compatibility should be verified against your specific SCADA version and OPC server configuration.

Q2: How does the NCU572.2 ensure network stability in high-cycle CNC environments?
The NCU572.2 uses deterministic PROFIBUS DP communication with configurable bus cycle times, ensuring that time-critical axis data and I/O signals are transmitted within defined latency windows regardless of network load. The integrated PLC and CNC kernel share a common backplane bus, eliminating external network hops for time-critical control loops and maintaining communication stability even during high-speed multi-axis interpolation cycles.

Q3: Is pre-shipment testing performed, and what does the warranty terms confirmed during quotation cover?
Yes — every Siemens NCU572.2 6FC5357-0BB21-0AE0 unit undergoes functional testing prior to shipment, verifying communication port integrity, firmware version, and basic I/O response. The warranty terms confirmed during quotation covers hardware defects and communication failures under normal operating conditions. Units are shipped with protective packaging to prevent ESD damage and physical shock during transit.

Q4: Can the NCU572.2 be integrated into an existing Sinumerik 840D system without full controller replacement?
Yes. The 6FC5357-0BB21-0AE0 is designed as a drop-in NCU module for Sinumerik 840D architectures. Integration requires matching the NCU hardware version to the existing CCU (Central Control Unit) backplane and verifying software option compatibility with the installed Sinumerik software release. In most cases, existing PROFIBUS network configurations, PLC programs, and NC part programs remain fully compatible, minimizing commissioning time and production downtime.
