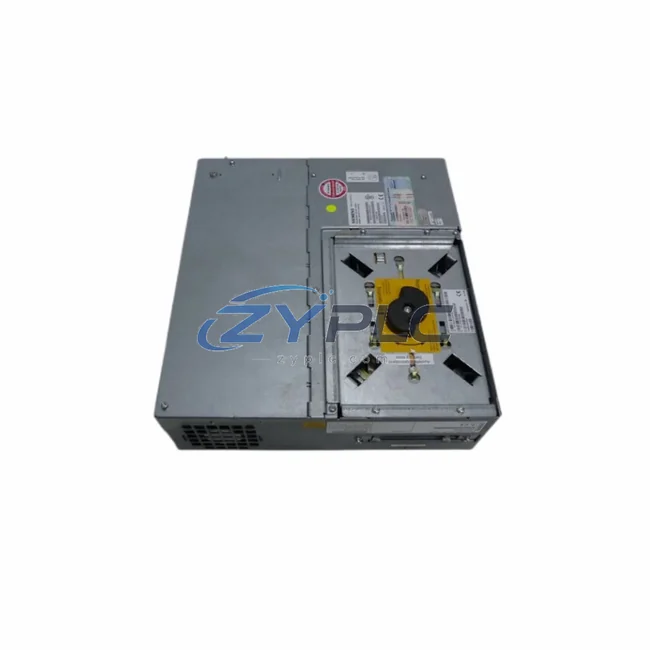

Siemens 6FC5500-0AA00-2AA0 CNC Control Unit Sinumerik 802S

Siemens 6FC5500-0AA00-2AA0: Industrial Data Link for Sinumerik 802S Smart Factory Systems

The Siemens 6FC5500-0AA00-2AA0 is a high-performance CNC Control Unit from the Sinumerik 802S Base Line series, engineered to serve as the central intelligence node in modern industrial automation architectures. Designed for machine tool environments where precision, real-time responsiveness, and seamless network integration are non-negotiable, this unit bridges the gap between field-level devices and upper-level control systems — making it a cornerstone component in smart factory deployments across Asia, Europe, and global manufacturing hubs.

At ZYPLC, we maintain availability subject to RFQ confirmation of the 6FC5500-0AA00-2AA0, backed by a warranty terms confirmed during quotation, pre-shipment functional testing, and global logistics via DHL and FedEx. Every unit is sourced through authorized channels and inspected before dispatch.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory environment, the Siemens 6FC5500-0AA00-2AA0 operates at the heart of the CNC data chain. Signal acquisition begins at the machine tool level, where servo drives — such as the Siemens SIMODRIVE 611 series — feed real-time axis position and velocity data into the 802S control unit via encoder interfaces. The 6FC5500-0AA00-2AA0 processes this data through its internal interpolator and outputs coordinated motion commands with microsecond-level precision.

Upstream, the control unit communicates with Siemens SIMATIC S7-300 PLCs via the MPI bus, enabling synchronized machine sequencing, tool change logic, and safety interlock management. The MPI interface allows the 802S to participate in multi-node control architectures where the PLC governs auxiliary functions while the CNC handles path interpolation — a division of labor that maximizes throughput and minimizes cycle time.

For operator interaction, the Sinumerik 802S OP 08T operator panel connects directly to the 6FC5500-0AA00-2AA0, providing a touchscreen HMI layer for program management, tool offset entry, and real-time axis monitoring. Alarm messages generated by the control unit are displayed instantly on the operator panel and simultaneously forwarded to SCADA systems via RS-232 or OPC-compatible gateways.

In facilities running Siemens WinCC SCADA or third-party supervisory platforms, the 6FC5500-0AA00-2AA0 integrates through serial communication adapters or dedicated Sinumerik PCU 50 PC units, which act as protocol bridges between the CNC’s native communication layer and Ethernet-based plant networks. This enables production managers to monitor spindle load, feed rate, and part count from centralized dashboards without interrupting machine operation.

Remote I/O expansion is supported through the Siemens ET 200S distributed I/O modules, which connect to the SIMATIC S7 PLC layer and relay digital signals — limit switches, proximity sensors, coolant flow sensors — back to the CNC control loop. This distributed architecture eliminates long cable runs and reduces signal degradation in large machine tool cells.

For facilities requiring edge-level data aggregation, the 6FC5500-0AA00-2AA0 can be paired with Siemens SINEMA Remote Connect gateways, enabling secure remote diagnostics and parameter backup over VPN tunnels. Maintenance engineers can access alarm histories, axis tuning data, and program logs without physical presence on the shop floor — a critical capability for multi-site manufacturing operations.

Variable frequency drives such as the Siemens SINAMICS G120 series interface with the spindle control output of the 6FC5500-0AA00-2AA0, receiving speed reference signals and returning actual speed feedback for closed-loop spindle regulation. This tight integration between the CNC control unit and the drive layer ensures surface finish consistency and tool life optimization across high-volume production runs.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy machine tool environments is protocol fragmentation — where CNC controllers, PLCs, drives, and sensors each speak different communication languages, creating data silos that prevent unified production visibility. The Siemens 6FC5500-0AA00-2AA0 addresses this directly through its multi-interface architecture, which supports RS-232, RS-485, and MPI simultaneously, allowing it to act as a natural protocol convergence point within the Sinumerik 802S ecosystem.

For facilities transitioning from isolated CNC islands to networked production cells, the 6FC5500-0AA00-2AA0 provides a structured migration path. Its MPI interface connects natively to SIMATIC S7 PLCs, while serial ports enable legacy device integration — meaning existing sensors, encoders, and operator panels can be retained while the control architecture is modernized around a unified data backbone.

Remote monitoring is another area where this unit delivers measurable value. By routing alarm and diagnostic data through SCADA gateways, production supervisors gain real-time visibility into machine status, tool wear indicators, and cycle time deviations — enabling predictive maintenance scheduling before unplanned downtime occurs. This shift from reactive to proactive maintenance is a defining characteristic of Industry 4.0-aligned manufacturing operations.

Production line transparency is achieved through the unit’s ability to log part counts, program execution times, and axis error events, all of which can be exported to MES (Manufacturing Execution Systems) for OEE (Overall Equipment Effectiveness) analysis. Facilities using the 6FC5500-0AA00-2AA0 as part of a broader Sinumerik network report measurable improvements in machine utilization rates and scrap reduction.

System scalability is built into the Sinumerik 802S platform architecture. As production demands grow, additional axes, I/O modules, and operator stations can be integrated without replacing the core control unit — protecting the initial capital investment while accommodating evolving manufacturing requirements.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens 6FC5500-0AA00-2AA0 support, and is it compatible with modern SCADA systems?
The 6FC5500-0AA00-2AA0 supports RS-232, RS-485, and MPI (Multi-Point Interface) natively. Integration with SCADA platforms such as Siemens WinCC is achieved through PCU 50 units or serial-to-Ethernet gateways. For OPC-based SCADA systems, protocol conversion adapters are recommended to bridge the Sinumerik 802S communication layer to standard industrial Ethernet.

Q2: What is the typical communication latency for real-time axis data transmission on this unit?
The Sinumerik 802S platform is designed for deterministic real-time control with interpolation cycle times in the millisecond range. MPI bus communication with SIMATIC S7 PLCs operates at up to 12 Mbit/s, ensuring that axis position data, alarm signals, and program status updates are transmitted with minimal latency suitable for high-speed machining applications.

Q3: Can the 6FC5500-0AA00-2AA0 be expanded with additional I/O modules or network nodes without replacing the control unit?
Yes. The Sinumerik 802S architecture supports modular expansion through SIMATIC ET 200S distributed I/O and additional MPI nodes. Digital and analog I/O capacity can be extended by adding remote I/O modules connected to the SIMATIC S7 PLC layer, which communicates with the CNC control unit via MPI — allowing the system to scale without hardware replacement.

Q4: What quality assurance and warranty coverage does ZYPLC provide for the 6FC5500-0AA00-2AA0?
Every Siemens 6FC5500-0AA00-2AA0 shipped by ZYPLC undergoes pre-shipment functional testing and visual inspection. All units are covered by a warranty terms confirmed during quotation from the date of delivery. In the event of a verified defect within the warranty period, ZYPLC provides replacement or repair support. Units are shipped globally via DHL or FedEx Express with full tracking and export documentation.
