Siemens 6FX1121-4BB01 Network Interface for SINUMERIK Systems

Siemens 6FX1121-4BB01: Industrial Data Link for SINUMERIK Smart Factory Networks

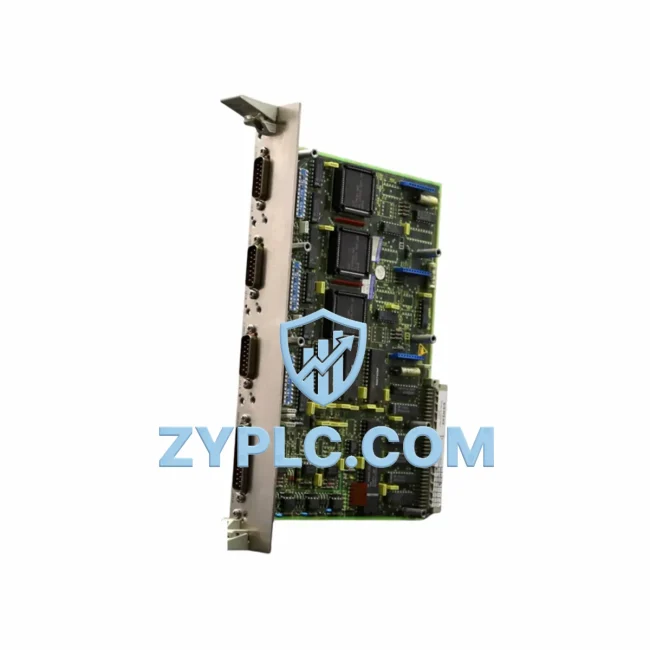

The Siemens 6FX1121-4BB01 is a high-performance Servo Add-On Module engineered for seamless integration within SINUMERIK CNC control architectures. Designed to bridge servo drive communication with upper-level control systems, this module plays a critical role in the industrial data chain — from signal acquisition at the machine axis level through protocol conversion, real-time network transmission, SCADA/HMI integration, and remote diagnostics. In modern smart factory environments where data transparency and system interoperability are non-negotiable, the 6FX1121-4BB01 delivers the connectivity backbone that keeps production lines running with precision and reliability.

Network Communication Table

Connected Automation Data Flow

In a fully integrated SINUMERIK production environment, the 6FX1121-4BB01 sits at the heart of the servo communication chain. At the field level, encoder signals and axis feedback data are captured directly from servo motors connected via Siemens 6SN1118-series drive modules. These signals are conditioned and passed through the add-on module interface, enabling the SINUMERIK 840D sl CNC controller to receive real-time position, velocity, and torque loop data with sub-millisecond cycle times.

Upstream, the CNC controller communicates with the plant-level SCADA system through a PROFIBUS-DP gateway — often implemented via Siemens 6GK7 343-series CP modules — allowing production supervisors to monitor axis states, alarm conditions, and cycle counts from a centralized HMI panel such as the Siemens TP1500 Comfort or MP377 multi-panel. This data path ensures that every servo movement is logged, timestamped, and available for trend analysis within the SCADA historian.

For remote I/O expansion at the machine periphery, Siemens ET 200SP distributed I/O stations connect via PROFINET to the same control backbone, feeding digital and analog signals — from proximity sensors, temperature transducers, and pressure transmitters — into the unified data stream. The 6FX1121-4BB01 module ensures that servo axis data remains synchronized with these peripheral signals, enabling coordinated motion and process control without data latency.

Variable frequency drives such as the Siemens SINAMICS S120 booksize units interface directly with the SINUMERIK controller through the Drive-CLiQ topology, where the 6FX1121-4BB01 add-on module provides the necessary signal conditioning and bus adaptation for legacy or specialized servo configurations. This makes the module an essential component when upgrading or expanding existing SINUMERIK machine tool installations without replacing the entire drive train.

At the edge computing layer, an industrial edge gateway — such as the Siemens SIMATIC IPC127E — aggregates data from the CNC, drives, and I/O systems, applying local analytics before forwarding structured datasets to cloud-based MES or ERP platforms. The result is a fully transparent production cell where the 6FX1121-4BB01 acts as the foundational communication node enabling end-to-end data visibility from servo axis to enterprise dashboard.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Older SINUMERIK installations may rely on proprietary servo bus architectures that are incompatible with modern PROFINET or OPC-UA frameworks. The Siemens 6FX1121-4BB01 addresses this directly by providing a standardized add-on interface that bridges legacy servo communication with contemporary control platforms, eliminating data silos at the drive level.

In multi-axis CNC environments, data isolation between individual servo axes can lead to blind spots in production monitoring — where a single axis fault goes undetected until it causes a machine stoppage. By integrating the 6FX1121-4BB01 into the SINUMERIK communication architecture, all axis states are continuously reported to the CNC controller and, by extension, to the connected SCADA/HMI system. Alarm conditions are surfaced in real time, enabling maintenance teams to respond proactively rather than reactively.

Remote monitoring and diagnostics are further enhanced through the PROFIBUS or PROFINET gateway layer, where plant engineers can access live servo data from off-site locations using Siemens SINEMA Remote Connect or equivalent VPN-based remote access solutions. This capability is particularly valuable for multi-site manufacturers who need centralized visibility across geographically distributed production facilities.

System scalability is another key advantage. As production demands grow, additional servo axes and drive modules can be integrated into the existing SINUMERIK network without architectural redesign. The 6FX1121-4BB01’s modular design supports incremental expansion, protecting the initial capital investment while accommodating future automation upgrades. Every unit shipped from ZYPLC undergoes pre-shipment functional testing to verify communication integrity, ensuring plug-and-play deployment on arrival.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens 6FX1121-4BB01 support?
The 6FX1121-4BB01 is designed for use within the Siemens SINUMERIK servo communication architecture, supporting the proprietary servo bus interface used in SINUMERIK 840D, 810D, and 802D CNC platforms. It is compatible with PROFIBUS-DP-based system topologies when used in conjunction with appropriate CP communication modules.

Q2: Is the 6FX1121-4BB01 compatible with SINAMICS S120 drive systems?
The module is specifically designed for SINUMERIK servo add-on applications. For SINAMICS S120 Drive-CLiQ topologies, compatibility depends on the specific machine configuration. ZYPLC’s technical team can advise on integration requirements based on your existing drive and controller architecture.

Q3: How does ZYPLC ensure network stability and communication reliability for this module?
Every 6FX1121-4BB01 unit is subject to pre-shipment functional testing covering communication interface integrity and signal continuity. All products are sourced from verified supply channels and backed by a 12-month warranty covering manufacturing defects and communication failures.

Q4: What is the lead time and warranty coverage for the Siemens 6FX1121-4BB01?
In-stock units are dispatched within 1-3 business days via DHL or FedEx express international shipping. All units carry a 12-month warranty from the date of shipment. For bulk orders or urgent project requirements, contact ZYPLC directly for priority fulfillment options.
