Siemens 6FX1124-6AA02 Industrial Network Interface for SIMODRIVE Systems

Siemens 6FX1124-6AA02 Industrial Network Interface for SIMODRIVE Systems: Powering the Smart Factory Data Chain

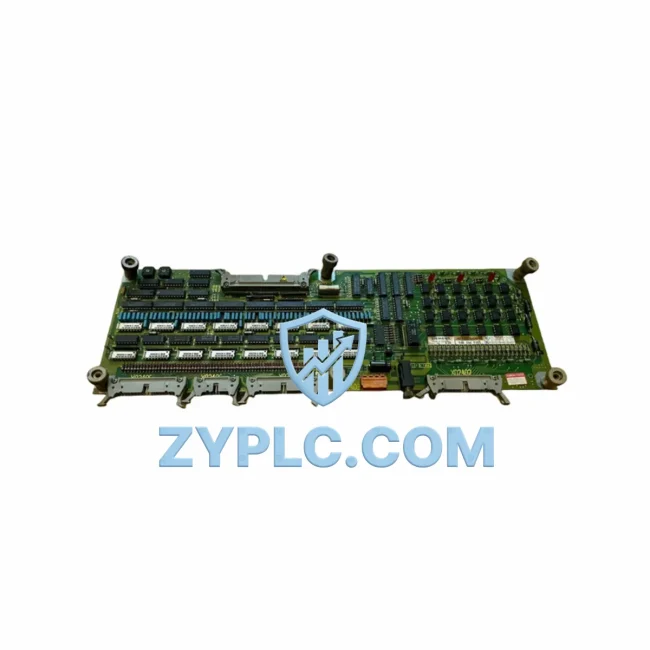

The Siemens 6FX1124-6AA02 is a high-performance I/O Drive Board engineered for the SIMODRIVE platform, purpose-built to serve as a critical node in the industrial data chain. In modern smart factory environments, seamless communication between field devices, PLC controllers, drive systems, and supervisory networks is not optional — it is the foundation of operational efficiency. The 6FX1124-6AA02 delivers exactly that: a robust, protocol-aware interface that bridges the gap between motion control hardware and the broader automation network.

Designed to operate within Siemens SIMODRIVE servo and spindle drive architectures, this I/O Drive Board handles real-time signal acquisition from encoders and field sensors, processes drive-level I/O data, and transmits structured information upstream to SINUMERIK CNC controllers, SCADA platforms, and HMI systems. Its role in the data flow is indispensable — from the moment a position signal is captured at the motor shaft to the instant that data appears on an operator’s dashboard, the 6FX1124-6AA02 ensures integrity, speed, and compatibility at every step.

Network Communication Table

Connected Automation Data Flow

Understanding the 6FX1124-6AA02 requires understanding the data ecosystem it operates within. In a typical SIMODRIVE-based machining cell, the data journey begins at the motor and encoder level. The 6FX1124-6AA02 I/O Drive Board receives raw encoder pulses and digital I/O signals from servo axes, processes them in real time, and feeds structured drive data into the SIMODRIVE 611 power and control modules. This tightly coupled communication loop ensures that position, velocity, and torque data are always current — a prerequisite for precision CNC machining.

Moving up the network hierarchy, the drive data is aggregated and forwarded via PROFIBUS-DP to the SINUMERIK CNC controller — for example, a system running the Siemens 6FX1113-0AE02 communications module or the Siemens 6FX1116-8AA00 CNC control board. These controllers interpret the drive-level data and execute motion programs, while simultaneously publishing machine state information to the plant network. The Siemens 6FX1121-4BB01 network interface module further extends this connectivity, enabling SINUMERIK systems to communicate with higher-level SCADA and MES platforms.

For drive-to-drive coordination and gateway functions, the Siemens 6SN1118-0DK23-0AA1 and 6SN1118-0DK23-0AA2 PROFIBUS Gateways within the SIMODRIVE 611 family handle protocol translation between the drive bus and the plant-wide PROFIBUS network. Similarly, the Siemens 6SN1114-0NB01-0AA0 PROFIBUS Communication Gateway provides a dedicated bridge for legacy and modern network segments, ensuring that older field devices remain visible to contemporary SCADA systems.

At the field level, the Siemens 6DP1232-7AA Encoder Preparation Module conditions raw encoder signals before they reach the 6FX1124-6AA02, improving signal quality and reducing noise-induced errors in high-speed machining environments. Power integrity across the drive chain is maintained by modules such as the Siemens A5E00399482 Power Module and the Siemens A1A10000432.34M PLC Module, both part of the SIMODRIVE ecosystem. The Siemens 6SN1145-1BB00-0FA1 Network Interface and 6SN1118-0DM21-0AA0 Drive Interface round out the communication architecture, providing redundant data paths and ensuring network resilience even under heavy production loads.

This interconnected architecture — from encoder to drive board, from drive bus to PROFIBUS gateway, from CNC controller to SCADA — represents the complete industrial data chain that the 6FX1124-6AA02 anchors at its core.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation: drive systems that cannot communicate with plant networks, legacy protocols that are incompatible with modern SCADA platforms, and production lines where machine status is invisible to operations management. The Siemens 6FX1124-6AA02 directly addresses these pain points.

By providing a standardized I/O and communication interface within the SIMODRIVE architecture, the 6FX1124-6AA02 eliminates the protocol barriers that typically isolate drive-level data from upper-level systems. Alarm signals generated at the drive — overcurrent faults, encoder errors, thermal warnings — are immediately propagated through the network to HMI displays and SCADA dashboards, enabling operators to respond in real time rather than discovering faults during post-shift inspections.

Remote diagnostics become practical when drive data is continuously available on the network. Maintenance engineers can monitor drive health, track encoder signal quality, and review historical alarm logs from any networked workstation, reducing unplanned downtime and enabling predictive maintenance strategies. For multi-axis machining centers with dozens of servo drives, the ability to centralize drive monitoring through a single PROFIBUS network — anchored by components like the 6FX1124-6AA02 — transforms production line transparency from an aspiration into a daily operational reality.

System expansion is equally straightforward. Adding new drive axes to an existing SIMODRIVE installation requires only that the new I/O Drive Board be configured and addressed on the PROFIBUS segment — no rewiring of the supervisory network, no changes to the SCADA data model. This modularity is a key advantage of the SIMODRIVE architecture and a direct benefit of the standardized communication interface that the 6FX1124-6AA02 provides.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens 6FX1124-6AA02 support?
The 6FX1124-6AA02 operates on the SIMODRIVE internal drive bus and supports PROFIBUS-DP connectivity through the broader SIMODRIVE 611 network architecture. It interfaces with SINUMERIK CNC controllers and is compatible with PROFIBUS-based SCADA and HMI systems, making it suitable for both legacy and modern industrial network environments.

Q2: How does this board ensure network stability in high-speed CNC applications?
The 6FX1124-6AA02 is designed for deterministic, real-time data exchange within the SIMODRIVE platform. Its encoder interface and digital I/O channels are optimized for low-latency signal processing, ensuring that position feedback and drive status data are always current. Pre-shipment functional testing verifies communication integrity before the unit leaves our facility.

Q3: Can the 6FX1124-6AA02 be integrated into an existing SINUMERIK/SIMODRIVE system without network reconfiguration?
Yes. The 6FX1124-6AA02 is a direct replacement-compatible I/O Drive Board for SIMODRIVE installations. It uses the same drive bus addressing and PROFIBUS node configuration as the original Siemens hardware, allowing integration into existing systems with minimal engineering effort. Compatibility with SINUMERIK 800 and related CNC platforms has been verified.

Q4: What warranty and support terms apply to this product?
All units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify encoder interface operation, I/O channel integrity, and drive bus communication. Global shipping is available with full export documentation. For technical support or procurement inquiries, contact our team directly.
