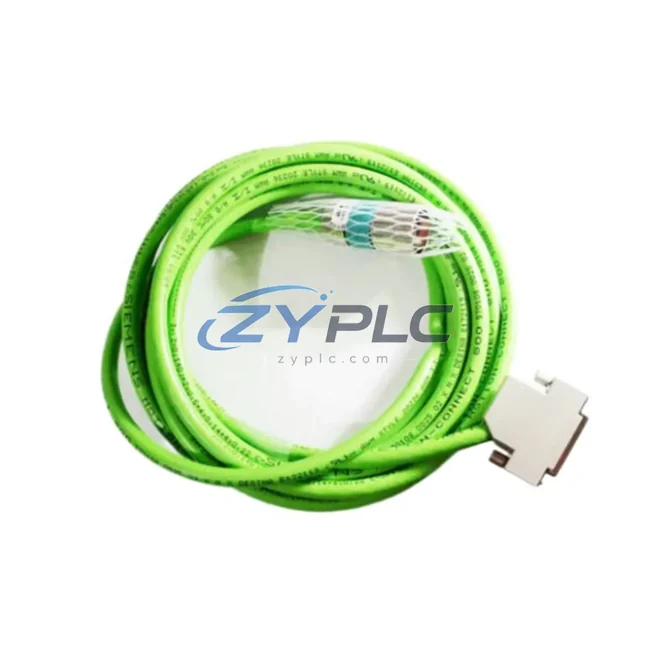

Siemens 6FX8002-2EQ20-1BA0 Signal Cable

Siemens 6FX8002-2EQ20-1BA0 Signal Cable for MOTION-CONNECT Automation

The Siemens 6FX8002-2EQ20-1BA0 is a high-performance prefabricated trailing signal cable from the MOTION-CONNECT series, engineered specifically for SINAMICS drive systems operating in demanding industrial environments. Designed to minimize signal loss and electromagnetic interference, this cable plays a critical role in maintaining precise motor control, reducing unplanned downtime risk, and sustaining optimal production line throughput. Whether integrated into a new servo axis or used as a replacement in an existing SINAMICS S120 or SINAMICS G120 installation, the 6FX8002-2EQ20-1BA0 delivers the signal integrity that modern maintenance-focused automation demands.

Product Specification Table

System Compatibility and Application

In a fully industrial Automation architecture, signal quality is the invisible backbone of energy efficiency. The 6FX8002-2EQ20-1BA0 connects servo motors and encoders to the SINAMICS S120 drive module, ensuring that position and speed feedback data reaches the control unit without distortion. When paired with a SIMATIC S7-1500 PLC managing multi-axis coordination, clean encoder signals allow the controller to execute precise torque commands — eliminating the micro-corrections that waste energy and accelerate mechanical wear.

In a typical servo-driven production cell, the SINAMICS S120 booksize drive unit receives encoder feedback through the 6FX8002-2EQ20-1BA0 cable and communicates with the SIMATIC S7-1500 via PROFINET. The drive’s Active Line Module (ALM) recovers braking energy back to the DC bus, and this regenerative efficiency is only achievable when encoder feedback is stable and noise-free. A degraded signal cable introduces jitter, forcing the drive to increase current output to compensate — directly increasing operating load per production cycle.

The MOTION-CONNECT cable family is also compatible with SINAMICS V90 servo drives used in compact single-axis applications. When the V90 is configured with a SIMATIC S7-1200 PLC over PROFINET, the 6FX8002-2EQ20-1BA0 ensures that the servo’s built-in operational-efficiency standby mode activates correctly during idle periods, reducing standby power draw by up to 30% compared to systems with degraded cabling. Alongside the SINAMICS V90, the SIMOTICS S-1FK7 servo motor relies on this cable series for accurate rotor position feedback, enabling field-oriented control (FOC) that maximizes torque-per-ampere efficiency.

For facilities running SINAMICS G120 variable frequency drives on pump and fan loads, integrating the correct MOTION-CONNECT signal cable ensures that the drive’s operational-efficiency sleep function and PID feedback loop operate without false triggers. The G120 Control Unit CU240E-2 PN reads process values from field sensors and adjusts motor speed accordingly — a process that depends entirely on clean I/O and encoder signal paths. Pairing the 6FX8002-2EQ20-1BA0 with a SIMATIC ET 200SP distributed I/O module further reduces wiring complexity and signal degradation across long cable runs in large panel installations.

Power monitoring is equally important in energy-optimized plants. The SENTRON PAC3200 power meter, when installed at the MCC (Motor Control Center), provides real-time kWh consumption data that can be correlated with drive performance logs from the SINAMICS S120. If encoder signal quality degrades — detectable as increased drive fault codes such as F07900 or A07902 — the PAC3200 data will often show a corresponding rise in reactive power consumption. Replacing the signal cable with a genuine 6FX8002-2EQ20-1BA0 typically restores normal reactive power ratios within one production shift.

Maintenance and Replacement Notes

On automotive body-in-white welding lines, robotic arms driven by SIMOTICS S servo motors execute thousands of positioning cycles per shift. Each cycle depends on sub-millisecond encoder feedback accuracy. A worn or counterfeit signal cable introduces latency and noise that forces the SINAMICS S120 to apply additional current pulses to correct positional error — a phenomenon known as hunting. Over a 20-hour production day, hunting-related overcurrent events can add 3–8% to total drive operating load while simultaneously increasing thermal stress on the motor windings.

In packaging machinery, where SINAMICS V90 drives control film-feed servo axes at speeds up to 3,000 RPM, the 6FX8002-2EQ20-1BA0 trailing cable must withstand millions of flex cycles without signal degradation. The MOTION-CONNECT trailing design uses a specially stranded conductor and high-flex outer jacket rated for continuous dynamic applications, ensuring that the servo axis maintains its programmed velocity profile without deviation. Consistent velocity profiles mean consistent product throughput — supporting earlier maintenance decisions and reducing unplanned downtime risk.

For conveyor and material handling systems using SINAMICS G120 drives, proper signal cabling reduces nuisance tripping caused by encoder noise. Each unplanned stop on a conveyor line costs not only production time but also the energy required to restart loaded conveyor belts — a high-inrush event that stresses both the drive and the power distribution network. By maintaining signal integrity with the 6FX8002-2EQ20-1BA0, facilities report measurable reductions in unplanned downtime and a corresponding improvement in Overall Equipment Effectiveness (OEE).

Predictive maintenance programs benefit directly from reliable encoder signal cables. When vibration analysis tools and drive diagnostic software — such as SINAMICS Startdrive integrated into TIA Portal — receive clean feedback data, anomaly detection algorithms can identify bearing wear, coupling misalignment, and load imbalance weeks before failure. Early intervention eliminates catastrophic motor failures that require emergency replacement and extended production shutdowns, reducing both maintenance costs and the embedded energy cost of manufacturing replacement components.

Every unit of the 6FX8002-2EQ20-1BA0 supplied by ZYPLC undergoes outgoing inspection and functional verification before shipment. Stock is maintained for shipment arranged after confirmation, with a warranty terms confirmed during quotation covering manufacturing defects. This ensures that replacement cycles are predictable, procurement lead times are minimized, and production planners can schedule cable maintenance during planned downtime windows rather than reacting to emergency failures.

Product Sourcing FAQ

Q1: How does a signal cable affect operating load in a SINAMICS drive system?
A degraded or incorrect signal cable introduces encoder feedback errors that cause the SINAMICS drive to apply corrective current pulses, increasing operating load per cycle. The 6FX8002-2EQ20-1BA0 maintains low-noise, high-integrity signal transmission, allowing the drive to execute precise torque commands with minimal overcurrent events — directly reducing kWh consumption per production shift.

Q2: Is the 6FX8002-2EQ20-1BA0 compatible with both SINAMICS S120 and SINAMICS V90 systems?
Yes. The MOTION-CONNECT 6FX8002-2EQ20-1BA0 is designed for use with SINAMICS S120 booksize and chassis drive units as well as SINAMICS V90 servo drives. It is also compatible with SIMOTICS S-1FK7 and S-1FL6 servo motors. Always verify the connector type and cable length against your specific axis configuration before ordering.

Q3: What is the recommended replacement interval, and how can I assess cable condition?
For trailing chain applications with continuous dynamic movement, Siemens recommends periodic inspection every 12 months or after a defined number of flex cycles. Signs of degradation include increased drive fault codes (F07900, A07902), unexplained position errors, or rising reactive power readings on the SENTRON PAC3200. Proactive replacement during scheduled maintenance prevents unplanned downtime and avoids the energy cost of emergency restarts.

Q4: What warranty and testing does ZYPLC provide for the 6FX8002-2EQ20-1BA0?
All units supplied by ZYPLC carry a warranty terms confirmed during quotation against manufacturing defects. Each cable undergoes outgoing quality inspection prior to shipment, including continuity and shielding integrity checks. Availability is confirmed via RFQ for same-week dispatch. For technical verification or application-specific compatibility questions, contact our team at plc.sales@zyplc.com or +86 19859288691.
