Siemens 6GK1105-2AB10 Industrial Network Interface for SCALANCE Systems

Siemens 6GK1105-2AB10 Industrial Network Interface for SCALANCE Systems: Backbone of Smart Factory Data Links

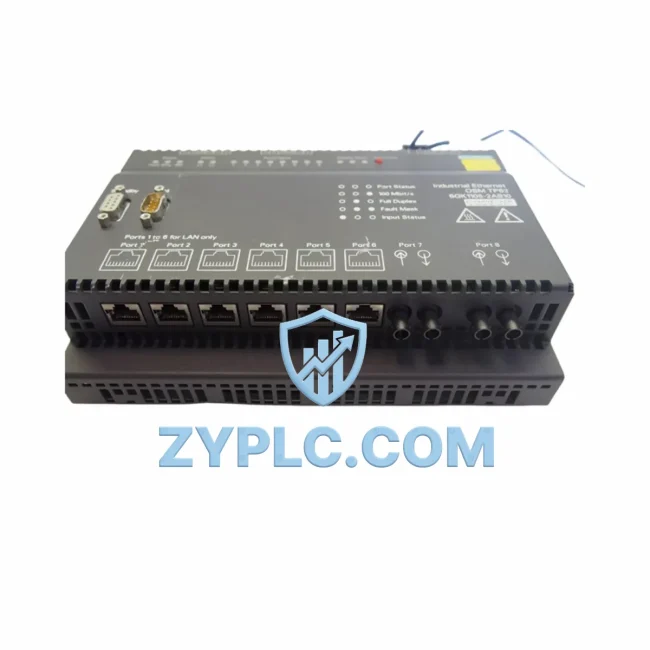

The Siemens 6GK1105-2AB10 is a high-performance fiber optic industrial Ethernet switch from the SCALANCE TP62 series, engineered to serve as the critical network backbone in demanding smart factory and process automation environments. Designed for protocol-transparent data transmission over fiber optic media, this module enables seamless, high-speed connectivity between field-level devices, PLC controllers, remote I/O stations, HMI panels, SCADA systems, variable frequency drives, and edge computing gateways — forming the uninterrupted data highway that modern industrial digitalization demands.

In today’s converged OT/IT architectures, the integrity of the industrial network layer determines the reliability of every upstream system. The 6GK1105-2AB10 addresses this by providing a robust, EMI-immune fiber optic link that eliminates ground loop interference and electrical noise — common failure points in heavy industrial environments such as steel mills, automotive assembly lines, chemical plants, and energy substations.

Network Communication Table

Connected Automation Data Flow

The 6GK1105-2AB10 sits at the heart of a layered industrial communication architecture. At the field level, sensors and actuators — including Siemens SIRIUS 3RK3 motor management relays and ET 200SP distributed I/O modules — generate continuous process data. This data is collected by SIMATIC S7-1500 PLC controllers via PROFINET, where the 6GK1105-2AB10 provides the fiber optic uplink that carries this traffic reliably across long distances and electrically noisy plant floors.

As data moves upward through the network, the SCALANCE X208 managed Ethernet switch aggregates traffic from multiple field segments, while the 6GK1105-2AB10 ensures the fiber backbone remains free of electromagnetic interference. SIMATIC WinCC SCADA servers and TP1200 Comfort HMI panels receive real-time process values, alarm states, and trend data without latency spikes — a direct result of the stable, protocol-transparent link this module provides.

For drive-level integration, Siemens SINAMICS G120 variable frequency drives communicate their speed, torque, and fault status via PROFINET to the S7-1500 controller. The 6GK1105-2AB10 ensures this drive data reaches the SCADA layer intact, enabling predictive maintenance dashboards to flag bearing wear or thermal overload conditions before unplanned downtime occurs. Similarly, SCALANCE W780 industrial wireless access points extend the network to mobile HMI devices and AGVs on the plant floor, with the fiber backbone anchored by the 6GK1105-2AB10 providing the stable wired core.

At the edge, Siemens SINEMA Remote Connect gateways leverage the fiber link to establish secure VPN tunnels for remote diagnostics and firmware updates — allowing engineers to access PLC program states, I/O diagnostics, and network health metrics from anywhere in the world. The SCALANCE M876 industrial LTE router further extends remote connectivity for sites without fixed broadband, with the 6GK1105-2AB10 serving as the reliable local network anchor point.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, controllers, and supervisory systems operate in disconnected silos, preventing real-time visibility and coordinated control. The Siemens 6GK1105-2AB10 directly addresses this by providing a protocol-transparent fiber optic bridge that connects heterogeneous network segments without requiring protocol conversion overhead.

In legacy plant environments where copper Ethernet runs are limited by distance or interference, the 6GK1105-2AB10 extends network reach over fiber optic cable up to several kilometers, connecting remote I/O cabinets, field junction boxes, and outlying process skids back to the central control room. This eliminates the need for costly repeaters or signal boosters and reduces network complexity.

For production line transparency, the module enables every PLC, drive, and sensor on the line to report its status to the SCADA layer in real time. Quality control systems, OEE dashboards, and MES platforms receive accurate, timestamped data — enabling root cause analysis, shift reporting, and continuous improvement initiatives that were previously impossible due to data gaps. Remote monitoring becomes straightforward: maintenance teams can access live diagnostics, acknowledge alarms, and push parameter changes to field devices without dispatching personnel to remote substations or hazardous areas.

System expansion is equally simplified. As production capacity grows, additional SCALANCE switches, remote I/O racks, or drive panels can be added to the fiber ring topology supported by the 6GK1105-2AB10, scaling the network without disrupting existing segments. Every unit shipped undergoes outgoing functional testing to verify port integrity, fiber link establishment, and data throughput — backed by a 12-month warranty and supported by in-stock global inventory for fast delivery to any destination.

Industrial Connectivity FAQ

Q1: Does the Siemens 6GK1105-2AB10 support PROFINET communication?
A: Yes. The 6GK1105-2AB10 operates as a protocol-transparent Ethernet switch, meaning it passes PROFINET frames — as well as standard TCP/IP, Modbus TCP, and EtherNet/IP traffic — without modification. It is fully compatible with SIMATIC S7-1500, S7-300, and S7-400 PLC systems operating on PROFINET networks.

Q2: What is the maximum fiber optic cable distance supported?
A: The SCALANCE TP62 series supports multi-mode fiber connections with typical reach of up to 3 km, and single-mode fiber configurations can extend this significantly further depending on the transceiver module used. This makes it suitable for large plant layouts, campus networks, and inter-building industrial links.

Q3: How does the 6GK1105-2AB10 contribute to network stability in high-EMI environments?
A: Fiber optic transmission is inherently immune to electromagnetic interference, radio frequency noise, and ground potential differences — all common in environments with large motors, welding equipment, and high-voltage switchgear. By converting the network segment to fiber, the 6GK1105-2AB10 eliminates the most common sources of packet loss and network instability in heavy industrial settings.

Q4: What warranty and testing does this unit include?
A: Every 6GK1105-2AB10 unit is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes outgoing functional verification including fiber port link testing and Ethernet frame transmission checks. In-stock units are available for immediate shipment globally, with lead times confirmed at the time of order.
