Siemens 6GK1143-0TA00 Industrial Network Interface for SINEC H1 Systems

Siemens 6GK1143-0TA00: Industrial Data Link for SINEC H1 Smart Factory Networks

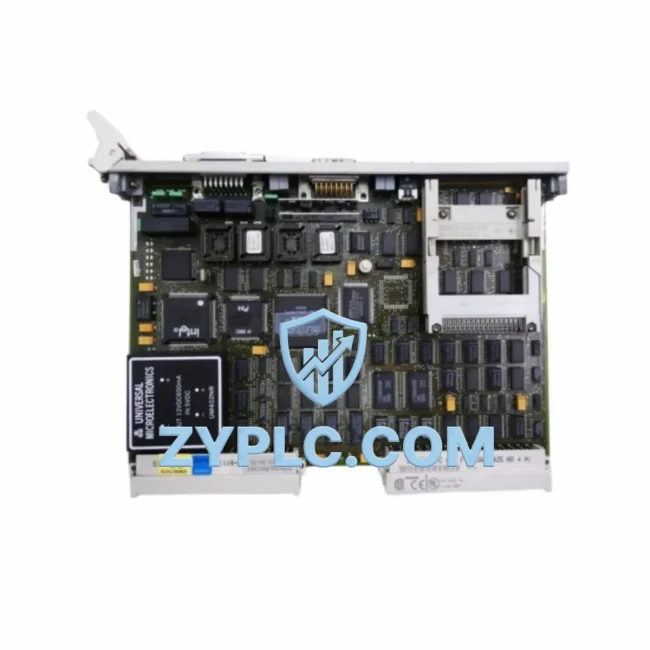

The Siemens 6GK1143-0TA00, commercially designated as the CP1430 TF, is a high-performance industrial communication gateway engineered for the SINEC H1 Industrial Ethernet architecture. Designed to serve as the critical data bridge between field-level devices and upper-level control and monitoring systems, this communication processor enables seamless, real-time data exchange across the full automation hierarchy — from sensors and actuators on the shop floor to SCADA servers and MES platforms in the control room.

In modern smart factory environments, the integrity and continuity of the data link between PLCs, remote I/O stations, HMI panels, and supervisory systems is non-negotiable. The 6GK1143-0TA00 addresses this requirement by providing a robust, standards-compliant Industrial Ethernet interface that integrates directly into Siemens SIMATIC automation platforms, ensuring deterministic communication with minimal latency and maximum network stability.

Network Communication Table

Connected Automation Data Flow

The 6GK1143-0TA00 sits at the heart of the SINEC H1 network segment, orchestrating data flow between multiple layers of the industrial automation pyramid. At the field level, process signals originating from distributed sensors — including temperature transmitters, pressure transducers, and flow meters — are collected by SIMATIC S5-115U or S5-135U PLCs. These controllers rely on the CP1430 TF to push real-time process data upstream onto the SINEC H1 Ethernet backbone.

Within the same network segment, SIMATIC S5-155U systems handling complex batch or continuous process control tasks communicate peer-to-peer with other SIMATIC nodes via the 6GK1143-0TA00, enabling coordinated multi-controller automation without bottlenecks. Remote I/O expansion racks connected to the S5 backplane feed their status data through the CP1430 TF into the Ethernet segment, where SINEC H1 network switches and repeaters extend the physical reach of the bus across large plant floors or multi-building facilities.

At the supervisory level, SIMATIC WinCC SCADA servers poll the CP1430 TF-equipped PLCs for live process variables, alarm states, and production counters. HMI panels — including SIMATIC OP series operator panels — display real-time data sourced directly from the SINEC H1 network, giving operators immediate visibility into machine status, setpoints, and fault conditions. The 6GK1143-0TA00 ensures that this data pipeline remains stable and deterministic, even under high network load conditions.

For facilities integrating legacy SIMATIC S5 infrastructure with newer automation tiers, the CP1430 TF acts as the protocol anchor, allowing SINEC H1 communication modules on adjacent network nodes — such as CP1430 TA or CP1413 variants — to exchange data transparently. Edge gateways and industrial PCs running SIMATIC NET PC software can also connect to the SINEC H1 segment via the 6GK1143-0TA00, enabling data forwarding to MES, ERP, or cloud-based analytics platforms. Variable frequency drives and motor starters with SIMATIC-compatible communication interfaces can report operational parameters — speed, torque, fault codes — through the PLC and CP1430 TF into the SCADA layer, completing the full data loop from drive to dashboard.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible systems and protocols. Older SIMATIC S5 installations often operate as isolated islands, unable to share process data with modern SCADA platforms, MES systems, or enterprise IT infrastructure. The Siemens 6GK1143-0TA00 CP1430 TF directly resolves this data isolation problem by providing a standardized SINEC H1 Ethernet interface that bridges the S5 backplane to the plant-wide network.

With the CP1430 TF installed, previously siloed PLC controllers can participate in a unified SINEC H1 network, enabling centralized data collection, real-time monitoring, and coordinated control across multiple production lines or process units. Operators gain full production line transparency — live OEE metrics, cycle times, alarm histories, and energy consumption data — all accessible from a single SCADA or HMI workstation without requiring costly controller replacements.

Remote diagnostics become practical with the 6GK1143-0TA00 in place. Maintenance engineers can interrogate PLC status, review communication error logs, and perform remote parameter adjustments via the SINEC H1 network, reducing unplanned downtime and eliminating the need for on-site intervention for routine diagnostic tasks. As production capacity grows, additional SIMATIC S5 nodes equipped with CP1430 TF modules can be added to the SINEC H1 segment without disrupting existing network traffic, providing a scalable path for system expansion. Every unit shipped undergoes pre-delivery functional testing to verify communication integrity, ensuring plug-and-play deployment on arrival.

Industrial Connectivity FAQ

Q1: What communication latency can be expected from the Siemens 6GK1143-0TA00 on a SINEC H1 network?
The CP1430 TF is designed for deterministic Industrial Ethernet communication on the SINEC H1 bus. Under normal network load conditions with properly configured bus parameters, cyclic data exchange between SIMATIC S5 nodes typically achieves response times in the low millisecond range, suitable for real-time process control and supervisory monitoring applications.

Q2: Is the 6GK1143-0TA00 compatible with modern SCADA and HMI systems beyond the SIMATIC S5 generation?
Yes. While the CP1430 TF is natively designed for SIMATIC S5 host systems, the SINEC H1 Industrial Ethernet protocol allows upper-level systems — including SIMATIC WinCC SCADA, SIMATIC NET-connected industrial PCs, and third-party HMI platforms with Ethernet drivers — to communicate with S5 PLCs via the 6GK1143-0TA00, enabling integration into mixed-generation automation architectures.

Q3: How does the CP1430 TF handle network stability in electrically noisy industrial environments?
The 6GK1143-0TA00 is built to Siemens industrial-grade standards, incorporating EMC shielding and robust hardware design to maintain reliable communication in environments with significant electrical interference from variable frequency drives, high-current switching equipment, and other industrial noise sources. Proper cable shielding and grounding practices, as specified in the SINEC H1 installation guidelines, further ensure network stability.

Q4: What warranty and quality assurance does ZYPLC provide for the Siemens 6GK1143-0TA00?
All Siemens 6GK1143-0TA00 units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify communication performance and hardware integrity. In-stock units are available for immediate dispatch with global shipping support. For volume orders or urgent requirements, contact our technical sales team directly.
