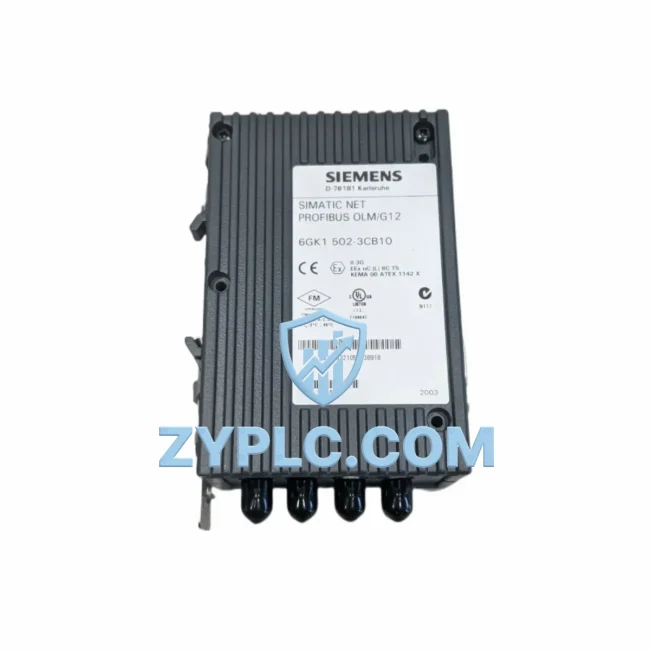

Siemens 6GK1502-3CB10 Industrial Network Interface for SIMATIC NET Systems

Siemens 6GK1502-3CB10: Industrial Data Link for Smart Factory Connectivity

The Siemens 6GK1502-3CB10 is a PROFIBUS OLM/G12 Optical Link Module engineered for mission-critical industrial network communication within SIMATIC NET architectures. Designed to bridge copper-based PROFIBUS DP segments with fiber optic transmission paths, this module delivers electromagnetic interference immunity, extended transmission distances, and deterministic real-time data exchange across complex automation environments. Whether deployed in automotive assembly lines, chemical processing plants, or discrete manufacturing cells, the 6GK1502-3CB10 serves as the backbone of reliable field-level communication between PLCs, remote I/O stations, HMI panels, SCADA systems, and drive controllers.

In modern smart factory deployments, data isolation between field devices and supervisory systems remains one of the most persistent challenges. The 6GK1502-3CB10 resolves this by converting electrical PROFIBUS signals to optical signals, enabling noise-free transmission over distances up to 15 km per segment — far beyond the reach of standard copper PROFIBUS cabling. This makes it an ideal solution for large-scale plant topologies where Siemens S7-300, S7-400, or S7-1500 PLCs must communicate with distributed I/O racks, ET 200M or ET 200S remote I/O stations, and field instrumentation across multiple production zones.

Network Communication Table

Connected Automation Data Flow

In a typical SIMATIC NET deployment, the 6GK1502-3CB10 sits at the intersection of the field bus layer and the control network, enabling seamless data flow from sensor-level devices all the way to enterprise SCADA and MES platforms. Consider a production line where a Siemens S7-1500 PLC acts as the PROFIBUS DP master. The PLC communicates with ET 200SP distributed I/O modules mounted in remote control cabinets via PROFIBUS DP. Without optical isolation, long cable runs in high-voltage environments introduce noise and signal degradation. The 6GK1502-3CB10 converts the RS-485 PROFIBUS signal to fiber optic, eliminating ground loops and EMI interference entirely.

Downstream, the optical signal is reconverted at the remote cabinet, where ET 200M I/O modules collect analog signals from pressure transmitters, temperature sensors, and flow meters. These values are transmitted in real time back to the S7-1500 PLC, which processes them and forwards aggregated data via PROFINET to a Siemens SCALANCE X208 managed industrial Ethernet switch. From there, data flows to a WinCC SCADA server for real-time visualization, alarm management, and historical trending. Operators at Siemens TP1200 Comfort HMI panels on the shop floor receive live process data with sub-100ms latency, enabling immediate response to process deviations.

For drive integration, Siemens SINAMICS G120 variable frequency drives connected via PROFIBUS DP to the same network segment report speed, torque, and fault status directly to the PLC. The 6GK1502-3CB10 ensures that drive communication remains stable even in environments with heavy motor switching transients. Similarly, Siemens SIRIUS 3RK3 motor management relays and safety modules participate in the PROFIBUS network, providing motor protection data and safety interlocks to the control system without additional wiring infrastructure.

For remote diagnostics and predictive maintenance, the PROFIBUS network data is aggregated at a Siemens SINEMA Remote Connect gateway, allowing plant engineers to access device status, network diagnostics, and fault logs from any location. This edge-to-cloud connectivity transforms the 6GK1502-3CB10 from a simple optical converter into a critical node in the plant’s digital transformation strategy.

Solving Data Isolation in Industrial Sites

One of the most common pain points in legacy industrial installations is protocol fragmentation — different generations of equipment speaking incompatible communication languages, creating data silos that prevent plant-wide visibility. The 6GK1502-3CB10 directly addresses this by providing a standards-compliant PROFIBUS DP/FMS optical backbone that integrates seamlessly with both legacy Siemens S5-compatible devices and modern S7-series controllers.

In facilities where copper PROFIBUS segments have reached their distance limits or are suffering from chronic communication errors due to electrical noise, replacing the segment interconnect with the 6GK1502-3CB10 optical link module eliminates the root cause without requiring any changes to the PLC program or device configuration. The module is transparent to the PROFIBUS protocol — it simply extends the physical layer while preserving all timing and addressing characteristics of the original network.

For production line transparency, the 6GK1502-3CB10 enables every field device — from proximity sensors and barcode readers to servo drives and safety PLCs — to participate in a unified data network. This unified visibility is the foundation for OEE (Overall Equipment Effectiveness) monitoring, real-time quality control, and predictive maintenance programs. Plant managers gain access to live production KPIs through WinCC or third-party SCADA platforms, while maintenance teams can remotely diagnose PROFIBUS segment health using Siemens STEP 7 or TIA Portal diagnostic tools without physically accessing the field cabinet.

System expansion is equally straightforward. The OLM/G12 supports ring topology with automatic redundancy switchover in under 1 ms, ensuring that adding new devices or extending the network to new production areas does not introduce downtime risk. Each 6GK1502-3CB10 unit undergoes full functional testing prior to shipment, and all units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and communication failures under normal operating conditions.

Industrial Connectivity FAQ

Q1: What is the maximum PROFIBUS segment length supported by the 6GK1502-3CB10?
A: Using single-mode glass fiber optic cable, the 6GK1502-3CB10 supports optical segment lengths of up to 15,000 meters per link, far exceeding the 1,200-meter limit of copper RS-485 PROFIBUS segments. This makes it suitable for large plant topologies, inter-building connections, and hazardous area installations where long cable runs are required.

Q2: Is the 6GK1502-3CB10 compatible with both PROFIBUS DP and PROFIBUS FMS protocols?
A: Yes. The OLM/G12 series supports both PROFIBUS DP (Decentralized Periphery) and PROFIBUS FMS (Fieldbus Message Specification) protocols at baud rates from 9.6 kbps to 12 Mbps. The module automatically adapts to the baud rate of the connected PROFIBUS segment, requiring no manual configuration for protocol or speed selection.

Q3: How does the ring topology feature improve network stability and uptime?
A: When configured in ring topology with multiple OLM/G12 modules, the 6GK1502-3CB10 provides automatic redundancy. If a fiber optic cable is cut or a module fails, the ring reconfigures itself in under 1 millisecond, maintaining uninterrupted communication across all connected devices. This is critical for continuous process industries where any communication interruption can trigger emergency shutdowns or production losses.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 6GK1502-3CB10?
A: Every 6GK1502-3CB10 unit supplied by ZYPLC undergoes pre-shipment functional verification including power-on testing, optical port continuity checks, and PROFIBUS communication validation. All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and component failures. Expedited shipping and in-stock availability ensure fast delivery to minimize plant downtime.
