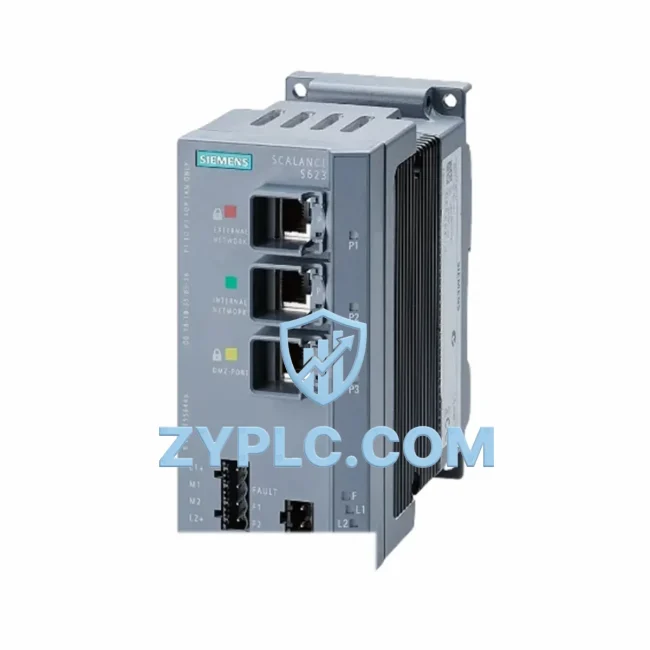

Siemens 6GK5612-0BA10-2AA3 Network Interface SCALANCE S

Siemens 6GK5612-0BA10-2AA3 Network Interface for SCALANCE S Industrial Data Link

In modern smart factory environments, the integrity and continuity of industrial data flow are mission-critical. The Siemens 6GK5612-0BA10-2AA3 — part of the SCALANCE S612 series — is a high-performance industrial VPN firewall gateway engineered to secure, segment, and bridge communication between operational technology (OT) networks and information technology (IT) infrastructure. Designed for demanding industrial Ethernet environments, this module enables seamless protocol conversion, encrypted VPN tunneling, and stateful packet inspection across multi-vendor automation architectures.

From signal acquisition at the field device level to real-time data visualization in SCADA and MES systems, the 6GK5612-0BA10-2AA3 sits at the heart of the industrial data chain. It enforces network segmentation between production cells and enterprise networks, ensuring that critical control traffic — whether from SIMATIC S7-1500 PLCs, ET 200SP distributed I/O stations, or SINAMICS G120 variable frequency drives — remains protected from unauthorized access and cyber threats.

Network Communication Table

Connected Automation Data Flow

The 6GK5612-0BA10-2AA3 operates as the network security gateway within a layered industrial communication architecture. At the field level, sensors and actuators transmit process data to SIMATIC ET 200SP remote I/O modules over PROFINET. These distributed I/O nodes feed real-time signals — temperature, pressure, flow rate, motor status — upward to SIMATIC S7-1500 PLCs running in the control cabinet. The S7-1500, communicating via PROFINET IO, exchanges cyclic data with the automation network while the 6GK5612-0BA10-2AA3 enforces firewall rules at the cell boundary, preventing unauthorized lateral movement across network segments.

Within the same production cell, SINAMICS G120 variable frequency drives receive speed and torque setpoints from the S7-1500 via PROFINET, while the SCALANCE S612 gateway monitors and logs all inter-device communication. SCALANCE X208 managed industrial Ethernet switches aggregate traffic from multiple field devices and PLCs, feeding it through the 6GK5612-0BA10-2AA3 before it reaches the plant-level network. This architecture ensures that only authorized, encrypted data traverses the OT/IT boundary.

At the supervisory level, WinCC SCADA servers and SIMATIC HMI panels — such as the TP1200 Comfort — connect to the plant network through the secure tunnel established by the 6GK5612-0BA10-2AA3. Operators gain real-time visibility into production KPIs, alarm states, and drive diagnostics without exposing the control network to enterprise IT risks. SINEMA Remote Connect server further extends this capability, enabling remote engineers to access PLCs, HMIs, and drives through authenticated VPN sessions managed by the SCALANCE S612 gateway.

For edge computing and IIoT integration, SIMATIC IPC edge devices collect and pre-process data from the OT network before forwarding aggregated datasets to MES or cloud analytics platforms. The 6GK5612-0BA10-2AA3 acts as the secure conduit for this upward data flow, applying NAT/NAPT translation and IP filtering to maintain strict network separation while enabling the data transparency that Industry 4.0 applications demand.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — production cells operating as closed islands, unable to share process data with supervisory systems, maintenance teams, or enterprise ERP platforms. The Siemens 6GK5612-0BA10-2AA3 directly addresses this challenge through a combination of VPN tunneling, protocol bridging, and granular firewall policy management.

In legacy plant environments where older SIMATIC S7-300 or S7-400 PLCs communicate over MPI or PROFIBUS, integration with modern Ethernet-based SCADA systems requires careful network design. The 6GK5612-0BA10-2AA3, deployed alongside PROFIBUS/PROFINET gateways such as the IE/PB Link PN IO, enables these legacy controllers to participate in the plant-wide data network without requiring full hardware replacement. This protects existing capital investment while enabling production line transparency and remote monitoring.

Remote diagnostics represent another critical use case. Maintenance engineers can establish secure IPsec VPN sessions through the 6GK5612-0BA10-2AA3 to access SIMATIC PLCs, SINAMICS drives, and SCALANCE network infrastructure from off-site locations. This capability dramatically reduces mean time to repair (MTTR) by enabling expert diagnosis and parameter adjustment without physical site visits. Alarm notifications from WinCC or SIMATIC WinCC OA are routed through the secure network boundary, ensuring that critical process alerts reach the right personnel in real time.

System scalability is built into the SCALANCE S612 architecture. As production lines expand — adding new robot cells, conveyor systems, or quality inspection stations — additional SCALANCE S612 modules can be deployed to extend the secure network perimeter. Each unit supports up to 128 IPsec VPN tunnels, providing ample capacity for multi-site connectivity and remote access consolidation. Configuration is managed centrally through the Security Configuration Tool (SCT) or TIA Portal, ensuring consistent policy enforcement across all network segments.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying VPN tunnel establishment, firewall rule enforcement, and Ethernet port integrity before dispatch. Stock availability is maintained for rapid fulfillment, supporting both project-based procurement and emergency replacement requirements. All units are covered by a 12-month warranty, providing assurance of product quality and long-term operational reliability.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens 6GK5612-0BA10-2AA3 support?
The SCALANCE S612 supports Industrial Ethernet (IEEE 802.3), PROFINET IO, IPsec VPN, HTTPS, SNMP v1/v2c/v3, and NTP. It is fully compatible with SIMATIC automation systems and integrates with TIA Portal for centralized network configuration and diagnostics.

Q2: How does the 6GK5612-0BA10-2AA3 ensure network stability in 24/7 industrial environments?
The module features a ruggedized design rated for -40 °C to +70 °C operating temperatures, IP30 protection, and 24 V DC power input compatible with standard industrial power supplies. Stateful packet inspection and MAC/IP filtering prevent unauthorized traffic from disrupting control network stability, while SNMP monitoring enables proactive network health management.

Q3: Can the SCALANCE S612 be integrated with existing SCADA and HMI systems?
Yes. The 6GK5612-0BA10-2AA3 is designed for seamless integration with WinCC SCADA, SIMATIC HMI panels, and SINEMA Remote Connect. It supports NAT/NAPT for IP address translation between OT and IT network segments, enabling SCADA servers and HMI clients to access field devices without direct network exposure. Configuration is performed via the Security Configuration Tool (SCT) or TIA Portal V16 and above.

Q4: What warranty and testing does ZYPLC provide for the 6GK5612-0BA10-2AA3?
All units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Pre-shipment testing verifies VPN tunnel functionality, firewall policy enforcement, and physical port integrity. Expedited shipping options are available for urgent project requirements, with global logistics support to major industrial markets.
