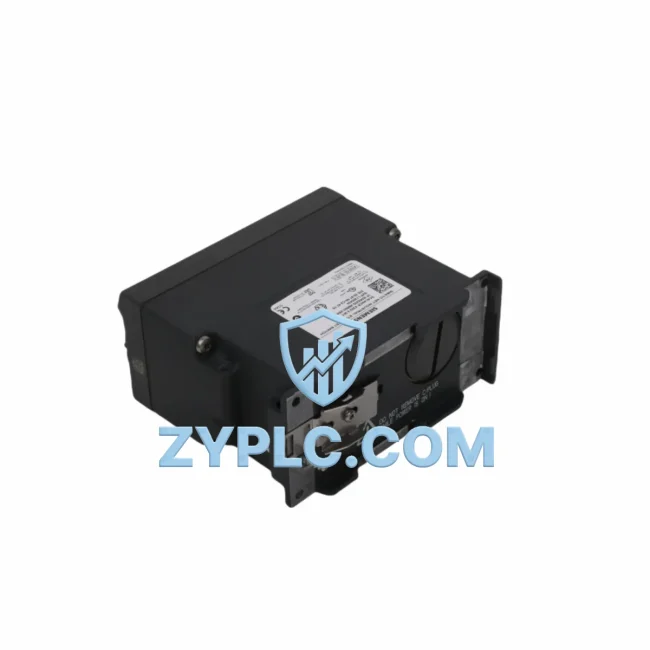

Siemens 6GK7243-2AX01-0XA0 AS-Interface Master S7-300

Siemens 6GK7243-2AX01-0XA0 AS-Interface Master S7-300: Efficiency Control and Production Line Optimization

The Siemens 6GK7243-2AX01-0XA0 is a high-performance AS-Interface (AS-i) Master Module designed for seamless integration into the Siemens S7-300 PLC platform. In modern industrial environments where energy costs and equipment utilization directly impact profitability, this communication module plays a pivotal role in reducing unnecessary power consumption, streamlining fieldbus data exchange, and enabling real-time control of distributed I/O nodes across the production floor. By centralizing AS-i network management within the S7-300 rack, the 6GK7243-2AX01-0XA0 eliminates redundant wiring, reduces signal latency, and allows engineers to monitor and control up to 31 AS-i slaves — including sensors, actuators, and valve terminals — from a single, unified control point.

Efficiency Performance Table

Energy-Aware Automation Architecture

Achieving genuine energy efficiency in industrial automation requires more than selecting individual components — it demands a coherent system architecture where every layer, from field device to control room, communicates with minimal overhead and maximum precision. The Siemens 6GK7243-2AX01-0XA0 sits at the heart of this architecture as the AS-i master, coordinating cyclic data exchange between the SIMATIC S7-300 CPU (such as the CPU 315-2 DP or CPU 317-2 PN/DP) and distributed field devices without burdening the main CPU with polling overhead.

In a typical energy-optimized production cell, the 6GK7243-2AX01-0XA0 works alongside the Siemens ET 200S distributed I/O system, which handles local signal acquisition at machine level. Digital and analog I/O modules within the ET 200S rack feed real-time process values — motor run status, valve positions, conveyor belt speeds — back through the AS-i network to the S7-300 controller. This tight integration allows the PLC program to implement demand-based control logic: motors are started only when upstream sensors confirm material presence, and drives are ramped down during idle intervals rather than running at full speed continuously.

Drive-level energy savings are amplified when the 6GK7243-2AX01-0XA0 is deployed alongside Siemens SINAMICS G120 variable frequency drives. The G120 series, including the SINAMICS G120C compact inverter, supports AS-i communication via optional interface modules, enabling the S7-300 to issue speed reference commands and read back actual power consumption data in real time. By dynamically adjusting motor speed to match actual load demand — rather than running at fixed rated speed — factories typically achieve 20–40% reductions in motor energy consumption on conveyor, pump, and fan applications.

For applications requiring precise motion control, the architecture extends to Siemens SIMOTICS S servo motors paired with SINAMICS S120 drive systems. While the S120 communicates primarily via PROFIBUS DP or PROFINET, the 6GK7243-2AX01-0XA0 handles the AS-i segment that manages auxiliary field devices — proximity switches, safety relays, and indicator lights — freeing the high-speed drive bus for motion-critical data. This separation of communication layers prevents network congestion and ensures deterministic cycle times across both the AS-i and drive networks.

Power quality monitoring is another dimension where this module contributes to system-wide efficiency. When integrated with Siemens SENTRON PAC3200 power monitoring devices, the S7-300 can correlate AS-i field device states with real-time energy consumption data. If a particular AS-i slave — such as a solenoid valve or motor starter — shows abnormal current draw, the PAC3200 data flags the anomaly, enabling predictive maintenance before a fault causes unplanned downtime. The SENTRON 7KM PAC series further extends this capability with harmonic analysis, helping identify power quality issues that silently increase energy costs.

At the HMI layer, Siemens SIMATIC HMI TP700 Comfort or KTP900 Basic panels provide operators with live visibility into AS-i network status, slave diagnostics, and energy KPIs. Operators can monitor which field zones are active, identify idle equipment consuming standby power, and trigger energy-saving modes directly from the panel — all without requiring engineering-level access to the STEP 7 or TIA Portal project.

Communication gateway flexibility is maintained through the Siemens CP 343-1 Ethernet communication processor, which connects the S7-300 rack to plant-level SCADA and MES systems via Industrial Ethernet. This allows energy data collected through the AS-i network to be aggregated at the enterprise level, supporting ISO 50001 energy management reporting and continuous improvement initiatives.

Power Optimization in Real Production Lines

In real-world production environments, the Siemens 6GK7243-2AX01-0XA0 delivers measurable impact across three critical dimensions: energy consumption reduction, unplanned downtime elimination, and equipment utilization improvement.

Reducing Energy Waste Through Demand-Driven Control: Traditional hardwired I/O systems often keep field devices energized regardless of production state, because the cost and complexity of implementing zone-based power management outweighs the perceived benefit. With the AS-i master module managing up to 62 A/B slaves across a single two-wire cable, engineers can implement granular zone control — powering down entire AS-i segments during shift breaks or product changeovers — without rewiring. A packaging line running three shifts, for example, can reduce auxiliary device energy consumption by 15–25% simply by implementing AS-i segment shutdown during scheduled downtime periods.

Minimizing Unplanned Downtime Through Diagnostics: The 6GK7243-2AX01-0XA0 provides continuous AS-i network diagnostics, detecting slave address conflicts, cable faults, and power supply degradation before they cause production stops. In automotive body shop applications, where conveyor systems run continuously across multiple shifts, early fault detection through AS-i diagnostics has been shown to reduce unplanned stoppages by 30–50% compared to conventional hardwired I/O. Each avoided stoppage on a high-throughput line can represent thousands of dollars in recovered production value.

Optimizing Production Line Takt Time: The deterministic 5 ms AS-i cycle time ensures that sensor signals — part presence, position confirmation, safety interlocks — reach the S7-300 CPU with consistent, predictable latency. This allows PLC programmers to tighten motion sequences and reduce conservative timing buffers that are typically added to compensate for unpredictable I/O response times. On assembly lines where takt time is measured in seconds, even a 200–300 ms reduction in cycle overhead translates to meaningful throughput gains over a production shift.

Lowering Maintenance Costs Through Simplified Topology: The AS-i two-wire flat cable topology supported by the 6GK7243-2AX01-0XA0 dramatically reduces the volume of field wiring compared to conventional parallel I/O. Fewer cable runs mean lower installation labor, reduced conduit fill, and simplified troubleshooting. Maintenance technicians can identify and replace a faulty AS-i slave in minutes using the module’s built-in diagnostic LEDs and STEP 7 diagnostic buffer — without consulting wiring diagrams or using specialized test equipment.

All units supplied by ZYPLC undergo full functional testing prior to shipment, including AS-i network initialization, slave detection verification, and backplane communication checks. Each Siemens 6GK7243-2AX01-0XA0 is covered by a 12-month warranty, ensuring your production investment is protected from day one of installation.

Energy Optimization FAQ

Q1: How does the 6GK7243-2AX01-0XA0 contribute to energy savings compared to conventional I/O wiring?
The AS-i master module replaces parallel hardwired I/O with a single two-wire network, reducing cable mass, installation labor, and the energy overhead associated with maintaining large terminal cabinets. More importantly, it enables software-controlled power management of field device segments, allowing engineers to implement demand-driven shutdown logic that is impractical with conventional wiring. In multi-zone production environments, this can reduce auxiliary device energy consumption by 15–30% without hardware changes.

Q2: Is the 6GK7243-2AX01-0XA0 compatible with TIA Portal and modern S7-300 CPU variants?
The module is designed for the SIMATIC S7-300 platform and is fully compatible with STEP 7 V5.x for configuration and diagnostics. For TIA Portal-based projects, the module can be integrated via the hardware catalog when using compatible S7-300 CPUs. It supports standard AS-i specification V2.1, ensuring interoperability with AS-i slaves from Siemens and third-party manufacturers including Pepperl+Fuchs, Turck, and Balluff.

Q3: Can this module replace an older 6GK7243-2AX00-0XA0 without hardware modifications?
The 6GK7243-2AX01-0XA0 is the successor to the 6GK7243-2AX00-0XA0 and is designed as a drop-in replacement for the S7-300 rack slot. The module occupies the same physical slot and uses the same backplane interface. Configuration migration from the previous version is straightforward in STEP 7, with the hardware catalog entry updated to reflect the new order number. No field wiring changes are required.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every Siemens 6GK7243-2AX01-0XA0 supplied by ZYPLC undergoes a multi-stage pre-shipment test: visual inspection for physical damage, backplane connector integrity check, AS-i network initialization test with a reference slave set, and firmware version verification. The 12-month warranty covers functional defects arising under normal operating conditions. Units that fail during the warranty period are replaced or repaired at no additional cost. Contact our technical team at plc.sales@zyplc.com for warranty claims or pre-purchase compatibility consultation.
