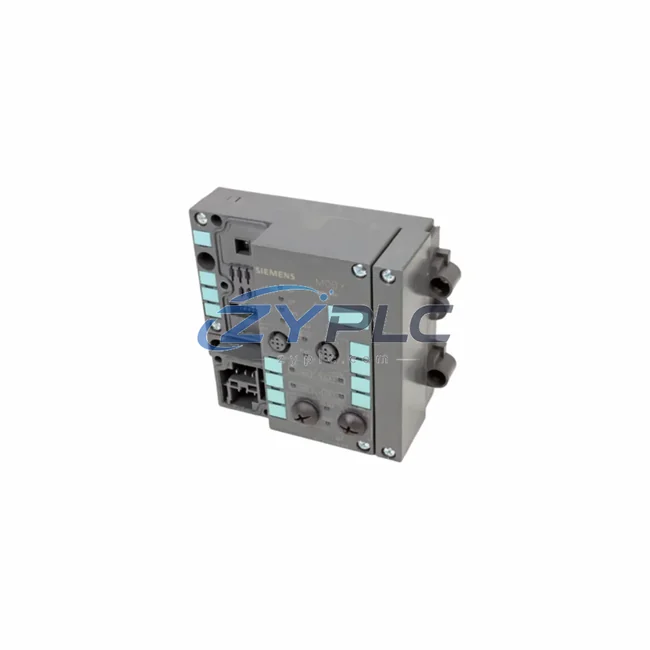

Siemens 6GT2002-0EB00 RFID Interface for RF200

Siemens 6GT2002-0EB00 RFID Interface for RF200: Control System Coordination and Upstream-Downstream Synchronization

The Siemens 6GT2002-0EB00 is a dedicated RFID interface module engineered for seamless integration within the SIMATIC RF200 reader system family. Rather than functioning as a standalone identification device, this module is designed to occupy a precise role within a layered industrial automation architecture — bridging the physical identification layer with the control, network, and data management layers of a complete production or logistics system. Understanding its position within the full control hierarchy is essential for engineers specifying, commissioning, or maintaining RFID-enabled automation environments.

In modern industrial control architectures, the RFID layer sits between the field device layer and the programmable logic controller (PLC) or distributed control system (DCS). The 6GT2002-0EB00 connects directly to SIMATIC RF200 series readers — such as the RF210R, RF220R, RF250R, and RF260R — and provides the communication bridge that allows tag data to flow upward into the control layer. This interface module supports IO-Link communication, enabling deterministic, point-to-point data exchange with compatible IO-Link masters, including those integrated into SIMATIC ET 200SP and ET 200MP distributed I/O stations.

At the control layer, the 6GT2002-0EB00 interfaces with SIMATIC S7-1200 and S7-1500 series PLCs via PROFINET or PROFIBUS, depending on the network topology selected by the system architect. The module’s system integration capability ensures that RFID read/write events are synchronized with upstream process logic — for example, triggering conveyor start/stop commands, updating production counters, or initiating quality inspection routines based on transponder data. This tight coupling between identification events and control responses is what distinguishes a well-architected RFID system from a simple barcode replacement.

From a network layer perspective, the 6GT2002-0EB00 participates in the PROFINET device hierarchy managed by the S7-1500 CPU or an S7-1200 controller acting as PROFINET IO controller. Network configuration is performed through TIA Portal (Totally Integrated Automation Portal), where the RF200 system — including the 6GT2002-0EB00 interface module — is added to the hardware configuration as a standard IO device. Engineers can assign device names, configure cyclic data exchange intervals, and define alarm behaviors directly within the TIA Portal environment, ensuring full system consistency from engineering to commissioning.

The power layer for the 6GT2002-0EB00 and its associated RF200 readers is typically supplied through a SITOP PSU100S or SITOP PSU200M 24 VDC power supply unit, which provides the stable, low-ripple DC power required for reliable RFID read/write operations in electrically noisy industrial environments. Proper power supply sizing must account for the combined current draw of the interface module, the connected reader, and any antenna extension cables used in the installation.

At the human-machine interface (HMI) layer, SIMATIC HMI panels — such as the KTP700 Basic or TP1200 Comfort — can be configured to display real-time RFID tag data, system status, and error diagnostics. This visibility is critical in applications such as automotive assembly, pharmaceutical track-and-trace, and warehouse management, where operators need immediate feedback on identification events and system health.

For installations requiring redundancy, the 6GT2002-0EB00 can be deployed in architectures that include redundant PROFINET ring topologies using Media Redundancy Protocol (MRP), ensuring that a single cable fault does not interrupt RFID data flow to the control system. This is particularly relevant in continuous process industries such as petrochemical plants, water treatment facilities, and power generation stations, where unplanned downtime carries significant operational and safety consequences.

The module’s compact form factor and DIN rail mounting compatibility make it suitable for installation within standard control cabinets alongside SIMATIC S7 CPUs, CP 1543-1 communication processors, SM 1221/1222/1231 signal modules, and terminal block assemblies. This co-location simplifies cable management, reduces signal path lengths, and facilitates systematic maintenance inspections.

Long-term maintainability is a core design consideration for the 6GT2002-0EB00. Siemens provides firmware update support through TIA Portal, and the module’s diagnostic data — including communication error counts, tag read success rates, and hardware fault indicators — is accessible via standard PROFINET diagnostic mechanisms. This data can be logged by the S7-1500 CPU and forwarded to SCADA systems or MES platforms for trend analysis and predictive maintenance scheduling.

All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, ensuring that engineering teams can specify the 6GT2002-0EB00 with confidence in both product quality and post-delivery support. Stock availability is maintained to support both planned project deployments and urgent replacement requirements.

Product Specification Table

System Compatibility Notes

A complete RFID-enabled control system built around the 6GT2002-0EB00 typically incorporates the following coordinated components: the SIMATIC RF220R or RF250R reader as the field-level identification device; an ET 200SP IO-Link master module (CM 4xIO-Link) as the network aggregation point; a SIMATIC S7-1500 CPU 1515-2 PN as the primary control processor; a SITOP PSU200M 10A power supply for stable 24 VDC distribution; a SCALANCE X208 managed Ethernet switch for PROFINET network segmentation; a SIMATIC KTP900 Basic HMI panel for operator visualization; and SIMATIC S7-1500 SM 1221 digital input modules for auxiliary sensor integration. In conveyor-based manufacturing lines, the 6GT2002-0EB00 may also work alongside SINAMICS G120 variable frequency drives that respond to PLC commands triggered by RFID identification events, and SIMATIC CP 1543-1 communication processors that forward tag data to enterprise MES or ERP systems via OPC UA or MQTT protocols.

Industrial Application Notes

The 6GT2002-0EB00 finds application across a broad range of industrial sectors. In automotive manufacturing, it enables body-in-white tracking on assembly lines, ensuring that the correct build variant follows each vehicle through welding, painting, and final assembly stations. In pharmaceutical production, it supports serialization and track-and-trace compliance by recording container movements at each process step. In food and beverage packaging lines, the module facilitates recipe management by reading transponders on product carriers and triggering the appropriate filling, capping, or labeling parameters in the S7-1500 PLC. In warehouse and logistics automation, it enables automated goods receipt and dispatch verification, reducing manual scanning errors and improving inventory accuracy. In power generation and utilities, RFID identification of maintenance tools and equipment using the RF200 system — interfaced via the 6GT2002-0EB00 — supports tool management and access control workflows integrated with the plant’s SCADA system. In mining and heavy industry, the module’s robust IP67-rated interface ensures reliable operation in dusty, high-vibration environments where barcode-based identification systems frequently fail.

Product Compatibility FAQ

Q1: Is the 6GT2002-0EB00 compatible with both SIMATIC S7-1200 and S7-1500 PLC platforms?
Yes. The 6GT2002-0EB00 connects to the PLC via an IO-Link master module, which in turn communicates with the S7-1200 or S7-1500 over PROFINET. Both platforms are fully supported through TIA Portal hardware configuration. The S7-1500 is recommended for applications requiring high-speed cyclic data exchange or integration with multiple RF200 reader stations across a large PROFINET network.

Q2: Can the 6GT2002-0EB00 be used in a redundant PROFINET architecture?
Yes. When the IO-Link master and PROFINET network are configured with Media Redundancy Protocol (MRP) using a managed switch such as the SCALANCE X208 or X308-2, the PROFINET segment carrying RF200 data can achieve ring redundancy with sub-200ms recovery times. This configuration is suitable for continuous process applications where RFID data continuity is operationally critical.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance?
The warranty terms confirmed during quotation provided by ZYPLC covers manufacturing defects and functional failures under normal operating conditions. In addition to warranty coverage, ZYPLC supports RFQ sourcing for the 6GT2002-0EB00 and compatible RF200 system components to support both planned maintenance replacements and emergency procurement. Technical pre-sales support is available to assist with system architecture validation, TIA Portal configuration guidance, and compatibility verification with existing SIMATIC installations.
