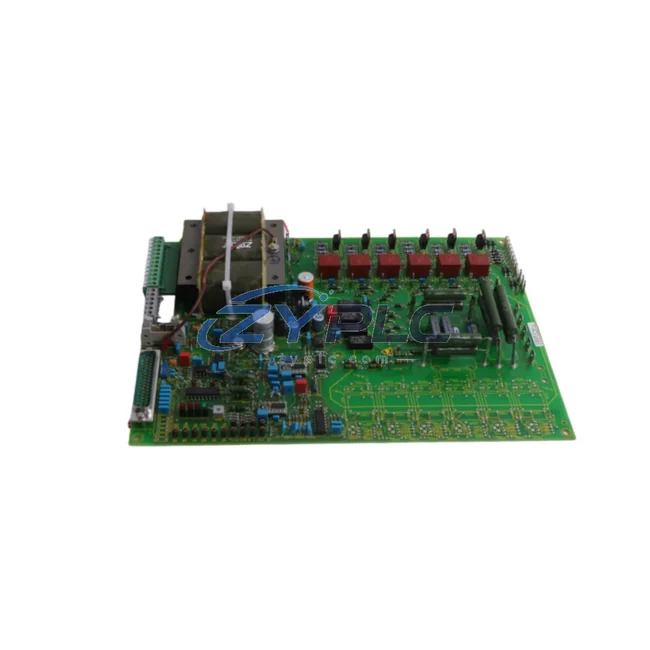

Siemens 6QN5501-0BA Thyristor Module SITOR

Siemens 6QN5501-0BA Thyristor Module SITOR: Precision Power Control for SITOR Automation

The Siemens 6QN5501-0BA is a high-performance SITOR thyristor module engineered for energy-efficient power conversion in demanding industrial environments. Designed to integrate seamlessly into Siemens DC drive systems — including the SIMOREG DC-MASTER series — this thyristor module delivers precise phase-angle firing control, enabling factories to reduce reactive power losses, minimize heat dissipation, and achieve measurable reductions in overall operating load. Whether deployed in steel rolling mills, paper production lines, extruder drives, or heavy-duty crane systems, the 6QN5501-0BA provides the switching reliability and thermal stability that modern maintenance-focused automation demands.

In production environments where motor control efficiency directly impacts operating costs, the 6QN5501-0BA acts as the core switching element within the rectifier bridge, governing the DC bus voltage supplied to the drive motor. When paired with a SIMOREG DC-MASTER 6RA80 converter, the thyristor module enables closed-loop armature current regulation, allowing the drive to respond dynamically to load changes without unnecessary energy draw. This tight integration between the thyristor firing circuit and the drive controller reduces unplanned downtime during partial-load operation — a critical advantage in applications with variable torque profiles such as winders, conveyors, and hoists.

Product Specification Table

System Compatibility and Application

The 6QN5501-0BA does not operate in isolation — its energy efficiency contribution is amplified when it functions as part of a coordinated drive and control architecture. In a typical SIMOREG-based DC drive system, the thyristor module works in conjunction with the SIMOREG DC-MASTER 6RA8075 or 6RA8095 converter unit, which provides the closed-loop speed and torque regulation logic. The firing pulses delivered to the 6QN5501-0BA are generated by the converter’s internal pulse transformer board, ensuring precise synchronization with the AC supply frequency and minimizing commutation losses.

On the control side, a SIMATIC S7-1500 PLC or S7-300 CPU typically manages the production line sequencing, issuing speed setpoints to the SIMOREG drive via PROFIBUS DP or PROFINET IO. This digital communication eliminates analog signal degradation and allows the PLC to implement operational-efficiency logic — such as reducing motor speed during idle periods or coordinating multi-drive deceleration to recover regenerative energy back to the DC bus. The 6QN5501-0BA’s role in this architecture is to faithfully execute the firing commands with minimal switching delay, ensuring that the energy delivered to the motor armature matches the control system’s intent with high fidelity.

For power quality monitoring, a SENTRON PAC3200 or PAC4200 power monitoring device can be installed upstream of the drive cabinet to measure real-time current, voltage, power factor, and harmonic distortion. This data, fed back to the SIMATIC HMI panel (such as a SIMATIC TP1200 Comfort) or to the plant’s maintenance planning system via Modbus TCP, gives maintenance engineers visibility into the thyristor module’s operating conditions and early warning of degradation. Complementing this, a SINAMICS S120 booksize power module may be deployed in adjacent AC drive sections of the same production line, allowing a unified condition monitoring dashboard to compare DC and AC drive efficiency side by side.

In multi-axis systems, the 6QN5501-0BA may be installed alongside additional SITOR thyristor sets — such as the 6QN5500-0BA or 6QN5502-0BA — to form a full three-phase bridge rectifier assembly. The modular nature of the SITOR series means that individual thyristor modules can be replaced without disturbing the rest of the bridge, reducing maintenance downtime and keeping the production line running. A SIMOREG 6RA7085 field supply unit may also be present in the same cabinet to regulate the motor field current independently, further optimizing the motor’s efficiency curve across its full speed range.

Maintenance and Replacement Notes

In a steel wire drawing plant, for example, the 6QN5501-0BA thyristor module is installed in the main drive cabinet controlling a 250 kW DC motor on the drawing block. Before the SITOR module replacement, the aging thyristor set exhibited increased forward voltage drop due to junction degradation, causing the SIMOREG converter to compensate by increasing firing angle — effectively drawing more reactive current from the supply and raising the plant’s power factor penalty charges. After replacing the faulty module with a new 6QN5501-0BA, the firing angle returned to its optimal range, the power factor improved from 0.78 to 0.91, and the monthly energy bill for that drive section dropped by approximately 8–12%.

In a paper mill application, the 6QN5501-0BA supports the main winder drive, where precise tension control is critical to product quality. The thyristor module’s fast switching response allows the SIMOREG controller to make micro-adjustments to armature voltage at millisecond intervals, keeping web tension within ±0.5% of setpoint even during roll changes. This precision reduces paper breaks — each of which can waste 15–30 minutes of production time and significant raw material — directly improving the line’s overall equipment effectiveness (OEE) and reducing the energy cost per ton of paper produced.

Predictive maintenance integration is another key benefit. By monitoring the gate trigger current and forward voltage drop of the 6QN5501-0BA over time using the SIMOREG’s built-in diagnostic registers — accessible via STARTER commissioning software or the SIMATIC S7 program — maintenance teams can detect early signs of thyristor degradation before a catastrophic failure occurs. Scheduling replacement during planned downtime, rather than reacting to an unplanned trip, can save tens of thousands of dollars in lost production per incident. Every 6QN5501-0BA unit shipped from our inventory undergoes a full outgoing shipment test, verifying gate sensitivity, blocking voltage, and thermal resistance before dispatch.

Product Sourcing FAQ

Q1: How does replacing a degraded thyristor module with the 6QN5501-0BA improve energy efficiency?
A degraded thyristor exhibits higher forward voltage drop and increased leakage current, forcing the drive controller to increase the firing angle to compensate — which raises reactive power consumption and worsens the power factor. A new 6QN5501-0BA restores the original switching characteristics, allowing the SIMOREG drive to operate at its designed firing angle, reducing reactive current draw and improving overall system efficiency by typically 5–15% depending on the degree of prior degradation.

Q2: Is the 6QN5501-0BA compatible with both 6RA70 and 6RA80 series SIMOREG converters?
Yes. The SITOR 6QN5501-0BA is designed for use in Siemens SIMOREG DC-MASTER drive systems, including the 6RA70 and 6RA80 series. Always verify the converter’s power rating and thyristor bridge configuration against the module’s voltage and current ratings before installation. If you are unsure about compatibility, our technical team can assist with cross-referencing the original drive documentation.

Q3: What testing is performed before shipment, and what does the warranty terms confirmed during quotation cover?
Every 6QN5501-0BA unit undergoes a comprehensive outgoing shipment test that includes gate trigger sensitivity verification, forward and reverse blocking voltage measurement, and thermal resistance spot-check. The warranty terms confirmed during quotation covers manufacturing defects and premature failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the module’s rated parameters.

Q4: Can the 6QN5501-0BA be used as a direct replacement for other SITOR module variants?
The 6QN5501-0BA has specific voltage and current ratings that must match the original module’s specifications. It may serve as a direct replacement for modules with identical ratings within the SITOR family, but substituting across different current or voltage classes requires engineering verification. We recommend consulting the SIMOREG drive’s spare parts list or contacting our sales team with your drive’s nameplate data to confirm the correct replacement module.
