Siemens 6RX1700-0AK00 Industrial Network Interface for SIMOREG DC Master Systems

Siemens 6RX1700-0AK00 Industrial Network Interface for SIMOREG DC Master Systems: Bridging the Industrial Data Link

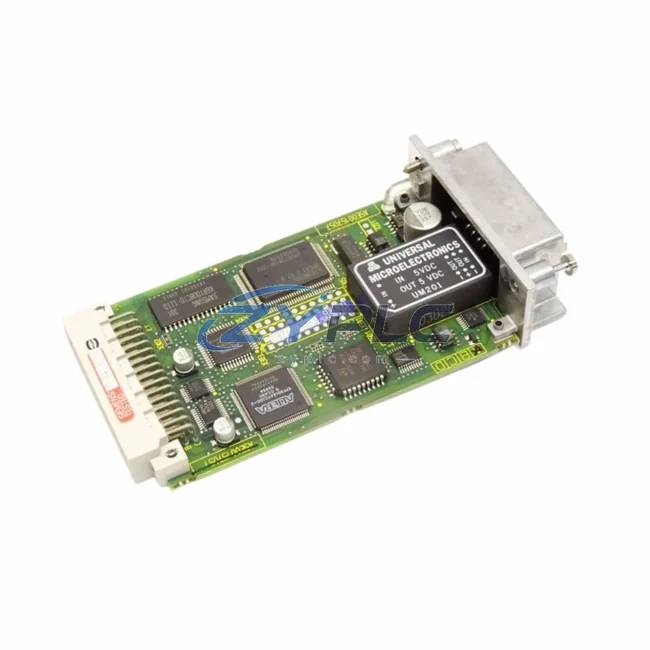

The Siemens 6RX1700-0AK00 is a dedicated communication option module engineered for the SIMOREG DC Master series of DC drive converters. Designed to extend the native connectivity of SIMOREG DC Master units, this option module enables seamless integration between DC drive systems and higher-level industrial automation networks — including PROFIBUS-DP, USS protocol, and serial fieldbus architectures. In smart factory environments where real-time data exchange between field devices and supervisory systems is non-negotiable, the 6RX1700-0AK00 serves as a critical link in the industrial data chain.

Whether deployed in heavy-duty motor control centers, paper mills, metal processing lines, crane and hoist systems, or extruder drives, this module ensures that your SIMOREG DC Master drive is no longer an isolated node — it becomes a fully networked, remotely accessible, and diagnostics-ready component within your plant-wide automation architecture.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the Siemens 6RX1700-0AK00 sits at the intersection of the field device layer and the control network layer. The data flow begins at the motor and encoder level, where the SIMOREG DC Master converter — such as the 6RA7085 or 6RA7090 base units — captures real-time speed, current, torque, and fault signals from the DC motor. The 6RX1700-0AK00 option module then translates these drive-level signals into structured PROFIBUS-DP telegrams or USS protocol frames, making them immediately readable by upstream controllers.

At the PLC layer, a Siemens SIMATIC S7-300 or S7-400 controller acts as the PROFIBUS-DP master, polling the SIMOREG drive via the 6RX1700-0AK00 at cyclic intervals. This enables the PLC to issue speed setpoints, enable/disable commands, and fault reset signals — all over the same fieldbus segment. In multi-drive applications, several SIMOREG DC Master units equipped with 6RX1700-0AK00 modules can be daisy-chained on a single PROFIBUS-DP segment, dramatically reducing wiring complexity and cabinet footprint.

Moving up the network hierarchy, a Siemens SCALANCE X industrial Ethernet switch or a CP 343-1 communications processor bridges the PROFIBUS segment to the plant Ethernet backbone. From there, a WinCC SCADA or WinCC OA supervisory system receives live drive data — including motor speed trends, DC bus voltage, armature current, and alarm states — for operator visualization and historical logging. HMI panels such as the Siemens SIMATIC TP700 Comfort or KTP900 Basic can display drive status pages directly, giving floor operators immediate visibility into drive health without requiring access to the drive cabinet.

For remote I/O expansion in distributed control architectures, Siemens ET 200S or ET 200M remote I/O stations can be integrated on the same PROFIBUS-DP network segment as the SIMOREG drives, allowing analog and digital field signals — from proximity sensors, temperature transmitters, and pressure transducers — to be aggregated alongside drive data in a unified data stream. This unified approach eliminates the need for separate signal wiring runs and simplifies the overall network topology.

At the edge layer, an industrial edge gateway or Siemens SINEMA Remote Connect solution can tunnel PROFIBUS data over secure VPN connections, enabling remote engineers to monitor SIMOREG drive parameters, adjust setpoints, and retrieve fault logs from anywhere in the world — without physical access to the plant floor. This remote diagnostics capability is particularly valuable for minimizing downtime in 24/7 production environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy DC drive installations is data isolation — drives that operate as standalone units with no visibility into the broader automation system. Without a communication interface, operators must physically inspect drive panels to read fault codes, manually record speed and current values, and rely on local indicators for alarm notification. This creates blind spots in production monitoring, delays fault response, and makes predictive maintenance virtually impossible.

The Siemens 6RX1700-0AK00 directly addresses this problem by converting the SIMOREG DC Master from a closed, standalone device into a fully networked automation node. Once installed, every drive parameter — from motor speed and armature current to fault codes and operating hours — becomes accessible over PROFIBUS-DP or USS, feeding directly into SCADA historians, MES systems, and cloud analytics platforms.

Protocol unification is another key benefit. In plants where multiple generations of equipment coexist — some using PROFIBUS, others using USS serial links — the 6RX1700-0AK00 provides a consistent communication interface that allows all SIMOREG DC Master drives to participate in the same network segment, regardless of their firmware generation. This eliminates the need for separate protocol converters or gateway devices for each drive.

Production line transparency is dramatically improved when SIMOREG drives are networked via the 6RX1700-0AK00. Operators and engineers can view real-time drive performance dashboards, set threshold-based alarms for overcurrent or overspeed conditions, and receive automatic notifications when a drive enters fault state — all without leaving the control room. This level of visibility supports lean manufacturing initiatives, OEE (Overall Equipment Effectiveness) tracking, and ISO-compliant maintenance documentation.

System scalability is preserved through the modular design of the SIMOREG DC Master platform. As production capacity grows, additional drives equipped with 6RX1700-0AK00 modules can be added to the existing PROFIBUS-DP network without requiring changes to the PLC program structure or SCADA configuration — only a new device address assignment is needed. This plug-and-expand architecture protects your automation investment over the long term.

Every 6RX1700-0AK00 unit supplied by ZYPLC undergoes functional testing prior to dispatch, verifying communication initialization, parameter access, and fieldbus handshake integrity. Units are shipped with a are available from Availability confirmed by RFQ inventory for shipment arranged after confirmation via DHL or FedEx.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens 6RX1700-0AK00 support, and is it compatible with SIMATIC S7 PLC systems?
The 6RX1700-0AK00 supports PROFIBUS-DP and USS (Universal Serial Interface) protocols, making it fully compatible with Siemens SIMATIC S7-300 and S7-400 PLC systems acting as PROFIBUS-DP masters. It enables cyclic data exchange for setpoint transmission and status feedback, as well as acyclic access for parameter read/write operations via DP-V1 services.

Q2: How does the 6RX1700-0AK00 affect network stability in multi-drive PROFIBUS-DP segments?
The module is designed to operate within standard PROFIBUS-DP timing constraints, supporting baud rates up to 12 Mbit/s. In multi-drive segments, each SIMOREG unit with a 6RX1700-0AK00 is assigned a unique DP slave address, ensuring deterministic, collision-free communication. Proper termination and cable shielding practices should be followed to maintain signal integrity across the segment.

Q3: Can the 6RX1700-0AK00 be used for remote diagnostics and SCADA integration without additional gateway hardware?
Yes. Once the 6RX1700-0AK00 is installed and the SIMOREG drive is registered as a PROFIBUS-DP slave, all drive parameters and fault data are accessible to any PROFIBUS-DP master — including SCADA systems with native PROFIBUS drivers such as WinCC, Ignition, or InTouch. For Ethernet-based SCADA systems, a PROFIBUS-to-Ethernet gateway (e.g., Siemens PN/DP coupler) bridges the two network layers without requiring additional per-drive hardware.

Q4: What does the cover, and how is pre-shipment testing conducted?
Every 6RX1700-0AK00 unit supplied by ZYPLC is functionally tested before dispatch to verify communication initialization, PROFIBUS-DP slave registration, and parameter access integrity. The covers hardware defects and communication failures under normal operating conditions. In the event of a warranty claim, ZYPLC provides direct technical support and replacement coordination. Contact us at plc.sales@zyplc.com or +86 19859288691 for warranty inquiries.
