Siemens 6RY1243-0EA00 SIMOREG DC Master Drive Module

Siemens 6RY1243-0EA00 SIMOREG DC Master: Industrial Data Link for Smart Factory Connectivity

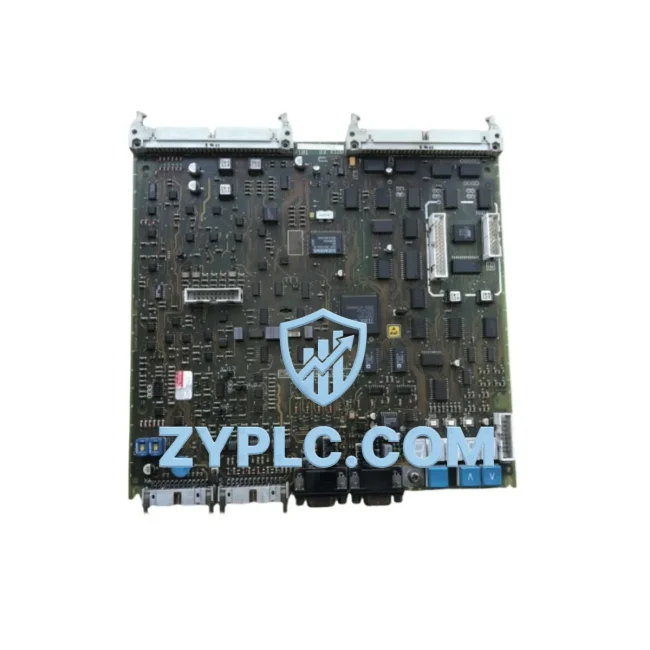

The Siemens 6RY1243-0EA00 (C98043-A1603-L11) is a precision-engineered drive control module within the SIMOREG DC Master series — one of Siemens’ most trusted platforms for DC drive regulation in heavy industrial environments. Designed to serve as a critical node in the industrial data chain, this module bridges field-level devices and upper-level control systems, enabling seamless signal acquisition, protocol conversion, real-time data transmission, and remote diagnostics across complex automation architectures.

In modern smart factory deployments, the integrity of the data link between field devices and supervisory systems determines the efficiency of the entire production line. The 6RY1243-0EA00 is engineered to meet this demand — delivering stable, low-latency communication between DC drive systems and the broader industrial network, including PLC controllers, remote I/O stations, HMI panels, SCADA platforms, and edge computing gateways.

Network Communication Table

Connected Automation Data Flow

The 6RY1243-0EA00 operates at the heart of a layered industrial communication architecture. At the field level, analog and digital signals from encoders, tachogenerators, and current sensors feed into the SIMOREG DC Master drive, where the 6RY1243-0EA00 firing pulse board processes and regulates thyristor gate signals for precise DC motor control. This real-time signal acquisition forms the foundation of the data chain.

Moving up the network stack, the SIMOREG DC Master communicates with Siemens SIMATIC S7-300 and S7-400 PLC controllers via PROFIBUS-DP, transmitting live drive status, speed references, torque limits, and fault codes. The Siemens CB15 PROFIBUS communication board — a companion module within the SIMOREG ecosystem — enables this protocol bridge, ensuring that the PLC’s cyclic data exchange with the drive remains deterministic and low-latency, even in electrically noisy plant environments.

For remote I/O expansion, the SIMOREG DC Master integrates with Siemens ET 200M and ET 200S distributed I/O stations, allowing field signals from limit switches, temperature sensors, and pressure transmitters to be aggregated and forwarded to the central PLC over the same PROFIBUS segment. This architecture eliminates point-to-point wiring complexity and reduces commissioning time significantly.

At the supervisory level, Siemens WinCC SCADA and SIMATIC HMI TP700/TP900 panels consume the drive data forwarded by the PLC, presenting operators with real-time speed curves, load trends, alarm histories, and energy consumption metrics. The 6RY1243-0EA00’s reliable operation ensures that the data flowing from the DC motor shaft all the way to the SCADA dashboard remains accurate and uninterrupted.

For plants requiring protocol conversion between legacy serial networks and modern Ethernet-based systems, the Siemens SCALANCE X208 industrial Ethernet switch and IE/PB Link PN IO gateway serve as the translation layer, converting PROFIBUS-DP traffic from the SIMOREG drive network into PROFINET frames consumable by higher-level MES and ERP systems. This gateway architecture is essential for achieving full production line transparency in Industry 4.0 environments.

Variable frequency drives such as the Siemens SINAMICS G120 and S120 series often operate alongside SIMOREG DC Master drives in mixed AC/DC drive topologies — for example, in paper mills or steel processing lines where AC drives handle auxiliary conveyors while DC drives manage the main rolling or winding process. The 6RY1243-0EA00 ensures the DC drive segment of this mixed network maintains synchronization with the broader drive system through coordinated PLC logic and shared PROFIBUS communication.

Edge computing nodes, such as the Siemens SIMATIC IPC427E industrial PC, can be deployed to perform local data preprocessing — aggregating drive parameters, running predictive maintenance algorithms, and forwarding condensed datasets to cloud-based analytics platforms — all without interrupting the real-time control loop managed by the 6RY1243-0EA00 and its associated SIMOREG drive stack.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is protocol fragmentation — where DC drives, AC inverters, PLCs, and SCADA systems each speak different communication languages, creating data silos that prevent operators from gaining a unified view of production performance. The Siemens SIMOREG DC Master platform, anchored by modules like the 6RY1243-0EA00, directly addresses this challenge through its native PROFIBUS-DP support and compatibility with Siemens’ broader TIA (Totally Integrated Automation) ecosystem.

By standardizing drive communication on PROFIBUS-DP and enabling seamless integration with SIMATIC PLCs and WinCC SCADA, the 6RY1243-0EA00 eliminates the need for proprietary protocol converters between the drive and the control layer. This reduces network latency, simplifies fault tracing, and enables remote diagnostics — allowing maintenance engineers to read drive fault buffers, adjust parameters, and monitor real-time waveforms from a central engineering station without physically accessing the drive cabinet.

For production line transparency, the module supports continuous reporting of key drive variables — including armature current, field current, motor speed, and DC bus voltage — to the SCADA historian, enabling trend analysis, OEE calculation, and predictive maintenance scheduling. Plants that have integrated SIMOREG DC Master drives into their SCADA architecture report measurable reductions in unplanned downtime, as fault conditions are detected and alarmed within milliseconds of occurrence.

System expansion is equally straightforward: additional SIMOREG drives can be added to an existing PROFIBUS segment without reconfiguring the network topology, and the modular design of the SIMOREG DC Master allows individual boards — including the 6RY1243-0EA00 — to be replaced in the field without full drive replacement, minimizing spare parts inventory costs and repair lead times.

Every unit of the 6RY1243-0EA00 supplied by ZYPLC undergoes pre-shipment functional testing, verifying communication interface integrity, firing pulse output accuracy, and parameter memory retention before dispatch. Units are shipped with a 12-month warranty, and our technical team provides post-sale support for installation, commissioning, and network integration queries.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens 6RY1243-0EA00 / SIMOREG DC Master support?
The SIMOREG DC Master platform supports PROFIBUS-DP (via optional CB15 communication board), USS protocol over RS-485 serial links, and peer-to-peer serial communication for drive-to-drive coordination. PROFIBUS-DP is the recommended protocol for integration with Siemens SIMATIC S7 PLCs and WinCC SCADA systems, offering cycle times as low as 1–2 ms for time-critical drive control applications.

Q2: Is the 6RY1243-0EA00 compatible with existing PROFIBUS networks and third-party SCADA systems?
Yes. The SIMOREG DC Master’s PROFIBUS-DP interface is fully compliant with the IEC 61158 standard, making it interoperable with third-party PROFIBUS masters and SCADA platforms that support standard DP slave communication. GSD (General Station Description) files are available for integration into non-Siemens engineering environments, including Rockwell Studio 5000 and Schneider Unity Pro with PROFIBUS scanner modules.

Q3: How does the module perform in terms of network stability and communication latency in high-interference industrial environments?
The SIMOREG DC Master is designed for deployment in electrically demanding environments — including thyristor drive cabinets, rolling mill floors, and heavy motor control centers — where EMI levels are high. The PROFIBUS-DP physical layer uses shielded twisted-pair cabling with defined termination requirements, and the drive’s communication stack includes watchdog timers and bus fault detection to ensure that a network interruption triggers a controlled drive response rather than an uncontrolled motor trip.

Q4: What warranty and testing standards apply to ZYPLC-supplied units of the 6RY1243-0EA00?
All 6RY1243-0EA00 units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing including communication interface checks, firing pulse output validation, and parameter read/write testing. Units are packaged in anti-static, shock-resistant materials and shipped via DHL or FedEx with full tracking. Our technical support team is available for post-delivery commissioning assistance and network integration guidance.
