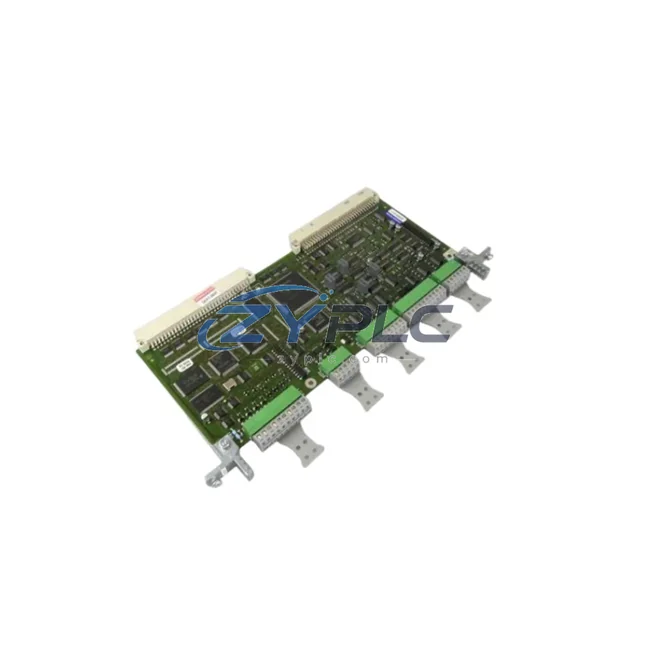

Siemens 6RY1703-1HD02 Interface for SIMOREG DC Master

Siemens 6RY1703-1HD02 Interface for SIMOREG DC Master: Industrial Data Link for Smart Factory Connectivity

The Siemens 6RY1703-1HD02 (part reference C98043-A7021-L1-3) is a dedicated communication interface module engineered for the SIMOREG DC Master drive platform. Designed to bridge field-level DC drive systems with higher-level automation networks, this module enables seamless PROFIBUS DP communication between the SIMOREG drive and PLCs, SCADA systems, HMIs, and distributed control architectures. In modern smart factory environments where real-time data exchange is non-negotiable, the 6RY1703-1HD02 delivers the protocol gateway capability that eliminates data isolation and accelerates system transparency.

As industrial sites evolve toward fully connected production lines, the demand for reliable, low-latency communication between drive systems and control layers has never been greater. The 6RY1703-1HD02 plugs directly into the SIMOREG DC Master’s option slot, transforming a standalone DC drive into a fully networked automation node capable of transmitting speed references, torque setpoints, fault diagnostics, and operational status data across the PROFIBUS DP backbone in real time.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the 6RY1703-1HD02 sits at the intersection of the drive layer and the control network. Signal acquisition begins at the motor and encoder level, where the SIMOREG DC Master collects speed feedback, armature current, and field current data. This raw drive data is then packaged by the 6RY1703-1HD02 into PROFIBUS DP telegrams and transmitted upstream to the automation controller — typically a Siemens S7-400 or S7-300 PLC acting as the PROFIBUS master.

From the PLC, process data flows into the SCADA layer via Siemens WinCC or third-party SCADA platforms, enabling operators to monitor drive performance, energy consumption, and fault states from a centralized control room. The Siemens OP277 or TP900 Comfort HMI panels connected to the same PROFIBUS segment can display real-time drive parameters and allow local parameter adjustment without interrupting production.

For distributed architectures, the 6RY1703-1HD02 integrates naturally alongside Siemens ET 200M remote I/O stations, allowing field signals from proximity sensors, temperature transmitters, and limit switches to share the same PROFIBUS DP network as the DC drive. This unified data backbone reduces wiring complexity and enables the Siemens S7-1500 PLC — when used as a gateway controller — to coordinate multi-drive sequences across the production line.

In applications involving variable-speed conveyors, winding machines, or extruder lines, the 6RY1703-1HD02 enables the SIMOREG DC Master to receive speed and torque references from the master PLC while simultaneously reporting actual values back for closed-loop control. When paired with a Siemens SCALANCE X208 Industrial Ethernet switch at the supervisory level, the overall network architecture supports both PROFIBUS at the drive layer and PROFINET at the control layer, with the PLC bridging both segments.

Edge computing nodes and Siemens SINEMA Remote Connect gateways can tap into the PROFIBUS data stream via the PLC’s OPC UA server, enabling remote diagnostics and predictive maintenance analytics without requiring direct access to the drive cabinet. This end-to-end data chain — from the SIMOREG DC Master through the 6RY1703-1HD02, across the PROFIBUS network, through the S7 PLC, and up to the SCADA and cloud analytics layer — represents the backbone of a fully transparent, data-driven production environment.

Solving Data Isolation in Industrial Sites

Many industrial facilities operating legacy DC drive systems face a common challenge: the drives run reliably but remain invisible to the plant’s control and monitoring infrastructure. Without a communication interface, the SIMOREG DC Master operates as an isolated island — operators cannot retrieve fault histories, energy data, or performance trends without physically accessing the drive panel.

The 6RY1703-1HD02 directly resolves this data isolation problem. By enabling PROFIBUS DP communication, it connects the DC drive to the plant’s existing automation network without requiring hardware replacement or rewiring. Fault codes, running hours, output current, and speed data become available to the SCADA system in real time, enabling alarm management, trend logging, and remote diagnostics from the control room.

For multi-drive production lines — such as paper mills, steel rolling mills, or printing presses — where multiple SIMOREG DC Master units must be coordinated, the 6RY1703-1HD02 allows each drive to participate in the PROFIBUS network as an individual slave node. The master PLC can poll all drives cyclically, synchronize speed references, and detect faults across the entire line within milliseconds. This level of system transparency is essential for achieving OEE (Overall Equipment Effectiveness) targets and reducing unplanned downtime.

System expansion is equally straightforward: adding a new SIMOREG DC Master drive to an existing PROFIBUS network requires only the installation of the 6RY1703-1HD02 and configuration of the GSD file in the PLC engineering tool (STEP 7 or TIA Portal). No additional hardware gateways or protocol converters are needed, making the 6RY1703-1HD02 a cost-effective path to full network integration.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication initialization, PROFIBUS address configuration, and data exchange integrity. Stock is maintained for shipment arranged after confirmation, and all units are covered by a warranty terms confirmed during quotation from the date of shipment.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 6RY1703-1HD02 on a PROFIBUS DP network?
The 6RY1703-1HD02 supports PROFIBUS DP cyclic data exchange with typical bus cycle times in the range of 1–10 ms depending on the number of slaves and the configured baud rate (up to 12 Mbit/s). This is sufficient for real-time speed and torque control in most DC drive applications.

Q2: Is the 6RY1703-1HD02 compatible with both STEP 7 and TIA Portal engineering environments?
Yes. The module uses a standard GSD file for PROFIBUS DP configuration, which is supported by both STEP 7 (Classic) and TIA Portal. The GSD file can be imported into the hardware configuration tool to define the drive’s I/O data structure on the PROFIBUS network.

Q3: Can the 6RY1703-1HD02 be used to connect the SIMOREG DC Master to a SCADA system directly?
The 6RY1703-1HD02 connects the SIMOREG DC Master to the PROFIBUS DP network. SCADA integration is typically achieved via the PLC (e.g., Siemens S7-300/400/1500), which acts as the PROFIBUS master and exposes drive data to the SCADA system through OPC or direct communication drivers.

Q4: What warranty and testing does ZYPLC provide for the 6RY1703-1HD02?
All units are covered by a warranty terms confirmed during quotation from the date of shipment. Each module undergoes pre-shipment functional testing including PROFIBUS communication initialization and data exchange verification. Availability is confirmed via RFQ for shipment arranged after confirmation globally.
