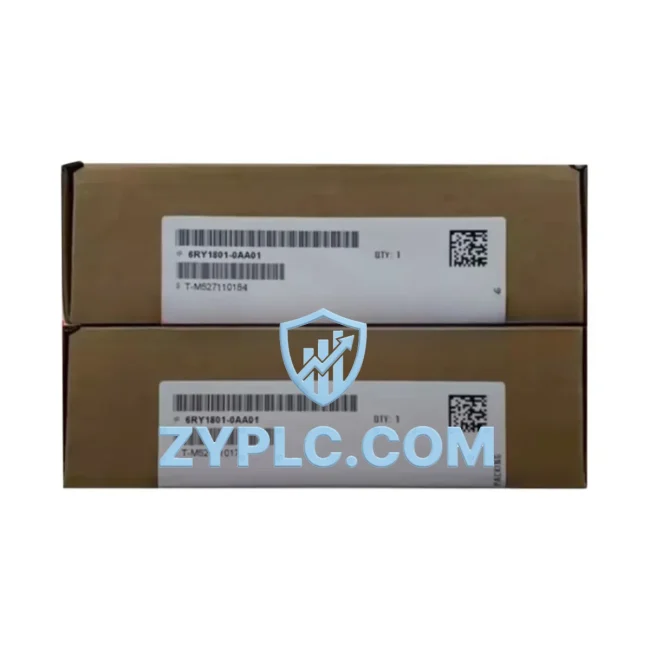

Siemens 6RY1801-0AA01 Digital Output Module

Siemens 6RY1801-0AA01 Digital Output Module for SIMOREG Automation

The Siemens 6RY1801-0AA01 is a precision-engineered Digital Output Module designed specifically for the SIMOREG DC Master drive series — one of Siemens’ most established platforms for DC motor control in heavy industrial environments. In modern manufacturing, where equipment uptime and replacement lead time directly affect production continuity, this module plays a critical role in ensuring that control signals are delivered with accuracy, speed, and minimal power overhead. Whether integrated into a new drive system or used as a replacement component in an existing SIMOREG installation, the 6RY1801-0AA01 contributes to measurable improvements in drive efficiency, production line rhythm, and overall energy utilization.

Industrial facilities operating DC motor-driven equipment — including rolling mills, extruders, winding machines, and crane systems — depend on reliable digital output interfaces to translate PLC commands into precise drive actions. The 6RY1801-0AA01 serves as that critical bridge, ensuring that every switching signal from the control layer reaches the power stage without delay or distortion. This directly reduces the risk of motor over-run, unnecessary braking cycles, and reactive energy losses that accumulate over time in poorly coordinated drive systems.

Product Specification Table

System Compatibility and Application

The 6RY1801-0AA01 does not operate in isolation — it is part of a tightly integrated drive and control ecosystem built around the SIMOREG DC Master platform. In a typical energy-optimized production line, this module works in concert with the SIMOREG 6RA7031 or 6RA7075 DC converter units, which regulate armature and field current to maintain motor efficiency across variable load conditions. The digital output signals generated through the 6RY1801-0AA01 directly influence how the converter responds to speed and torque demands, enabling smooth acceleration ramps that reduce inrush current and mechanical stress.

On the control side, the module interfaces with Siemens SIMATIC S7-300 or S7-400 PLCs via the SIMOREG’s onboard PROFIBUS-DP interface. This allows the PLC to issue precise start, stop, and direction commands to the DC drive without analog signal degradation. In facilities where multiple drives are coordinated — such as multi-stand rolling mills or synchronized winding lines — the accuracy of these digital outputs is essential for maintaining production line rhythm and preventing energy-wasting speed mismatches between drive zones.

For power quality monitoring, the 6RY1801-0AA01-equipped SIMOREG system can be paired with Siemens SENTRON PAC3200 or PAC4200 power monitoring devices, which track real-time energy consumption at the drive level. This data feeds into maintenance planning dashboards, enabling maintenance teams to identify inefficient operating periods, correlate energy spikes with specific production events, and schedule preventive maintenance before failures occur. The SIMATIC ET 200SP distributed I/O system can further extend the digital output network across the production floor, reducing wiring complexity and signal latency in large-scale installations.

In servo-assisted hybrid lines where DC drives handle bulk power tasks and AC servo systems manage precision positioning, the 6RY1801-0AA01 ensures that the DC drive side responds correctly to handoff signals from SINAMICS S120 servo drive modules. This cross-platform coordination is increasingly common in modernized facilities that have upgraded portions of their lines to AC servo technology while retaining proven DC drive infrastructure for high-torque applications. The SIMATIC HMI TP1200 Comfort panel provides operators with a unified visualization interface, displaying drive status, output states, and energy consumption data in real time — enabling faster response to process deviations and reducing the duration of unplanned stops.

Additionally, the SITOP PSU8600 modular power supply system ensures stable 24 V DC supply to the control and I/O layer, including the 6RY1801-0AA01 module itself. Voltage fluctuations in the control supply are a common but overlooked source of spurious output switching, which can cause unnecessary drive trips and unplanned downtime. A regulated, buffered supply eliminates this risk and contributes to overall system reliability.

Maintenance and Replacement Notes

In real-world industrial deployments, the value of the Siemens 6RY1801-0AA01 is most clearly demonstrated in applications where DC motor control precision directly translates to operational stability. Consider a paper mill where large DC motors drive the main press rolls. Without accurate digital output control, the drive may respond sluggishly to load changes, causing the motor to draw excess current during transitions. With the 6RY1801-0AA01 ensuring clean, noise-free switching signals, the SIMOREG converter can apply optimal field weakening and armature current profiles, reducing energy consumption during partial-load operation by maintaining the motor closer to its efficiency peak.

In crane and hoist applications, the digital output module enables precise control of braking contactors and direction relays. Poorly timed switching in these applications leads to mechanical brake wear, regenerative energy losses, and increased maintenance frequency. The 6RY1801-0AA01 supports deterministic output timing that aligns braking and acceleration sequences with the drive’s internal control cycle, reducing energy dissipated in braking resistors and extending the service life of mechanical components.

For extruder and winding machine operators, consistent line speed is critical to product quality and material yield. Speed deviations caused by delayed or noisy control signals result in material waste, rework, and increased energy consumption per unit of output. By maintaining signal integrity at the drive interface, the 6RY1801-0AA01 helps stabilize line speed, reduce scrap rates, and improve the overall energy efficiency ratio of the production process.

From a maintenance perspective, the module’s role in predictive maintenance strategies should not be underestimated. When integrated with the SIMOREG’s diagnostic functions and connected to a SIMATIC S7 PLC running condition monitoring routines, output state changes can be logged and analyzed for anomalies. Unusual switching patterns — such as rapid toggling or unexpected state changes — can indicate upstream control issues or downstream load problems, allowing maintenance teams to intervene before a failure causes unplanned downtime. Every hour of avoided downtime represents not only saved production output but also the energy that would have been consumed during restart sequences and equipment warm-up cycles.

All units of the 6RY1801-0AA01 supplied by ZYPLC are sourced from verified supply channels, subjected to outgoing functional testing prior to shipment, and covered by a 12-month warranty. Stock is maintained to support urgent replacement needs, with fast dispatch to minimize production interruption.

Product Sourcing FAQ

Q1: How does the 6RY1801-0AA01 contribute to operational stability in a SIMOREG DC drive system?
The module ensures that digital control signals are delivered to the SIMOREG converter with precise timing and without noise-induced errors. This allows the drive to execute optimal acceleration, deceleration, and field control sequences, reducing unnecessary current draw and minimizing energy losses during motor transitions. Accurate output switching also prevents false drive trips that would require energy-intensive restart cycles.

Q2: Is the 6RY1801-0AA01 compatible with SIMOREG DC Master drives using PROFIBUS-DP communication?
Yes. The 6RY1801-0AA01 is designed for the SIMOREG DC Master platform, which supports PROFIBUS-DP as its primary fieldbus interface. The module’s digital outputs are coordinated through the drive’s internal control board, which communicates with SIMATIC PLCs and higher-level control systems via PROFIBUS-DP or USS protocol, depending on the system configuration.

Q3: Can this module be used as a direct replacement in an existing SIMOREG installation without reconfiguration?
In most cases, yes. The 6RY1801-0AA01 is a standard replacement module for the SIMOREG DC Master series. However, it is recommended to verify the drive firmware version and parameter settings before installation, as some drive configurations may require parameter re-entry after a board replacement. ZYPLC’s technical team can provide guidance on replacement procedures upon request.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All 6RY1801-0AA01 units supplied by ZYPLC undergo functional outgoing inspection testing to verify output channel integrity and basic operational parameters before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail during the warranty period are eligible for replacement or repair, subject to assessment. Warranty claims are processed through ZYPLC’s standard RMA procedure.
