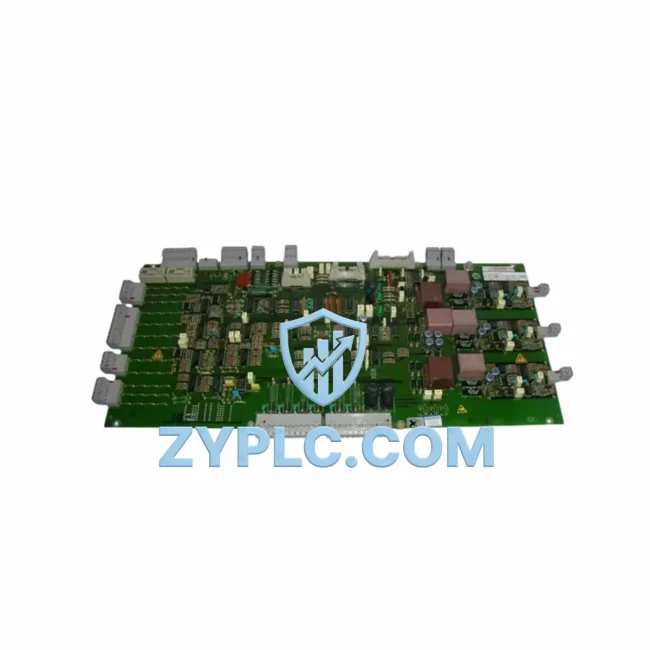

Siemens 6SC9830-0HA60 Industrial Network Interface for SIMODRIVE Systems

Siemens 6SC9830-0HA60 Industrial Network Interface for SIMODRIVE Systems

In modern smart factory environments, seamless data flow between field devices and upper-level control systems is the backbone of operational efficiency. The Siemens 6SC9830-0HA60 SIMODRIVE servo drive module serves as a critical industrial network interface node, enabling real-time communication between servo axes, PLC controllers, SCADA platforms, and HMI systems across the production floor. Designed for integration within the SIMODRIVE 611 drive family, this module bridges the gap between motion control hardware and the digital intelligence layer of Industry 4.0 architectures.

The 6SC9830-0HA60 supports both PROFIBUS-DP and analog command interfaces, making it compatible with a wide range of Siemens control platforms including the SINUMERIK 840D CNC controller and SIMATIC S7-300/S7-400 PLC series. When deployed alongside the 6SN1118-0DG23-0AA1 SIMODRIVE 611 control module, the 6SC9830-0HA60 enables synchronized multi-axis positioning with deterministic cycle times, a prerequisite for high-precision machining and assembly automation.

Network Communication Table

Connected Automation Data Flow

Understanding the 6SC9830-0HA60’s role requires tracing the full industrial data chain from signal acquisition to upper-level reporting. At the field level, precision encoders and linear scales feed position feedback directly into the drive module’s encoder interface. This raw motion data is processed locally within the SIMODRIVE 611 power section — typically paired with a 6SN1145-1BA01-0BA1 infeed/regenerative feedback module — before being transmitted upstream via PROFIBUS-DP to the SINUMERIK 840D NCU.

The SINUMERIK 840D NCU acts as the central motion coordinator, receiving real-time axis status from the 6SC9830-0HA60 and issuing interpolated setpoints back to the drive at every interpolation cycle. Simultaneously, the SIMATIC S7-315-2DP PLC handles discrete I/O logic — tool change sequences, spindle interlocks, and safety relay states — communicating with the drive module through the same PROFIBUS segment. This dual-master PROFIBUS topology, managed by a 6GK7343-1EX30-0XE0 SIMATIC NET CP 343-1 communications processor, ensures that motion commands and machine logic remain tightly synchronized without network collision.

For remote monitoring and SCADA integration, a 6GK1571-0BA00-0AA0 PROFIBUS USB adapter or an industrial Ethernet gateway such as the 6GK5208-0BA10-2AA3 SCALANCE X208 managed switch bridges the PROFIBUS segment to the plant’s Ethernet backbone. This allows WinCC SCADA or third-party MES platforms to poll drive diagnostics — current load, torque utilization, fault codes, and thermal status — in near real-time without interrupting the deterministic motion control cycle.

At the HMI layer, a 6AV2124-0GC01-0AX0 SIMATIC HMI TP700 Comfort panel provides operators with live axis position readouts, drive fault visualization, and one-touch parameter adjustment. When a fault condition is detected on the 6SC9830-0HA60 — such as an overcurrent trip or encoder signal loss — the alarm propagates instantly through the PROFIBUS network to both the SINUMERIK NCU and the WinCC alarm server, triggering automated line stop sequences and SMS/email notifications to maintenance personnel.

For distributed I/O expansion at remote machine stations, ET 200S remote I/O stations connected via PROFIBUS-DP extend the control reach of the S7 PLC without additional cabling runs to the central cabinet. Variable frequency drives such as the 6SL3210-1KE21-3AF1 SINAMICS G120 handle auxiliary motor loads — coolant pumps, chip conveyors, and hydraulic units — on the same PROFIBUS segment, giving the SCADA system a unified view of all energy consumers on the production line.

Solving Data Isolation in Industrial Sites

Many legacy manufacturing sites operate with fragmented automation islands: CNC machines running proprietary protocols, PLCs with no network connectivity, and drive systems that can only be diagnosed by physically connecting a laptop to a service port. The Siemens 6SC9830-0HA60 directly addresses these data isolation challenges by providing a standardized PROFIBUS-DP interface that integrates the servo axis into the plant-wide communication fabric.

Protocol unification is the first barrier eliminated. By supporting PROFIBUS-DP alongside analog command channels, the 6SC9830-0HA60 allows facilities to migrate from legacy analog wiring to digital fieldbus communication incrementally — retaining existing analog infrastructure where needed while enabling PROFIBUS-based diagnostics and parameterization via SIMATIC STEP 7 or TIA Portal. This hybrid approach dramatically reduces retrofit costs and downtime during modernization projects.

Data transparency across the production line is achieved through cyclic PROFIBUS polling, which delivers axis status, fault registers, and performance counters to the SCADA historian every scan cycle. Plant managers gain real-time OEE visibility — tracking spindle utilization, axis idle time, and fault frequency — without deploying additional edge hardware. Remote diagnostics via the SCALANCE network infrastructure allow Siemens service engineers or in-house automation teams to access drive parameters and fault logs from any location on the plant network, reducing mean time to repair (MTTR) significantly.

System scalability is built into the SIMODRIVE 611 architecture. Additional axes can be added to the drive bus by inserting new power modules and control boards without redesigning the PROFIBUS segment. The 6SC9830-0HA60’s modular form factor ensures that capacity expansions — adding a fourth or fifth CNC axis, integrating a new robotic cell, or extending to a second machine tool — are accomplished with minimal engineering effort and zero disruption to existing network topology.

Every 6SC9830-0HA60 unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying PROFIBUS communication handshake, encoder interface integrity, and drive bus signal quality before dispatch. Units are shipped with full 12-month warranty coverage, backed by in-stock inventory for immediate availability and fast global logistics.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens 6SC9830-0HA60 support?
The 6SC9830-0HA60 supports PROFIBUS-DP for digital fieldbus communication and analog ±10V command interfaces for legacy system compatibility. PROFIBUS-DP enables cyclic data exchange at up to 12 Mbps, supporting real-time position feedback, fault reporting, and parameter access from SIMATIC S7 PLCs and SINUMERIK CNC controllers.

Q2: Is the 6SC9830-0HA60 compatible with SIMATIC S7-300 and S7-400 PLC systems?
Yes. The module integrates natively into SIMATIC S7-300 and S7-400 controlled systems via PROFIBUS-DP. Configuration is performed through SIMATIC STEP 7 or TIA Portal using standard GSD files, and the drive appears as a standard PROFIBUS slave device on the network segment.

Q3: How does ZYPLC ensure network stability and product quality before shipment?
Each 6SC9830-0HA60 unit undergoes pre-shipment functional testing covering PROFIBUS communication handshake verification, encoder interface signal integrity checks, and drive bus continuity testing. All units are covered by a 12-month warranty and shipped from verified in-stock inventory to minimize lead times.

Q4: Can the 6SC9830-0HA60 be integrated into an existing SCADA or HMI system?
Yes. Through the PROFIBUS-DP network, drive diagnostics and status data from the 6SC9830-0HA60 are accessible to WinCC, iFIX, Wonderware, and other SCADA platforms via OPC DA/UA gateways or SIMATIC NET communication processors. SIMATIC HMI panels can display live axis data and alarm states directly from the drive module without additional middleware.
