Siemens 6SE6400-1PB00-0AA0 Industrial Network Interface for Micromaster 4

Siemens 6SE6400-1PB00-0AA0: Industrial Data Link for Smart Factory Connectivity

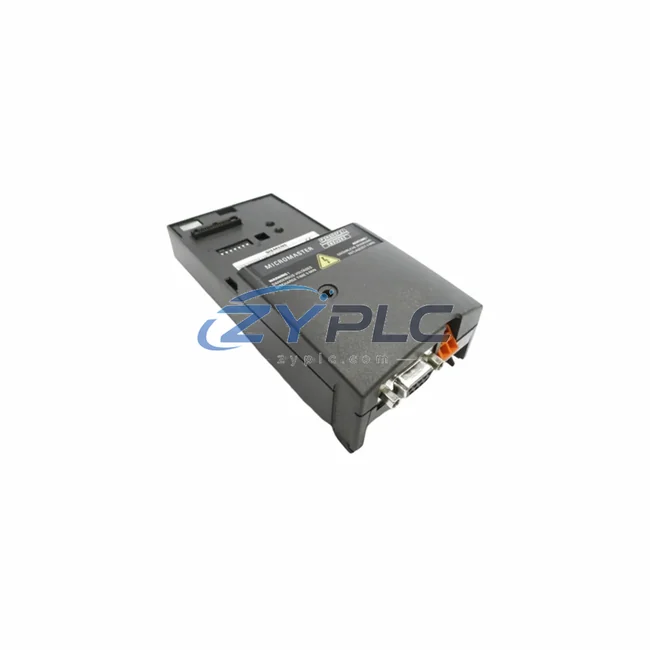

The Siemens 6SE6400-1PB00-0AA0 is a dedicated PROFIBUS-DP communication module engineered for the Micromaster 4 series of variable frequency drives. In modern smart factory environments, seamless data exchange between field devices, controllers, and supervisory systems is not optional — it is the backbone of operational efficiency. This module bridges the gap between drive-level signal processing and plant-wide network intelligence, enabling real-time command, monitoring, and diagnostic data to flow without interruption across the automation hierarchy.

Installed directly onto the Micromaster 4 drive — including the MM420, MM430, and MM440 variants — the 6SE6400-1PB00-0AA0 transforms a standalone inverter into a fully networked automation node. From the moment the PROFIBUS-DP connection is established, the drive becomes visible to the PLC, the SCADA platform, and the HMI, enabling centralized parameter access, setpoint control, and fault diagnostics from a single engineering environment.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the 6SE6400-1PB00-0AA0 sits at the intersection of the field device layer and the control network. The data flow begins at the motor and mechanical load, where the Micromaster 4 drive regulates speed, torque, and current. The PROFIBUS module captures this operational data — including output frequency, DC bus voltage, motor current, and active fault codes — and transmits it cyclically to the upstream controller.

At the controller level, a Siemens S7-300 or S7-400 PLC equipped with a CP 342-5 or CP 443-5 PROFIBUS master module receives the drive data and executes closed-loop control logic. For newer installations, the Siemens S7-1500 with an integrated PROFIBUS interface handles multi-drive coordination across a single DP segment, supporting up to 126 slave nodes on one network. The PLC sends speed setpoints and control words to the drive while reading back status words and actual values — all within a single PROFIBUS cycle time of less than 10 ms at 1.5 Mbps.

The data chain extends upward to the SCADA and HMI layer. A Siemens SCALANCE X208 managed industrial Ethernet switch aggregates data from multiple PROFIBUS segments via gateway devices, feeding real-time drive status into a WinCC or WinCC OA SCADA platform. Operators at the Siemens TP1200 Comfort HMI panel can monitor drive speed, load percentage, energy consumption, and alarm history without leaving the control room. Acyclic DP V1 communication allows engineers to read and write individual drive parameters — such as ramp-up time, current limits, and PID coefficients — directly from the STEP 7 or TIA Portal engineering environment.

For distributed I/O architectures, the 6SE6400-1PB00-0AA0 coexists on the same PROFIBUS segment as Siemens ET 200SP and ET 200M remote I/O stations, sharing network bandwidth without interference. Proximity sensors, pressure transmitters, and temperature sensors connected to ET 200SP modules report their values on the same DP bus, giving the PLC a unified view of both process variables and drive states. In conveyor, pump, and fan applications, this integration eliminates the need for separate analog wiring between sensors and drives, reducing installation cost and improving signal integrity.

Edge connectivity is achieved through Siemens SCALANCE S615 or third-party PROFIBUS-to-OPC UA gateways, which translate PROFIBUS data into OPC UA or MQTT streams for cloud-based analytics platforms. This enables predictive maintenance algorithms to analyze drive load trends, bearing temperature patterns, and energy consumption anomalies — all sourced from the 6SE6400-1PB00-0AA0 communication link — without modifying the existing PLC program.

Solving Data Isolation in Industrial Sites

Many industrial facilities operate with legacy drives that lack any network interface, creating data silos where motor performance, fault history, and energy consumption are invisible to the control system. The 6SE6400-1PB00-0AA0 directly resolves this problem by adding PROFIBUS-DP connectivity to existing Micromaster 4 drives without replacing the drive hardware. A single module installation transforms an isolated inverter into a transparent, remotely accessible automation node.

Protocol fragmentation is another common challenge on mixed-vendor production lines. Where older equipment communicates via hardwired I/O or proprietary serial links, the PROFIBUS module provides a standardized IEC 61158-compliant interface that integrates cleanly with Siemens, ABB, Schneider Electric, and other PROFIBUS master controllers. This eliminates the need for custom protocol converters and reduces engineering complexity during system expansion.

Remote monitoring and diagnostics become straightforward once the drive is on the PROFIBUS network. Fault codes, warning states, and operational parameters are accessible from the SCADA system in real time, enabling maintenance teams to diagnose issues remotely before dispatching technicians to the field. Planned maintenance intervals can be calculated from actual run-hour data rather than fixed schedules, reducing unnecessary downtime and extending drive service life.

Production line transparency improves significantly when every drive reports its status to the central control system. Energy consumption per production cycle, motor load distribution across parallel drives, and throughput rates become measurable KPIs that operations managers can track and optimize. The 6SE6400-1PB00-0AA0 is the enabling component that makes this level of visibility possible in Micromaster 4 installations.

System expansion is simplified by the PROFIBUS architecture. Adding a new drive to an existing production line requires only a PROFIBUS cable connection and a slave address assignment — no additional wiring infrastructure is needed. The PLC program is updated with the new node address, and the drive is immediately integrated into the control and monitoring framework.

Industrial Connectivity FAQ

Q1: What is the maximum PROFIBUS-DP baud rate supported by the 6SE6400-1PB00-0AA0?
The module supports all standard PROFIBUS-DP baud rates from 9.6 kbps up to 12 Mbps with automatic baud rate detection. In most industrial applications, 1.5 Mbps or 6 Mbps is used to balance cycle time and cable length requirements. At 12 Mbps, the maximum cable segment length is 100 m; at 1.5 Mbps, it extends to 200 m per segment.

Q2: Is the 6SE6400-1PB00-0AA0 compatible with both PROFIBUS-DP V0 and V1?
Yes. The module supports both DP V0 cyclic data exchange and DP V1 acyclic parameter access. DP V1 allows engineering tools such as TIA Portal and STEP 7 to read and write individual drive parameters during operation without interrupting the cyclic control loop, which is essential for commissioning and remote parameter adjustment.

Q3: Can this module be used on a PROFIBUS segment that also includes ET 200SP remote I/O and other slave devices?
Yes. The 6SE6400-1PB00-0AA0 operates as a standard PROFIBUS-DP slave and coexists on the same segment with other DP slaves including ET 200SP, ET 200M, and third-party devices. Up to 126 slave addresses are available per PROFIBUS segment, and repeaters can be used to extend the network beyond the single-segment cable length limit.

Q4: What warranty and pre-shipment testing does the 6SE6400-1PB00-0AA0 come with?
Every unit supplied by ZYPLC carries a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each module undergoes functional verification testing to confirm PROFIBUS communication integrity and correct installation compatibility with the Micromaster 4 option slot. Stock is maintained for shipment arranged after confirmation, with global shipping available to minimize lead times for urgent replacement and new installation requirements.
