Siemens 6SE6440-2AD22-2BA1 Industrial Network Interface for MICROMASTER 440 Systems: Bridging the Industrial Data Link in Smart Factory Environments

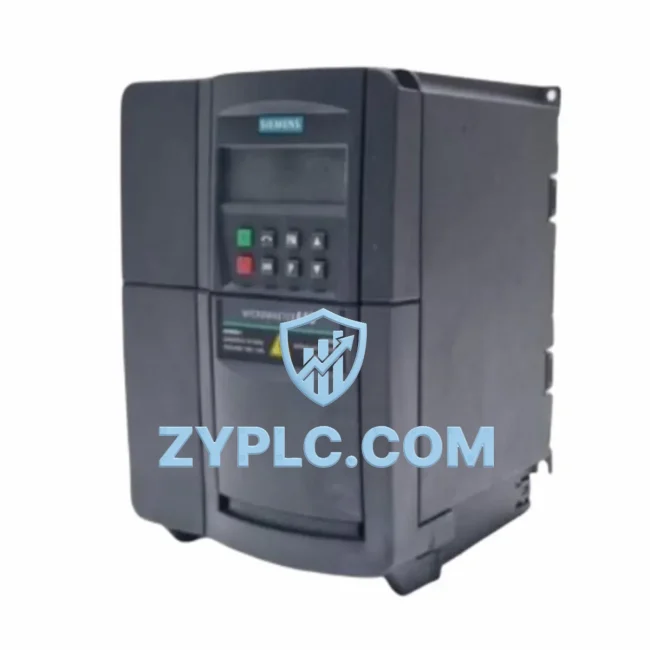

The Siemens 6SE6440-2AD22-2BA1 is a 2.2kW Variable Frequency Drive from the renowned MICROMASTER 440 series, engineered to serve as a high-performance industrial network interface between field-level devices and upper-layer control systems. Designed for demanding automation environments, this drive integrates seamlessly into modern smart factory architectures, enabling real-time data exchange across PLC controllers, remote I/O modules, HMI panels, SCADA platforms, and enterprise-level MES systems. With native support for USS protocol and optional PROFIBUS DP communication via dedicated communication modules, the 6SE6440-2AD22-2BA1 delivers the connectivity backbone that Industry 4.0 deployments demand.

In industrial sites where data isolation and protocol fragmentation remain persistent challenges, the MICROMASTER 440 series addresses these pain points head-on. The 6SE6440-2AD22-2BA1 acts not merely as a motor speed controller but as an active node in the industrial communication network — transmitting drive status, fault diagnostics, speed references, torque feedback, and energy consumption data in real time to supervisory systems. This transforms the drive from a standalone actuator into a transparent, network-aware component of the connected factory floor.

Network Communication Table

Connected Automation Data Flow

Understanding the 6SE6440-2AD22-2BA1 within its full automation data flow reveals its true value as an industrial connectivity component. At the field level, process sensors — including pressure transmitters, flow meters, and temperature sensors — feed analog and digital signals into the drive’s onboard I/O terminals. The drive processes these signals to modulate motor output in real time, while simultaneously encoding operational data into USS protocol frames for upstream transmission.

These USS frames travel over RS-485 serial links to a Siemens SIMATIC S7-1200 or S7-300 PLC, where the drive’s speed setpoint, actual frequency, output current, and fault word are mapped into the PLC’s process image. The PLC, running ladder logic or function block programs in STEP 7 or TIA Portal, uses this data to execute closed-loop control strategies — adjusting the drive’s speed reference dynamically based on process feedback. For multi-drive installations, a single RS-485 bus can address up to 31 MICROMASTER 440 units simultaneously, making the 6SE6440-2AD22-2BA1 highly scalable for large motor control centers.

When PROFIBUS DP connectivity is required — for example, in plants running Siemens ET 200S or ET 200M distributed I/O systems — the optional PROFIBUS communication board (6SE6400-1PB00-0AA0) slots directly into the drive’s option slot, enabling cyclic data exchange at up to 12 Mbit/s. This allows the 6SE6440-2AD22-2BA1 to participate as a standard DP slave in a PROFIBUS network alongside other field devices such as Siemens SINAMICS G120 drives, Siemens IM 153-2 remote I/O interface modules, and third-party instrumentation.

At the supervisory layer, Siemens WinCC or WinCC Flexible SCADA systems receive aggregated drive data from the PLC via Industrial Ethernet (PROFINET), presenting operators with real-time dashboards showing motor speed trends, energy consumption KPIs, and alarm histories. HMI panels such as the Siemens SIMATIC TP700 Comfort or KTP900 Basic provide local visualization at the machine level, displaying drive parameters and enabling manual speed adjustments without requiring a laptop or engineering tool. For remote diagnostics, edge gateways running SINEMA Remote Connect or third-party industrial IoT platforms can tunnel drive data over secure VPN connections to cloud-based monitoring dashboards, enabling predictive maintenance workflows based on vibration signatures, thermal trends, and run-hour accumulation.

In conveyor and material handling applications, the 6SE6440-2AD22-2BA1 often operates alongside Siemens SIRIUS 3RW soft starters and SIMATIC ET 200SP I/O modules, forming a coordinated motion and I/O network that feeds real-time production throughput data to MES systems. The drive’s built-in PID controller further reduces the need for external control loops, simplifying the overall network architecture while maintaining precise process regulation.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — the condition where drives, PLCs, sensors, and control systems operate in silos, unable to share operational data across protocol boundaries. The Siemens 6SE6440-2AD22-2BA1 directly addresses this challenge through its multi-protocol communication architecture.

In plants where older equipment communicates exclusively over RS-485 USS while newer infrastructure runs PROFIBUS DP or PROFINET, the MICROMASTER 440 series bridges these protocol domains without requiring costly gateway hardware. The drive’s parameter set — accessible via the BOP-2 operator panel, AOP Advanced Operator Panel, or remotely through STARTER commissioning software — allows engineers to configure communication parameters, fault response behaviors, and data mapping without physical rewiring.

For production line transparency, the 6SE6440-2AD22-2BA1 exposes over 600 drive parameters via its communication interface, including output frequency, DC bus voltage, motor temperature model, and cumulative energy consumption. SCADA systems can poll these parameters cyclically, building historical trend databases that support OEE (Overall Equipment Effectiveness) calculations and predictive maintenance scheduling. When a fault condition occurs — such as overcurrent, overvoltage, or motor overtemperature — the drive immediately broadcasts a fault code over the network, triggering alarm notifications in WinCC and enabling rapid remote diagnosis without dispatching field technicians.

System expansion is equally straightforward. Adding additional MICROMASTER 440 drives to an existing USS network requires only address configuration via the drive’s DIP switches and parameter P0700/P1000 settings — no hardware changes to the master PLC or SCADA system are needed. This plug-and-play scalability makes the 6SE6440-2AD22-2BA1 an ideal choice for phased factory expansion projects where production capacity grows incrementally.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing, including communication interface verification, parameter upload/download checks, and basic run tests. Stock availability is maintained to support urgent project timelines, and all units are covered by a 12-month warranty against manufacturing defects.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 6SE6440-2AD22-2BA1 over USS protocol?
USS protocol on the MICROMASTER 440 operates at baud rates from 1200 to 19200 bps over RS-485. At 19200 bps with a 4-word PKW and 2-word PZD telegram, typical cycle times per drive are under 10ms, making it suitable for non-time-critical speed control loops. For faster cyclic communication, the optional PROFIBUS DP module supports cycle times down to 1ms at 12 Mbit/s.

Q2: Is the 6SE6440-2AD22-2BA1 compatible with Siemens S7-1500 PLC and TIA Portal?
Yes. The MICROMASTER 440 series is fully compatible with Siemens S7-1200 and S7-1500 PLCs via USS protocol using the USS library blocks available in TIA Portal (FB USS_Drive_Control). For PROFIBUS DP connectivity, the drive’s GSD file can be imported directly into TIA Portal’s hardware configuration, enabling seamless integration with S7-300/400/1500 DP masters.

Q3: How does the drive maintain network stability in electrically noisy industrial environments?
The 6SE6440-2AD22-2BA1 incorporates built-in EMC filters and supports shielded cable connections on its RS-485 and PROFIBUS interfaces. Siemens recommends using twisted-pair shielded cable (e.g., Siemens SIMATIC NET PROFIBUS cable 6XV1830-0EH10) with proper shield grounding at both ends. The drive’s communication watchdog function (parameter P2040) automatically triggers a fault response if the network connection is lost, preventing uncontrolled motor operation during communication failures.

Q4: What warranty and testing does ZYPLC provide for the 6SE6440-2AD22-2BA1?
All Siemens 6SE6440-2AD22-2BA1 units supplied by ZYPLC are covered by a 12-month warranty against manufacturing defects. Each unit undergoes pre-shipment inspection including visual inspection, communication interface testing, and parameter verification. Units are shipped in original or equivalent protective packaging to prevent transit damage. For urgent project requirements, in-stock units can typically be dispatched within 1–2 business days.

—
