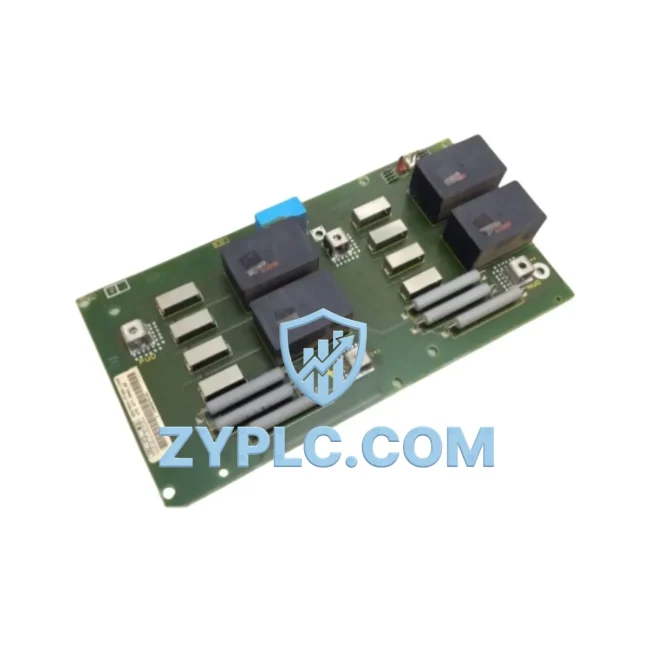

Siemens 6SE7024-7FD84-1HH0 Industrial Network Interface for Masterdrives MC Systems

Siemens 6SE7024-7FD84-1HH0: Industrial Data Link for Smart Factory Drive Networks

The Siemens 6SE7024-7FD84-1HH0 is a high-performance AC drive inverter from the Masterdrives MC (Motion Control) series, engineered to serve as a critical node in industrial communication networks. Designed for demanding automation environments, this drive integrates seamlessly into multi-layer factory architectures — bridging field-level devices, PLC controllers, remote I/O stations, HMI panels, SCADA platforms, and upper-level MES systems through a unified, high-speed data backbone.

In modern smart factory deployments, the 6SE7024-7FD84-1HH0 functions not merely as a variable frequency drive, but as an active participant in the plant-wide data flow. From the moment a signal is captured at a field sensor or encoder, through protocol conversion at the drive’s onboard communication interface, across the industrial Ethernet or PROFIBUS-DP network segment, and up to real-time monitoring dashboards in SCADA or WinCC visualization systems — this drive ensures that every data packet arrives with precision, speed, and integrity.

Network Communication Table

Connected Automation Data Flow

The 6SE7024-7FD84-1HH0 sits at the heart of a layered industrial communication architecture. At the field level, process signals from Siemens SIRIUS 3RK3 motor management relay units and distributed ET 200S remote I/O stations are aggregated and passed upward through the PROFIBUS-DP segment. The drive’s onboard communication interface — typically equipped with a CBP2 PROFIBUS communication board — receives cyclic setpoint and control word data from a SIMATIC S7-300 or S7-400 PLC, enabling closed-loop speed and torque regulation without any additional protocol gateway hardware.

Within the same network segment, the 6SE7024-7FD84-1HH0 can coexist with other Masterdrives MC units such as the 6SE7021-8EB84-1HH0 and 6SE7031-2EF84-1HH0, forming a coordinated multi-axis drive system for conveyor lines, winding machines, or crane applications. Each drive node reports its actual speed, current, fault status, and energy consumption back to the PLC master in real time, feeding the data upward to a Siemens WinCC SCADA server for operator visualization and alarm management.

At the HMI layer, a SIMATIC TP1500 Comfort Panel or KTP900 Basic Panel connected via PROFINET to the S7 controller displays live drive parameters, trend curves, and fault histories — giving operators full transparency over the drive’s operational state without leaving the control room. For remote diagnostic access, an IE/PB Link PN IO gateway bridges the PROFIBUS-DP segment to the plant’s Industrial Ethernet backbone, allowing engineering teams to connect via STEP 7 or TIA Portal for online parameter adjustment, firmware updates, and fault analysis from any networked workstation.

In applications requiring integration with third-party SCADA platforms or cloud-based MES systems, the data path extends through an industrial edge gateway — such as a Siemens SINEMA Remote Connect node — which securely tunnels drive telemetry over VPN to upper-level analytics platforms. This end-to-end connectivity, from the 6SE7024-7FD84-1HH0’s motor terminals all the way to enterprise dashboards, exemplifies the drive’s role as a true industrial network participant rather than a standalone power electronics device.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and mixed-generation factory environments is protocol fragmentation — where drives, PLCs, sensors, and SCADA systems speak different communication languages, creating data silos that prevent real-time visibility and coordinated control. The Siemens 6SE7024-7FD84-1HH0 directly addresses this challenge through its flexible communication architecture.

By supporting PROFIBUS-DP as its primary fieldbus protocol — with optional extension to Industrial Ethernet via communication board adapters — the 6SE7024-7FD84-1HH0 eliminates the need for standalone protocol converters between the drive and the PLC control layer. This reduces network latency, simplifies wiring infrastructure, and lowers the risk of data loss during high-speed process transitions. In production lines where cycle times are measured in milliseconds, this direct integration is not a convenience but a necessity.

For sites undergoing digital transformation toward Industry 4.0 architectures, the drive’s DPV1 acyclic communication capability enables on-demand parameter reads and writes from SCADA or MES systems — supporting predictive maintenance workflows, energy monitoring, and production reporting without interrupting the cyclic control loop. Plant engineers can query the drive’s internal fault buffer, read accumulated run hours, or adjust ramp parameters remotely, all while the drive continues to operate at full production speed.

The 6SE7024-7FD84-1HH0 also supports transparent production line monitoring through its integration with Siemens WinCC and third-party SCADA platforms via OPC DA/UA servers connected to the S7 PLC. This means that every speed reference, actual value, alarm event, and energy reading generated by the drive becomes immediately available to plant-level dashboards, enabling operators to detect anomalies, initiate corrective actions, and document production events in real time — transforming what was once an isolated power electronics unit into a fully networked, data-generating asset.

All units are pre-shipment tested, verified against original Siemens factory specifications, and supplied with a 12-month warranty. Stock is maintained and available for immediate dispatch to support urgent production requirements and minimize unplanned downtime.

Industrial Connectivity FAQ

Q1: What communication protocols does the Siemens 6SE7024-7FD84-1HH0 support, and is it compatible with SIMATIC S7 PLCs?
The 6SE7024-7FD84-1HH0 supports PROFIBUS-DP as its primary fieldbus protocol via the CBP2 communication board, and USS protocol over RS-485 for point-to-point communication. It is fully compatible with SIMATIC S7-300, S7-400, and S7-1500 PLC families, enabling direct cyclic process data exchange and acyclic DPV1 parameter access without additional gateway hardware.

Q2: What is the typical communication latency between the drive and the PLC master on a PROFIBUS-DP network?
On a standard PROFIBUS-DP segment operating at 1.5 Mbit/s to 12 Mbit/s, cyclic data exchange between the 6SE7024-7FD84-1HH0 and the PLC master typically achieves bus cycle times of 1–10 ms depending on the number of nodes and baud rate configuration. This is sufficient for most motion control and process automation applications requiring real-time speed and torque regulation.

Q3: Can the 6SE7024-7FD84-1HH0 be integrated into an existing SCADA or WinCC system for remote monitoring and diagnostics?
Yes. When connected to a SIMATIC S7 PLC via PROFIBUS-DP, the drive’s process data and parameter values are accessible to WinCC, SCADA, and OPC UA-compatible platforms through the PLC’s communication interface. This enables real-time visualization of drive speed, current, fault status, and energy consumption, as well as remote parameter adjustment and fault acknowledgment from the SCADA operator station.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every 6SE7024-7FD84-1HH0 unit supplied by ZYPLC undergoes functional pre-shipment testing to verify power stage integrity, communication interface operation, and parameter accessibility before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, with technical support available for installation, commissioning, and fault diagnosis throughout the warranty period.
