Siemens 6SE7031-8EF84-1JC1 Industrial Network Interface for Masterdrives Systems

Siemens 6SE7031-8EF84-1JC1: Industrial Data Link for Smart Factory Connectivity

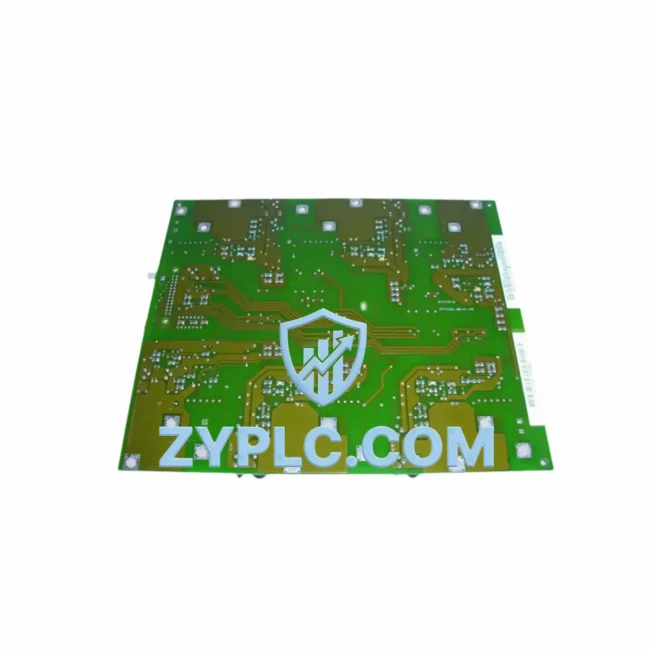

The Siemens 6SE7031-8EF84-1JC1 is a high-performance inverter triggering module from the MASTERDRIVES MC/VC series, engineered to serve as a critical node in the industrial data chain. In modern smart factory environments, the ability to bridge field-level devices — motors, sensors, actuators — with upper-level control and monitoring systems is no longer optional. The 6SE7031-8EF84-1JC1 fulfills this role by integrating seamlessly into PROFIBUS-DP networks, enabling real-time data exchange between variable-speed drives and the broader automation architecture.

From the moment a production line starts, the 6SE7031-8EF84-1JC1 participates in a continuous data flow. Signal acquisition begins at the sensor and actuator level, where field devices report speed references, torque feedback, fault states, and process variables. These signals are processed by the inverter module and transmitted upstream via PROFIBUS-DP to Siemens S7-300 or S7-400 PLCs acting as network masters. The PLC then coordinates drive behavior across the entire production cell, adjusting setpoints dynamically based on SCADA commands or HMI operator inputs.

Network Communication Table

Connected Automation Data Flow

The 6SE7031-8EF84-1JC1 does not operate in isolation — it is a functional participant in a layered automation network. At the field level, Siemens ET 200S and ET 200M remote I/O stations collect discrete and analog signals from proximity sensors, encoders, and pressure transmitters. These I/O nodes communicate upstream to the PROFIBUS-DP segment where the 6SE7031-8EF84-1JC1 resides alongside other drive modules such as the 6SE7021-8EB84-1JC1 and 6SE7023-4EC84-1JC1, forming a coordinated multi-drive network.

The SIMATIC S7-400 PLC serves as the PROFIBUS master, orchestrating cyclic data polling across all connected drives and I/O nodes. Drive status words, actual speed values, current consumption, and fault codes are transmitted every scan cycle, giving the control system a live picture of every motor on the line. The Siemens CBP2 (Communication Board PROFIBUS) installed within the MASTERDRIVES chassis enables this protocol-level integration, translating drive-internal data into PROFIBUS-compatible telegrams.

At the supervisory level, a Siemens WinCC SCADA system receives aggregated process data via the SIMATIC NET industrial Ethernet backbone. Operators at Siemens TP1500 or TP1900 HMI panels can monitor drive parameters, acknowledge alarms, and issue speed or torque commands in real time. For remote sites or multi-plant deployments, a Siemens SCALANCE X208 managed industrial switch provides the Ethernet infrastructure that connects the PROFIBUS segment to the plant-wide network, enabling remote diagnostics and OPC-UA data export to MES or ERP platforms.

Variable frequency drives such as the Siemens SINAMICS G120 and SINAMICS S120 may coexist on the same network segment, sharing the PROFIBUS backbone with the 6SE7031-8EF84-1JC1 in mixed-generation drive architectures. This backward compatibility is a key advantage of the MASTERDRIVES platform — legacy drive modules can continue operating alongside newer SINAMICS units without requiring a full network redesign.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, drives, and controllers operate on incompatible protocols or proprietary communication stacks, preventing unified monitoring and control. The 6SE7031-8EF84-1JC1 directly addresses this problem by providing a standardized PROFIBUS-DP interface that integrates the MASTERDRIVES inverter into any PROFIBUS-compliant control architecture.

In facilities where older equipment uses point-to-point analog wiring (4–20 mA or 0–10 V), the introduction of the 6SE7031-8EF84-1JC1 as a PROFIBUS node eliminates the need for dedicated analog I/O cards for each drive. Instead, all drive parameters — setpoints, feedback, diagnostics — travel over a single twisted-pair PROFIBUS cable, dramatically reducing wiring complexity and improving signal integrity.

Remote monitoring and diagnostics become straightforward once the 6SE7031-8EF84-1JC1 is integrated into the PROFIBUS network. Maintenance engineers can read fault histories, thermal status, and operating hours from the SCADA system without physically accessing the drive cabinet. Predictive maintenance routines can be built around this data, scheduling service intervals based on actual operating conditions rather than fixed time periods.

Production line transparency improves significantly when every drive reports its status in real time. Bottlenecks, unplanned stops, and efficiency losses become visible at the SCADA or MES level, enabling rapid response and continuous improvement. System expansion is equally straightforward — adding a new drive to the PROFIBUS segment requires only address assignment and GSD file configuration, with no changes to the physical wiring infrastructure.

All units supplied by ZYPLC undergo pre-shipment functional testing, verifying communication handshake, parameter read/write, and fault response before dispatch. Each 6SE7031-8EF84-1JC1 is covered by a 12-month warranty, with stock available for immediate shipment to support urgent maintenance and production continuity requirements.

Industrial Connectivity FAQ

Q1: What communication protocol does the 6SE7031-8EF84-1JC1 support, and is it compatible with my existing PLC network?
The 6SE7031-8EF84-1JC1 supports PROFIBUS-DP, the most widely deployed fieldbus protocol in European and Asian industrial automation. It is fully compatible with Siemens S7-300, S7-400, and S7-1500 PLCs configured as PROFIBUS masters, as well as third-party PROFIBUS masters from ABB, Schneider Electric, and Rockwell Automation using standard GSD file integration.

Q2: How does this module handle network latency and real-time control requirements?
PROFIBUS-DP operates in cyclic data exchange mode with deterministic timing, typically achieving cycle times of 1–10 ms depending on the number of nodes and baud rate (up to 12 Mbit/s). The 6SE7031-8EF84-1JC1 responds within the PROFIBUS cycle, making it suitable for closed-loop speed and torque control applications where real-time response is critical.

Q3: Can the 6SE7031-8EF84-1JC1 be integrated into a SCADA or HMI system for remote monitoring?
Yes. Once connected to the PROFIBUS network, all drive parameters accessible via the module — including speed feedback, current, fault codes, and operating hours — are available to any SCADA or HMI system connected to the PROFIBUS master PLC. Siemens WinCC, iFIX, Ignition, and other OPC-compatible SCADA platforms can subscribe to this data for real-time dashboards and alarm management.

Q4: What warranty and testing does ZYPLC provide for this module?
Every 6SE7031-8EF84-1JC1 supplied by ZYPLC is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional testing including power-on verification, PROFIBUS communication handshake, and parameter access confirmation. Units are shipped in anti-static packaging with full documentation support.
