Siemens 6SE7041-6WM84-1CF0 Industrial Network Interface for Masterdrives Systems

Siemens 6SE7041-6WM84-1CF0 Industrial Network Interface: Bridging Industrial Data Links in Smart Factory Environments

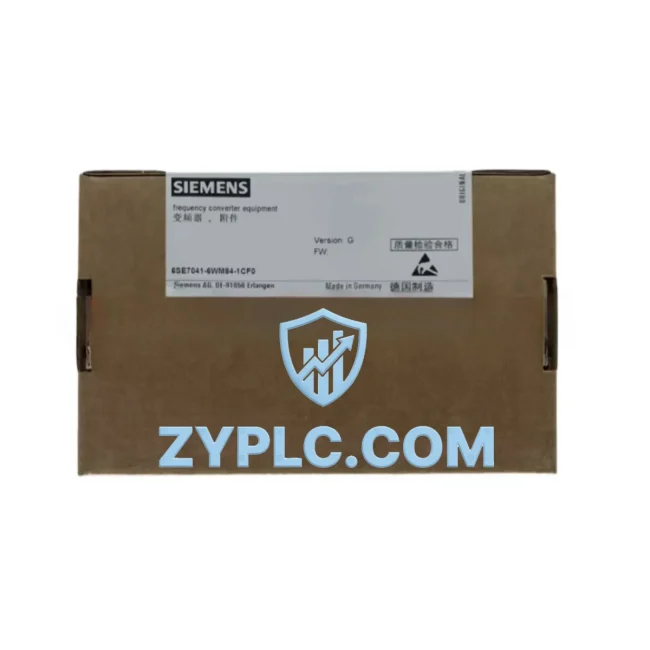

The Siemens 6SE7041-6WM84-1CF0 (A5E00470545) is a high-performance AC drive gateway module from the Siemens Masterdrives series, engineered to serve as a critical industrial network interface between field-level devices and upper-level control and monitoring systems. In modern smart factory deployments, seamless data flow across the automation hierarchy — from sensors and actuators at the field level, through PLC controllers and remote I/O stations, up to SCADA platforms and MES systems — is not optional; it is the backbone of operational efficiency. The 6SE7041-6WM84-1CF0 is purpose-built to fulfill this role, delivering reliable protocol conversion, real-time data transmission, and robust network communication across complex industrial topologies.

Equipped with PROFIBUS-DP communication capability, this module enables the Masterdrives AC drive platform to participate fully in distributed automation networks. Whether integrated into a Siemens S7-300 or S7-400 PLC control system, connected to a SIMATIC ET 200 remote I/O station, or interfaced with a WinCC SCADA or TIA Portal engineering environment, the 6SE7041-6WM84-1CF0 ensures that drive status, speed references, fault diagnostics, and process variables are continuously available across the network in real time.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory installation, the 6SE7041-6WM84-1CF0 sits at the intersection of the drive layer and the control network. The data flow begins at the field level, where sensors — including Siemens SIRIUS 3RG series proximity sensors and process transmitters — feed analog and digital signals into the drive system. The Masterdrives AC drive, equipped with this PROFIBUS-DP gateway board, converts those signals into structured network data packets that travel upstream through the PROFIBUS segment.

At the PLC layer, a Siemens SIMATIC S7-400 or S7-300 controller receives cyclic process data from the 6SE7041-6WM84-1CF0, including actual motor speed, output frequency, DC bus voltage, current load, and fault status words. The PLC executes the control logic and sends setpoint commands — speed references, ramp parameters, and enable signals — back down to the drive via the same PROFIBUS-DP link, completing the closed-loop control cycle in milliseconds.

For distributed I/O architectures, the PROFIBUS-DP network may also include a SIMATIC ET 200M or ET 200S remote I/O station, allowing additional field signals to be aggregated and transmitted alongside the drive data on the same network segment. This reduces wiring complexity and centralizes data collection without sacrificing response time.

At the supervisory level, a WinCC SCADA system or a SIMATIC HMI panel — such as the TP1200 Comfort or MP377 — connects to the S7 controller via Industrial Ethernet (PROFINET), pulling real-time drive data for operator visualization. Trend displays, alarm management, and production dashboards all rely on the continuous, low-latency data stream that the 6SE7041-6WM84-1CF0 enables from the drive to the upper systems.

For edge computing and IIoT integration, a SIMATIC IOT2040 or similar industrial edge gateway can tap into the PROFIBUS network or the S7 controller’s data, forwarding aggregated drive metrics to cloud-based analytics platforms or MES systems. This extends the data chain from the physical drive all the way to enterprise-level reporting, enabling predictive maintenance models based on real motor load and thermal data collected through the 6SE7041-6WM84-1CF0 interface.

In multi-drive applications — such as coordinated conveyor systems, pump stations, or compressor arrays — multiple Masterdrives units, each fitted with a 6SE7041-6WM84-1CF0 or compatible PROFIBUS option boards like the 6SE7090-0XX84-0FF5 CBP2, share the same PROFIBUS-DP segment. The master PLC polls each drive node in sequence, collecting status and issuing commands within a single bus cycle, ensuring synchronized operation across the entire drive group.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, drives, and controllers operate on incompatible protocols or proprietary interfaces, preventing unified monitoring and control. The Siemens 6SE7041-6WM84-1CF0 directly addresses this problem by providing a standardized PROFIBUS-DP interface for the Masterdrives platform, eliminating the need for custom serial converters or third-party protocol bridges between the drive and the control network.

Sites that previously relied on analog speed references (0–10V or 4–20mA) or point-to-point serial links (USS protocol over RS-485) can migrate to PROFIBUS-DP using the 6SE7041-6WM84-1CF0, immediately gaining access to rich diagnostic data — fault codes, warning states, energy consumption counters, and runtime hours — that was previously invisible to the SCADA system. This transition from analog to digital network communication is a foundational step in production line transparency and smart factory transformation.

Remote diagnostics capability is another key benefit. With the drive connected to the PROFIBUS network and the SCADA system, maintenance engineers can monitor drive health indicators, acknowledge alarms, and even adjust drive parameters remotely from the control room or via a remote desktop connection to the WinCC server — without requiring physical access to the drive cabinet. This reduces mean time to repair (MTTR) and minimizes unplanned downtime in critical production processes.

System scalability is also significantly improved. As production lines expand, additional Masterdrives units can be added to the existing PROFIBUS-DP segment with minimal engineering effort, each configured with a unique node address and integrated into the PLC’s hardware configuration via the GSD file provided for the 6SE7041-6WM84-1CF0. This plug-and-participate architecture supports phased factory expansion without requiring network redesign.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying communication initialization, parameter access, and fault reporting before dispatch. Stock availability is maintained for fast order fulfillment, with global shipping via DHL and FedEx. All units are covered by a 12-month warranty, providing assurance for both replacement and new installation projects.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 6SE7041-6WM84-1CF0 on a PROFIBUS-DP network?
A: PROFIBUS-DP supports bus cycle times as low as 1–2 ms for small node counts, with typical cycle times of 5–10 ms in multi-drive installations. The 6SE7041-6WM84-1CF0 responds within the standard PROFIBUS timing constraints, making it suitable for real-time speed and torque control applications where fast setpoint updates are required.

Q2: Is the 6SE7041-6WM84-1CF0 compatible with both S7-300 and S7-400 PLC platforms?
A: Yes. The module communicates via standard PROFIBUS-DP V0/V1 protocol, which is natively supported by Siemens S7-300 CP 342-5, S7-400 CP 443-5, and integrated PROFIBUS interfaces on both platforms. The GSD file for the Masterdrives PROFIBUS option board is used to configure the drive node in STEP 7 or TIA Portal hardware configuration.

Q3: Can the 6SE7041-6WM84-1CF0 be used in a network with mixed Siemens and third-party PROFIBUS devices?
A: Yes. PROFIBUS-DP is an open standard (IEC 61158), and the 6SE7041-6WM84-1CF0 can coexist on the same bus segment with third-party PROFIBUS masters and slaves, including ABB, Schneider, and Rockwell devices that support the PROFIBUS-DP standard. Network configuration requires correct GSD file import and unique node address assignment for each device.

Q4: What warranty and testing does ZYPLC provide for the 6SE7041-6WM84-1CF0?
A: All units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and communication failures. Each unit undergoes pre-shipment testing to verify PROFIBUS-DP initialization, parameter read/write functionality, and fault reporting. In-stock units are dispatched within 3–5 business days via DHL or FedEx with full tracking. For volume orders or urgent requirements, contact our team directly for lead time confirmation and RFQ processing.
