Siemens 6SE7041-8EK85-0HA0 Rectifier Module

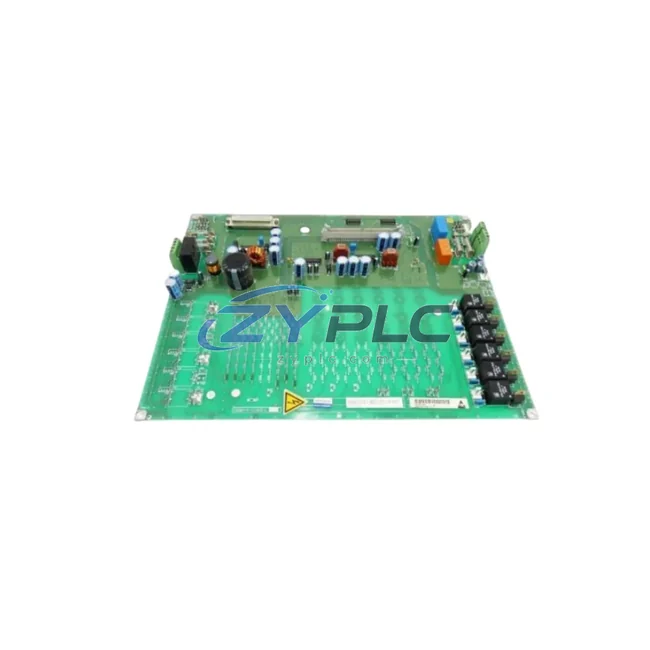

Siemens 6SE7041-8EK85-0HA0 Rectifier Interface Module for SIMOVERT Masterdrives

The Siemens 6SE7041-8EK85-0HA0 is a high-performance rectifier interface module engineered for the SIMOVERT Masterdrives platform — one of Siemens’ most established variable-speed drive series for heavy industrial applications. Designed to bridge the AC supply network and the DC link bus of the drive system, this module plays a critical role in controlling how energy enters the drive chain, directly influencing overall system efficiency, harmonic distortion levels, and the quality of power delivered to connected motors.

In modern manufacturing environments where energy costs represent a significant share of operational expenditure, the rectifier stage is often overlooked as a source of efficiency loss. The 6SE7041-8EK85-0HA0 addresses this by providing a stable, low-ripple DC bus voltage that allows downstream inverter units and motor control modules to operate at their rated efficiency points. When the DC link is clean and well-regulated, the IGBT switching stages in the inverter section experience less thermal stress, reducing switching losses and extending component service life — a direct contribution to lower maintenance costs and improved equipment utilization rates.

This module is rated for high-power drive configurations, making it suitable for applications such as large compressor drives, rolling mill main drives, crane hoist systems, and multi-axis coordinated motion platforms. In these environments, even a 1–2% improvement in rectifier efficiency translates to measurable reductions in monthly operating load, particularly when drives run at high duty cycles across multiple shifts.

Product Specification Table

System Compatibility and Application

The 6SE7041-8EK85-0HA0 does not operate in isolation — its efficiency impact is fully realized when integrated within a well-designed SIMOVERT Masterdrives system architecture. At the supply end, a Siemens SITOP power supply or line reactor module conditions the incoming AC voltage before it reaches the rectifier stage, reducing voltage spikes that would otherwise cause the rectifier to operate outside its optimal range.

On the inverter side, the rectified DC bus feeds into SIMOVERT Masterdrives inverter units such as the 6SE7031 or 6SE7035 series, which convert DC power back into variable-frequency AC to drive induction or synchronous motors. The quality of the DC bus directly determines how efficiently these inverter units can modulate output voltage and frequency — a stable bus means less compensatory switching, lower heat generation, and better motor torque linearity.

For motor-side condition monitoring, Siemens SENTRON PAC power monitoring devices can be integrated at the motor terminal or MCC panel to capture real-time power factor, active power consumption, and harmonic content. This data feeds into the plant’s maintenance planning layer, enabling operators to correlate drive operating points with actual energy draw — a prerequisite for ISO 50001 maintenance planning compliance.

At the control level, a Siemens S7-300 or S7-1500 PLC communicates with the SIMOVERT drive system via PROFIBUS-DP or PROFINET, issuing speed setpoints, torque limits, and operational-efficiency operating modes such as sleep mode during low-load periods. The SIMATIC S7-1500 with TIA Portal integration allows engineers to implement demand-response logic — automatically reducing drive speed during off-peak production windows to cut operating load without affecting throughput targets.

For distributed I/O at the drive cabinet level, Siemens ET 200SP or ET 200M remote I/O stations collect feedback signals from temperature sensors, current transformers, and encoder modules, feeding this data back to the PLC for closed-loop maintenance planning. When combined with a Siemens SIMATIC HMI panel such as the KTP700 or TP1500, operators gain a real-time dashboard showing drive efficiency, operating load per production cycle, and predictive maintenance alerts based on thermal and vibration trends.

Communication between the drive system and the plant MES or SCADA layer is typically handled via PROFINET or OPC-UA, with the SIMOVERT drive’s CBP2 communication board enabling seamless data exchange. This architecture ensures that the energy performance of the 6SE7041-8EK85-0HA0 rectifier module is not just a hardware characteristic but a measurable, manageable KPI within the plant’s broader maintenance planning strategy.

Maintenance and Replacement Notes

In a typical heavy-industry production line — such as a steel processing facility running continuous casting or a paper mill with multi-drive coordination — the rectifier interface module is the first point of energy control in the drive chain. When the 6SE7041-8EK85-0HA0 maintains a stable DC link voltage under varying load conditions, the downstream inverter units can execute speed ramp profiles more precisely, reducing the unplanned downtimed during acceleration and deceleration cycles.

One of the most significant operational stability comes from eliminating unnecessary reactive power consumption. A poorly regulated rectifier stage forces the inverter to compensate for DC bus fluctuations by drawing additional reactive current, which increases apparent power demand and worsens the facility’s power factor. The 6SE7041-8EK85-0HA0, operating within the SIMOVERT Masterdrives architecture, helps maintain a high displacement power factor at the supply connection point, reducing reactive power charges on the utility bill.

From a predictive maintenance perspective, the rectifier module’s stable operation reduces thermal cycling stress on capacitors, bus bars, and IGBT modules throughout the drive system. Reduced thermal stress directly correlates with longer mean time between failures (MTBF), fewer unplanned stoppages, and lower spare parts consumption. In high-availability production environments where a single drive failure can halt an entire line, this reliability contribution has a measurable impact on overall equipment effectiveness (OEE).

Every unit supplied by ZYPLC undergoes full functional testing prior to shipment, including DC bus output verification, insulation resistance testing, and load simulation where applicable. This ensures that the 6SE7041-8EK85-0HA0 arrives ready for installation without requiring additional commissioning time — reducing the total cost of replacement in maintenance scenarios. All units are covered by a warranty terms confirmed during quotation, with availability confirmed by RFQ availability enabling fast dispatch to minimize production downtime.
