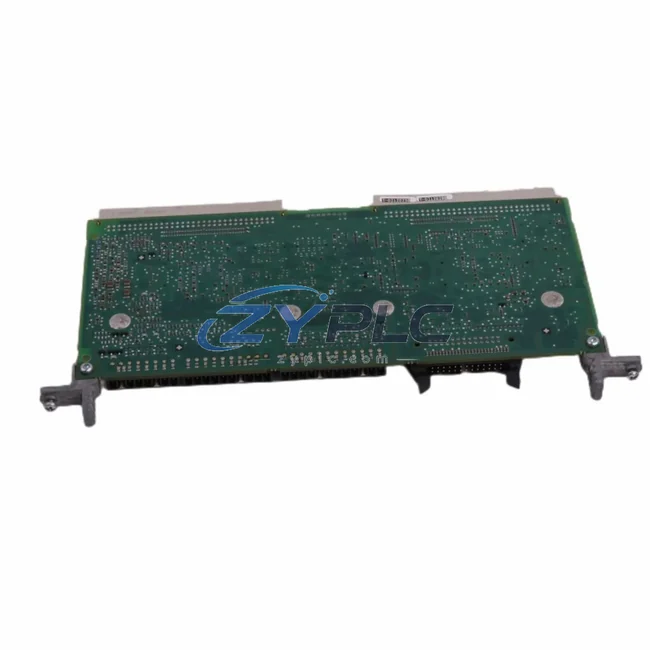

Siemens 6SE7090-0XX84-0KB0 Terminal Module

Siemens 6SE7090-0XX84-0KB0 Terminal Module: Precision Drive Control for Production Line Efficiency

The Siemens 6SE7090-0XX84-0KB0 is a Terminal Expansion Module engineered for the SIMOVERT MASTERDRIVES platform — one of Siemens’ most proven variable-speed drive families in industrial automation. Designed to extend the I/O and control terminal capacity of MASTERDRIVES inverter units, this module plays a critical role in reducing unplanned downtime risk, improving motor control precision, and enabling smarter feedback loops across production systems. Whether deployed in continuous process lines, conveyor systems, pump stations, or compressor drives, the 6SE7090-0XX84-0KB0 delivers the signal integrity and terminal flexibility that modern maintenance-focused automation demands.

In today’s manufacturing environment, energy efficiency is not a feature — it is a competitive requirement. Every watt saved at the drive level compounds across shift cycles, production batches, and annual operating budgets. The 6SE7090-0XX84-0KB0 enables plant engineers to connect additional analog and digital control signals directly to the MASTERDRIVES inverter, allowing tighter closed-loop control of motor speed, torque, and load response. This translates directly into reduced idle-state power draw, faster ramp-up/ramp-down profiles, and fewer thermal stress events that shorten motor and drive service life.

Product Specification Table

System Compatibility and Application

The 6SE7090-0XX84-0KB0 does not operate in isolation — it is a precision component within a layered maintenance planning architecture. In a typical MASTERDRIVES installation, the inverter unit (such as the 6SE7021-8EB61-1AA0 or similar MASTERDRIVES compact inverter) handles the power conversion stage, while the terminal expansion module provides the signal interface layer that connects the drive to the plant control system. This separation of power and signal paths is fundamental to achieving stable, low-noise closed-loop control.

At the control level, the module interfaces with SIMATIC S7-300 or S7-400 PLCs via PROFIBUS-DP or analog signal wiring, allowing the PLC to issue precise speed references and receive real-time feedback on motor load, current draw, and fault status. When paired with a SIMATIC ET 200S distributed I/O station, the system can extend control reach across large production floors without signal degradation, keeping energy commands accurate and responsive.

For power monitoring, integrating the MASTERDRIVES system with a SENTRON PAC3200 power measurement device allows plant operators to track real-time kWh consumption per drive zone. This data, fed back through the SIMATIC WinCC SCADA platform or a SIMATIC HMI TP900 panel, gives operators immediate visibility into energy anomalies — a motor drawing 15% above baseline, for example, signals a mechanical issue before it becomes a failure event. The 6SE7090-0XX84-0KB0’s expanded terminal capacity makes it straightforward to wire these monitoring signals without crowding the base drive terminal block.

In servo-driven axes, the terminal module complements SINAMICS S120 drive components where MASTERDRIVES handles the bulk AC motor loads and SINAMICS manages precision positioning axes on the same production line. The two systems can share a common DC bus, and the terminal expansion module ensures the MASTERDRIVES inverter receives accurate torque limit and enable signals from the coordinating controller, preventing unplanned downtime from conflicting drive commands.

Communication integrity is maintained through proper shielding and grounding at the terminal level — a design consideration that the 6SE7090-0XX84-0KB0 supports through its structured terminal layout. When combined with SIMOVERT MASTERDRIVES option board CBP2 (PROFIBUS communication board), the expanded terminal module allows simultaneous hardwired safety interlocks and fieldbus speed commands, giving the drive system both the speed of digital communication and the reliability of hardwired control.

Maintenance and Replacement Notes

Consider a bottling plant running six conveyor zones, each driven by a 15 kW induction motor controlled by a SIMOVERT MASTERDRIVES inverter. Without proper terminal expansion, the drive operates on a fixed analog reference — the motor runs at a constant speed regardless of upstream bottle flow. With the 6SE7090-0XX84-0KB0 installed, the plant engineer can wire a flow sensor signal directly to the expanded analog input terminal, enabling the drive to modulate conveyor speed in real time based on actual production demand. The result: motor speed drops 20–30% during low-throughput periods, cutting operating load by up to 50% in those zones (following the affinity law: power scales with the cube of speed).

In pump and fan applications — among the highest energy consumers in industrial facilities — the terminal expansion module enables pressure or flow feedback signals to be wired cleanly into the MASTERDRIVES control loop. This transforms a simple open-loop VFD installation into a closed-loop process control system, eliminating the bypass valve throttling that wastes energy in fixed-speed pump installations. Plants that have made this transition typically report 25–40% reductions in pump operating load.

Predictive maintenance also benefits directly from the expanded terminal capacity. By connecting vibration sensor outputs, bearing temperature signals, or motor winding temperature probes to the additional terminals provided by the 6SE7090-0XX84-0KB0, maintenance teams gain early warning of mechanical degradation. A motor running hot due to bearing wear draws more current, consuming excess energy and risking a catastrophic failure that halts the entire production line. Early detection — enabled by the additional signal inputs this module provides — allows scheduled maintenance during planned downtime rather than emergency repairs during peak production.

From a production rhythm (takt time) perspective, the module’s ability to accept external enable and inhibit signals means the drive can be precisely synchronized with upstream and downstream equipment. Rather than running motors continuously between production cycles, the MASTERDRIVES inverter can be commanded to ramp down during inter-cycle gaps and ramp back up in time for the next cycle — a capability that requires clean, reliable terminal connections that the 6SE7090-0XX84-0KB0 is specifically designed to provide.

All units supplied by ZYPLC undergo functional testing prior to shipment, verifying terminal continuity, signal isolation, and compatibility with the target MASTERDRIVES platform. Each 6SE7090-0XX84-0KB0 is covered by a warranty terms confirmed during quotation, and our inventory is maintained to support rapid dispatch for both planned procurement and urgent replacement requirements.

Product Sourcing FAQ

Q1: How does the 6SE7090-0XX84-0KB0 contribute to operational stability in a MASTERDRIVES installation?
The module expands the available analog and digital I/O terminals on the MASTERDRIVES inverter, enabling closed-loop control using real process feedback signals (flow, pressure, temperature, speed). Closed-loop variable-speed operation eliminates the unplanned downtime of fixed-speed motor running and mechanical throttling, typically reducing motor load by 20–50% depending on the load profile.

Q2: Which SIMOVERT MASTERDRIVES units is this terminal expansion module compatible with?
The 6SE7090-0XX84-0KB0 is designed for the SIMOVERT MASTERDRIVES platform, compatible with both Vector Control (VC) and Motion Control (MC) variants. For specific frame size and firmware version compatibility, refer to the Siemens MASTERDRIVES system documentation or contact our technical team for confirmation before ordering.

Q3: Can this module replace a faulty terminal board in an existing MASTERDRIVES installation without full drive replacement?
Yes. The 6SE7090-0XX84-0KB0 is a modular component designed for field replacement. In most cases, a faulty terminal expansion module can be swapped without replacing the entire inverter unit, significantly reducing downtime and replacement cost. ZYPLC recommends verifying the drive firmware version and option slot configuration before installation.

Q4: What testing is performed before shipment, and what does the warranty terms confirmed during quotation cover?
Every unit undergoes pre-shipment functional testing including terminal continuity verification, insulation checks, and compatibility validation against MASTERDRIVES platform specifications. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are replaced or repaired at no additional cost. Contact plc.sales@zyplc.com for warranty claims or technical support.
