Siemens 6SE7090-0XX84-1CK1 Industrial Network Interface for SIMOVERT Systems

Siemens 6SE7090-0XX84-1CK1 Industrial Network Interface for SIMOVERT Systems: Bridging the Industrial Data Link in Smart Factory Environments

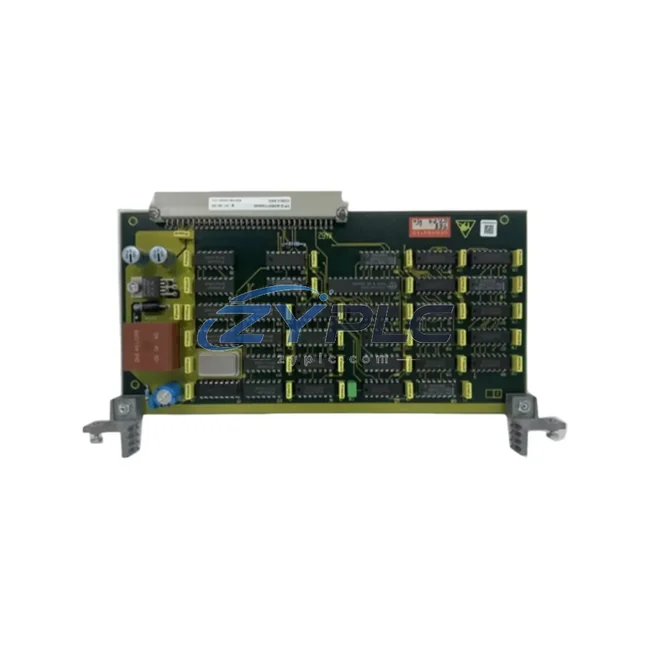

The Siemens 6SE7090-0XX84-1CK1 is a high-performance control unit designed for the SIMOVERT Masterdrives series, engineered to serve as a critical industrial network interface in modern automation architectures. Supporting both PROFIBUS-DP and USS protocol, this unit enables seamless bidirectional data exchange between variable frequency drives, PLC controllers, remote I/O systems, HMI panels, SCADA platforms, and upper-level management systems. In an era where data transparency across the production floor is non-negotiable, the 6SE7090-0XX84-1CK1 delivers the communication backbone that smart factories demand.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the Siemens 6SE7090-0XX84-1CK1 sits at the intersection of the field device layer and the control network layer. Signal acquisition begins at the sensor and actuator level — temperature transmitters, pressure transducers, and encoder feedback devices feed real-time process values into the drive system. The 6SE7090-0XX84-1CK1 translates these analog and digital signals into structured PROFIBUS-DP telegrams, which are then consumed by a Siemens SIMATIC S7-300 or S7-400 PLC acting as the PROFIBUS master.

Within the same PROFIBUS segment, the control unit communicates alongside other network nodes such as Siemens ET 200S remote I/O modules and SINAMICS G120 or S120 drive units, enabling coordinated multi-axis motion control and distributed I/O management without additional protocol converters. For legacy serial environments, the USS protocol interface allows direct integration with older MICROMASTER 440 or SIMOVERT VC series drives, preserving existing infrastructure investments while extending network reach.

At the supervisory level, a Siemens WinCC SCADA system or a third-party HMI panel — such as a Siemens TP700 Comfort touch panel — subscribes to drive status data, speed references, torque feedback, and fault codes published by the 6SE7090-0XX84-1CK1 over the PROFIBUS backbone. This real-time data pipeline supports production dashboards, alarm management, and operator intervention workflows without polling delays. For facilities running Siemens TIA Portal-based engineering environments, the control unit integrates natively into the hardware configuration, reducing commissioning time and ensuring parameter consistency across the automation hierarchy.

Edge connectivity is further extended through PROFIBUS-to-Ethernet gateway devices such as the Siemens PN/PB Link or third-party protocol converters, allowing the 6SE7090-0XX84-1CK1’s data to flow upward into MES and ERP systems via OPC-UA or Modbus TCP. This architecture supports the full industrial IoT data chain — from field-level signal acquisition through network transmission to cloud-based analytics and remote diagnostics — making the 6SE7090-0XX84-1CK1 a foundational component in any Industry 4.0 upgrade roadmap.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different equipment generations and vendors. A production line may simultaneously operate drives using USS serial communication, I/O modules on PROFIBUS-DP, and supervisory systems expecting Ethernet-based data — creating data silos that prevent real-time visibility and coordinated control.

The Siemens 6SE7090-0XX84-1CK1 directly addresses this by providing a unified communication interface that bridges the SIMOVERT Masterdrives platform into the broader PROFIBUS network. Rather than requiring separate gateway hardware for each drive node, the control unit embeds protocol handling directly within the drive’s control architecture, reducing panel space, wiring complexity, and potential points of failure.

For remote monitoring applications, the PROFIBUS connection enables SCADA systems to continuously poll drive parameters — output frequency, DC bus voltage, motor current, and fault history — without interrupting the drive’s control loop. This non-intrusive monitoring capability is essential for predictive maintenance programs, where trending data over time reveals bearing wear, thermal stress, or load imbalances before they cause unplanned downtime.

Production line transparency is further enhanced by the control unit’s ability to transmit process data objects (PDOs) at cyclic intervals as short as 1 ms on high-speed PROFIBUS segments, ensuring that HMI displays and SCADA historian databases receive fresh data for accurate KPI reporting. System expansion is equally straightforward: adding new SIMOVERT drive nodes to an existing PROFIBUS ring requires only address assignment and hardware configuration in TIA Portal, with no changes to the network infrastructure.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 6SE7090-0XX84-1CK1 on a PROFIBUS-DP network?
PROFIBUS-DP supports cyclic data exchange at bus cycle times typically ranging from 1 ms to 10 ms depending on the number of nodes and baud rate (up to 12 Mbit/s). The 6SE7090-0XX84-1CK1 responds within the standard PROFIBUS telegram cycle, making it suitable for time-critical motion control and process regulation applications where deterministic response is required.

Q2: Is the 6SE7090-0XX84-1CK1 compatible with third-party PROFIBUS masters and SCADA systems?
Yes. The unit conforms to the PROFIBUS-DP standard (IEC 61158), and its GSD (General Station Description) file can be imported into any compliant PROFIBUS master configuration tool, including Siemens STEP 7, TIA Portal, and third-party engineering environments. It is compatible with SCADA platforms that support PROFIBUS communication via OPC servers or dedicated PROFIBUS interface cards.

Q3: How does the unit ensure network stability in electrically noisy industrial environments?
The 6SE7090-0XX84-1CK1 is designed to operate within the SIMOVERT Masterdrives cabinet environment, which includes EMC shielding and grounding provisions per Siemens installation guidelines. PROFIBUS-DP uses RS-485 differential signaling with termination resistors at both ends of the bus segment, providing high noise immunity. Proper cable shielding, grounding, and segment length management (up to 1,200 m at 93.75 kbit/s) ensure reliable communication in high-interference environments such as motor control centers and switchgear rooms.

Q4: What warranty and pre-shipment testing does the 6SE7090-0XX84-1CK1 come with?
Every unit supplied by ZYPLC carries a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each 6SE7090-0XX84-1CK1 undergoes functional verification testing to confirm communication interface integrity, parameter access, and hardware condition. Units are shipped with appropriate anti-static and protective packaging to prevent transit damage. Availability is confirmed via RFQ for same-day or next-business-day dispatch.
