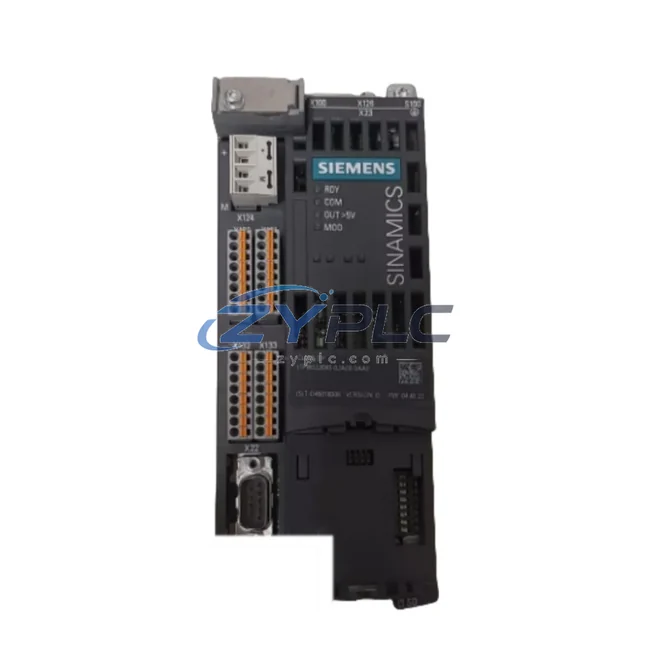

Siemens 6SL3040-0JA00-0AA0 Control Unit for S120

Siemens 6SL3040-0JA00-0AA0 Control Unit for SINAMICS S120

The Siemens 6SL3040-0JA00-0AA0 is the CU310 DP Control Unit designed for the SINAMICS S120 modular drive system. Within a layered industrial automation architecture, this control unit occupies the critical junction between the higher-level control layer — typically a Siemens SIMATIC S7-300 or S7-400 PLC — and the power and motor module layer responsible for actual drive execution. Its role is not merely to regulate a single axis, but to serve as the architectural anchor that ensures signal integrity, command synchronization, and system-wide operational consistency across the entire drive train.

In modern industrial control environments, the CU310 DP is deployed where PROFIBUS DP communication is the backbone of the automation network. It receives setpoint commands from the PLC controller layer, processes them through its integrated drive firmware, and transmits precise torque and speed references to the connected Power Module — such as the PM340 single-axis power module — while simultaneously feeding back actual values for closed-loop regulation. This bidirectional signal flow is fundamental to achieving the dynamic response and positional accuracy demanded by servo-driven machinery, conveyor systems, and process-critical applications.

Product Specification Table

System Compatibility Notes

The 6SL3040-0JA00-0AA0 CU310 DP is engineered for system integration within the SINAMICS S120 booksize compact and chassis unit architecture. Its value is fully realized when considered alongside the complete ecosystem of components that constitute a functional drive system.

At the power layer, the CU310 DP interfaces directly with the PM340 Power Module (e.g., 6SL3210-1PE21-8UL0 or similar ratings), which provides the DC link voltage and motor output stages. The control unit governs the PWM switching patterns and current regulation loops within the power module, ensuring smooth torque delivery and minimal harmonic distortion. For applications requiring a regulated DC bus supply, the Active Line Module (ALM) — such as the 6SL3130-6AE21-0AB1 — feeds the common DC bus, enabling energy recovery during regenerative braking and maintaining bus voltage stability across multiple drive axes.

At the communication and network layer, the CU310 DP connects to the PROFIBUS DP master — typically embedded within a SIMATIC S7-300 CPU 315-2 DP or a SIMATIC S7-400 CPU 414-3 DP — using standard PROFIBUS cables and connectors. The cyclic data exchange between the PLC and the CU310 DP follows the PROFIdrive profile, enabling standardized speed and torque control words without proprietary protocol overhead. For installations requiring PROFINET migration, the CU320-2 PN Control Unit (6SL3040-1MA01-0AA0) serves as the architectural upgrade path, maintaining compatibility with the same S120 power module infrastructure.

At the I/O and signal layer, the CU310 DP’s onboard digital inputs connect to safety relays, limit switches, and proximity sensors. In safety-critical applications, the Safety Integrated functions — STO (Safe Torque Off) and SS1 (Safe Stop 1) — are activated via dedicated fail-safe digital inputs, eliminating the need for external safety contactors in many configurations. The analog inputs accept speed reference signals from process controllers or SIMATIC ET 200SP distributed I/O stations, enabling seamless integration into distributed control architectures.

At the HMI and commissioning layer, the BOP20 Basic Operator Panel (6SL3255-0AA00-4CA0) mounts directly onto the CU310 DP front face, providing local parameter access, fault diagnostics, and drive commissioning without a PC connection. For full-scale engineering and parameter management, STARTER commissioning software or SINAMICS Startdrive (integrated within TIA Portal V15 and above) connects via the USB service interface on the CU310 DP, enabling drive parameterization, trace recording, and online diagnostics. The SIMATIC HMI TP700 Comfort panel, connected via PROFIBUS or PROFINET to the PLC, provides the operator-level visualization layer for drive status, alarm management, and production data display.

For multi-axis applications, the CU310 DP can be deployed in parallel with CU320-2 DP (6SL3040-1LA01-0AA0) multi-axis control units within the same control cabinet, sharing a common DC bus infrastructure. Terminal modules such as the TM31 (6SL3055-0AA00-3AA0) expand the available I/O count, while the SMC30 Sensor Module Cabinet-Mounted (6SL3055-0AA00-5AA3) provides additional encoder evaluation channels for complex multi-feedback configurations.

Industrial Application Notes

Manufacturing and Assembly Lines: In automotive body shop and general manufacturing environments, the CU310 DP controls servo-driven positioning axes on welding robots, transfer systems, and precision assembly stations. Its PROFIBUS DP interface synchronizes with the line PLC to coordinate multi-station production sequences, ensuring that each axis responds to production triggers within the deterministic cycle times required for high-throughput operations.

Power Generation and Utilities: In power plant auxiliary systems — including boiler feed pumps, induced draft fans, and cooling water circulation pumps — the CU310 DP provides variable speed control that reduces energy consumption during partial-load operation. The integrated STO safety function satisfies the safety requirements for rotating machinery in power generation environments without additional external safety hardware.

Petrochemical and Process Industries: In refinery and chemical plant applications, the CU310 DP drives compressors, agitators, and extruder screws where precise speed regulation directly impacts product quality and process yield. Its robust operating temperature range and IP20 protection class, combined with installation within sealed control cabinets, make it suitable for environments with elevated ambient temperatures and airborne contaminants.

Water and Wastewater Treatment: Municipal water treatment facilities deploy the CU310 DP on pump stations and aeration blowers, where the PROFIBUS DP connection to SCADA systems enables remote monitoring and automatic speed adjustment based on flow demand signals. The operational stability achieved through variable speed operation typically deliver return on investment within 12 to 24 months of installation.

Mining and Metallurgy: In ore processing plants and steel mills, the CU310 DP controls conveyor drives, crusher motors, and rolling mill auxiliary drives. Its ability to handle high-inertia loads and provide controlled acceleration and deceleration profiles protects mechanical drive components and reduces maintenance intervals in high-cycle-count applications.

Packaging and Material Handling: High-speed packaging lines use the CU310 DP for film tension control, registration mark tracking, and synchronized multi-axis motion. The deterministic PROFIBUS DP communication ensures that speed corrections are applied within the cycle time constraints of the packaging machine controller, maintaining registration accuracy at production speeds.

Product Compatibility FAQ

Q1: Is the 6SL3040-0JA00-0AA0 compatible with both booksize compact and chassis Power Modules in the SINAMICS S120 range?
The CU310 DP is specifically designed for use with the PM340 booksize compact Power Module series. It is not directly compatible with chassis-format power modules, which require the CU320-2 or CU310-2 control unit variants. For chassis unit applications, the appropriate control unit should be selected based on the power module format and the required communication interface (PROFIBUS DP or PROFINET). All SINAMICS S120 components supplied by ZYPLC are covered by a warranty terms confirmed during quotation and have been verified for firmware and hardware revision compatibility prior to dispatch.

Q2: Can the CU310 DP be integrated into an existing TIA Portal project, and what are the PROFIBUS DP configuration requirements?
Yes. The CU310 DP is supported in TIA Portal via the SINAMICS Startdrive engineering tool, which provides GSD file-based PROFIBUS DP device configuration. The drive must be assigned a unique PROFIBUS station address (1–125) and configured with the appropriate PROFIdrive telegram — typically Telegram 1 for speed control or Telegram 5 for extended setpoint/actual value exchange. The PROFIBUS DP master (S7 PLC) must be configured with matching telegram parameters to ensure cyclic data consistency. ZYPLC’s technical support team provides pre-sales architecture consultation and post-delivery commissioning guidance within the warranty terms confirmed during quotation period.

Q3: What long-term maintenance and spare parts strategy is recommended for installations using the 6SL3040-0JA00-0AA0?
For installations with multiple CU310 DP units, maintaining one spare control unit per five installed units is a widely adopted industry practice that balances inventory cost against unplanned downtime risk. The CU310 DP stores all drive parameters on a removable CompactFlash card (or via the BOP20 upload function), enabling rapid replacement without re-commissioning from scratch — a critical advantage in 24/7 production environments. ZYPLC supports RFQ sourcing for the 6SL3040-0JA00-0AA0 and related SINAMICS S120 components to support both planned maintenance programs and emergency replacement requirements. All units are supplied with a warranty terms confirmed during quotation and full traceability documentation.
