Siemens 6SL3040-1MA01-0AA0 Control Unit for SINAMICS S120

Siemens 6SL3040-1MA01-0AA0: Industrial Data Link for SINAMICS S120 Drive Systems

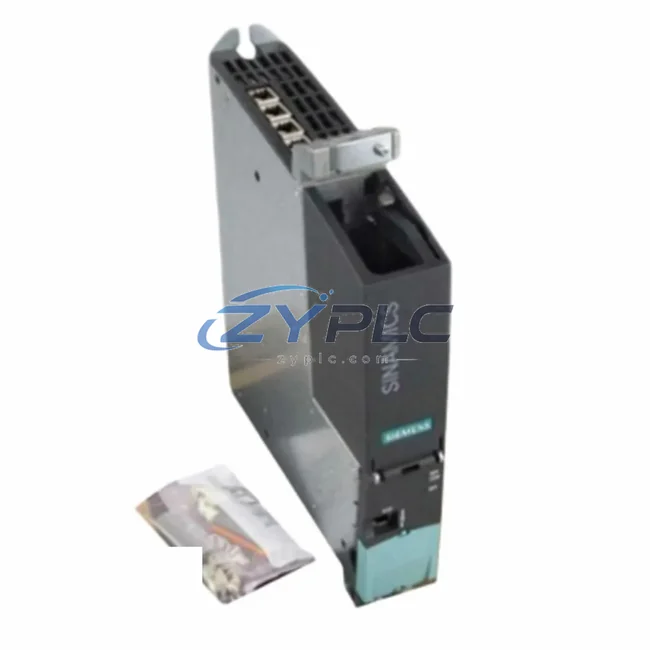

The Siemens 6SL3040-1MA01-0AA0 is the CU320-2 PN PROFINET Control Unit at the heart of the SINAMICS S120 modular drive system. Engineered for high-performance industrial automation, this control unit serves as the central intelligence and network gateway between field-level drive components and upper-level control and monitoring systems. With native PROFINET IO integration, it enables deterministic, real-time data exchange across the entire automation architecture — from servo motors and line modules to PLC controllers, HMI panels, and SCADA platforms.

In modern smart factory environments, the ability to maintain uninterrupted, low-latency communication between drive systems and supervisory networks is not optional — it is foundational. The 6SL3040-1MA01-0AA0 delivers exactly that, acting as the protocol bridge and data concentrator that keeps production lines transparent, responsive, and remotely manageable.

Compatibility & Integration Notes

Connected Automation Data Flow

The 6SL3040-1MA01-0AA0 sits at the intersection of field-level hardware and plant-wide data infrastructure. In a typical SINAMICS S120 installation, the CU320-2 PN communicates downstream via DRIVE-CLiQ to the Siemens ALM (Active Line Module) and multiple Single Motor Modules (SMM) or Double Motor Modules (DMM), collecting real-time feedback from encoder systems, current sensors, and thermal monitors embedded in each axis.

Upstream, the control unit connects via PROFINET IRT to a Simatic S7-1500 PLC — for example, a CPU 1516-3 PN/DP — where motion sequences, speed references, and torque limits are coordinated across multi-axis systems. The S7-1500 simultaneously exchanges data with a Simatic TP1500 Comfort HMI panel, giving operators real-time visibility into drive states, fault codes, and energy consumption without leaving the production floor.

For plants running distributed I/O architectures, the PROFINET network backbone also integrates Simatic ET 200SP remote I/O stations, which handle digital and analog signals from proximity sensors, pressure transmitters, and safety relays. These signals feed back through the PROFINET ring to the CU320-2 PN, enabling closed-loop control decisions at sub-millisecond cycle times.

At the SCADA level, a Simatic IPC427E industrial PC running WinCC Runtime Professional aggregates drive performance data, energy metrics, and alarm histories from the 6SL3040-1MA01-0AA0 via the S7-1500 gateway. For facilities adopting IIoT architectures, an IE/PB Link PN IO or a dedicated Siemens SCALANCE X208 industrial Ethernet switch provides the managed network infrastructure to segment PROFINET traffic, enforce QoS policies, and maintain network determinism even under high load conditions.

In multi-drive applications — such as coordinated winding, printing, or conveyor systems — additional CX32-2 Controller Extensions can be connected via DRIVE-CLiQ to expand the 6SL3040-1MA01-0AA0’s axis capacity, all while maintaining a single PROFINET node address on the plant network. This architecture dramatically simplifies network management and reduces the number of IP addresses required for large drive systems.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across generations of equipment. Older drive systems may rely on PROFIBUS DP or Modbus RTU, while newer installations demand PROFINET or EtherNet/IP. The 6SL3040-1MA01-0AA0 addresses this directly: its option board slots support Communication Board Ethernet (CBE20) for additional PROFINET ports, and its USS/MODBUS interface allows legacy devices to remain integrated without costly hardware replacement.

Data silos — where drive data exists only locally on the control unit and never reaches the SCADA or MES layer — are eliminated through the CU320-2 PN’s transparent PROFINET integration. Drive parameters, fault buffers, energy counters, and axis diagnostics are all accessible via standard PROFIdrive profiles, meaning any compliant SCADA system can read and archive this data without custom drivers or middleware.

Remote diagnostics are a core strength of this platform. Through the Siemens Startdrive commissioning tool within TIA Portal, engineers can connect to the 6SL3040-1MA01-0AA0 remotely via the plant PROFINET network, perform online parameter changes, capture trace data, and analyze fault histories — all without physical access to the control cabinet. This capability is critical for reducing mean time to repair (MTTR) in facilities where downtime costs are measured in thousands of dollars per minute.

Production line transparency is further enhanced by the control unit’s built-in SINAMICS Integrated Safety functions (STO, SS1, SLS, SDI), which report safety states directly over PROFINET to the PLC’s F-CPU, enabling fully integrated safety architectures without dedicated safety buses. This consolidation of standard and safety communication onto a single PROFINET network simplifies wiring, reduces panel space, and accelerates system commissioning.

For system expansion, the modular SINAMICS S120 architecture means that additional drive axes, power modules, or communication options can be added without redesigning the network topology. The 6SL3040-1MA01-0AA0 supports hot-swapping of DRIVE-CLiQ components in certain configurations, minimizing planned maintenance windows and supporting the continuous production demands of modern smart factories.

Industrial Connectivity FAQ

Q1: What is the minimum PROFINET cycle time supported by the 6SL3040-1MA01-0AA0?
The CU320-2 PN supports PROFINET IRT (Isochronous Real-Time) with a minimum cycle time of 250 µs, making it suitable for high-speed, synchronized multi-axis motion control applications where deterministic communication is critical.

Q2: Is the 6SL3040-1MA01-0AA0 compatible with third-party PLCs and SCADA systems?
Yes. The unit communicates via standard PROFINET IO and PROFIdrive profiles, which are supported by a wide range of PLC manufacturers and SCADA platforms. For non-PROFINET systems, optional communication boards enable Modbus RTU or additional Ethernet-based protocol support.

Q3: How is network stability ensured in large multi-drive PROFINET installations?
Network stability is maintained through MRP (Media Redundancy Protocol) ring topology support, managed switching via SCALANCE industrial Ethernet switches, and PROFINET IRT’s time-slot-based communication, which prevents bandwidth contention between drive and I/O traffic on shared network segments.

Q4: What does the warranty terms confirmed during quotation cover, and has the unit been tested before shipment?
Every 6SL3040-1MA01-0AA0 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication interfaces, firmware integrity, and hardware condition. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions, with direct technical support available throughout the warranty period.
