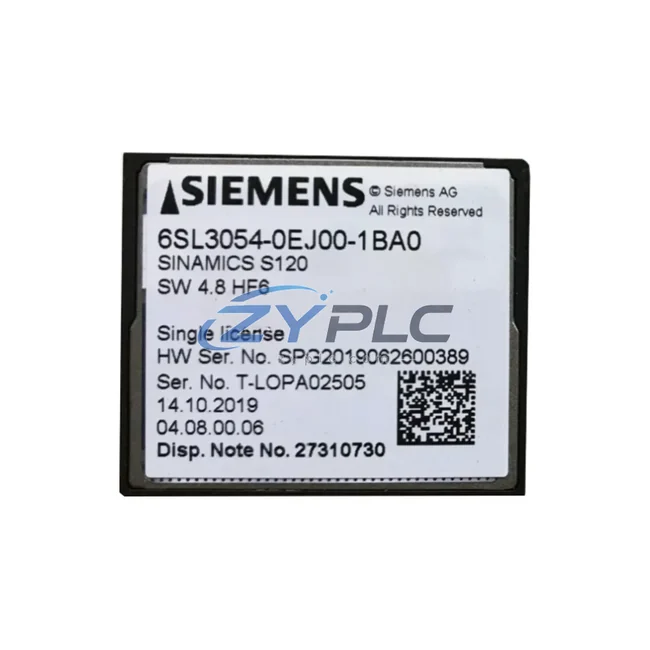

Siemens 6SL3054-0EJ00-1BA0 CF Card for SINAMICS S120

Siemens 6SL3054-0EJ00-1BA0 CF Card: Control System and system integration

The Siemens 6SL3054-0EJ00-1BA0 is a CompactFlash (CF) Card engineered specifically for the SINAMICS S120 modular drive system, serving as the primary firmware and parameter storage medium within the drive’s Control Unit. In a layered industrial automation architecture, this component occupies a critical position at the control layer — bridging the gap between the drive’s processing intelligence and its operational configuration. Without a properly specified CF Card, the SINAMICS S120 Control Unit (CU320-2 DP or CU320-2 PN) cannot load its firmware, retain drive parameters, or execute coordinated motion sequences across multi-axis configurations.

Understanding the role of the 6SL3054-0EJ00-1BA0 requires viewing it not as a standalone accessory, but as an integral element of the complete SINAMICS S120 system architecture. The S120 platform is designed around a booksize or chassis power module topology, where a single Control Unit governs multiple Motor Modules (such as the 6SL3120-1TE21-0AA3 or 6SL3120-2TE21-0AA3) via the DRIVE-CLiQ communication backbone. The CF Card stores the firmware version that determines compatibility across this entire drive line, making version management a system-level engineering decision rather than a component-level afterthought.

From a signal flow perspective, the 6SL3054-0EJ00-1BA0 enables the Control Unit to initialize its operating environment at power-up, load axis-specific parameters for each connected Motor Module, and maintain consistent setpoint and feedback processing across the PROFIBUS DP or PROFINET IRT network interface. In applications where the S120 system interfaces with a Siemens SIMATIC S7-300 or S7-1500 PLC via PROFIBUS or PROFINET, the firmware stored on this CF Card governs the drive’s telegram structure, safety function activation, and diagnostic reporting — all of which must align with the PLC’s drive control block (e.g., FB284 or SINA_SPEED) for seamless system integration.

In redundant or high-availability automation architectures, the ability to rapidly restore a Control Unit to its exact operational state is essential. The 6SL3054-0EJ00-1BA0 supports this requirement by allowing engineers to pre-configure a replacement CF Card with the correct firmware and parameter set, enabling a cold-swap restoration of the drive system without requiring a laptop-based recommissioning session via STARTER or TIA Portal. This dramatically reduces mean time to repair (MTTR) in critical production environments such as steel rolling mills, paper machines, or continuous chemical process lines.

The card also plays a role in the licensing and feature activation layer of the SINAMICS S120 ecosystem. Certain advanced functions — including the Safety Integrated Extended Functions (SIL 2 / PLe), the Technology Controller (T400), and specific encoder evaluation options — are license-bound to the CF Card’s serial number. This means the 6SL3054-0EJ00-1BA0 is not merely a storage medium; it is the identity anchor of the entire drive configuration. Replacing it without proper license transfer procedures will deactivate these functions, underscoring the importance of sourcing a correctly specified and tested card from a reliable supplier with a documented warranty terms confirmed during quotation.

Within the broader control cabinet architecture, the 6SL3054-0EJ00-1BA0 interfaces with the CU320-2 Control Unit, which in turn connects to the Line Module (Active Line Module 6SL3130-7TE21-6AA3 or Basic Line Module) for DC bus power distribution, and to the Sensor Module Cabinet-Mounted (SMC30 or SMC20) for encoder signal conditioning. The DRIVE-CLiQ ring topology ensures that all these components — Motor Modules, Sensor Modules, Terminal Modules (TM31, TM54F), and the Control Unit itself — are recognized and parameterized as a unified system. The CF Card’s firmware version must be compatible with all connected DRIVE-CLiQ nodes to prevent topology recognition errors during startup.

For system integrators working on multi-drive installations, maintaining a standardized firmware version across all CF Cards in a plant is a best practice that simplifies spare parts management, reduces commissioning variability, and ensures consistent behavior during coordinated motion sequences. The 6SL3054-0EJ00-1BA0, when sourced with verified firmware and a warranty terms confirmed during quotation, provides the confidence needed to standardize across large-scale deployments in automotive body shops, mining conveyor systems, water treatment pump stations, and petrochemical compressor drives.

Product Specification Table

System Compatibility Notes

The 6SL3054-0EJ00-1BA0 operates at the heart of a coordinated SINAMICS S120 drive system. A typical multi-axis installation begins with the Active Line Module (6SL3130-7TE21-6AA3), which conditions incoming AC supply into a regulated DC bus. This DC bus feeds multiple Single Motor Modules (6SL3120-1TE21-0AA3) or Double Motor Modules (6SL3120-2TE21-0AA3), each driving an individual servo or induction motor axis. The CU320-2 PN Control Unit — which hosts the 6SL3054-0EJ00-1BA0 CF Card — orchestrates all axes via DRIVE-CLiQ, issuing torque and speed setpoints while collecting encoder feedback through Sensor Module Cabinet-Mounted SMC30 units.

At the I/O layer, Terminal Module TM31 provides additional digital and analog I/O expansion directly on the DRIVE-CLiQ ring, enabling integration of external interlocks, temperature sensors, and process signals without routing them through the PLC. For safety-critical applications, the Terminal Module TM54F handles Safety Integrated inputs such as Safe Torque Off (STO) and Safe Stop 1 (SS1), with the safety configuration stored and licensed on the 6SL3054-0EJ00-1BA0 CF Card itself.

At the network layer, the CU320-2 PN connects to a Siemens SIMATIC S7-1500 PLC via PROFINET IRT, using PROFIdrive telegram 105 for position-controlled axes or telegram 1 for speed-controlled applications. The firmware on the CF Card determines which telegram structures are supported and how the drive responds to PLC control words. At the human-machine interface layer, a Siemens SIMATIC HMI TP1200 Comfort Panel visualizes drive status, fault codes, and operating load data, all of which are sourced from the drive’s diagnostic buffer — maintained in the parameter set stored on the 6SL3054-0EJ00-1BA0.

Industrial Application Notes

Automotive Manufacturing: In body-in-white welding lines, the SINAMICS S120 system with the 6SL3054-0EJ00-1BA0 CF Card manages coordinated servo axes for robotic positioners, transfer systems, and clamping units. The CF Card’s parameter storage ensures that after a planned maintenance shutdown, all 20+ axes return to their exact calibrated state without manual re-entry of parameters.

Mining and Minerals Processing: In overland conveyor drives and ball mill applications, the S120 system operates in vector control mode with high-inertia load compensation. The CF Card stores the application-specific speed controller tuning, flying restart parameters, and kinetic buffering settings that allow the drive to ride through brief supply interruptions without tripping — a critical requirement in remote mining operations where restart procedures are costly.

Water and Wastewater Treatment: Pump station automation using SINAMICS S120 with PROFINET connectivity relies on the CF Card to maintain PID controller parameters, flow-based speed curves, and maintenance planning settings. The warranty terms confirmed during quotation on the 6SL3054-0EJ00-1BA0 provides plant operators with the assurance needed for long-term service contracts.

Petrochemical and Oil & Gas: In compressor and extruder drive applications, the S120 system must maintain precise speed regulation under varying load conditions. The CF Card stores the application firmware that enables the drive’s internal technology controller, reducing the computational burden on the main PLC and improving response time for pressure and flow control loops.

Packaging and Converting Lines: High-speed register control in printing and packaging machines requires sub-millisecond synchronization between axes. The firmware version stored on the 6SL3054-0EJ00-1BA0 determines the drive’s isochronous PROFINET cycle time capability, making CF Card version management a critical step in machine commissioning and upgrade projects.

Product Compatibility FAQ

Q1: Is the 6SL3054-0EJ00-1BA0 compatible with both the CU320-2 DP and CU320-2 PN Control Units?
Yes. The 6SL3054-0EJ00-1BA0 is the standard CF Card for the SINAMICS S120 CU320-2 family, compatible with both the PROFIBUS DP variant (CU320-2 DP) and the PROFINET variant (CU320-2 PN). The firmware stored on the card supports both communication protocols, and the active interface is determined by the Control Unit hardware variant, not the CF Card itself. Always verify that the firmware version on the card is compatible with the firmware versions of all connected DRIVE-CLiQ components (Motor Modules, Sensor Modules, Terminal Modules) to ensure a consistent system topology.

Q2: Can I transfer Safety Integrated licenses from an old CF Card to the 6SL3054-0EJ00-1BA0?
Safety Integrated Extended Function licenses in SINAMICS S120 are bound to the CF Card’s unique serial number. To transfer licenses from an existing card to a replacement 6SL3054-0EJ00-1BA0, you must use the Siemens License Manager (SLIM) tool and follow the official license transfer procedure. If the original card is defective and the license cannot be read, a new license purchase may be required. ZYPLC recommends documenting all license keys and CF Card serial numbers as part of your plant’s spare parts management strategy to avoid license recovery complications during emergency replacements.

Q3: What is covered under the warranty terms confirmed during quotation for the 6SL3054-0EJ00-1BA0, and how does it support long-term maintenance planning?
The warranty terms confirmed during quotation provided by ZYPLC covers the 6SL3054-0EJ00-1BA0 against defects in the storage medium, firmware integrity, and physical interface compatibility with the CU320-2 Control Unit slot. In the event of a card failure within the warranty period, ZYPLC will provide a replacement card with equivalent firmware version to minimize system downtime. For long-term maintenance planning, we recommend holding at least one pre-configured spare CF Card per drive system in your critical spare parts inventory. This ensures that in the event of a Control Unit replacement or CF Card failure, your engineering team can restore the drive system to full operation within the shortest possible timeframe, without waiting for procurement lead times.
