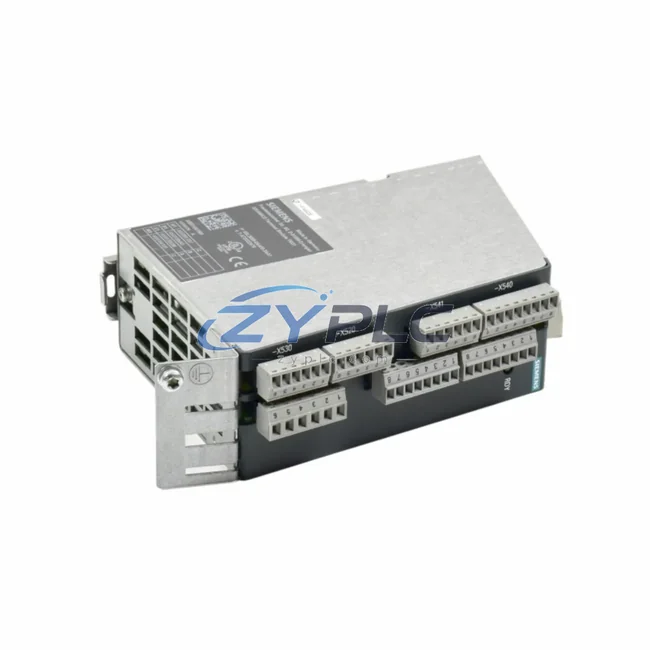

Siemens 6SL3055-0AA00-3AA1 Terminal Module for SINAMICS S120 Systems

Siemens 6SL3055-0AA00-3AA1: Industrial Data Link for SINAMICS S120 Smart Factory Networks

The Siemens 6SL3055-0AA00-3AA1 TM31 Terminal Module is a high-performance industrial network interface engineered for seamless integration within SINAMICS S120 drive systems. Designed to bridge field-level devices and upper-level control architectures, this terminal module enables real-time signal acquisition, protocol-transparent communication, and deterministic data exchange across complex automation topologies. Whether deployed in high-speed packaging lines, precision CNC machining centers, or large-scale process automation plants, the 6SL3055-0AA00-3AA1 delivers the connectivity backbone that modern smart factories demand.

At its core, the TM31 Terminal Module expands the I/O capability of the SINAMICS S120 drive platform, providing additional digital and analog inputs and outputs that connect directly to sensors, actuators, encoders, and safety devices on the shop floor. This eliminates the need for external I/O expansion racks in many applications, reducing cabinet footprint and wiring complexity while maintaining full compatibility with the SINAMICS S120 Control Unit CU320-2 PN and CU320-2 DP families.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated SINAMICS S120 architecture, the 6SL3055-0AA00-3AA1 TM31 Terminal Module sits at the intersection of field-level signal acquisition and upper-level network communication. The data flow begins at the sensor layer: proximity switches, temperature transmitters, and encoder feedback devices connect directly to the TM31’s digital and analog input terminals. These raw signals are conditioned and transmitted upstream via the DRIVE-CLiQ interface to the SINAMICS S120 Control Unit CU320-2 PN, which aggregates drive status, torque feedback, and I/O states into a unified data packet.

From the CU320-2 PN, process data travels over PROFINET IO to the Siemens SIMATIC S7-1500 PLC, where the TIA Portal engineering environment processes motion sequences, interlocks, and alarm logic. Simultaneously, the SIMATIC ET 200SP distributed I/O system collects additional field signals from remote stations and forwards them through the same PROFINET backbone, ensuring that the 6SL3055-0AA00-3AA1 operates within a coherent, low-latency network segment. For legacy installations still running PROFIBUS DP, the SINAMICS S120 platform supports the CU320-2 DP variant, allowing the TM31 to participate in existing fieldbus topologies without infrastructure replacement.

At the SCADA and HMI layer, the Siemens SIMATIC HMI TP1500 Comfort Panel visualizes real-time drive parameters sourced from the TM31’s analog outputs — motor speed, torque setpoint, and thermal load — enabling operators to monitor production KPIs without leaving the control room. The WinCC SCADA system archives these data streams for trend analysis, predictive maintenance scheduling, and OEE reporting. For applications requiring edge intelligence, the SIMATIC IPC427E industrial PC can run local analytics on TM31-sourced data before forwarding aggregated results to MES or ERP systems via OPC UA.

In multi-axis servo applications, the 6SL3055-0AA00-3AA1 works alongside the SINAMICS S120 Booksize Power Module PM240-2 and the Double Motor Module 6SL3120-2TE21-8AD0, sharing the DRIVE-CLiQ daisy chain to minimize cabling. Safety-relevant signals — such as STO (Safe Torque Off) and SS1 (Safe Stop 1) — are routed through the TM31’s digital inputs to the CU320-2 PN’s integrated safety processor, enabling SIL 2 / PLd compliance without external safety relays. Variable frequency drives in adjacent conveyor zones, such as the SINAMICS G120 with CU250S-2 PN, can be coordinated through the same PROFINET segment, creating a unified drive network managed from a single TIA Portal project.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Older installations may combine PROFIBUS DP drives, Modbus RTU sensors, and proprietary serial interfaces — creating data silos that prevent real-time visibility and centralized control. The Siemens 6SL3055-0AA00-3AA1 TM31 Terminal Module addresses this directly by providing a standardized DRIVE-CLiQ interface that integrates seamlessly with the SINAMICS S120 ecosystem, while the CU320-2 PN gateway function bridges legacy fieldbus segments to modern PROFINET networks.

For sites transitioning to Industry 4.0 architectures, the TM31 enables production line transparency by exposing drive-level data — cycle counts, fault histories, energy consumption — to SCADA and MES platforms without requiring custom middleware. Remote diagnostics become straightforward: maintenance engineers can access TM31 parameter sets and fault logs through the SINAMICS Startdrive commissioning tool over a standard Ethernet connection, reducing mean time to repair (MTTR) and eliminating the need for on-site visits for routine parameter adjustments.

System expansion is equally simplified. Adding a new servo axis to an existing SINAMICS S120 topology requires only an additional Motor Module and a DRIVE-CLiQ cable to the existing TM31 daisy chain — no new fieldbus segments, no additional gateways, and no changes to the PLC program structure beyond axis configuration in TIA Portal. This scalability makes the 6SL3055-0AA00-3AA1 a long-term investment for facilities planning phased automation upgrades.

Every 6SL3055-0AA00-3AA1 unit supplied by ZYPLC undergoes pre-shipment functional testing, including DRIVE-CLiQ enumeration verification, I/O channel continuity checks, and firmware version confirmation. Units are shipped with original Siemens packaging and are covered by a warranty terms confirmed during quotation against manufacturing defects, with availability confirmed by RFQ availability for shipment arranged after confirmation via DHL Express or FedEx International Priority.

Industrial Connectivity FAQ

Q: What is the communication latency of the 6SL3055-0AA00-3AA1 TM31 over DRIVE-CLiQ?
A: DRIVE-CLiQ operates on a synchronous, isochronous real-time (IRT) cycle with a minimum sampling time of 125 µs, ensuring deterministic data exchange between the TM31 and the SINAMICS S120 Control Unit. This latency is well within the requirements of high-speed motion control and safety-critical applications.

Q: Is the 6SL3055-0AA00-3AA1 compatible with PROFIBUS DP as well as PROFINET?
A: The TM31 itself communicates via DRIVE-CLiQ internally. PROFINET or PROFIBUS DP connectivity is determined by the Control Unit (CU320-2 PN for PROFINET, CU320-2 DP for PROFIBUS). The TM31 is fully compatible with both CU variants, making it suitable for both legacy and modern network architectures.

Q: Can the TM31 be used in safety-integrated applications?
A: Yes. The 6SL3055-0AA00-3AA1 supports safety-relevant digital inputs for STO, SS1, and SLS functions when used with a CU320-2 PN or CU320-2 DP Control Unit configured for Safety Integrated. This enables SIL 2 / PLd compliance in accordance with IEC 62061 and EN ISO 13849-1 without external safety relays.

Q: What warranty and testing does ZYPLC provide for the 6SL3055-0AA00-3AA1?
A: All units are covered by a warranty terms confirmed during quotation from the date of shipment. Pre-shipment testing includes DRIVE-CLiQ port verification, I/O channel functional checks, and firmware confirmation. Units are sourced from authorized channels and shipped in original Siemens packaging with full traceability documentation available on request.
