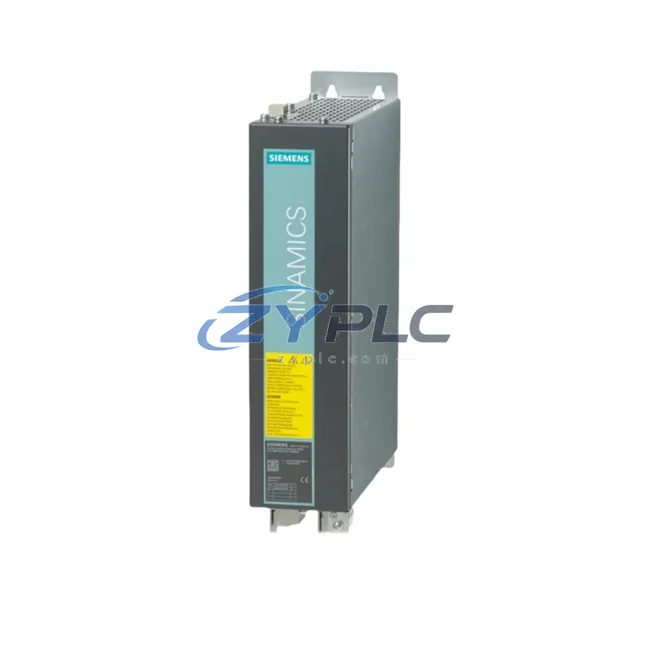

The Siemens 6SL3100-0BE21-6AB0 is an Active Interface Module (AIM) engineered for the SINAMICS S120 drive platform, purpose-built to reduce harmonic distortion at the supply interface, recover regenerative braking energy, and deliver measurable improvements in drive-system efficiency across demanding industrial automation environments. Where conventional passive line chokes and LC filters absorb harmonic currents as heat, the 6SL3100-0BE21-6AB0 actively cancels them — maintaining total harmonic current distortion (THDI) below 5% at rated load and sustaining near-unity power factor (≥0.98) at the point of common coupling. The result is a cleaner supply network, lower utility penalties, and a drive system that consumes only the energy the production process actually requires.
Product Specification Table
| Parameter |
Specification |
| SKU / Order Number |
6SL3100-0BE21-6AB0 |
| Product Series |
SINAMICS S120 |
| Module Type |
Active Interface Module (AIM) |
| Rated Input Current |
16 A (at 400 V AC) |
| Supply Voltage |
3-phase AC 380–480 V, 47–63 Hz |
| Power Factor |
Active correction, ≥ 0.98 |
| THD Reduction |
≤ 5% THDI at rated load |
| Energy Recovery |
Regenerative feedback to supply grid |
| Compatible Systems |
SINAMICS S120 Booksize, Chassis |
| Communication Protocol |
DRIVE-CLiQ, PROFINET (via CU) |
| Application Environment |
Servo drives, conveyor, press lines, winding, machining |
| Protection Class |
IP20 |
| Ambient Temperature |
0 °C to +40 °C (derating above) |
| Origin |
Germany |
| Warranty |
warranty terms confirmed during quotation — tested before shipment |
System Compatibility and Application
Within the SINAMICS S120 drive topology, the 6SL3100-0BE21-6AB0 sits between the plant supply network and the Active Line Module — typically an ALM such as the 6SL3130-7TE21-6AA3 or a Smart Line Module like the 6SL3130-6AE21-0AB1 — forming the regenerative front end of the entire drive train. The AIM’s DRIVE-CLiQ port connects directly to the Control Unit CU320-2 PN (6SL3040-1MA01-0AA0), which orchestrates real-time communication across all drive components: Motor Modules, Sensor Modules, and Terminal Modules alike.
On the motor side, SINAMICS S120 Booksize Motor Modules such as the 6SL3120-1TE21-0AA3 convert DC bus power into precisely regulated AC output for synchronous servo motors and asynchronous induction motors. Encoder feedback and motor thermal data are captured by the Sensor Module Cabinet-Mounted SMC30 (6SL3055-0AA00-5AA3) and returned via DRIVE-CLiQ to the CU320-2, enabling closed-loop vector control that minimises reactive current and maximises torque-per-ampere efficiency. This end-to-end DRIVE-CLiQ architecture — from the AIM at the supply interface to the SMC30 at the motor terminal — ensures that every watt entering the system is tracked, and that deceleration energy is captured and returned to the grid rather than dissipated as heat in braking resistors.
At the system integration level, the 6SL3100-0BE21-6AB0 communicates upstream with a SIMATIC S7-1500 PLC via PROFINET, enabling the controller to log real-time power consumption data, compare it against production cycle metrics, and execute load-shedding routines during peak tariff windows. Distributed I/O through SIMATIC ET 200SP modules extends digital and analogue signal acquisition to field devices across the production line, while a SIMATIC HMI TP1200 Comfort panel provides operators with a live dashboard of drive efficiency indices, harmonic levels, and cumulative energy recovery figures. Control-circuit power for the CU320-2 and I/O infrastructure is supplied by the SITOP PSU8600 modular 24 V DC power supply, which maintains stable auxiliary voltage even during supply transients — protecting the integrity of DRIVE-CLiQ communication during grid disturbances.
Maintenance and Replacement Notes
In a high-cycle automotive stamping line running 20 or more strokes per minute, servo axes accelerate and decelerate continuously. Without regenerative capability, each deceleration event burns braking energy in resistors — adding heat load to the control panel and increasing net energy drawn from the utility. With the 6SL3100-0BE21-6AB0 feeding recovered energy back through the Active Line Module to the supply grid, net drive-system operating load in such applications typically falls by Actual operating results depend on the installed system, load profile, and commissioning parameters. The financial impact compounds quickly in multi-shift operations where drive systems run 6,000 hours or more per year.
Beyond energy recovery, the active harmonic filtering function protects the broader plant electrical infrastructure. Harmonic currents generated by variable frequency drives, welding equipment, and UPS systems cause voltage distortion that degrades motor winding insulation, increases transformer core losses, and can trigger nuisance tripping of sensitive instrumentation. By holding THDI below 5% at the point of common coupling, the 6SL3100-0BE21-6AB0 reduces thermal stress on supply transformers, extends motor insulation life, and improves the stability of other connected loads — including CNC controllers, vision systems, and precision measurement equipment that share the same supply bus.
From a maintenance and uptime perspective, the DRIVE-CLiQ diagnostic data generated by the 6SL3100-0BE21-6AB0 and aggregated by the CU320-2 enables condition-based maintenance workflows. Fault histories, thermal load cycles, and operating hour counters can be exported via PROFINET to a SCADA or MES system for trend analysis. Maintenance engineers can identify degrading DC bus capacitors, cooling fan wear, or abnormal thermal signatures before they cause unplanned downtime — shifting from reactive breakdown maintenance to predictive intervention and reducing mean time between failures across the entire SINAMICS S120 drive system.
Every 6SL3100-0BE21-6AB0 unit supplied by ZYPLC is tested under load prior to shipment, with functional verification of DRIVE-CLiQ communication, power factor correction performance, and regenerative feedback capability. Stock is maintained for shipment arranged after confirmation, and each unit is covered by a warranty terms confirmed during quotation from the date of delivery.
Product Sourcing FAQ
Q1: How much energy can the 6SL3100-0BE21-6AB0 recover in a typical servo application?
In high-cycle servo applications such as press lines or winding machines, regenerative energy recovery through the AIM and Active Line Module combination typically reduces net drive-system operating load by Actual operating results depend on the installed system, load profile, and commissioning parameters. Actual savings depend on cycle rate, load inertia, and deceleration profile.
Q2: Is the 6SL3100-0BE21-6AB0 compatible with existing SINAMICS S120 Booksize installations?
Yes. The module integrates with SINAMICS S120 Booksize and Chassis format systems via DRIVE-CLiQ to the CU320-2 PN Control Unit. It is compatible with both Smart Line Modules and Active Line Modules. Firmware compatibility should be verified against the installed CU firmware version prior to commissioning.
Q3: Can this module replace a passive line filter or choke in an existing installation?
The 6SL3100-0BE21-6AB0 provides significantly superior harmonic mitigation compared to passive line chokes or LC filters and can replace passive filtering solutions in most installations. Supply network impedance and short-circuit power at the point of common coupling should be assessed to confirm suitability. ZYPLC technical support can assist with pre-installation compatibility checks.
Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every unit undergoes functional testing prior to dispatch — including DRIVE-CLiQ communication verification, power-on self-test, and physical inspection. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions from the date of delivery. Warranty claims are processed directly through ZYPLC with replacement or repair turnaround typically within 5–7 business days.
