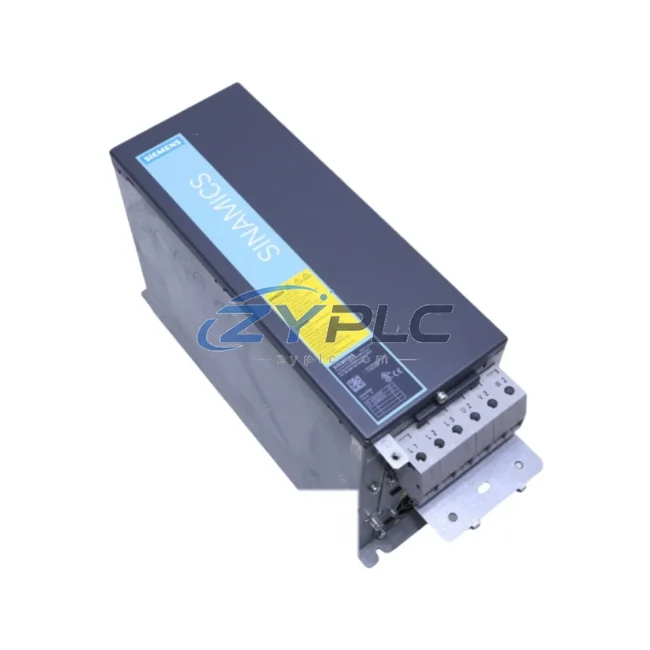

Siemens 6SL3100-0BE23-6AB0 Line Module S120

Siemens 6SL3100-0BE23-6AB0 Line Module S120: Replacement and Sourcing Information

The Siemens 6SL3100-0BE23-6AB0 is a Smart Line Module within the SINAMICS S120 drive system, engineered to deliver bidirectional power flow, active energy regeneration, and high-efficiency motor control for demanding industrial production environments. With a rated input power of 36 kW and compliance with IEC/EN 61800 standards, this module serves as the central power backbone for multi-axis drive configurations, enabling factories to significantly reduce unplanned downtime, improve equipment utilization rates, and lower total cost of ownership across the production line.

Unlike conventional rectifier units, the 6SL3100-0BE23-6AB0 supports regenerative feedback to the supply grid, converting braking energy from connected servo axes and vector drives back into usable electrical power. This capability is especially valuable in high-cycle applications such as press lines, packaging machinery, and CNC machining centers, where frequent acceleration and deceleration cycles would otherwise dissipate energy as heat.

Product Specification Table

System Compatibility and Application

The 6SL3100-0BE23-6AB0 Smart Line Module is designed to operate as the central power supply node within a SINAMICS S120 multi-axis architecture. In a typical energy-optimized production cell, the module connects via the DC bus to multiple SINAMICS S120 Motor Modules (such as the 6SL3120 series single-axis or double-axis booksize modules), which in turn drive SIMOTICS S-1FK7 or 1FT7 servo motors for precision positioning and torque control. The DRIVE-CLiQ communication backbone links the Smart Line Module to the CU320-2 Control Unit, enabling centralized parameter management, real-time diagnostics, and coordinated energy flow across all connected axes.

For power quality monitoring and energy accounting, the system integrates with SENTRON PAC3200 or PAC4200 power monitoring devices, which measure active power, reactive power, harmonics, and operating load at the cabinet level. This data feeds into the SIMATIC S7-1500 PLC via PROFINET, where energy KPIs are processed and visualized on a SIMATIC HMI TP1500 Comfort Panel, giving operators real-time visibility into drive efficiency and production energy cost per unit.

In regenerative braking scenarios — common in servo press and winding applications — the recovered energy from decelerating 1PH8 spindle motors or servo axes is fed back through the Smart Line Module to the shared DC bus, where it is immediately consumed by other accelerating axes or returned to the AC supply grid. This closed-loop energy sharing eliminates the need for braking resistors and reduces heat dissipation within the control cabinet, lowering both energy costs and cooling infrastructure requirements.

For distributed I/O and field-level integration, the architecture typically includes SIMATIC ET 200SP remote I/O stations connected via PROFINET, enabling decentralized sensor and actuator control without adding latency to the drive control loop. The SINAMICS S120 COMM Board CBE20 further extends connectivity options, supporting PROFINET IRT for isochronous real-time communication in high-speed synchronization applications.

Maintenance and Replacement Notes

In automotive body-in-white welding lines, the 6SL3100-0BE23-6AB0 has been deployed to power multi-axis servo transfer systems where up to eight Motor Modules share a single Smart Line Module DC bus. The regenerative capability of the SLM means that when one axis decelerates to position a workpiece, the recovered energy is immediately available to accelerate an adjacent axis — reducing peak demand from the supply grid and allowing the use of a smaller transformer and lower-rated supply infrastructure. Over a three-shift production schedule, this energy sharing can reduce total drive system power consumption by 20–30% compared to non-regenerative drive topologies.

In packaging and filling lines, where conveyor drives, capping heads, and labeling stations cycle continuously at high throughput rates, the Smart Line Module maintains a stable DC bus voltage even under rapidly changing load conditions. This voltage stability directly improves production line throughput consistency (takt time), reduces servo positioning errors caused by bus voltage fluctuations, and extends the service life of connected Motor Modules and servo motors by preventing overvoltage stress during regenerative events.

Predictive maintenance integration is achieved by connecting the SINAMICS S120 system to SINEMA Remote Connect or the SIMATIC Energy Suite within TIA Portal, where drive load profiles, thermal models, and operating load trends are continuously analyzed. Anomalies in power factor, current harmonics, or efficiency degradation trigger maintenance alerts before a failure occurs, reducing unplanned downtime and enabling condition-based maintenance scheduling rather than fixed-interval overhauls. Combined with a warranty terms confirmed during quotation and pre-shipment functional testing at ZYPLC, the 6SL3100-0BE23-6AB0 delivers a low total cost of ownership from day one of installation.

All units supplied by ZYPLC undergo a comprehensive outgoing quality inspection, including DC bus voltage verification, DRIVE-CLiQ communication handshake testing, insulation resistance measurement, and thermal performance validation. Inventory is maintained in climate-controlled storage to preserve component integrity, and same-week dispatch is available for availability confirmed by RFQ units to minimize production line downtime during emergency replacement scenarios.

Product Sourcing FAQ

Q1: How much energy can the 6SL3100-0BE23-6AB0 recover in a typical cyclic application?
In high-cycle servo applications such as press lines or pick-and-place systems, the Smart Line Module’s regenerative feedback capability can recover Actual operating results depend on the installed system, load profile, and commissioning parameters. The recovered energy is either shared across the DC bus to other accelerating axes or fed back to the AC supply grid, reducing net energy draw and lowering electricity costs.

Q2: Is the 6SL3100-0BE23-6AB0 compatible with existing SINAMICS S120 installations?
Yes. The 6SL3100-0BE23-6AB0 is fully compatible with the SINAMICS S120 Booksize and Chassis format ecosystem, including CU320-2 and CU310-2 Control Units, all S120 Motor Modules in the 6SL3120/6SL3130 series, and SIMOTION D and SINUMERIK 840D sl motion control platforms. It connects via the standard DRIVE-CLiQ interface and can be commissioned using STARTER or TIA Portal Startdrive without hardware modifications to existing cabinet layouts.

Q3: What is the recommended replacement procedure and how does ZYPLC support the process?
For replacement of a failed or end-of-life Smart Line Module, ZYPLC recommends verifying the DC bus voltage rating, input current rating, and firmware version compatibility before ordering. ZYPLC provides pre-shipment functional testing documentation and can supply the module with a matched firmware version on request. Technical support is available via +86 19859288691 or plc.sales@zyplc.com to assist with parameter backup, module swap procedures, and recommissioning guidance.

Q4: What does the warranty terms confirmed during quotation cover and what is the testing process?
All 6SL3100-0BE23-6AB0 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Prior to dispatch, each unit undergoes a full outgoing inspection including power-on functional testing, DRIVE-CLiQ communication verification, insulation resistance measurement, and visual inspection for physical damage. A test report is available upon request. Warranty claims are processed directly through ZYPLC with a target replacement or repair turnaround of 5–7 business days.
