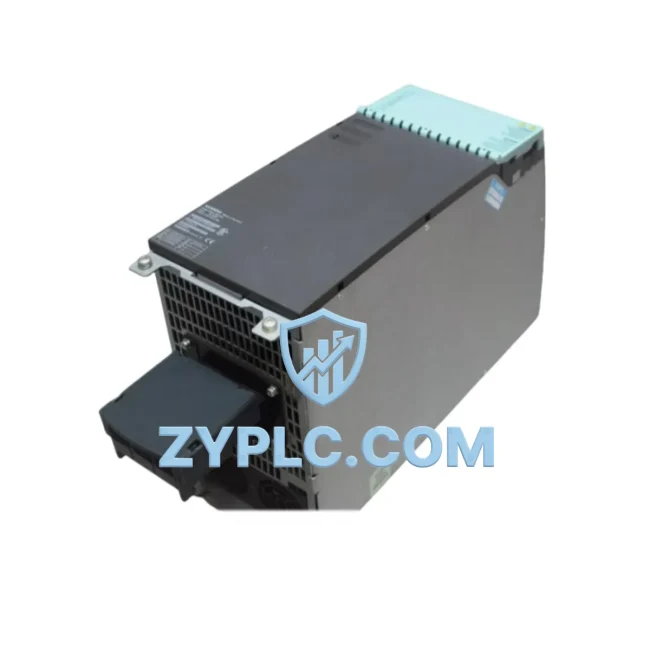

Siemens 6SL3120-1TE24-5AA1 Industrial Network Interface for SINAMICS S120

Siemens 6SL3120-1TE24-5AA1: Industrial Data Link for SINAMICS S120 Smart Factory Networks

The Siemens 6SL3120-1TE24-5AA1 is a high-performance Single Motor Module within the SINAMICS S120 booksize drive system, engineered to deliver precise, real-time motor control and seamless industrial network integration across modern smart factory environments. With a rated output current of 45A and native DRIVE-CLiQ communication, this module forms a critical node in the data chain connecting field-level devices to upper-level control and monitoring systems.

In today’s intelligent manufacturing landscape, the ability to transmit accurate motor feedback, torque commands, and fault diagnostics across a unified network backbone is no longer optional — it is foundational. The 6SL3120-1TE24-5AA1 addresses this need by integrating directly into the SINAMICS S120 drive architecture, enabling high-speed, deterministic data exchange between the motor module, the SINAMICS S120 Control Unit CU320-2 DP or CU320-2 PN, and the broader automation network.

Network Communication Table

Connected Automation Data Flow

The 6SL3120-1TE24-5AA1 operates at the heart of a layered industrial data flow. At the field level, motor encoders and temperature sensors feed real-time signals into the module via DRIVE-CLiQ, where they are digitized and transmitted upstream with microsecond-level latency. The SINAMICS S120 Control Unit CU320-2 PN receives this data over the internal DRIVE-CLiQ ring topology and translates it into PROFINET IO frames, enabling seamless communication with a SIMATIC S7-1500 PLC acting as the central motion coordinator.

Within a typical servo press or CNC machining cell, the 6SL3120-1TE24-5AA1 works in parallel with the SINAMICS S120 Double Motor Module 6SL3120-2TE21-8AA3, sharing a common DC bus supplied by the SINAMICS S120 Active Line Module 6SL3130-7TE21-6AA3. This shared DC bus architecture reduces energy consumption and simplifies cabinet wiring, while the DRIVE-CLiQ backbone ensures that all modules report their operational status — current draw, temperature, fault codes — to the control unit in real time.

At the supervisory level, a SIMATIC HMI TP1200 Comfort Panel connected via PROFINET displays live drive parameters, axis positions, and alarm states sourced directly from the S120 drive system. Simultaneously, WinCC SCADA running on an industrial PC aggregates data from multiple drive axes, enabling trend analysis, production reporting, and remote diagnostics without interrupting machine operation. For plants deploying edge computing, a SIMATIC IPC427E edge gateway can buffer and pre-process drive data before forwarding it to MES or cloud analytics platforms.

Remote I/O expansion is handled through ET 200SP distributed I/O modules connected to the S7-1500 PLC over PROFINET, extending digital and analog signal collection from sensors and actuators across the production floor. Variable-speed conveyor drives, coordinated by SINAMICS G120 frequency inverters on the same PROFINET segment, receive speed references from the PLC and report actual speed feedback, creating a fully transparent, data-rich automation network where the 6SL3120-1TE24-5AA1 serves as a precision motion node.

Solving Data Isolation in Industrial Sites

Many industrial facilities still operate with fragmented drive systems where motor modules from different generations or vendors use incompatible communication protocols, creating data silos that prevent centralized monitoring and coordinated control. The Siemens 6SL3120-1TE24-5AA1, as part of the SINAMICS S120 ecosystem, directly addresses this challenge through its native DRIVE-CLiQ protocol, which provides a standardized, high-bandwidth communication channel between all S120 components — eliminating the need for proprietary adapters or protocol converters within the drive system.

For sites integrating legacy PROFIBUS DP devices alongside modern PROFINET infrastructure, the SINAMICS S120 Control Unit supports both protocols simultaneously, allowing the 6SL3120-1TE24-5AA1 to participate in mixed-protocol networks without gateway overhead. This dual-protocol capability is essential for phased modernization projects where older SIMATIC S7-300 PLCs and newer S7-1500 controllers must coexist on the same factory network.

Production line transparency is achieved through continuous data streaming from the motor module to SCADA and MES systems. Torque ripple, thermal load, and energy consumption data collected from the 6SL3120-1TE24-5AA1 can be visualized in real time, enabling predictive maintenance scheduling before mechanical failures occur. Remote diagnostics via TIA Portal’s online monitoring function allow engineers to read fault buffers, adjust drive parameters, and perform trace recordings on the 6SL3120-1TE24-5AA1 from any networked workstation — reducing unplanned downtime and eliminating the need for on-site intervention for routine parameter changes.

System scalability is built into the S120 architecture: additional Single Motor Modules or Double Motor Modules can be added to the drive line-up and automatically recognized by the Control Unit via DRIVE-CLiQ topology detection, making capacity expansion straightforward without reconfiguring the entire network. Every unit shipped by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, output performance, and fault response — backed by a 12-month warranty and supported by in-stock inventory for rapid global deployment.

Industrial Connectivity FAQ

Q1: What communication protocol does the 6SL3120-1TE24-5AA1 use, and is it compatible with PROFINET and PROFIBUS networks?
The 6SL3120-1TE24-5AA1 uses DRIVE-CLiQ as its native inter-module communication protocol within the SINAMICS S120 system. PROFINET IO and PROFIBUS DP connectivity to PLCs and SCADA systems is provided through the paired SINAMICS S120 Control Unit (e.g., CU320-2 PN for PROFINET or CU320-2 DP for PROFIBUS), making it fully compatible with both network standards.

Q2: How does the module ensure network stability and low-latency data transmission in high-speed motion control applications?
DRIVE-CLiQ operates as a deterministic, real-time communication bus with cycle times as low as 125 µs, ensuring that encoder feedback, torque commands, and fault signals are transmitted without jitter. The ring topology of the DRIVE-CLiQ network provides redundancy, so a single cable fault does not interrupt communication across the entire drive system.

Q3: Can the 6SL3120-1TE24-5AA1 be integrated into an existing SINAMICS S120 system without replacing the Control Unit?
Yes. The 6SL3120-1TE24-5AA1 is fully compatible with existing SINAMICS S120 booksize drive line-ups. When connected via DRIVE-CLiQ, the Control Unit automatically detects the new module through topology recognition and loads the appropriate drive object configuration, minimizing commissioning time and eliminating manual parameter entry for standard applications.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 6SL3120-1TE24-5AA1?
Every 6SL3120-1TE24-5AA1 unit supplied by ZYPLC is covered by a 12-month warranty against manufacturing defects and communication failures. Prior to shipment, each unit undergoes functional verification including DRIVE-CLiQ communication testing, output current validation, and fault response checks. In-stock units are available for same-week dispatch with global DHL/FedEx express shipping.
