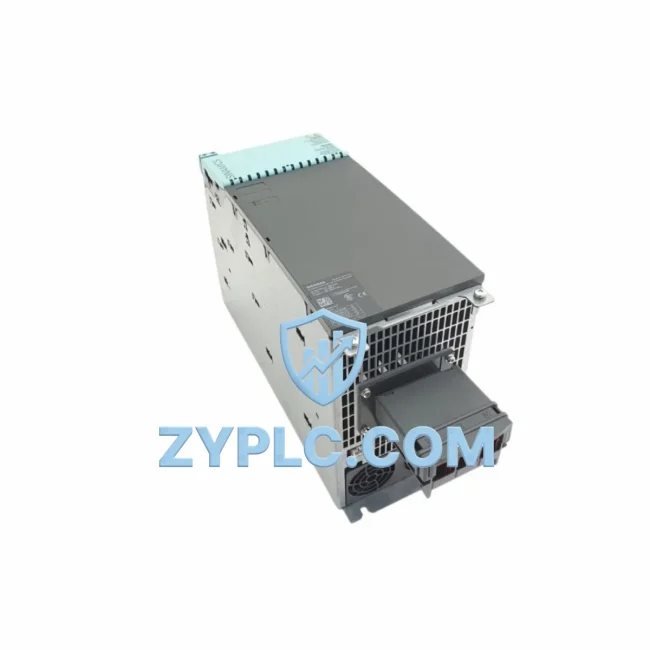

Siemens 6SL3120-1TE24-5AA3 Industrial Network Interface for SINAMICS S120 Systems

Siemens 6SL3120-1TE24-5AA3: Industrial Data Link for SINAMICS S120 Smart Factory Systems

The Siemens 6SL3120-1TE24-5AA3 is a Single Motor Module within the SINAMICS S120 booksize drive system, engineered for high-precision motor control and seamless industrial network integration. Designed to operate within Siemens’ modular drive architecture, this unit serves as a critical node in the data flow between field-level devices and upper-level control and monitoring systems. Whether deployed in automotive assembly lines, packaging machinery, material handling conveyors, or CNC machining centers, the 6SL3120-1TE24-5AA3 delivers deterministic drive performance while maintaining full transparency across the connected automation network.

At the heart of its connectivity capability, the 6SL3120-1TE24-5AA3 interfaces directly with the SINAMICS S120 Control Unit — typically the CU320-2 DP or CU320-2 PN — via the DRIVE-CLiQ high-speed serial communication bus. This proprietary Siemens protocol enables real-time parameter exchange, fault diagnostics, and firmware synchronization between the motor module, encoder feedback systems, and the central control unit, all within a single unified drive topology. The DRIVE-CLiQ backbone eliminates traditional point-to-point wiring complexity and enables automatic device recognition, dramatically reducing commissioning time on the factory floor.

From a network communication perspective, the 6SL3120-1TE24-5AA3 participates in PROFIBUS DP and PROFINET IO ecosystems when paired with the appropriate SINAMICS S120 control unit. In PROFINET configurations, cyclic process data — including speed setpoints, torque feedback, status words, and fault codes — is exchanged with the Siemens SIMATIC S7-1500 or S7-300 PLC at sub-millisecond cycle times, ensuring tight synchronization between the drive and the broader machine control logic. For legacy installations, PROFIBUS DP connectivity through the CBE20 Communication Board Extension allows the 6SL3120-1TE24-5AA3 to integrate into existing fieldbus architectures without requiring a full network overhaul.

In SCADA and HMI integration scenarios, the drive data exposed by the 6SL3120-1TE24-5AA3 — including DC link voltage, output current, motor temperature, and active fault registers — is made available to Siemens WinCC or third-party SCADA platforms via OPC UA or PROFINET, enabling operators to monitor drive health in real time from centralized control rooms or remote terminals. When connected to a Siemens SIMATIC ET 200SP remote I/O station, digital and analog signals from proximity sensors, encoders, and temperature transmitters can be aggregated and forwarded to the drive system, creating a closed-loop feedback architecture that supports adaptive process control.

The 6SL3120-1TE24-5AA3 is rated for a DC link voltage of 600 V and supports output current configurations suitable for medium-power servo and induction motor applications. Its booksize form factor allows it to be mounted directly on the SINAMICS S120 line-up alongside the Active Line Module (ALM) and additional Single or Double Motor Modules, sharing a common DC bus. This shared DC bus architecture enables energy recovery between braking and motoring axes — a key advantage in multi-axis systems such as those found in robotic welding cells or high-speed pick-and-place machines.

For remote diagnostics and predictive maintenance, the 6SL3120-1TE24-5AA3 supports Siemens SINAMICS Startdrive commissioning software, which communicates with the drive over PROFINET or USB. Startdrive enables parameter backup, trace recording, and fault history analysis — all essential for minimizing unplanned downtime in continuous production environments. When integrated with a Siemens SINEMA Remote Connect edge gateway or a third-party industrial IoT gateway, drive telemetry can be securely transmitted to cloud-based analytics platforms, enabling condition monitoring and anomaly detection at scale.

In multi-drive installations, the 6SL3120-1TE24-5AA3 works in concert with the SINAMICS S120 Smart Line Module (SLM) for regenerative energy management, and alongside the SINAMICS S120 Braking Module for dynamic braking in high-inertia load applications. Encoder feedback from Siemens SIMOTICS servo motors is processed through the SMC30 Sensor Module Cabinet-Mounted, which connects to the motor module via DRIVE-CLiQ, providing closed-loop position and speed control with high resolution. For applications requiring functional safety, the 6SL3120-1TE24-5AA3 supports Safe Torque Off (STO) and Safe Stop 1 (SS1) via onboard safety terminals, compliant with IEC 62061 and ISO 13849-1 standards.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 6SL3120-1TE24-5AA3 sits at the intersection of motion control and industrial networking. Signal acquisition begins at the sensor layer — proximity switches, rotary encoders, and temperature sensors connected to a Siemens SIMATIC ET 200SP distributed I/O station relay process values over PROFINET to the SIMATIC S7-1500 PLC. The PLC processes this data and issues speed and torque setpoints to the SINAMICS S120 CU320-2 PN Control Unit, which distributes commands to the 6SL3120-1TE24-5AA3 via the DRIVE-CLiQ bus in real time.

Motor feedback — including rotor position, winding temperature, and actual speed — is captured by the SMC30 Sensor Module and returned to the control unit over DRIVE-CLiQ, closing the servo loop with microsecond-level latency. Simultaneously, the Active Line Module (ALM) monitors DC bus voltage and grid power quality, feeding energy status data back into the drive topology. In regenerative braking events, excess energy is returned to the shared DC bus and redistributed to other motoring axes or fed back to the grid through the ALM — a process fully transparent to the SCADA layer.

At the SCADA and HMI level, Siemens WinCC running on an industrial PC retrieves drive status, alarm registers, and energy consumption data from the S7-1500 PLC via OPC UA. Operators can visualize motor load curves, acknowledge drive faults, and initiate controlled shutdowns from the HMI panel without interrupting the production cycle. For remote access, a SINEMA Remote Connect gateway or a third-party edge device tunnels encrypted drive diagnostics to a cloud dashboard, enabling maintenance engineers to perform remote fault analysis and parameter adjustments from any location.

This end-to-end data chain — from field sensor through remote I/O, PLC, DRIVE-CLiQ motor module, SCADA, and edge gateway — represents the full connectivity value of the 6SL3120-1TE24-5AA3 in a modern IIoT-enabled production environment.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is protocol fragmentation — legacy PROFIBUS devices coexisting with modern PROFINET infrastructure, creating data silos that prevent unified monitoring and control. The 6SL3120-1TE24-5AA3, when paired with the SINAMICS S120 CU320-2 DP control unit and a CBE20 Communication Board Extension, bridges this gap by supporting both PROFIBUS DP and PROFINET IO simultaneously, allowing older field devices to remain in service while the upper network migrates to Ethernet-based architectures.

For sites struggling with production line transparency, the drive’s integration with Siemens TIA Portal and WinCC enables automatic alarm forwarding — fault codes from the 6SL3120-1TE24-5AA3 are mapped to SCADA alarm lists in real time, eliminating the need for manual fault log inspection. Remote monitoring via OPC UA or SINEMA Remote Connect further reduces the need for on-site intervention, cutting mean time to repair (MTTR) and improving overall equipment effectiveness (OEE).

System expansion is equally straightforward: additional Single Motor Modules or Double Motor Modules can be added to the SINAMICS S120 booksize lineup on the same DC bus without modifying the control unit configuration, provided the line module capacity is sufficient. DRIVE-CLiQ auto-topology detection automatically recognizes new modules during startup, minimizing engineering effort for capacity upgrades. This scalability makes the 6SL3120-1TE24-5AA3 a future-proof investment for growing production facilities.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing, including power-on verification, communication port integrity checks, and parameter initialization validation. All products are backed by a 12-month warranty and shipped with full export documentation to support international customs clearance.

Industrial Connectivity FAQ

Q1: What communication protocols does the 6SL3120-1TE24-5AA3 support?
The 6SL3120-1TE24-5AA3 communicates natively via DRIVE-CLiQ with the SINAMICS S120 control unit. Depending on the control unit variant, PROFINET IO (CU320-2 PN) or PROFIBUS DP (CU320-2 DP) is supported for PLC and SCADA integration. OPC UA access is available through the TIA Portal / WinCC layer.

Q2: Is the 6SL3120-1TE24-5AA3 compatible with third-party PLCs and SCADA systems?
Yes. While natively optimized for Siemens SIMATIC controllers, the drive can be integrated with third-party SCADA and DCS platforms via OPC UA or PROFINET, provided the host system supports standard IEC 61158 fieldbus protocols. Gateway devices can further extend compatibility to Modbus TCP or EtherNet/IP environments.

Q3: How is network stability ensured in high-cycle production environments?
The DRIVE-CLiQ bus operates at a fixed isochronous cycle time (as low as 125 µs), ensuring deterministic data exchange between the motor module and control unit regardless of network load. PROFINET IRT (Isochronous Real-Time) mode further guarantees jitter-free communication at the PLC level, critical for synchronized multi-axis motion applications.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
All 6SL3120-1TE24-5AA3 units supplied by ZYPLC are covered by a 12-month warranty against manufacturing defects and functional failures. Pre-shipment testing includes power-on verification, DRIVE-CLiQ port communication checks, safety terminal continuity testing, and visual inspection per IPC-A-610 workmanship standards. Detailed test reports are available upon request.
