Siemens 6SL3130-6TE25-5AA3 Line Module for SINAMICS S120 Systems

Siemens 6SL3130-6TE25-5AA3: Industrial Data Link for SINAMICS S120 Smart Factory Networks

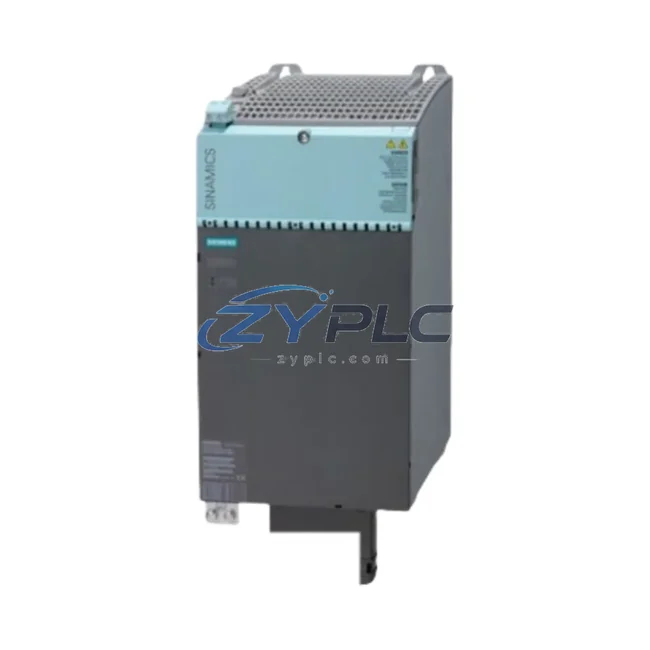

The Siemens 6SL3130-6TE25-5AA3 is a high-performance Active Line Module within the SINAMICS S120 drive system, engineered to serve as a critical industrial network interface between the power supply infrastructure and the intelligent automation backbone of modern manufacturing facilities. Designed for seamless integration into PROFINET-based architectures, this module enables real-time data exchange across field devices, PLC controllers, remote I/O stations, HMI panels, SCADA platforms, and upper-level MES systems — forming the foundation of a transparent, connected smart factory.

In today’s industrial environment, the demand for uninterrupted data flow from signal acquisition through to enterprise-level reporting has never been greater. The 6SL3130-6TE25-5AA3 addresses this need by providing a stable, high-bandwidth power and communication interface that supports the full SINAMICS S120 ecosystem. Whether deployed in coordinated multi-axis motion control, regenerative energy recovery, or high-dynamic servo applications, this module ensures that every data packet — from torque feedback to fault diagnostics — travels reliably across the network.

Compatibility & Integration Notes

Connected Automation Data Flow

The 6SL3130-6TE25-5AA3 sits at the heart of a layered industrial communication architecture. At the field level, sensors and actuators — including Siemens SIRIUS 3RK3 motor management relays and ET 200SP remote I/O modules — feed real-time process signals into the network. These signals are aggregated and processed by a Siemens SIMATIC S7-1500 PLC, which communicates with the Active Line Module via PROFINET IO at deterministic cycle times as low as 1 ms, ensuring precise synchronization across all drive axes.

The DRIVE-CLiQ interface native to the SINAMICS S120 platform connects the 6SL3130-6TE25-5AA3 directly to Motor Modules such as the 6SL3120 series and to the Control Unit CU320-2 PN, enabling automatic topology recognition and parameter exchange without manual configuration. This plug-and-play connectivity dramatically reduces commissioning time and eliminates wiring errors in complex multi-drive installations.

At the supervisory level, a Siemens SIMATIC HMI TP1500 Comfort Panel provides operators with live visualization of drive status, energy consumption, and fault conditions. The data path continues upward through a SCALANCE X308-2 industrial Ethernet switch, which aggregates traffic from multiple PROFINET segments and routes it to the SCADA server running Siemens WinCC or WinCC OA. From there, production KPIs, energy metrics, and predictive maintenance alerts are forwarded to the MES or cloud analytics platform via OPC UA gateways such as the Siemens SINEMA Remote Connect or a third-party edge gateway.

For variable-speed pump and fan applications, the 6SL3130-6TE25-5AA3 works in tandem with SINAMICS S120 Power Modules and vector control algorithms to deliver energy-efficient operation. Integrated regenerative feedback capability allows braking energy to be returned to the supply grid, reducing overall plant energy costs — a key metric tracked in real time by the connected SCADA system.

Remote diagnostics are enabled through the SINAMICS S120’s built-in web server and PROFINET diagnostic services, allowing maintenance engineers to access fault logs, parameter sets, and drive health data from any networked workstation or mobile device without interrupting production. This capability is further enhanced when paired with a Siemens SINEMA Server for centralized network management across all PROFINET devices on the plant floor.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across legacy and modern equipment. Older field devices may speak PROFIBUS DP or Modbus RTU, while newer systems demand PROFINET or EtherNet/IP. The 6SL3130-6TE25-5AA3, as part of the SINAMICS S120 platform, bridges this gap through its compatibility with Siemens protocol conversion gateways and the TIA Portal engineering framework, which provides a unified configuration environment for mixed-protocol networks.

Data silos — where drive data, energy data, and process data exist in separate, non-communicating systems — are eliminated by the module’s native PROFINET integration. All operational parameters, including DC link voltage, output current, motor temperature, and fault codes, are exposed as standard PROFINET data objects accessible to any compliant SCADA or MES system. This transparency enables production line visibility from the drive level all the way to the enterprise dashboard.

Remote monitoring and control are further simplified by the module’s support for acyclic PROFINET services, which allow on-demand parameter reads and writes without disrupting the cyclic control loop. Plant managers can adjust drive parameters, reset faults, or initiate diagnostic routines remotely — reducing the need for on-site intervention and minimizing unplanned downtime.

System expansion is straightforward within the SINAMICS S120 modular architecture. Additional Motor Modules, Sensor Modules, or communication option boards can be added to the existing DRIVE-CLiQ topology without redesigning the network. The 6SL3130-6TE25-5AA3 supports this scalability by providing sufficient DC bus capacity for multi-axis configurations, making it a future-proof investment for growing production lines.

Every unit of the 6SL3130-6TE25-5AA3 supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, power stage performance, and firmware version compatibility. Stock availability is maintained to support urgent project timelines, and all units are covered by a warranty terms confirmed during quotation against manufacturing defects.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 6SL3130-6TE25-5AA3 on a PROFINET network?
A: The SINAMICS S120 platform supports PROFINET IRT (Isochronous Real-Time) with cycle times as low as 1 ms and jitter below 1 µs, making it suitable for high-dynamic motion control applications where deterministic communication is critical.

Q2: Is the 6SL3130-6TE25-5AA3 compatible with third-party SCADA and HMI systems?
A: Yes. The module communicates via standard PROFINET IO and PROFIdrive profiles, which are supported by all major SCADA platforms including Wonderware, Ignition, and iFIX, as well as HMI systems from multiple vendors. OPC UA connectivity can be added via a gateway module for broader system integration.

Q3: How does the module handle network instability or communication interruptions?
A: The SINAMICS S120 Active Line Module incorporates watchdog timers and configurable fault responses for PROFINET communication loss. In the event of a network interruption, the drive can be configured to coast to stop, maintain last setpoint, or trigger a controlled ramp-down, depending on the safety requirements of the application.

Q4: What warranty and pre-shipment testing does ZYPLC provide for this module?
A: All 6SL3130-6TE25-5AA3 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation. Each unit undergoes pre-shipment testing including power-on verification, DRIVE-CLiQ communication check, and firmware version confirmation to ensure full operational readiness upon delivery.
