Siemens 6SL3162-2BM00-0AA0 Rectifier for S120

Siemens 6SL3162-2BM00-0AA0 Rectifier for S120: Compatibility and Replacement Notes

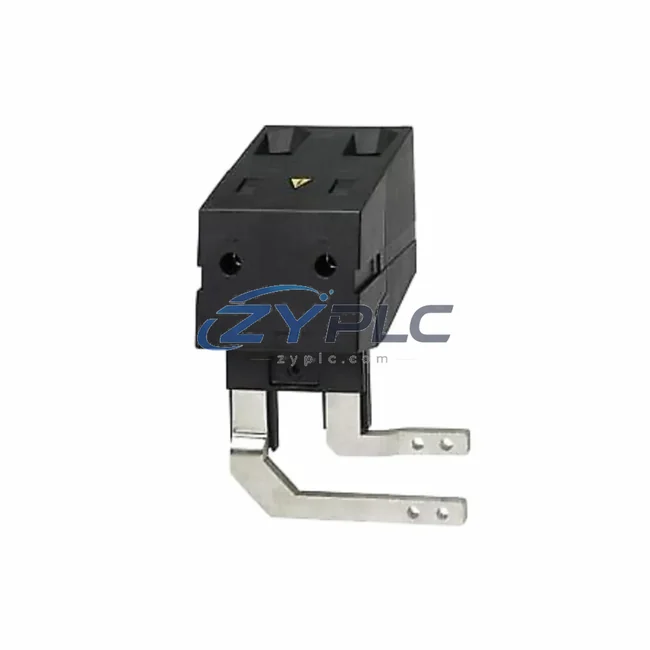

The Siemens 6SL3162-2BM00-0AA0 is a precision-engineered Rectifier Adapter Module designed for seamless integration within the SINAMICS S120 drive system architecture. Rather than functioning as a standalone component, this module occupies a critical position in the layered automation hierarchy — bridging the power supply layer and the drive control layer to ensure stable, conditioned DC bus power delivery across multi-axis configurations. In modern industrial control environments, where system consistency, scalability, and long-term maintainability are paramount, the 6SL3162-2BM00-0AA0 delivers the structural reliability that engineers and system integrators depend on.

Within a complete SINAMICS S120 control architecture, the rectifier adapter module works in close coordination with the Active Line Module (ALM) or Basic Line Module (BLM) on the upstream side, receiving and conditioning AC input power before it is distributed across the shared DC bus to connected Motor Modules. This upstream-downstream relationship is fundamental to system coherence: the 6SL3162-2BM00-0AA0 ensures that power quality, voltage stability, and current capacity are maintained at the levels required by downstream drive axes — whether those axes are controlling servo motors, induction motors, or vector-controlled spindle drives in precision manufacturing environments.

From a system architecture perspective, the 6SL3162-2BM00-0AA0 is typically rack-mounted within a SINAMICS S120 booksize or chassis format cabinet, where it interfaces directly with the Control Unit — such as the CU320-2 DP or CU320-2 PN — via DRIVE-CLiQ communication. This high-speed digital interface enables real-time parameter exchange, fault diagnostics, and firmware synchronization across the entire drive train, reducing commissioning time and simplifying long-term maintenance cycles. The DRIVE-CLiQ topology also supports automatic component recognition, which is particularly valuable in large-scale installations where multiple Motor Modules, Sensor Modules, and Terminal Modules must be identified and configured efficiently.

At the I/O layer, the rectifier adapter module supports integration with digital and analog I/O expansion modules, enabling process feedback signals — such as DC bus voltage monitoring, thermal status, and fault relay outputs — to be routed to the higher-level PLC or DCS. In Siemens TIA Portal environments, the S120 system communicates upstream via PROFIBUS DP or PROFINET IO, allowing the SIMATIC S7-300, S7-400, or S7-1500 series controllers to supervise drive states, issue speed and torque references, and respond to fault conditions in real time. This tight integration between the drive layer and the controller layer is what defines a truly coordinated automation architecture.

For applications requiring high availability, the 6SL3162-2BM00-0AA0 supports redundant power supply configurations when paired with appropriate line-side components. In critical process industries — such as petrochemical refining, power generation, water treatment, and metallurgical processing — unplanned drive downtime carries significant operational and financial consequences. By ensuring that the rectifier adapter module is correctly specified and integrated within a redundant DC bus architecture, system designers can achieve the fault tolerance levels required by IEC 61511 and IEC 62061 functional safety standards.

The module’s mechanical design is optimized for installation within standard SINAMICS S120 cabinet configurations, with DIN rail or panel mounting options and clearly labeled terminal blocks that simplify field wiring. Its compact form factor allows it to be positioned adjacent to the Line Module and Motor Modules within the same control cabinet, minimizing cable runs and reducing electromagnetic interference risks. Proper cable shielding and grounding, in accordance with Siemens EMC installation guidelines, ensures that the module operates reliably even in electrically noisy industrial environments such as steel mills, mining operations, and large-scale packaging lines.

From a lifecycle management perspective, the 6SL3162-2BM00-0AA0 is supported by Siemens’ global spare parts network, ensuring availability for both new installations and retrofit projects. Whether you are upgrading an aging SIMOREG DC Master system to a modern SINAMICS S120 architecture, or expanding an existing multi-axis drive system with additional Motor Modules and Sensor Modules, this rectifier adapter module provides the compatibility and performance consistency that long-term system operators require. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and have undergone functional verification testing prior to dispatch, ensuring that every module arrives ready for immediate integration into your control architecture.

Product Specification Table

System Compatibility Notes

A complete SINAMICS S120 drive system built around the 6SL3162-2BM00-0AA0 Rectifier Adapter Module typically incorporates the following coordinated components across multiple system layers:

At the power supply layer, the Active Line Module (ALM) — such as the 6SL3130-7TE28-4AA3 — provides regenerative, unity power factor AC-to-DC conversion, feeding the shared DC bus that the rectifier adapter module distributes to downstream Motor Modules. Where regeneration is not required, a Basic Line Module (BLM) or Smart Line Module (SLM) may be used instead, depending on the power rating and application requirements.

At the drive control layer, Single Motor Modules (e.g., 6SL3120-1TE23-0AA3) and Double Motor Modules are connected to the DC bus, each controlling an individual motor axis. The DRIVE-CLiQ daisy-chain topology connects these modules back through the rectifier adapter to the Control Unit, enabling centralized parameter management and fault diagnostics via Siemens Starter or TIA Portal Drive software.

At the controller layer, a SIMATIC S7-1500 PLC with PROFINET IO interface communicates with the CU320-2 PN Control Unit, issuing speed setpoints, torque limits, and enable signals while receiving actual value feedback and drive status words. For legacy installations, PROFIBUS DP communication via the CU320-2 DP is equally supported.

At the I/O expansion layer, Terminal Modules such as the TM31 or TM41 provide additional digital and analog I/O channels for process signal integration, enabling the drive system to interface with field sensors, limit switches, and process transmitters without requiring additional PLC I/O cards.

At the HMI layer, a SIMATIC HMI panel — such as the TP700 Comfort or KTP900 Basic — connected via PROFINET provides operators with real-time drive status visualization, fault acknowledgment, and parameter adjustment capabilities, completing the full automation loop from field device to operator interface.

Industrial Application Notes

The 6SL3162-2BM00-0AA0 finds application across a broad range of industrial sectors where multi-axis drive coordination and system architecture integrity are critical operational requirements.

In manufacturing and automotive assembly environments, the module supports coordinated motion control across multiple servo axes — such as robotic welding stations, precision CNC machining centers, and automated assembly lines — where synchronized speed and torque control across all drive axes is essential for product quality and cycle time optimization.

In power generation and utilities, the rectifier adapter module is deployed within variable speed drive systems controlling large pumps, fans, and compressors, where energy efficiency, power factor correction, and harmonic mitigation are key design criteria. The module’s compatibility with Active Line Modules enables regenerative braking energy to be fed back to the supply network, reducing overall energy consumption.

In petrochemical and process industries, the 6SL3162-2BM00-0AA0 supports continuous process control applications where drive availability and fault tolerance are critical. Its integration within a redundant DC bus architecture, combined with PROFIBUS or PROFINET communication to a DCS or safety PLC, ensures that process uptime targets are consistently met.

In water and wastewater treatment facilities, the module controls variable speed pumping systems that must respond dynamically to flow demand signals from SCADA systems, optimizing energy consumption while maintaining precise pressure and flow control across distribution networks.

In mining, metallurgy, and heavy industry, the module’s robust design and compatibility with Siemens’ industrial-grade cabinet systems ensures reliable operation in high-vibration, high-dust, and wide-temperature-range environments, where standard commercial drive components would be unsuitable.

Product Compatibility FAQ

Q1: Is the 6SL3162-2BM00-0AA0 compatible with both PROFIBUS and PROFINET SINAMICS S120 Control Units?
Yes. The 6SL3162-2BM00-0AA0 Rectifier Adapter Module is compatible with both the CU320-2 DP (PROFIBUS) and CU320-2 PN (PROFINET) Control Units within the SINAMICS S120 booksize and chassis system families. The module connects to the Control Unit via DRIVE-CLiQ, which is protocol-agnostic at the module level — the choice of fieldbus protocol (PROFIBUS DP or PROFINET IO) is determined by the Control Unit variant selected for your architecture. Both configurations are fully supported within Siemens TIA Portal and Starter commissioning environments.

Q2: Can this module be integrated into an existing SINAMICS S120 system without replacing the Control Unit or Line Module?
In most cases, yes. The 6SL3162-2BM00-0AA0 is designed as a system-compatible component within the SINAMICS S120 architecture, and its integration typically does not require replacement of the existing Control Unit or Line Module, provided that the existing system firmware is at a compatible version level. It is recommended to verify firmware compatibility using Siemens’ SIZER for Drives engineering tool or TIA Portal Drive software prior to installation. ZYPLC’s technical team can assist with compatibility verification as part of the pre-sales support process, covered under the warranty terms confirmed during quotation terms.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance for this module?
All 6SL3162-2BM00-0AA0 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of dispatch, covering manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during the warranty period. ZYPLC maintains a dedicated inventory of SINAMICS S120 series components to support rapid replacement in the event of a warranty claim or unplanned failure. For long-term maintenance planning, ZYPLC recommends establishing a strategic spare parts inventory that includes the rectifier adapter module alongside compatible Motor Modules, Control Units, and DRIVE-CLiQ cables, ensuring that your system architecture can be restored to full operation within the shortest possible timeframe following any component failure. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for maintenance planning support.
