Siemens 6SL3162-2MA00-0AC0 Power Connector for SINAMICS Systems

Siemens 6SL3162-2MA00-0AC0 Industrial Network Interface for SINAMICS Systems: Powering the Industrial Data Link in Smart Factory Environments

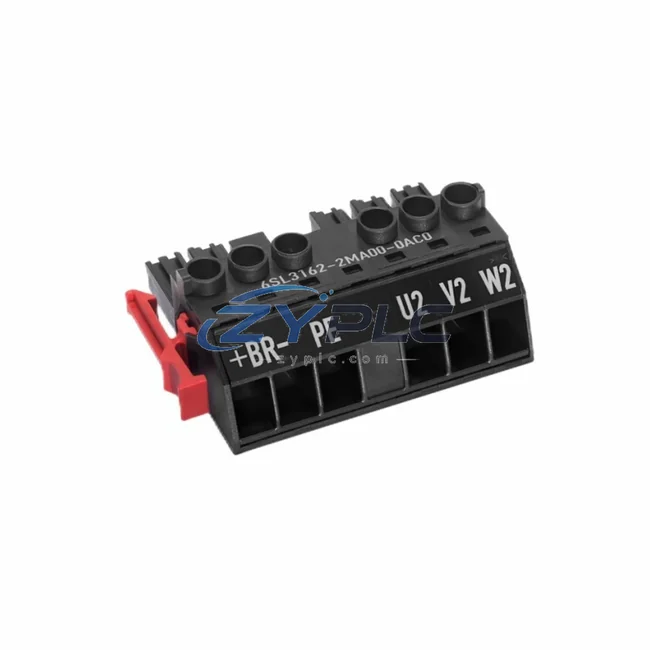

The Siemens 6SL3162-2MA00-0AC0 is a precision-engineered power connector designed for the SINAMICS drive platform — one of Siemens’ most widely deployed variable frequency drive (VFD) families in industrial automation. As modern smart factories demand tighter integration between field devices, control systems, and supervisory networks, the physical power interface layer becomes a critical node in the overall data and energy chain. The 6SL3162-2MA00-0AC0 fulfills this role by providing a reliable, standards-compliant power connection that supports stable drive operation, uninterrupted signal integrity, and seamless integration into multi-axis and multi-drive architectures.

In a typical industrial deployment, the 6SL3162-2MA00-0AC0 connects directly to the SINAMICS S120 or G120 drive module, forming the backbone of the power supply chain from the line module to the motor module. This connection is not merely electrical — it is the foundation upon which real-time torque control, speed regulation, and energy feedback loops are built. When paired with the SINAMICS S120 Control Unit CU320-2 PN, the drive system communicates over PROFINET IO with cycle times as low as 1 ms, enabling deterministic data exchange with the PLC and SCADA layer. The power connector’s mechanical precision ensures that no intermittent contact disrupts this high-frequency communication cycle.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the 6SL3162-2MA00-0AC0 requires viewing it within the full automation data flow of a modern production line. At the field level, sensors and encoders feed real-time position and speed data into the SINAMICS S120 drive via the drive’s onboard encoder interface. The drive processes this data locally and simultaneously transmits torque setpoints, actual speed values, and fault status upstream via PROFINET IO to the SIMATIC S7-1500 PLC. The S7-1500, running on TIA Portal V17 or later, aggregates drive data from multiple axes and forwards consolidated process variables to the SIMATIC HMI TP1500 Comfort Panel for operator visualization.

In parallel, the SIMATIC S7-1500 with CP 1543-1 communication processor pushes production KPIs — including drive energy consumption, cycle counts, and alarm logs — to the plant-level WinCC SCADA server via Industrial Ethernet. This data path allows maintenance engineers to monitor drive health remotely, set threshold-based alarms, and initiate remote parameter changes without interrupting production. The 6SL3162-2MA00-0AC0 power connector, by maintaining a stable and low-resistance power interface, ensures that the drive’s internal diagnostics remain accurate and that no spurious fault signals corrupt the data flowing through this chain.

For multi-drive cabinet installations, the 6SL3162-2MA00-0AC0 is typically used alongside the SINAMICS S120 Line Module 6SL3130 series and Motor Modules 6SL3120 series, forming a booksize drive topology. The SINAMICS CU320-2 DP variant supports PROFIBUS DP communication for legacy PLC environments, while the SINAMICS G120 with PN option board extends PROFINET connectivity to standalone pump and fan applications. In distributed I/O architectures, Siemens ET 200SP remote I/O modules collect field signals and relay them to the S7-1500 over PROFINET, with the drive system operating as a coordinated node in the same network segment.

Edge computing scenarios increasingly place a Siemens SINEMA Remote Connect gateway or a SCALANCE M876 industrial router between the plant network and the cloud analytics platform. Drive data — including the operational status of systems using the 6SL3162-2MA00-0AC0 — is securely tunneled to MindSphere or third-party IIoT platforms for predictive maintenance analysis. This end-to-end connectivity, from the physical power connector to the cloud dashboard, exemplifies the layered architecture of Industry 4.0-ready drive systems.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, drives, and control systems operate in silos, unable to share real-time information across the plant. The SINAMICS platform, anchored by components like the 6SL3162-2MA00-0AC0, directly addresses this problem through its native support for open industrial communication protocols.

In older installations, drives from different vendors often use proprietary communication interfaces, making it impossible to integrate them into a unified SCADA or MES system without costly protocol gateways. By standardizing on PROFINET IO and PROFIBUS DP, the SINAMICS ecosystem allows the 6SL3162-2MA00-0AC0-equipped drive to be discovered, parameterized, and monitored from a single TIA Portal project. This eliminates the need for manual data collection rounds and enables production line transparency — every drive’s speed, torque, energy draw, and fault history is available in real time at the SCADA level.

Remote monitoring is another area where the SINAMICS architecture excels. Using SINEMA Remote Connect or a SCALANCE S615 security module, plant engineers can establish encrypted VPN tunnels to remote drive cabinets, access drive parameters via STARTER or Startdrive, and perform firmware updates without on-site visits. This capability is especially valuable for geographically distributed facilities — food processing plants, water treatment stations, and mining operations — where travel costs and response times are significant operational constraints.

System expansion is simplified by the modular SINAMICS S120 booksize architecture. Adding a new axis requires only a new Motor Module and the corresponding 6SL3162-2MA00-0AC0 power connector, with no changes to the existing cabinet wiring or PLC program structure. The TIA Portal’s automatic device detection via PROFINET LLDP further reduces commissioning time, allowing new drives to be integrated into the production network within minutes.

Industrial Connectivity FAQ

Q1: What communication protocols does the SINAMICS S120 system support when using the 6SL3162-2MA00-0AC0?
The SINAMICS S120 platform natively supports PROFINET IO (with IRT for isochronous real-time applications) and PROFIBUS DP. With optional communication boards, EtherNet/IP and Modbus TCP connectivity is also available, enabling integration into non-Siemens PLC environments. The 6SL3162-2MA00-0AC0 power connector is compatible across all these communication variants as it operates at the power interface layer, independent of the communication option selected.

Q2: How does the 6SL3162-2MA00-0AC0 contribute to network stability in multi-axis drive systems?
A secure and low-resistance power connection is essential for stable drive operation. Loose or degraded power connectors can cause voltage fluctuations that trigger nuisance faults, disrupt the drive’s internal communication bus (DRIVE-CLiQ), and generate erroneous data on the PROFINET network. The 6SL3162-2MA00-0AC0 is engineered to Siemens’ mechanical tolerances, ensuring consistent contact force and minimal contact resistance across the full operating temperature range, which directly supports network stability and data integrity.

Q3: Can the SINAMICS system with this connector be monitored remotely via SCADA or cloud platforms?
Yes. When the SINAMICS S120 is connected to a SIMATIC S7-1500 PLC via PROFINET, all drive parameters and diagnostic data are accessible through WinCC SCADA or WinCC OA. For cloud integration, the SCALANCE M876 router or SINEMA Remote Connect gateway can securely forward drive data to MindSphere or third-party IIoT platforms. Remote parameter changes and firmware updates can also be performed via these secure channels without interrupting production.

Q4: What warranty and testing standards apply to the 6SL3162-2MA00-0AC0?
All 6SL3162-2MA00-0AC0 units supplied by ZYPLC carry a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify connector integrity and dimensional compliance with Siemens specifications. Units are shipped with full export documentation, CE marking compliance records, and traceable batch information to support incoming inspection at the customer’s facility.
