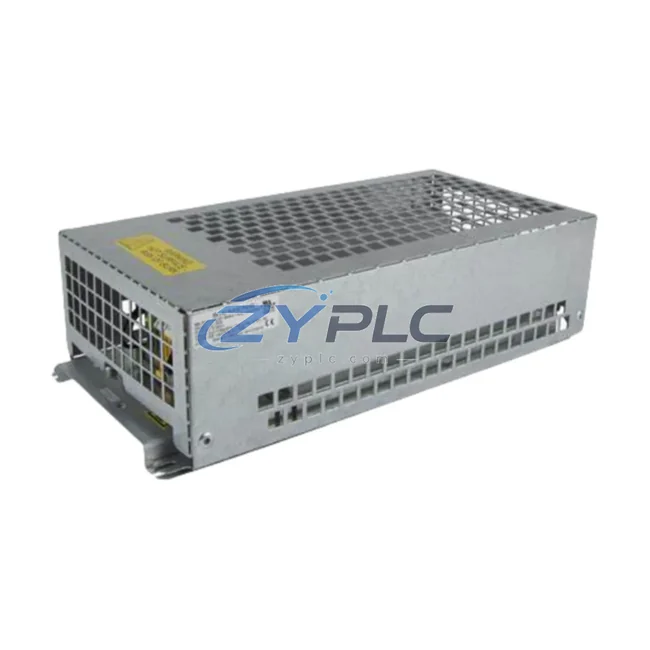

Siemens 6SL3201-0BE21-8AA0 Line Filter for S120

Siemens 6SL3201-0BE21-8AA0 Line Filter for S120: Compatibility and Replacement Notes

The Siemens 6SL3201-0BE21-8AA0 is a dedicated line filter module engineered for seamless integration within the SINAMICS S120 drive system architecture. Rather than functioning as a standalone component, this line filter occupies a critical upstream position in the power layer of a multi-axis servo or vector drive system, ensuring that the entire control architecture — from the incoming supply network through to the servo motor output — operates with the electromagnetic cleanliness and signal integrity required for precision industrial automation. In layered automation environments, where the control layer, I/O layer, network layer, power layer, HMI layer, and actuator layer must all function in coordinated harmony, the 6SL3201-0BE21-8AA0 provides the foundational power quality that makes this coordination possible.

Within a complete SINAMICS S120 system, the 6SL3201-0BE21-8AA0 is installed at the mains input ahead of the Active Line Module (ALM) or Basic Line Module (BLM), suppressing conducted electromagnetic interference (EMI) that would otherwise propagate back into the supply network and disrupt adjacent control equipment. This is particularly significant in architectures where the S120 booksize or chassis format drive shares a common cabinet with SIMATIC S7-300 or S7-1500 PLCs, ET 200SP distributed I/O modules, PROFINET communication infrastructure, and SIMATIC HMI panels. Without adequate line filtering, high-frequency switching transients generated by the drive’s IGBT inverter stages can couple into the 24 VDC control supply, corrupt PROFINET cyclic data frames, and introduce noise into analog input signals on SM 331 or AI 4xU/I 2-wire modules — all of which degrade system reliability and complicate fault diagnosis during commissioning.

The 6SL3201-0BE21-8AA0 is rated for use with SINAMICS S120 booksize power units in the lower power range, providing Class C2 EMC compliance when installed according to Siemens system integration guidelines. Its compact form factor is designed to mount directly within the drive cabinet alongside the S120 Line Module, minimizing cable runs between the filter and the DC link bus. This tight physical integration reduces parasitic inductance in the power path, which in turn improves the dynamic response of the Active Line Module during rapid load changes — a characteristic that is essential in multi-axis coordinated motion applications such as CNC machining centers, packaging lines, and precision winding systems.

Product Specification Table

System Compatibility Notes

The 6SL3201-0BE21-8AA0 achieves its full value when considered as part of a coordinated SINAMICS S120 system architecture rather than as an isolated component. A typical multi-axis S120 booksize system begins with the line filter itself, followed by the SINAMICS S120 Active Line Module (6SL3130 series), which provides regulated DC bus voltage for all connected Motor Modules. The DC bus is then distributed to individual SINAMICS S120 Single Motor Modules (6SL3120 series) or Double Motor Modules (6SL3121 series), each driving a servo axis. The entire drive system is coordinated by a SIMATIC S7-1500T Motion Controller or a SINUMERIK 840D sl CNC controller, which issues torque and speed setpoints via DRIVE-CLiQ — Siemens’ proprietary drive communication protocol that carries encoder feedback, motor identification data, and diagnostic information on a single cable, eliminating the need for separate encoder cables and reducing wiring complexity in the control cabinet.

On the I/O layer, ET 200SP distributed I/O stations connected via PROFINET handle field-level digital and analog signals, while SIMATIC S7-1500 CPU modules execute the process program and coordinate motion sequences. Cabinet power is supplied by SITOP PSU8600 power supply modules, which provide regulated 24 VDC to the control electronics, I/O modules, and HMI panels. The SIMATIC HMI TP1200 Comfort Panel or KTP900 Basic Panel provides the operator interface layer, displaying drive status, alarm histories, and production metrics. Terminal connections between the control cabinet and field devices are managed through SIRIUS 3RT contactor assemblies and PHOENIX CONTACT or Weidmüller terminal blocks, ensuring organized, maintainable wiring that supports rapid fault isolation during maintenance. The 6SL3201-0BE21-8AA0 line filter underpins all of these layers by ensuring that the mains supply entering the cabinet is free of conducted interference that could compromise any of these components.

Industrial Application Notes

In manufacturing and automotive assembly environments, the 6SL3201-0BE21-8AA0 is deployed in multi-axis servo press lines, robotic welding cells, and precision assembly stations where multiple SINAMICS S120 drive axes must operate simultaneously without mutual electromagnetic interference. The line filter ensures that the high switching frequencies of the S120 inverter stages do not propagate into the factory power distribution network, protecting adjacent CNC machines, measurement systems, and quality inspection equipment from conducted EMI.

In power generation and electrical utility applications, the filter supports SINAMICS S120 drives used in turbine governor control, excitation systems, and auxiliary drive applications, where grid power quality is critical and any conducted emissions from the drive system could affect protection relay operation or power quality metering. The Class C2 EMC rating of the 6SL3201-0BE21-8AA0 satisfies the stringent electromagnetic compatibility requirements typical of utility-grade installations.

In petrochemical and process industries, the filter is integrated into pump and compressor drive systems where SINAMICS S120 drives control high-inertia loads in hazardous area adjacent installations. The filter’s ability to suppress mains-borne interference is essential in these environments, where instrumentation and control signals from pressure transmitters, flow meters, and temperature sensors share the same electrical infrastructure as the drive power supply.

In packaging and material handling applications, coordinated multi-axis motion — such as servo-driven film unwinding, cutting, and sealing stations — relies on the electromagnetic cleanliness provided by the 6SL3201-0BE21-8AA0 to maintain PROFINET cycle time consistency and prevent spurious encoder errors that would cause axis synchronization faults and production stoppages.

Product Compatibility FAQ

Q1: Is the 6SL3201-0BE21-8AA0 compatible with both Active Line Modules and Basic Line Modules in the SINAMICS S120 booksize range?
A: The 6SL3201-0BE21-8AA0 is designed for use with SINAMICS S120 booksize Line Modules in the corresponding power range. It is compatible with both Active Line Modules (6SL3130 series) and Basic Line Modules (6SL3132 series) within its rated current specification. For systems using Smart Line Modules (6SL3131 series), Siemens recommends verifying the specific filter assignment using the SINAMICS S120 system manual or the SIZER for Siemens Drives configuration tool to ensure correct EMC class compliance and rated current matching.

Q2: What installation requirements must be met to achieve Class C2 EMC compliance with this line filter in a SINAMICS S120 system?
A: Achieving Class C2 EMC compliance requires that the 6SL3201-0BE21-8AA0 be installed as close as possible to the SINAMICS S120 Line Module, with shielded motor cables connected at both ends and the cable shield bonded to the cabinet PE rail at the cable entry point. The filter’s PE terminal must be connected to the cabinet protective earth with a low-impedance, short connection. Unshielded motor cables, excessive distance between the filter and the Line Module, or inadequate PE bonding will degrade EMC performance. Siemens EMC installation guidelines (available in the SINAMICS S120 Hardware Installation Manual) should be followed in full during system commissioning.

Q3: What does the warranty terms confirmed during quotation cover for the 6SL3201-0BE21-8AA0, and what support is available for system integration?
A: The warranty terms confirmed during quotation covers the 6SL3201-0BE21-8AA0 against manufacturing defects and functional failures under normal operating conditions as specified in the Siemens product datasheet. Each unit supplied is tested and verified prior to shipment. For system integration support — including drive configuration, DRIVE-CLiQ topology planning, PROFINET network design, and cabinet layout guidance — our technical team is available to assist. Contact us at +86 19859288691 or plc.sales@zyplc.com for pre-sales architecture consultation and post-sales commissioning support.
