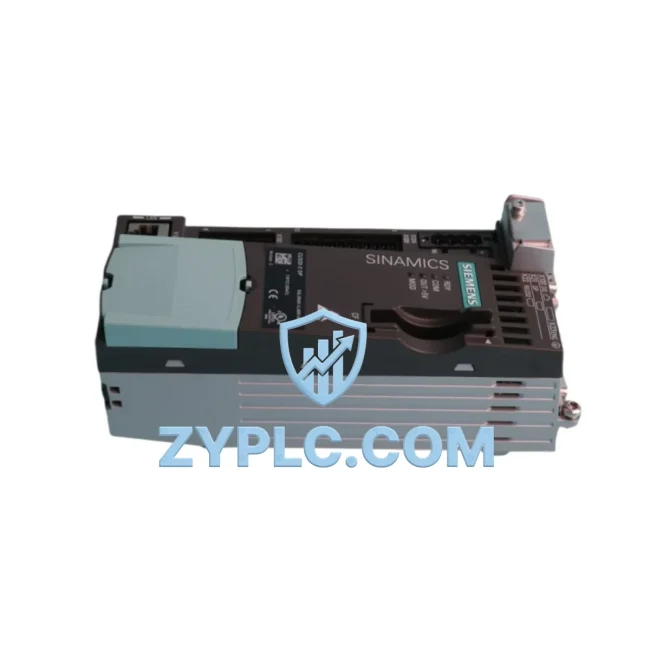

Siemens 6SL3210-5BE31-8CV0 SINAMICS V20 Industrial Network Interface for V20 Systems

Siemens 6SL3210-5BE31-8CV0 SINAMICS V20: Industrial Data Link for Smart Factory Connectivity

The Siemens 6SL3210-5BE31-8CV0 is an 18.5 kW three-phase SINAMICS V20 variable frequency drive engineered for seamless integration into modern industrial communication architectures. As a core node in the industrial data chain, this drive bridges field-level motor control with upper-level automation systems — enabling real-time data exchange between sensors, PLCs, remote I/O modules, HMI panels, SCADA platforms, and edge gateways across the smart factory floor.

In today’s connected manufacturing environment, the ability to transmit drive status, speed references, fault codes, and energy consumption data across a unified network backbone is no longer optional — it is foundational. The 6SL3210-5BE31-8CV0 delivers precisely this capability, supporting USS protocol and Modbus RTU over RS-485 as native communication interfaces, while remaining fully compatible with SINAMICS V20 Smart Access Module (SAM) for wireless commissioning and remote diagnostics via mobile devices or SCADA systems.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 6SL3210-5BE31-8CV0 sits at the intersection of field-level actuation and network-level intelligence. The data flow begins at the sensor layer — where temperature transmitters, pressure transducers, and encoder feedback devices feed real-time process values into the drive’s analog and digital input terminals. The drive processes these signals and executes speed or torque commands issued by an upstream Siemens SIMATIC S7-1200 PLC or S7-1500 controller via USS protocol over RS-485, ensuring deterministic response times critical for closed-loop control applications.

For multi-drive installations, the V20’s RS-485 bus supports daisy-chaining of up to 31 drives on a single network segment, allowing a single SIMATIC S7-300 CPU or ET 200SP remote I/O station to supervise an entire pump station, conveyor line, or HVAC system from one communication master. Drive parameters, running frequency, output current, and fault history are continuously polled and logged by the SCADA layer — typically a Siemens WinCC or WinCC OA supervisory system — providing operators with full production transparency without requiring physical access to the drive cabinet.

When wireless connectivity is required, the SINAMICS V20 Smart Access Module (SAM) — a plug-in accessory for the V20 series — enables Wi-Fi-based commissioning and remote parameter access via the SINAMICS V20 Smart Access app, eliminating the need for a dedicated BOP-2 operator panel during startup. For sites requiring PROFINET integration, the SINAMICS V20 PROFINET module extends the drive’s connectivity to Ethernet-based control networks, enabling direct integration with SIMATIC HMI KTP700 Basic or KTP900 Basic panels running TIA Portal-configured visualization screens.

At the edge layer, data aggregated from multiple 6SL3210-5BE31-8CV0 drives can be forwarded to an industrial edge gateway — such as the Siemens SIMATIC IPC or a third-party OPC UA gateway — for protocol normalization and cloud upload to MES or ERP platforms. This architecture supports predictive maintenance workflows, where drive vibration signatures, thermal trends, and load profiles are analyzed to forecast motor bearing wear or belt tension degradation before unplanned downtime occurs.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation — where drives, PLCs, sensors, and HMI systems speak different communication languages, creating data silos that prevent unified monitoring and control. The Siemens 6SL3210-5BE31-8CV0 directly addresses this challenge through its multi-protocol communication architecture.

Sites running mixed automation environments — where older Siemens MICROMASTER 440 or SINAMICS G120 drives coexist with newer V20 units — can standardize on USS/Modbus RTU as a common protocol layer, allowing a single SCADA system to poll all drive generations without protocol conversion middleware. For greenfield installations, the optional PROFINET expansion module enables the 6SL3210-5BE31-8CV0 to participate in high-speed Ethernet control networks alongside SIMATIC ET 200MP distributed I/O and SIMATIC S7-1500T motion controllers, supporting synchronized multi-axis applications.

Remote monitoring and alarm management are further enhanced through the drive’s built-in fault buffer — storing the last eight fault events with timestamps — which can be read remotely via USS or Modbus commands, enabling maintenance teams to diagnose trip events without dispatching field engineers. For production line transparency, real-time energy consumption data from the 6SL3210-5BE31-8CV0 can be integrated into ISO 50001 energy management dashboards, providing granular visibility into per-motor energy costs across the facility.

System scalability is a key design principle of the SINAMICS V20 platform. As production capacity expands, additional 6SL3210-5BE31-8CV0 units can be added to existing RS-485 networks or PROFINET segments without architectural redesign, supporting incremental automation investment aligned with Industry 4.0 roadmaps. All units supplied by ZYPLC are pre-tested under load conditions prior to shipment, with full parameter backup files available upon request, ensuring rapid commissioning and minimal integration risk.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 6SL3210-5BE31-8CV0 over USS protocol?
USS protocol on the SINAMICS V20 supports cycle times as low as 10 ms per drive at standard baud rates (9600–57600 bps), with typical PLC polling cycles of 20–50 ms for multi-drive networks. For time-critical applications requiring sub-10 ms response, PROFINET IRT (Isochronous Real-Time) via the optional PROFINET module is recommended.

Q2: Is the 6SL3210-5BE31-8CV0 compatible with third-party SCADA and HMI systems?
Yes. The drive’s Modbus RTU interface (RS-485) is compatible with all major SCADA platforms including Wonderware InTouch, Ignition by Inductive Automation, Schneider Electric EcoStruxure, and Rockwell FactoryTalk, as well as third-party HMI panels supporting Modbus RTU master functionality. Standard Modbus register maps are available in the SINAMICS V20 parameter manual.

Q3: How does the drive handle network instability or communication loss?
The 6SL3210-5BE31-8CV0 features configurable communication timeout monitoring (parameter P2040). Upon detection of a communication fault, the drive can be configured to coast to stop, ramp to stop, maintain last setpoint, or trigger a fault relay — ensuring safe machine states are maintained during network interruptions. Fault events are logged in the drive’s internal fault buffer for post-event diagnostics.

Q4: What warranty and pre-shipment testing does ZYPLC provide for this drive?
All Siemens 6SL3210-5BE31-8CV0 units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional power-on testing and communication interface verification prior to shipment. Expedited delivery is available for in-stock units, with full traceability documentation provided upon request.

—
