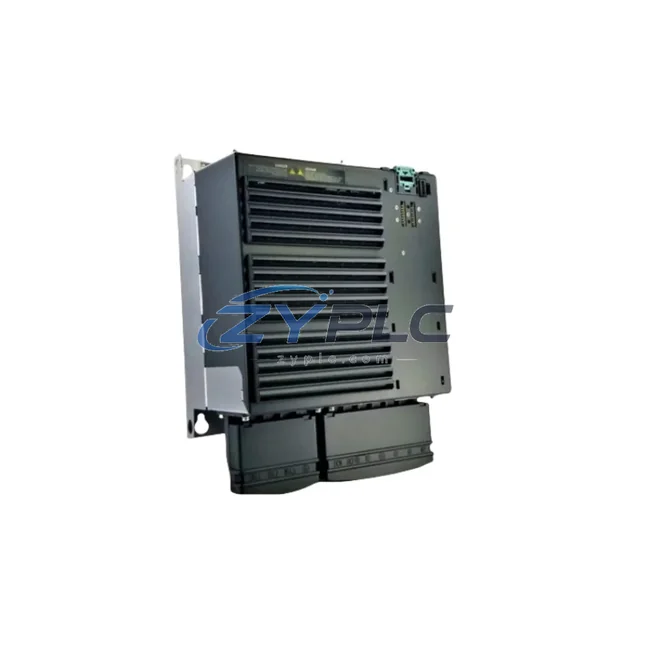

Siemens 6SL3224-0BE33-7AA0 Power Module for S120

Siemens 6SL3224-0BE33-7AA0 Power Module for S120: Compatibility and Replacement Notes

The Siemens 6SL3224-0BE33-7AA0 is a booksize format Power Module within the SINAMICS S120 drive system, engineered to deliver regulated DC bus power to Motor Modules in multi-axis servo and vector control architectures. Rather than functioning as a standalone component, this Power Module occupies a foundational role in the power layer of a distributed or centralized automation system — converting incoming AC supply into a stable DC link that feeds downstream drive axes, enabling synchronized multi-motor operation across manufacturing, process, and energy-intensive industrial environments.

In a fully realized S120 architecture, the 6SL3224-0BE33-7AA0 operates in close coordination with the SINAMICS S120 Control Unit — typically a CU320-2 DP or CU320-2 PN — which governs torque, speed, and position loops across all connected axes via DRIVE-CLiQ communication. The DRIVE-CLiQ topology allows the Control Unit to identify, parameterize, and monitor the Power Module and its associated Motor Modules (such as the 6SL3120-1TE23-0AA3 or 6SL3120-2TE21-8AA3) automatically, reducing commissioning time and eliminating manual encoder configuration errors. This tight integration between the control layer and the power layer is what defines the S120 as a system-compatible platform rather than a collection of discrete components.

At the I/O and signal layer, the 6SL3224-0BE33-7AA0 interfaces with the broader automation architecture through the Control Unit’s digital and analog I/O, which may be extended using SIMATIC ET 200SP or ET 200MP distributed I/O stations connected over PROFINET or PROFIBUS DP. These I/O layers handle process feedback — encoder signals, temperature monitoring, current sensing — and feed real-time data back to the SIMATIC S7-1500 or S7-300 PLC that serves as the supervisory controller. The PLC communicates with the CU320-2 via PROFINET IRT or PROFIBUS, issuing setpoint commands and receiving drive status, fault codes, and diagnostic data in cyclical exchange.

From a power supply perspective, the 6SL3224-0BE33-7AA0 requires a stable three-phase AC input, and its DC bus output is shared across the booksize drive line-up mounted on a common chassis or cabinet backplane. Line-side components — including SINAMICS S120 line filters (e.g., 6SL3000-0BE23-6DA0) and line reactors — are typically installed upstream to suppress harmonic distortion and protect the Power Module from supply-side transients. On the load side, Braking Modules and Braking Resistors may be added to the DC bus to handle regenerative energy during deceleration cycles, particularly in high-inertia applications such as centrifuges, winders, or hoisting equipment.

For human-machine interface integration, the S120 system supports connection to SIMATIC HMI panels — such as the TP700 Comfort or TP1200 Comfort — via the supervisory PLC, enabling operators to monitor drive status, adjust speed references, and acknowledge faults from a centralized visualization layer. In more advanced configurations, the system may incorporate SIMATIC WinCC or TIA Portal-based SCADA visualization, providing plant-wide transparency into drive performance, operating load, and predictive maintenance indicators.

Redundancy and system resilience are addressed at multiple levels. The DRIVE-CLiQ ring topology supported by the CU320-2 allows communication to continue even if a single node fails, maintaining drive operability in critical processes. Cabinet-level redundancy can be achieved by pairing the 6SL3224-0BE33-7AA0 with a second Power Module in a parallel configuration, supported by appropriate line-side switching and control logic. For applications requiring uninterrupted operation — such as continuous casting lines, paper mills, or water treatment pump stations — this redundancy architecture is essential to meeting process availability targets.

Engineering teams working with the 6SL3224-0BE33-7AA0 benefit from its full integration with the TIA Portal engineering environment, where drive parameterization, axis configuration, and safety function assignment can be performed within a unified project framework. The Startdrive add-in for TIA Portal enables online commissioning, trace recording, and fault diagnostics without requiring separate software tools, reducing engineering overhead and accelerating system handover. Terminal Module 31 (TM31) or Terminal Module 41 (TM41) expansion modules can be added to extend analog and digital I/O directly at the drive level, supporting applications where local signal processing is preferred over centralized I/O scanning.

Long-term maintenance of the 6SL3224-0BE33-7AA0 is supported by Siemens’ extensive spare parts ecosystem and ZYPLC’s verified inventory supply chain. Replacement planning is simplified by the module’s standardized booksize form factor, which allows hot-swap replacement without mechanical modification to the cabinet. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, with pre-shipment functional testing and documentation available upon request. This warranty coverage, combined with ZYPLC’s global logistics capability, ensures that engineering teams can maintain system uptime even in geographically distributed plant environments.

Product Specification Table

System Compatibility Notes

The 6SL3224-0BE33-7AA0 achieves its full performance potential when deployed as part of a coordinated S120 drive line-up. A typical multi-axis system built around this Power Module includes the CU320-2 PN Control Unit as the central intelligence layer, managing up to six axes via DRIVE-CLiQ. Connected Single Motor Modules (e.g., 6SL3120-1TE23-0AA3) or Double Motor Modules (e.g., 6SL3120-2TE21-8AA3) draw regulated DC power from the shared bus supplied by the 6SL3224-0BE33-7AA0, enabling tight torque and speed synchronization across axes without inter-axis communication latency.

Upstream of the Power Module, a SINAMICS S120 line reactor (6SL3000-0CE23-6AA0) and line filter (6SL3000-0BE23-6DA0) condition the AC supply, reducing harmonic injection into the plant grid and protecting the Power Module’s rectifier stage. A Braking Module (6SL3100-1AE31-0AA0) connected to the DC bus manages regenerative energy during rapid deceleration, dissipating excess energy through an external braking resistor and preventing DC bus overvoltage trips.

At the signal and I/O layer, Terminal Module TM31 (6SL3055-0AA00-3AA0) units expand the analog and digital I/O available at each drive axis, supporting encoder feedback, temperature sensor inputs, and relay outputs for safety interlocks. The supervisory SIMATIC S7-1500 PLC communicates with the CU320-2 over PROFINET IRT, issuing speed and torque setpoints in real time while receiving drive diagnostics and fault status for integration into the plant SCADA layer. SIMATIC HMI TP1200 Comfort panels provide operator-level visualization and parameter adjustment at the machine level, completing the human-machine interface layer of the architecture.

Industrial Application Notes

The 6SL3224-0BE33-7AA0 is deployed across a wide range of industrial sectors where multi-axis coordinated motion and reliable DC bus power are critical to process integrity.

In automotive and general manufacturing, this Power Module supports servo press lines, robotic welding cells, and conveyor synchronization systems where multiple axes must maintain precise positional relationships. The shared DC bus architecture reduces cabinet footprint and simplifies maintenance planning compared to individual drive installations.

In power generation and utilities, the S120 system with the 6SL3224-0BE33-7AA0 is applied to turbine auxiliary drives, cooling tower fan control, and pump station automation, where variable speed operation reduces operating load and extends mechanical service life. The PROFINET connectivity enables integration with substation automation systems and maintenance planning platforms.

In petrochemical and process industries, the module supports compressor drives, extruder lines, and agitator systems operating in continuous process environments. The robust DC bus design and IP20 cabinet installation ensure reliable operation in ambient conditions with controlled temperature and humidity, while the warranty terms confirmed during quotation provides procurement teams with the assurance needed for long-term maintenance planning.

In mining and metallurgy, the 6SL3224-0BE33-7AA0 is integrated into conveyor drive systems, hoist controls, and rolling mill auxiliary drives, where high dynamic response and fault-tolerant operation are essential. The DRIVE-CLiQ diagnostic capability allows maintenance teams to identify incipient faults before they result in unplanned downtime, supporting predictive maintenance strategies aligned with modern asset management frameworks.

Product Compatibility FAQ

Q1: Is the 6SL3224-0BE33-7AA0 compatible with both CU320-2 DP and CU320-2 PN Control Units, and does the choice of Control Unit affect DC bus performance?
A: Yes, the 6SL3224-0BE33-7AA0 is fully compatible with both the CU320-2 DP (PROFIBUS) and CU320-2 PN (PROFINET) Control Units. The Control Unit connects to the Power Module via DRIVE-CLiQ, which is independent of the fieldbus protocol used for PLC communication. DC bus performance — voltage regulation, current capacity, and fault response — is identical regardless of which Control Unit variant is selected. The choice between DP and PN should be driven by the plant fieldbus infrastructure and PLC communication requirements rather than drive performance considerations.

Q2: How many Motor Modules can be connected to the DC bus supplied by the 6SL3224-0BE33-7AA0, and what determines the system’s axis count limit?
A: The number of Motor Modules that can share the DC bus supplied by the 6SL3224-0BE33-7AA0 is determined by the total continuous and peak current demand of all connected axes relative to the Power Module’s rated output current of 37 A. The CU320-2 Control Unit supports up to six drive objects (axes) in a standard configuration, which sets the practical upper limit for axis count in a single S120 drive line-up. For systems requiring more axes, additional Power Modules and Control Units can be networked together under a single supervisory PLC, with inter-drive coordination managed at the PLC level via PROFINET or PROFIBUS.

Q3: What does the warranty terms confirmed during quotation from ZYPLC cover for the 6SL3224-0BE33-7AA0, and what support is available during the warranty period?
A: The warranty terms confirmed during quotation provided by ZYPLC covers functional defects identified during normal operation under the specified electrical and environmental conditions. All units undergo pre-shipment functional testing to verify DC bus output, DRIVE-CLiQ communication integrity, and protection circuit operation before dispatch. During the warranty period, ZYPLC provides technical support for installation and commissioning queries, replacement unit coordination in the event of a confirmed defect, and documentation support including test reports and product certificates. For time-critical applications, expedited replacement logistics can be arranged to minimize system downtime. Contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com for warranty registration and support inquiries.
