Siemens 6SL3243-0BB30-1FA0 Control Unit for SINAMICS S120

Siemens 6SL3243-0BB30-1FA0: Industrial Data Link for SINAMICS S120 Smart Factory Networks

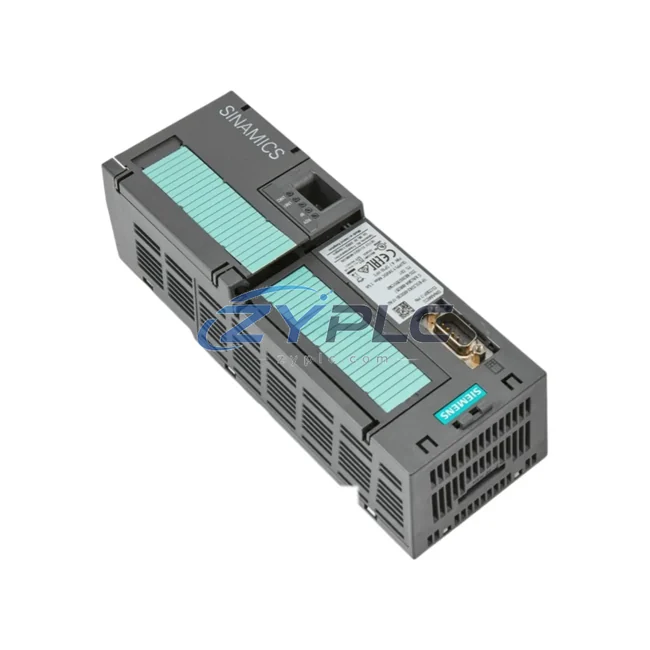

The Siemens 6SL3243-0BB30-1FA0 is the CU320-2 PN Control Unit for the SINAMICS S120 drive system, engineered to serve as the central intelligence node in industrial network architectures. With native PROFINET IO integration, this control unit bridges the gap between field-level drive hardware and upper-level automation systems — enabling seamless, real-time data exchange across the entire production chain. Whether deployed in high-speed packaging lines, precision CNC machining centers, or multi-axis material handling systems, the 6SL3243-0BB30-1FA0 delivers the communication backbone that modern smart factories demand.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory, the 6SL3243-0BB30-1FA0 sits at the heart of the drive communication layer. Signal acquisition begins at the sensor and actuator level — encoders, proximity switches, and torque sensors feed real-time process values into the SINAMICS S120 drive stack via DRIVE-CLiQ, Siemens’ proprietary high-speed drive bus. The CU320-2 PN then aggregates these signals and transmits structured drive data upstream over PROFINET IO to a SIMATIC S7-1500 PLC or S7-300 controller running in the TIA Portal environment.

Within the same network segment, the 6SL3243-0BB30-1FA0 communicates in real time with SINAMICS S120 Power Modules such as the 6SL3120-1TE21-0AA3 Single Motor Module and the 6SL3130-6AE21-0AB1 Smart Line Module, coordinating torque, speed, and position setpoints across multiple drive axes simultaneously. This multi-axis synchronization is critical in applications such as servo-driven gantry systems, winding machines, and high-throughput assembly lines where microsecond-level timing is non-negotiable.

At the HMI layer, operators interact with drive status, fault codes, and production KPIs through a SIMATIC HMI TP1200 Comfort Panel or KTP700 Basic Panel connected via PROFINET. The CU320-2 PN exposes standardized PROFIdrive parameter blocks, allowing HMI screens to display live speed feedback, current draw, and thermal status without additional protocol conversion hardware. For plants running WinCC SCADA or WinCC OA, the 6SL3243-0BB30-1FA0 integrates directly into the supervisory layer, enabling trend logging, alarm management, and remote parameter adjustment from the control room.

In distributed architectures, the control unit works alongside ET 200SP remote I/O stations and SCALANCE X208 industrial Ethernet switches to extend the PROFINET network across large plant floors without signal degradation. Edge computing nodes — such as the SIMATIC IPC427E industrial PC — can subscribe to drive data streams published by the CU320-2 PN, enabling local analytics, predictive maintenance algorithms, and OPC UA data forwarding to MES or cloud platforms. This edge-to-cloud data path is increasingly central to Industry 4.0 deployments where production transparency and maintenance planning are primary objectives.

For variable-speed pump and fan applications, the 6SL3243-0BB30-1FA0 pairs naturally with SINAMICS S120 Booksize Chassis power units and SINAMICS G120 drives sharing the same PROFINET backbone, allowing unified drive management from a single TIA Portal project. The STARTER commissioning tool and SINAMICS Startdrive add-in further simplify network configuration, parameter backup, and firmware updates across all connected drive nodes.

Solving Data Isolation in Industrial Sites

Legacy industrial sites frequently suffer from protocol fragmentation — drives speaking proprietary serial protocols, PLCs locked into vendor-specific fieldbus standards, and SCADA systems unable to access real-time drive data without costly middleware. The Siemens 6SL3243-0BB30-1FA0 directly addresses these integration challenges by standardizing drive communication on PROFINET IO, the most widely adopted industrial Ethernet protocol in European and Asian manufacturing environments.

Data silos between the drive layer and the control layer are eliminated through the CU320-2 PN’s native PROFIdrive profile support, which exposes standardized control words, status words, and process data objects that any PROFINET-capable PLC or SCADA gateway can consume without custom mapping. Plants migrating from PROFIBUS DP to PROFINET can leverage the 6SL3243-0BB30-1FA0 as a migration anchor point, retaining existing S120 power hardware while upgrading the communication layer to 100 Mbit/s Ethernet speeds.

Remote monitoring and diagnostics are transformed by the control unit’s integrated web server and PROFINET diagnostic capabilities. Maintenance engineers can access drive fault histories, parameter logs, and network topology maps from any browser on the plant intranet — eliminating the need for on-site visits to diagnose common drive faults. For multi-site operations, SINEMA Remote Connect or SCALANCE M876 industrial routers can tunnel PROFINET diagnostic traffic securely over WAN connections, enabling centralized remote support from a single engineering workstation.

Production line transparency is further enhanced through the CU320-2 PN’s support for SINAMICS Integrated Safety (SIL 2 / PLe), which allows safety-relevant drive states — such as Safe Torque Off (STO) and Safe Stop 1 (SS1) — to be monitored and logged within the SCADA system alongside standard process data. This unified safety and process data view is essential for compliance with IEC 62061 and ISO 13849 in automated production environments. System expansion is straightforward: additional SINAMICS S120 drive axes can be added to the PROFINET network and commissioned within the existing TIA Portal project without hardware changes to the CU320-2 PN itself.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 6SL3243-0BB30-1FA0 over PROFINET IRT?
The CU320-2 PN supports PROFINET IRT (Isochronous Real-Time) with cycle times as low as 250 µs, making it suitable for high-performance motion control applications where deterministic communication is critical. Standard RT mode supports cycle times from 1 ms, sufficient for most process automation and conveyor applications.

Q2: Is the 6SL3243-0BB30-1FA0 compatible with third-party PROFINET controllers and SCADA systems?
Yes. The CU320-2 PN is certified to the PROFINET IO standard and implements the PROFIdrive profile, ensuring interoperability with any PROFINET-compliant controller — including non-Siemens PLCs and SCADA gateways. GSDML device description files are available for integration into third-party engineering tools.

Q3: How does ZYPLC verify the 6SL3243-0BB30-1FA0 before shipment?
Every unit undergoes functional testing prior to dispatch, including PROFINET communication verification, DRIVE-CLiQ interface check, and firmware version confirmation. Each unit ships with a warranty terms confirmed during quotation covering manufacturing defects and communication failures. Detailed test reports are available upon request for critical infrastructure projects.

Q4: Can the 6SL3243-0BB30-1FA0 be expanded to support additional drive axes without replacing the control unit?
Yes. The CU320-2 PN supports up to 6 servo axes or up to 12 vector axes within a single SINAMICS S120 drive group, expandable via DRIVE-CLiQ topology. Additional Motor Modules and Power Modules can be added to the drive line-up and commissioned within the existing TIA Portal project, providing a scalable path for production line expansion without control unit replacement.
