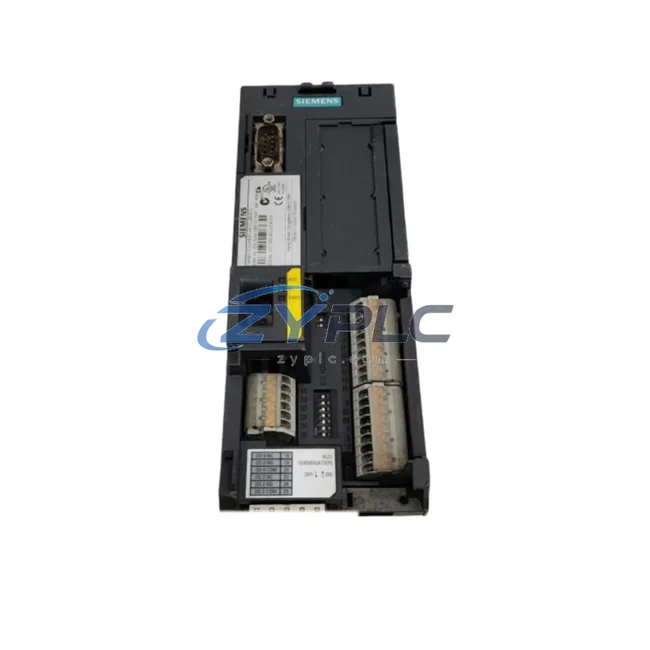

The Siemens 6SL3244-0BB12-1BA1 CU240E-2 is a high-performance control unit engineered for seamless integration within the SINAMICS G120 modular drive platform. Rather than functioning as a standalone component, this control unit serves as the intelligence layer of a complete drive architecture — coordinating signal flow between the power module, I/O subsystems, fieldbus network, safety functions, and higher-level automation controllers. In modern industrial automation, the reliability of a drive system depends not only on the quality of individual components but on the coherence of the entire control architecture. The 6SL3244-0BB12-1BA1 CU240E-2 is designed precisely for this role: to act as the central processing and communication hub that binds the SINAMICS G120 system together across all operational layers.

Within a layered automation hierarchy, this control unit occupies the drive control layer — positioned between the PLC or DCS at the supervisory level and the power electronics at the execution level. It receives setpoint commands from controllers such as the Siemens SIMATIC S7-1500 or S7-300 series via PROFIBUS DP or PROFINET IO, processes speed, torque, and position references in real time, and delivers precise PWM signals to the associated PM240 or PM250 power module. This tight integration between the control layer and the power layer ensures deterministic response times, smooth motor acceleration profiles, and stable closed-loop regulation across varying load conditions.

At the I/O layer, the CU240E-2 provides multiple digital inputs and outputs, as well as analog input channels, enabling direct connection to field sensors, limit switches, pressure transmitters, and actuator feedback signals. These I/O resources allow the control unit to participate actively in process interlocking, fault detection, and status reporting without requiring additional I/O expansion modules in straightforward applications. For more complex installations, the CU240E-2 integrates naturally with SIMATIC ET 200SP distributed I/O stations or SINAMICS S120 booksize I/O extension modules, extending the reach of the control architecture into remote field panels and junction boxes.

Communication stability is a cornerstone of the CU240E-2’s architecture. The unit supports PROFIBUS DP at up to 12 Mbit/s and, depending on variant configuration, PROFINET IO with real-time (RT) and isochronous real-time (IRT) capability. This dual-protocol flexibility allows the 6SL3244-0BB12-1BA1 to be deployed in both legacy PROFIBUS-based plant networks and modern Ethernet-based automation backbones without requiring hardware changes. In multi-drive installations, multiple CU240E-2 units can be addressed individually on the same fieldbus segment, enabling centralized parameter management and synchronized drive coordination from a single SIMATIC S7 controller or SCADA system.

Redundancy and system resilience are addressed through the CU240E-2’s integrated safety functions, which comply with SIL 2 / PLd requirements. Safe Torque Off (STO) and Safe Stop 1 (SS1) can be activated via dedicated safety digital inputs or through PROFIsafe over PROFINET, eliminating the need for external safety relays in many applications. This integrated safety architecture reduces panel wiring complexity, shortens commissioning time, and improves overall system reliability — particularly in applications where emergency stop response time is critical, such as conveyor systems, hoisting equipment, and packaging lines.

From a power layer perspective, the CU240E-2 is designed to pair with the full range of SINAMICS G120 power modules, including the PM240-2, PM250, and PM260 variants. The modular separation between the control unit and power module allows engineers to replace or upgrade either component independently, reducing maintenance downtime and spare parts inventory requirements. In cabinet-based installations, the CU240E-2 mounts directly onto the power module via a standardized interface, with no additional cabling required between the two units. This plug-and-play architecture accelerates panel assembly and simplifies field replacement procedures.

For human-machine interface integration, the CU240E-2 supports connection to the Siemens BOP-2 Basic Operator Panel or the IOP-2 Intelligent Operator Panel, providing local parameter access, fault diagnostics, and drive commissioning without a laptop or engineering workstation. In networked installations, the STARTER commissioning tool or TIA Portal Drive Control Chart (DCC) environment provides full parameter access, drive optimization, and trace functionality over the fieldbus connection. This dual-mode access — local panel and remote engineering tool — ensures that maintenance engineers can diagnose and resolve drive faults efficiently, whether on the factory floor or from a remote engineering station.

Long-term maintainability is a key design principle of the SINAMICS G120 platform. The 6SL3244-0BB12-1BA1 CU240E-2 stores all drive parameters internally on a memory card slot, allowing rapid parameter transfer to a replacement unit without re-commissioning from scratch. This feature is particularly valuable in multi-drive installations where dozens of identical drives must be maintained to the same parameter set. Combined with Siemens’ global spare parts availability and the warranty terms confirmed during quotation provided with every unit supplied through ZYPLC, this control unit represents a low-risk, high-reliability choice for long-term automation infrastructure.

Product Specification Table

System Compatibility Notes

The 6SL3244-0BB12-1BA1 CU240E-2 achieves its full potential when deployed as part of a coordinated SINAMICS G120 drive system. In a typical multi-axis conveyor or pump station installation, the CU240E-2 pairs with the PM240-2 power module to form a complete drive unit, with the power module handling rectification, DC bus management, and inverter output while the control unit manages all closed-loop regulation and communication tasks. Where regenerative braking energy recovery is required — such as in crane or hoist applications — the PM250 power module can be substituted without changing the CU240E-2, demonstrating the platform’s modular flexibility.

At the supervisory control layer, the CU240E-2 communicates with Siemens SIMATIC S7-1500 PLCs or S7-300 controllers via PROFIBUS DP, receiving speed setpoints, direction commands, and enable signals in real time. In installations where the control cabinet also houses SIMATIC ET 200SP distributed I/O modules, the CU240E-2 shares the same PROFIBUS segment, simplifying network topology and reducing gateway hardware. For installations requiring a local operator interface, the Siemens IOP-2 Intelligent Operator Panel connects directly to the CU240E-2’s operator panel interface, providing parameter access and fault reset capability without network connectivity.

In multi-drive cabinets, the CU240E-2 operates alongside SINAMICS G120C compact drives for smaller motor loads, with both drive types addressable from the same S7 controller. Terminal modules such as the Siemens SINAMICS G120 BT terminal block adapter simplify field wiring connections to the CU240E-2’s I/O terminals, reducing installation errors and improving cable management in high-density drive panels. Where the application demands higher power or multi-axis coordinated motion, the CU240E-2-based G120 system can be integrated into the same control architecture as SINAMICS S120 booksize drive systems, with both platforms sharing PROFIBUS or PROFINET network segments under unified S7 supervision.

Industrial Application Notes

The Siemens 6SL3244-0BB12-1BA1 CU240E-2 is deployed across a wide range of industrial sectors where reliable, scalable drive control is essential. In manufacturing and assembly lines, the CU240E-2 controls conveyor belt drives, rotary indexing tables, and material handling systems, providing precise speed regulation and smooth acceleration profiles that protect both product quality and mechanical components. In water and wastewater treatment plants, the unit manages pump and blower drives in variable-speed applications, delivering significant operational stability through optimized motor loading and eliminating the mechanical stress associated with direct-on-line starting.

In the power generation and utilities sector, the CU240E-2 is used in cooling water pump drives, fan control systems, and auxiliary motor applications within power station balance-of-plant systems. Its integrated STO safety function meets the safety integrity requirements of these environments without additional external safety hardware. In petrochemical and oil & gas facilities, the drive’s robust operating temperature range and IP20 cabinet-rated construction make it suitable for installation in climate-controlled motor control centers (MCCs) serving compressor drives, agitator motors, and process pump applications.

In mining and minerals processing, the CU240E-2 controls crusher feed conveyors, screen drives, and slurry pump motors, where the ability to handle high inertia loads and frequent start-stop cycles is critical. The unit’s vector control mode provides high starting torque without encoder feedback, simplifying installation in remote or harsh environments. In packaging and food processing lines, the CU240E-2’s precise speed control and rapid response to setpoint changes ensure consistent product throughput and synchronization between upstream and downstream process stages.

Product Compatibility FAQ

Q1: Is the 6SL3244-0BB12-1BA1 CU240E-2 compatible with all SINAMICS G120 power modules?
The CU240E-2 is designed for use with the SINAMICS G120 power module family, including PM240-2, PM250, and PM260 variants. Compatibility depends on the power module frame size and firmware version. It is recommended to verify the compatibility matrix in the SINAMICS G120 system manual (Siemens document A5E02999804) before combining specific CU and PM variants. ZYPLC’s technical team can assist with compatibility verification prior to order placement.

Q2: Can the CU240E-2 be replaced in the field without full recommissioning?
Yes. The CU240E-2 supports parameter backup and restore via its internal memory card slot. When a replacement unit is installed, the parameter set from the original unit can be transferred to the new CU240E-2 using the memory card, restoring all drive settings without requiring a full recommissioning procedure. This significantly reduces unplanned downtime in production environments. The warranty terms confirmed during quotation provided by ZYPLC covers the replacement unit from the date of supply.

Q3: What fieldbus infrastructure is required to integrate the CU240E-2 into an existing PROFIBUS network?
The CU240E-2 includes a native PROFIBUS DP interface and requires only a standard PROFIBUS cable connection to the existing network segment. No additional communication modules or gateways are needed for PROFIBUS integration. The drive’s GSD file must be imported into the PLC engineering tool (STEP 7 or TIA Portal) to configure the drive’s process data interface. For PROFINET integration, a CU240E-2 PN variant should be selected instead. ZYPLC supports RFQ sourcing for both PROFIBUS and PROFINET variants to support rapid project delivery.
