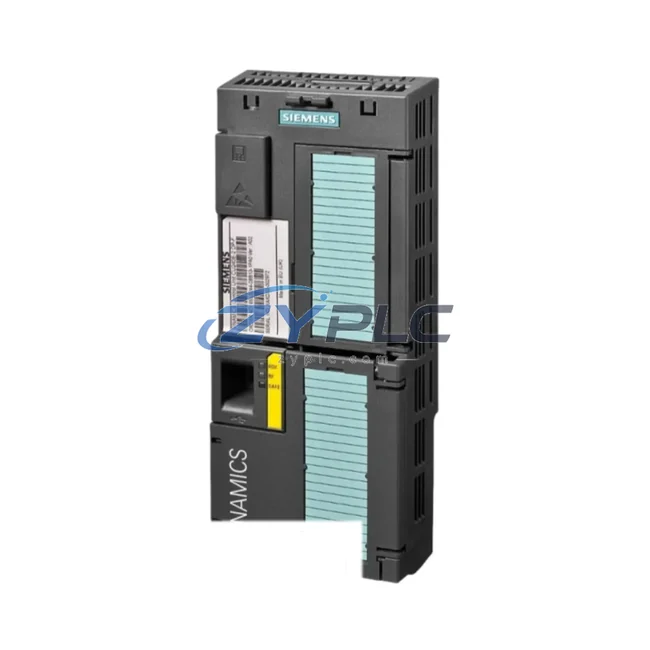

Siemens 6SL3244-0BB13-1PA1 VFD Power Module for SINAMICS G120 Systems

Siemens 6SL3244-0BB13-1PA1: Industrial Data Link for SINAMICS G120 Smart Factory Networks

The Siemens 6SL3244-0BB13-1PA1 is a PROFINET-enabled PM240-2 Power Module within the SINAMICS G120 drive platform, engineered to serve as a high-performance industrial network interface between field-level devices and upper-level control systems. In modern smart factory environments, where data continuity from sensor to SCADA is non-negotiable, this module delivers the protocol intelligence, communication stability, and real-time transmission capability that industrial automation demands. Whether deployed in discrete manufacturing, process control, or material handling, the 6SL3244-0BB13-1PA1 anchors the drive layer of your industrial data architecture with precision and reliability.

At its core, this power module integrates seamlessly with the SINAMICS G120 Control Unit CU240E-2 PN, enabling PROFINET IO communication that bridges the gap between variable frequency drive operations and PLC-level supervisory control. The module supports cyclic and acyclic data exchange, allowing real-time motor status, speed feedback, fault diagnostics, and energy consumption data to flow continuously up the network stack — from the drive cabinet to the SIMATIC S7-1500 PLC or S7-1200 controller, and onward to WinCC SCADA or third-party HMI platforms.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully connected smart factory, the 6SL3244-0BB13-1PA1 operates at the intersection of power conversion and industrial communication. The data flow begins at the field level: sensors and encoders feed real-time process values — speed, torque, temperature, and load — into the drive’s internal logic. The SINAMICS G120 CU240E-2 PN control unit processes these signals and transmits structured PROFINET IO data frames upstream through the plant network.

These frames travel through SCALANCE X208 industrial Ethernet switches, which maintain deterministic network timing and segment traffic across production zones. The data arrives at the SIMATIC S7-1500 CPU 1515-2 PN, where the PLC executes closed-loop control logic, adjusts drive setpoints, and triggers interlocks based on live process feedback. Simultaneously, the SIMATIC ET 200SP remote I/O modules distributed across the production line relay digital and analog signals — valve positions, proximity sensor states, pressure readings — back through the same PROFINET backbone.

Operator visibility is maintained through SIMATIC HMI TP1200 Comfort panels, which display real-time drive status, alarm histories, and energy dashboards. At the supervisory level, WinCC V7 SCADA aggregates data from multiple drive nodes, enabling plant-wide trend analysis, production reporting, and remote fault acknowledgment. For facilities integrating edge computing, the SIMATIC IPC427E industrial PC or a compatible edge gateway can pre-process drive telemetry before forwarding it to MES or cloud analytics platforms.

The 6SL3244-0BB13-1PA1 also supports integration with SINAMICS G120 Smart Line Modules (SLM) for energy recovery in regenerative braking applications, and pairs with SINAMICS G120 Braking Modules for dynamic stopping in high-inertia loads. This complete drive ecosystem — from power module to network gateway to SCADA — ensures that every data point generated at the motor shaft is captured, transmitted, and acted upon without latency or data loss.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, drives, and controllers operate in communication silos, preventing plant managers from achieving true production transparency. The Siemens 6SL3244-0BB13-1PA1 directly addresses this challenge through its native PROFINET IO implementation, which eliminates the need for external protocol converters or gateway hardware between the drive layer and the PLC network.

In legacy installations where older drives communicate via analog signals or proprietary fieldbus protocols such as PROFIBUS DP, upgrading to the SINAMICS G120 platform with the 6SL3244-0BB13-1PA1 enables a seamless migration to Ethernet-based communication. This transition consolidates multiple protocol domains into a single PROFINET backbone, reducing wiring complexity, minimizing network latency, and enabling unified diagnostics across all connected nodes.

Remote monitoring becomes straightforward: maintenance engineers can access drive fault logs, runtime statistics, and parameter sets from any networked workstation running SIMATIC STEP 7 / TIA Portal, without requiring physical access to the drive cabinet. Alarm events are propagated in real time to SCADA and HMI systems, enabling rapid fault response and reducing unplanned downtime. For multi-line or multi-site operations, the PROFINET architecture supports scalable network expansion — additional drives, remote I/O stations, and communication modules can be added to the network without architectural redesign, protecting your automation investment as production capacity grows.

Production line transparency is further enhanced through PROFIdrive profile compliance, which standardizes drive parameter access and status reporting across all SINAMICS G120 nodes. This uniformity simplifies commissioning, reduces engineering time, and ensures consistent data quality across the entire drive fleet — a critical requirement for MES integration and OEE (Overall Equipment Effectiveness) reporting in Industry 4.0 environments.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 6SL3244-0BB13-1PA1 over PROFINET?
The SINAMICS G120 with PROFINET IO supports RT (Real-Time) communication with cycle times as low as 1 ms, and IRT (Isochronous Real-Time) for motion-critical applications requiring deterministic synchronization. Actual latency depends on network topology, switch configuration, and PLC scan cycle settings.

Q2: Is the 6SL3244-0BB13-1PA1 compatible with third-party PLC and SCADA systems?
Yes. The module communicates via standard PROFINET IO protocol, which is supported by a wide range of PLC platforms and SCADA systems beyond the Siemens ecosystem. A GSDML device description file is available for integration with non-Siemens controllers. Compatibility testing is recommended prior to deployment in mixed-vendor environments.

Q3: Can the network be expanded after initial installation without replacing the 6SL3244-0BB13-1PA1?
Yes. The PROFINET architecture is inherently scalable. Additional SINAMICS G120 drives, SIMATIC ET 200SP I/O modules, and other PROFINET devices can be added to the network segment without modifying the existing drive configuration, provided the PLC’s PROFINET controller capacity and network bandwidth are not exceeded.

Q4: What does the warranty terms confirmed during quotation cover, and is pre-shipment testing performed?
Every 6SL3244-0BB13-1PA1 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Each unit undergoes pre-shipment functional verification to confirm communication interface integrity and power stage operation before dispatch. Units are shipped via DHL or FedEx with full export documentation and traceability.
