Siemens 6SL3255-0AA00-2CA0 PC Connection Kit for SINAMICS Systems

Siemens 6SL3255-0AA00-2CA0 Industrial Network Interface for SINAMICS Systems: Bridging the Industrial Data Link

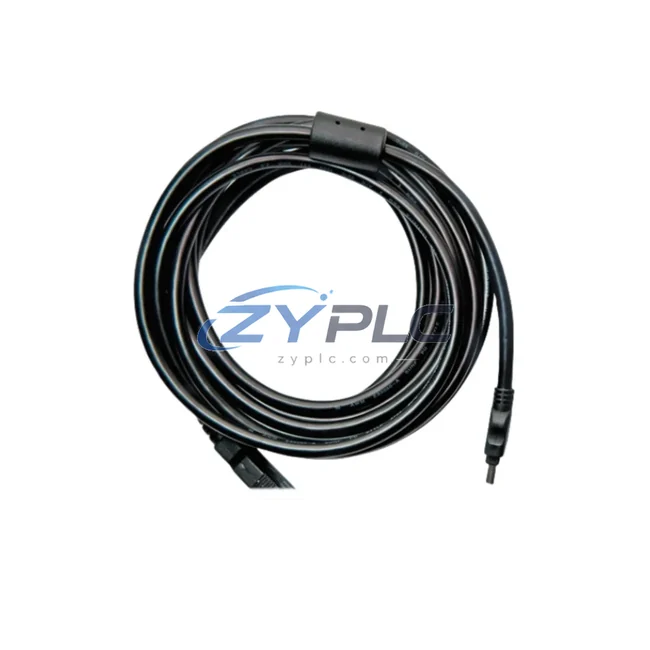

The Siemens 6SL3255-0AA00-2CA0 is a USB PC Connection Kit engineered specifically for SINAMICS drive systems, serving as a critical industrial network interface that enables seamless communication between engineering workstations and variable frequency drives on the factory floor. In modern smart manufacturing environments, the ability to establish a reliable, low-latency data link between a PC-based engineering tool and a drive controller is not merely a convenience — it is a foundational requirement for commissioning, diagnostics, parameter management, and real-time performance monitoring. The 6SL3255-0AA00-2CA0 fulfills this role with precision, delivering a stable USB-to-drive communication channel that integrates directly into the SINAMICS ecosystem and the broader Siemens TIA (Totally Integrated Automation) architecture.

Designed for use with SINAMICS G120, G120C, G120D, S120, and S150 drive families, this PC Connection Kit provides engineers and automation technicians with direct access to drive parameters, fault logs, trace data, and commissioning wizards through STARTER or TIA Portal software. Whether you are configuring a new installation, performing predictive maintenance, or troubleshooting a production fault, the 6SL3255-0AA00-2CA0 ensures that your engineering PC is always connected to the intelligence embedded within the drive. Every unit shipped by ZYPLC undergoes pre-shipment functional testing and is backed by a warranty terms confirmed during quotation, ensuring operational confidence from day one.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory, the 6SL3255-0AA00-2CA0 occupies a pivotal position in the data flow chain that connects field-level devices to supervisory control systems. The journey of industrial data begins at the sensor layer — where devices such as Siemens SIRIUS 3RN2 thermistor motor protection relays and Siemens ET 200SP remote I/O modules collect temperature, current, and process signals from motors and actuators. These signals are transmitted upward through the control layer, where a Siemens S7-1500 PLC or S7-1200 PLC processes the data and issues speed and torque commands to SINAMICS G120 or S120 drives via PROFIBUS DP or PROFINET IO.

The 6SL3255-0AA00-2CA0 enters this architecture at the engineering and commissioning layer. When a technician connects the kit between a laptop running TIA Portal V17 or STARTER V5.4 and a SINAMICS G120C drive, the USB link instantly opens a bidirectional communication channel. Drive parameters — including ramp-up times, current limits, PID setpoints, and motor identification data — can be read, modified, and written back to the drive’s non-volatile memory. Fault codes and warning histories stored in the drive’s diagnostic buffer are extracted and analyzed, enabling root-cause identification without interrupting production.

Further up the data chain, a Siemens SCALANCE X208 industrial Ethernet switch aggregates PROFINET traffic from multiple drives and remote I/O stations, forwarding real-time process data to a WinCC SCADA server or a SIMATIC HMI TP1200 Comfort panel. Operators on the plant floor can monitor drive speed, output frequency, DC bus voltage, and motor temperature in real time. When a fault condition is detected — such as an overcurrent trip on a SINAMICS S150 regenerative drive — the SCADA system generates an alarm, and the maintenance team can use the 6SL3255-0AA00-2CA0 to connect directly to the affected drive, download the fault trace, and perform parameter corrections on-site or remotely via a VPN-connected engineering station.

For multi-drive applications involving a Siemens CU320-2 PN Control Unit coordinating multiple Motor Modules in a SINAMICS S120 booksize cabinet, the PC Connection Kit enables direct access to the central control unit’s parameter set, allowing engineers to fine-tune axis synchronization, configure safety functions (STO, SS1, SLS), and update firmware across the drive line-up. The integration extends further when a Siemens SINEMA Remote Connect gateway is deployed, enabling secure remote access to the drive network from any location — with the 6SL3255-0AA00-2CA0 serving as the local endpoint for on-site parameter verification and commissioning sign-off.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, drives, and controllers operate in silos, unable to share process data with supervisory systems or engineering tools in a unified, real-time manner. The Siemens 6SL3255-0AA00-2CA0 directly addresses this challenge by providing a standardized, plug-and-play communication interface that eliminates the need for proprietary adapters or complex protocol converters when connecting a PC to a SINAMICS drive.

In legacy installations where drives were configured manually via BOP-2 operator panels or Basic Operator Panels, parameter changes were time-consuming, error-prone, and undocumented. The 6SL3255-0AA00-2CA0 replaces this workflow with a structured, software-driven approach: engineers use STARTER or TIA Portal to create, save, and version-control drive parameter sets, ensuring that every configuration change is traceable and reproducible. This capability is essential for ISO 9001-compliant manufacturing environments where change management and audit trails are mandatory.

For production lines where multiple SINAMICS drives control conveyor belts, pumps, compressors, and fans, the PC Connection Kit enables rapid sequential commissioning — connecting to each drive in turn, uploading the pre-configured parameter set, and verifying operation through the software’s built-in motor identification routine. This reduces commissioning time from days to hours and ensures that every drive on the line operates with identical, validated parameters. When combined with a Siemens SIMATIC S7-1500T motion controller and a PROFINET-connected drive topology, the 6SL3255-0AA00-2CA0 becomes an indispensable tool for system-level validation and production line transparency.

Remote monitoring and diagnostics are further enhanced when the drive network is connected to a cloud-based MindSphere IoT platform or an on-premise SINEMA Server. Drive performance data — energy consumption, operating hours, fault frequency, and load profiles — is continuously streamed to the analytics layer, where AI-driven algorithms detect anomalies and predict maintenance needs before failures occur. The 6SL3255-0AA00-2CA0 supports this ecosystem by ensuring that local parameter management and firmware updates can be performed efficiently, keeping drives synchronized with the latest configuration standards as the system evolves.

Industrial Connectivity FAQ

Q1: What communication protocols does the 6SL3255-0AA00-2CA0 support, and is it compatible with PROFIBUS and PROFINET drives?
The 6SL3255-0AA00-2CA0 uses a USB 2.0 interface on the PC side and connects to the SINAMICS drive’s dedicated PC connection port. It supports parameter communication via the STARTER and TIA Portal software environments, which are compatible with SINAMICS drives using PROFIBUS DP, PROFINET IO, USS, and DRIVE-CLiQ communication interfaces. The kit itself does not act as a PROFIBUS or PROFINET node — it provides a direct engineering access channel independent of the fieldbus topology, meaning it can be used regardless of which network protocol the drive uses for PLC communication.

Q2: How does the 6SL3255-0AA00-2CA0 ensure network stability and data integrity during parameter transfer?
The USB connection established by the 6SL3255-0AA00-2CA0 is a point-to-point link between the engineering PC and the drive, isolated from the plant’s fieldbus network. This architecture ensures that parameter read/write operations do not interfere with live production traffic on the PROFINET or PROFIBUS network. Data integrity is maintained through the USB protocol’s built-in error detection and retransmission mechanisms, and STARTER/TIA Portal software provides confirmation dialogs and checksum verification before writing parameters to the drive’s non-volatile memory.

Q3: Can the 6SL3255-0AA00-2CA0 be used for remote diagnostics and system expansion across multiple SINAMICS drive generations?
Yes. The 6SL3255-0AA00-2CA0 is compatible with multiple SINAMICS drive generations, including G120, G120C, G120D, S120, and S150 series. For remote diagnostics, the kit is used locally at the drive while the engineering PC is accessed remotely via VPN or Siemens SINEMA Remote Connect, enabling off-site engineers to perform parameter adjustments and fault analysis without traveling to the site. For system expansion, the kit supports the commissioning of newly added drives within an existing SINAMICS topology, ensuring seamless integration with the established parameter library and control architecture.

Q4: What does the warranty terms confirmed during quotation cover, and how does ZYPLC verify product quality before shipment?
Every Siemens 6SL3255-0AA00-2CA0 supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Prior to shipment, each unit undergoes a pre-shipment functional test to verify USB connectivity, cable integrity, and compatibility with SINAMICS drive communication ports. Products are sourced from authorized distribution channels and stored in ESD-safe, climate-controlled warehousing to preserve component integrity. In the event of a warranty claim, ZYPLC provides rapid replacement or repair support to minimize production downtime.
