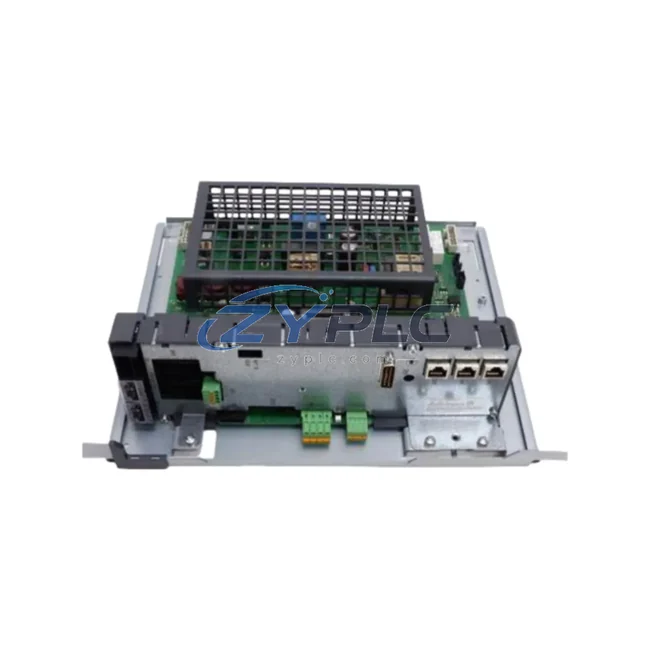

Siemens 6SL3350-6TK00-0BA0 Infeed Module for SINAMICS S150

Siemens 6SL3350-6TK00-0BA0 Infeed Module: Compatibility and Replacement Notes

The Siemens 6SL3350-6TK00-0BA0 is a dedicated infeed module engineered for the SINAMICS S150 cabinet drive platform, designed to serve as the power entry point within a fully coordinated industrial drive architecture. Rather than functioning as a standalone component, this infeed module occupies a critical position at the power layer of the control hierarchy — converting incoming AC supply into a stable DC bus that feeds downstream inverter units, motor modules, and associated drive components. Its role in maintaining bus voltage stability directly determines the reliability of every axis, actuator, and process loop connected to the same drive cabinet.

In modern layered automation systems, the infeed module is not merely a rectifier — it is the architectural anchor of the entire drive train. The 6SL3350-6TK00-0BA0 supports active infeed functionality, enabling regenerative energy feedback to the supply network during braking cycles. This capability is particularly valuable in high-inertia applications such as centrifuges, winders, hoists, and multi-axis coordinated lines where energy recovery directly reduces operating costs and thermal load on the cabinet.

Product Specification Table

System Compatibility Notes

The 6SL3350-6TK00-0BA0 achieves its full value only when integrated within a coherent SINAMICS S150 system architecture. At the control layer, a SIMATIC S7-1500 CPU or S7-400H redundant controller issues coordinated motion and process commands via PROFINET IO, with the infeed module responding to bus voltage regulation commands in real time. The DRIVE-CLiQ internal communication bus connects the infeed module directly to downstream SINAMICS S150 Motor Modules (single-axis or double-axis), ensuring synchronized DC bus management across all drive axes without additional wiring overhead.

At the power layer, the infeed module works in conjunction with a SINAMICS S150 Line Filter and Line Reactor to suppress harmonic distortion and protect upstream transformer infrastructure. The DC bus it supplies feeds one or more SINAMICS S150 Single Motor Modules — such as the 6SL3320 series — which in turn drive induction or synchronous motors across the production line. In multi-drive cabinet configurations, a SINAMICS S150 Braking Module and associated Braking Resistor may be added to the same DC bus to handle peak regenerative energy that exceeds grid feedback capacity.

At the network and communication layer, the system integrates with SCALANCE X series Industrial Ethernet switches to maintain deterministic PROFINET communication between the S7 controller, the drive cabinet, and remote I/O stations. For distributed I/O, ET 200SP or ET 200M remote I/O modules handle field-level signal acquisition — temperature, pressure, flow, and position — feeding process data back to the controller for closed-loop regulation. The infeed module’s stable DC bus is the prerequisite for all of this downstream signal processing to remain consistent under varying load conditions.

At the human-machine interface layer, a SIMATIC HMI TP1200 Comfort Panel or KTP700 Basic Panel provides operators with real-time visibility into DC bus voltage, infeed current, and drive status. Alarm management for infeed faults — overvoltage, undervoltage, phase loss — is handled through the SIMATIC WinCC visualization system, enabling rapid fault isolation without requiring engineers to access the cabinet directly. This integration reduces mean time to repair and supports predictive maintenance scheduling based on drive operating hours and thermal history.

Industrial Application Notes

Manufacturing and Assembly Lines: In automotive body shop and general assembly applications, the 6SL3350-6TK00-0BA0 supplies the DC bus for coordinated multi-axis servo and variable-speed drive systems controlling conveyor indexing, robotic positioning, and press feed mechanisms. Its active infeed capability recovers braking energy from deceleration cycles, reducing net energy consumption across high-cycle-rate production lines.

Power Generation and Utilities: In thermal power plant auxiliary systems — boiler feed pumps, induced draft fans, and cooling water pumps — the infeed module provides the stable power foundation for variable-speed drives that must respond to load dispatch commands within seconds. Its compatibility with SIMATIC S7-400H redundant controllers supports hot-standby architectures where drive availability is a plant-level reliability requirement.

Petrochemical and Refinery Process Control: Compressor trains, extruder drives, and agitator systems in petrochemical plants demand continuous, uninterrupted drive operation. The 6SL3350-6TK00-0BA0’s regenerative infeed design supports controlled ramp-down of high-inertia loads without mechanical braking, reducing wear on couplings and shaft seals while maintaining process stability during planned and unplanned shutdowns.

Water and Wastewater Treatment: Pump station variable-speed drive systems benefit from the infeed module’s ability to maintain DC bus stability across wide flow-rate variations. Integration with PROFINET-connected SCADA systems allows remote monitoring of drive health, enabling water utility operators to schedule maintenance during low-demand periods rather than responding reactively to failures.

Mining and Minerals Processing: Conveyor drives, crusher drives, and mill drives in mining operations impose severe dynamic load demands on drive infrastructure. The active infeed module’s regenerative capability is particularly valuable on downhill conveyor systems, where loaded belt deceleration generates substantial recoverable energy. Combined with SIMATIC S7-1500 motion control, the system supports coordinated multi-drive belt tension management across long conveyor runs.

Product Compatibility FAQ

Q1: Is the 6SL3350-6TK00-0BA0 compatible with existing SINAMICS S150 cabinet configurations, and what commissioning steps are required for system integration?
The 6SL3350-6TK00-0BA0 is designed as a native component of the SINAMICS S150 cabinet drive platform and is fully compatible with existing S150 motor modules, line filters, and DRIVE-CLiQ topology. Commissioning is performed using STARTER or SINAMICS Startdrive software, where the infeed module is automatically detected via DRIVE-CLiQ and parameterized within the drive project. Key commissioning steps include DC bus pre-charging verification, line supply phase sequence confirmation, and active infeed control loop tuning. All units supplied by ZYPLC are tested prior to shipment and include a warranty terms confirmed during quotation covering component defects and operational failures under normal industrial use conditions.

Q2: Can this infeed module support redundant power supply architectures, and how does it interact with the SIMATIC S7-400H controller platform?
The 6SL3350-6TK00-0BA0 can be deployed in parallel infeed configurations where two infeed modules share the DC bus, providing N+1 redundancy for critical drive applications. In conjunction with a SIMATIC S7-400H redundant controller communicating via PROFIBUS DP or PROFINET IRT, the system supports bumpless switchover between active and standby controllers without interrupting drive operation. This architecture is commonly specified in power plant auxiliary drive systems and continuous process lines where unplanned downtime carries significant production or safety consequences. ZYPLC’s engineering team can provide architecture consultation for redundant infeed configurations as part of the procurement process.

Q3: What is the long-term maintenance strategy for the 6SL3350-6TK00-0BA0, and how does ZYPLC support ongoing spare parts availability?
Long-term maintenance for the 6SL3350-6TK00-0BA0 focuses on cooling system inspection (fan and heat sink cleaning), DC bus capacitor condition monitoring, and DRIVE-CLiQ communication integrity verification — typically performed during scheduled annual shutdowns. ZYPLC supports RFQ sourcing for SINAMICS S150 infeed modules and associated components to support both planned replacement cycles and emergency breakdown situations. All units are covered by a warranty terms confirmed during quotation from the date of shipment, with technical support available for installation, parameterization, and fault diagnosis. For facilities managing large SINAMICS S150 fleets, ZYPLC offers volume procurement agreements to ensure consistent spare parts availability across multi-site operations.
